Skip to product information
1 of 7

ASUS

Asus Rog Strix Z490-G Gaming (Wifi 6) Lga 1200 Intel Z490 Intel Motherboard (12+2 Power Stages, Intel 2.5Gb Ethernet, Bluetooth V5.1 And Aura Sync)

Asus Rog Strix Z490-G Gaming (Wifi 6) Lga 1200 Intel Z490 Intel Motherboard (12+2 Power Stages, Intel 2.5Gb Ethernet, Bluetooth V5.1 And Aura Sync)

SKU:STRIX Z490-G GAM WIF-teci

Regular price $434.99
Regular price Sale price $434.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

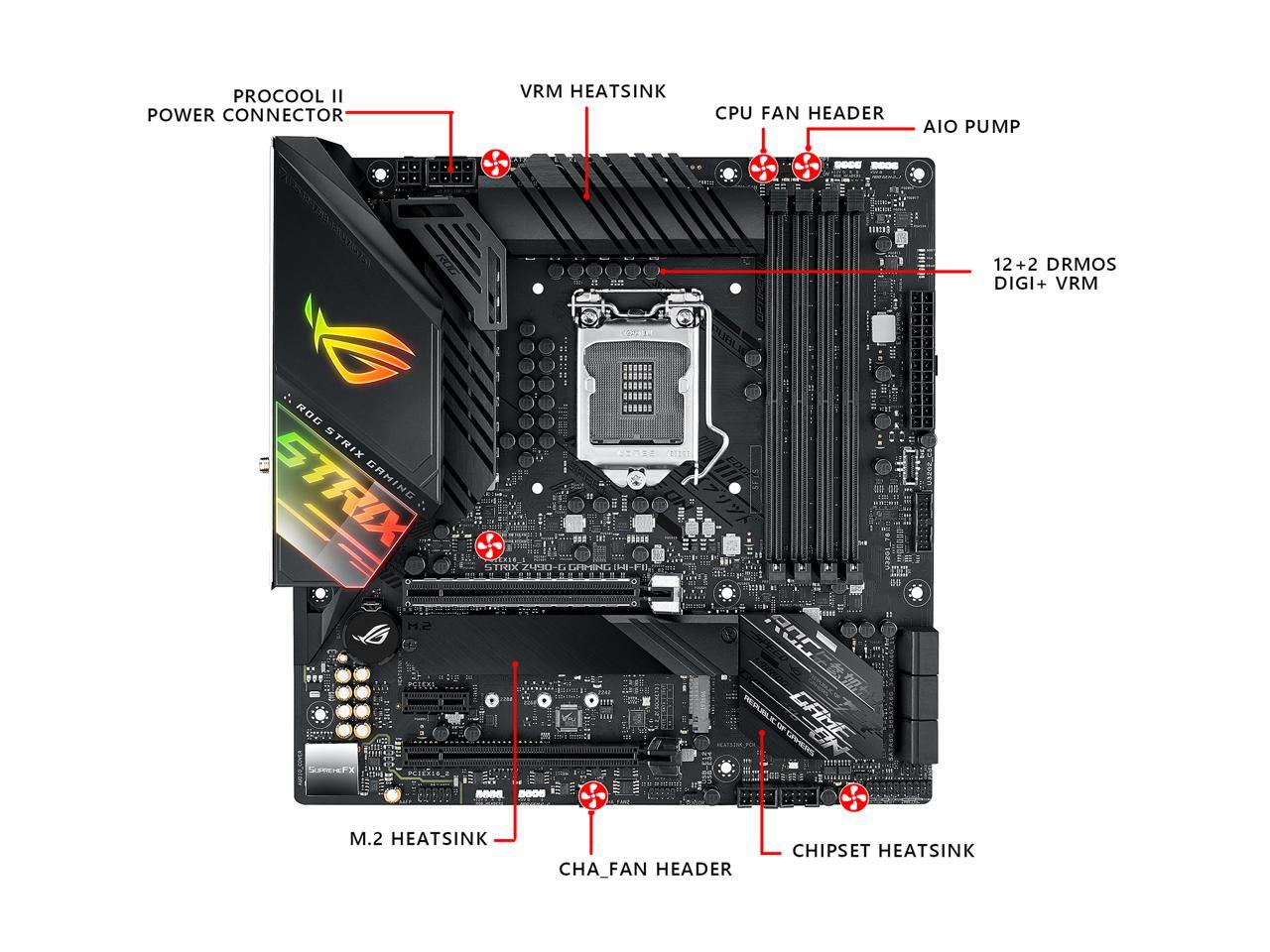

        • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
        • Robust Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
        • Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
        • High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
        • Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 2 Type-C connector
        • Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
        • Unmatched Personalization: Micro ATX small form factor, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
        Model
        Brand ASUS
        Series ROG
        Model STRIX Z490-G GAMING (WI-FI)
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
        * Refer to www.asus.com for CPU support list
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
        ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z490
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic:
        1 x DisplayPort 1.4 **
        1 x HDMI 1.4b *
        * Graphics specifications may vary between CPU types.
        ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

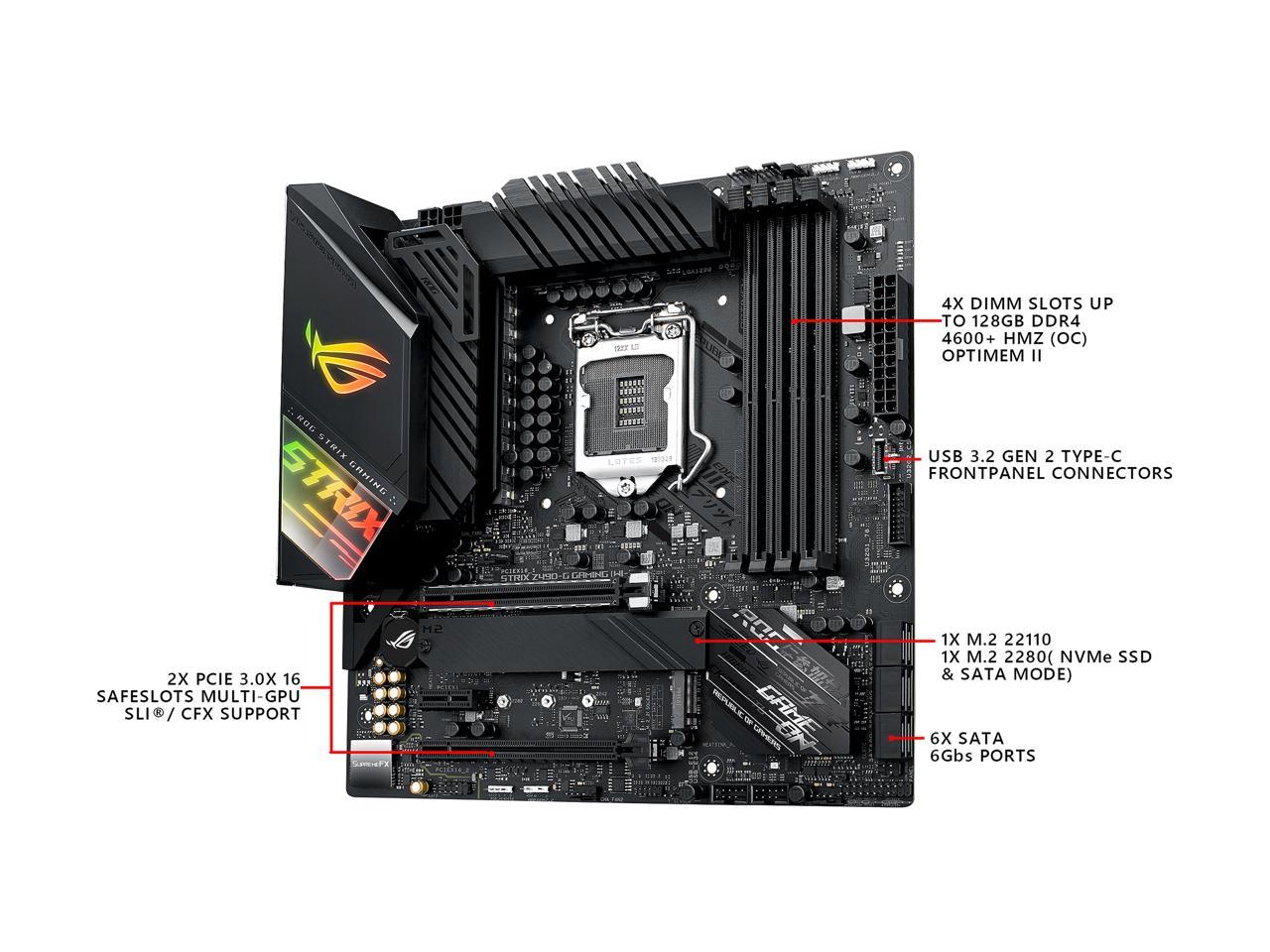

        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
        * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 Intel 10th Gen Processors
        1 x PCIe 3.0 x16 (x16 mode) *1
        Intel Z490 Chipset
        1 x PCIe 3.0 x16 (max at x4 mode) *2

        *1. Support PCIe bifurcation for RAID on CPU function.
        *2. When PCIe 3.0 x16_2 runs at x4 mode, SATA6G_56 will be disabled.
        PCI Express x1 1 x PCIe 3.0 x1
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
        1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
        * M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220A
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Intel I225-V
        Max LAN Speed 10/100/1000/2500Mbps
        Wireless LAN Intel Wi-Fi 6 AX201
        2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
        Supports up to 2.4Gbps max data rate
        Supports dual band frequency 2.4/5 GHz
        Supports channel bandwidth: HT20/HT40/HT80/HT160
        Supports CNVI interface
        Bluetooth Bluetooth v5.1*
        * BT 5.1 function will be ready in Windows 10 build 19041 or later.

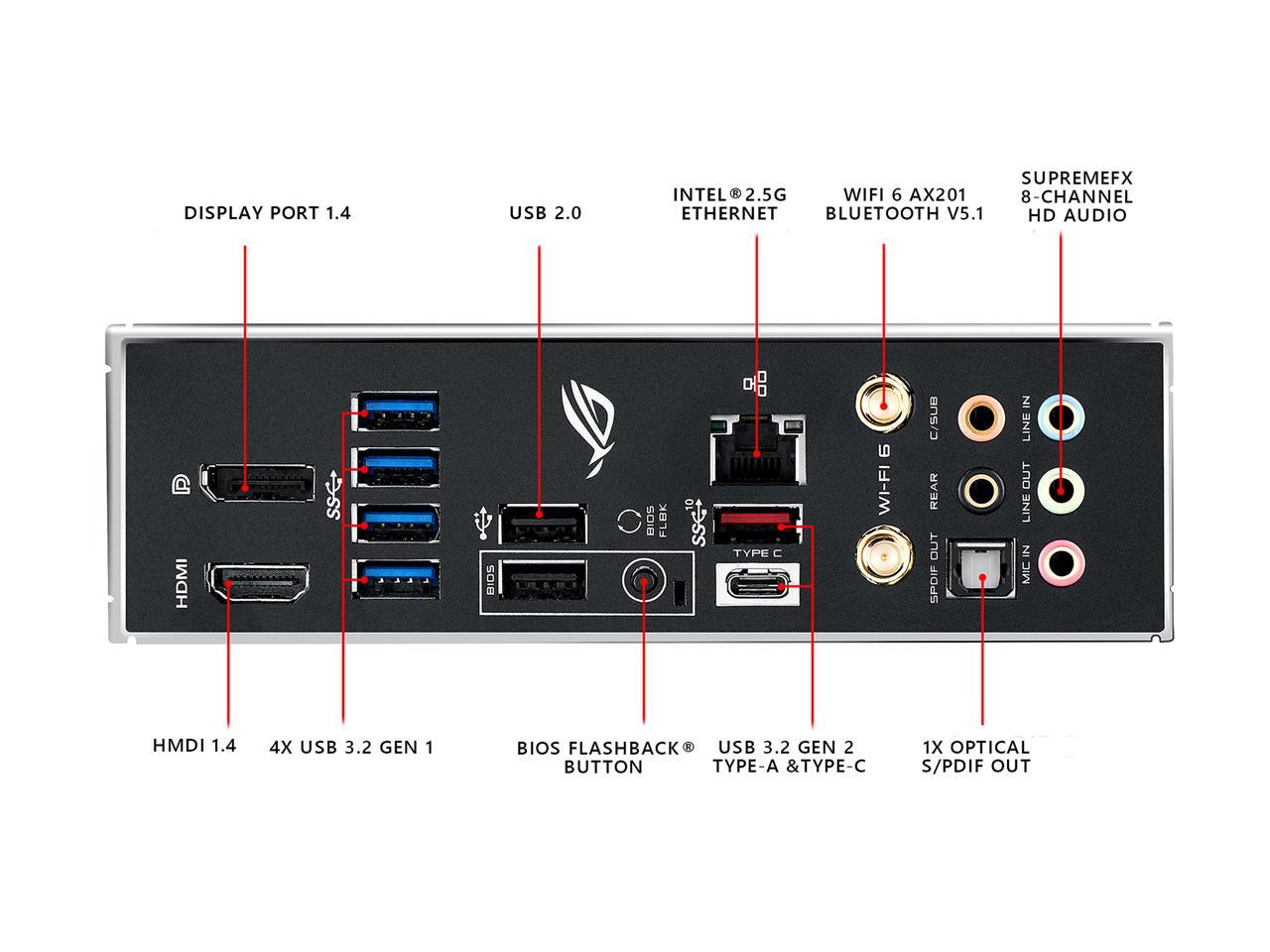

        Rear Panel Ports
        Back I/O Ports 1 x Intel I225-V 2.5Gb Ethernet
        1 x DisplayPort
        1 x HDMI
        2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
        4 x USB 3.2 Gen 1 Type-A
        2 x USB 2.0
        1 x Optical S/PDIF out
        1 x USB BIOS FlashBack Button(s)
        1 x ASUS Wi-Fi Module
        5 x Gold-plated audio jacks
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
        1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        2 x Chassis Fan connector(s)
        1 x W_PUMP+ connector
        2 x Aura RGB Strip Headers
        2 x Addressable Gen 2 header(s)
        1 x Front panel audio connector(s) (AAFP)
        1 x System panel(s)
        1 x Thermal sensor connector(s)
        1 x CPU OV
        1 x Clear CMOS jumper(s)
        1 x VRM_HS_FAN Header

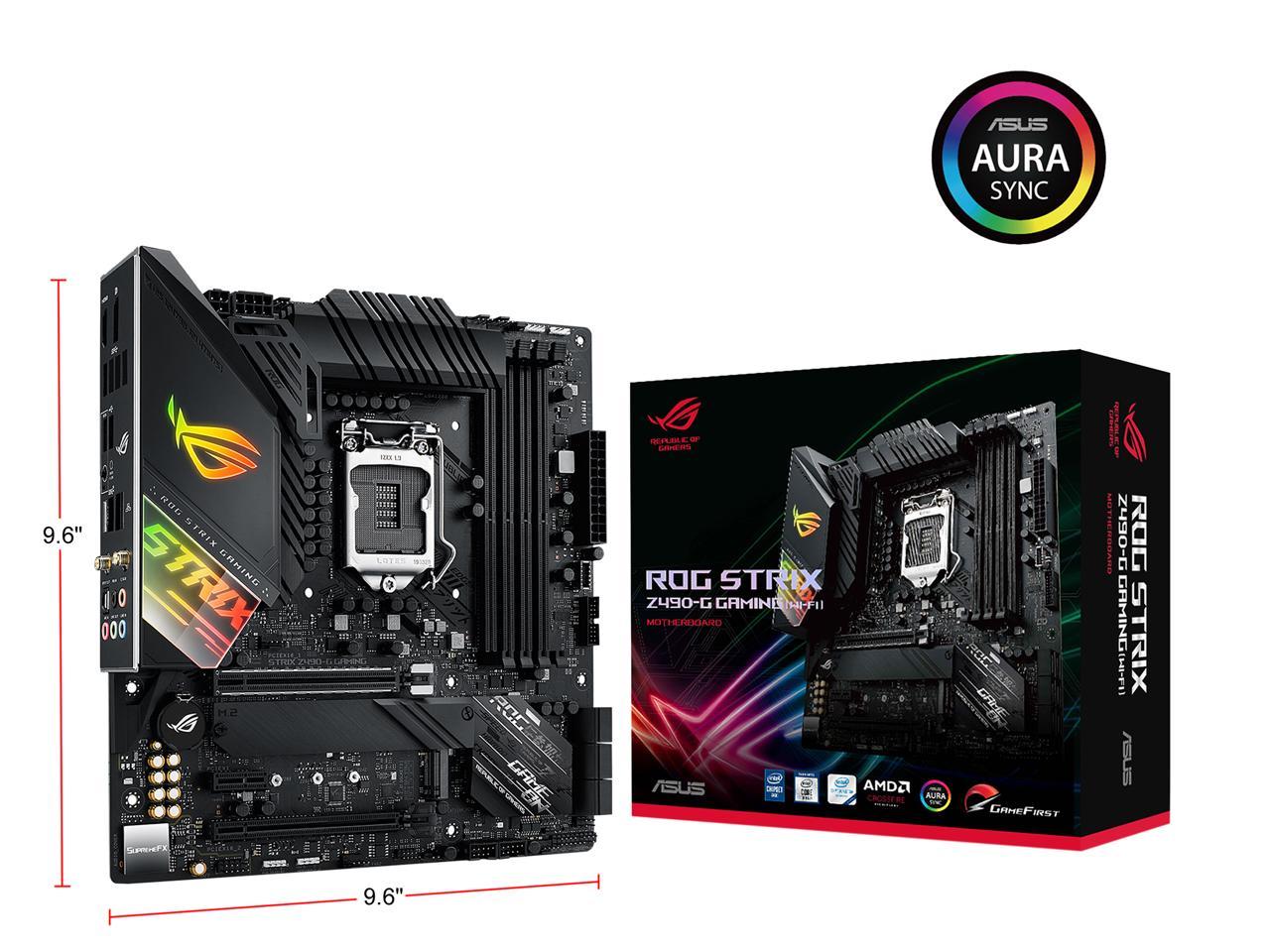

        Physical Spec
        Form Factor Micro ATX
        LED Lighting RGB
        Dimensions (W x L) 243.84 mm x 243.84 mm
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Features
        Features Multi-GPU Support:
        Supports AMD 2-Way CrossFireX Technology

        Software Features:
        ROG Exclusive Software
        - RAMCache III
        - ROG CPU-Z
        - GameFirst VI
        - Sonic Studio III + Sonic Studio Virtual Mixer
        - Sonic Radar III
        - DTS Sound Unbound
        - Overwolf
        - Anti-virus software
        ASUS Exclusive Software
        Armoury Crate
        - Aura Creator
        - Aura Sync
        AI Suite 3
        - 5-Way Optimization with AI Overclocking
        TPU
        EPU
        Digi+ VRM
        Xpert 4
        Turbo app
        - EZ update
        AI Charger
        WinRAR
        UEFI BIOS
        AI Overclocking Guide
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        FlexKey

        ASUS Special Features:
        Extreme Engine Digi+
        - 5K Black Metallic Capacitors
        - ON-semi NCP302045
        - MicroFine Alloy Choke
        ASUS Q-Design
        - ASUS Q-DIMM
        - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
        - ASUS Q-Slot
        ASUS Thermal Solution
        - Aluminum M.2 heatsink
        - Aluminum heatsink design
        ASUS EZ DIY
        - BIOS FlashBack button
        - BIOS FlashBack LED
        - Procool II
        - Pre-mounted I/O shield
        - SafeSlot
        AURA Sync
        - Standard RGB header(s)
        - Addressable Gen 2 RGB header(s)

        BIOS:
        192(128+64)MB Flash ROM, UEFI AMI BIOS

        Manageability:
        WOL by PME, PXE

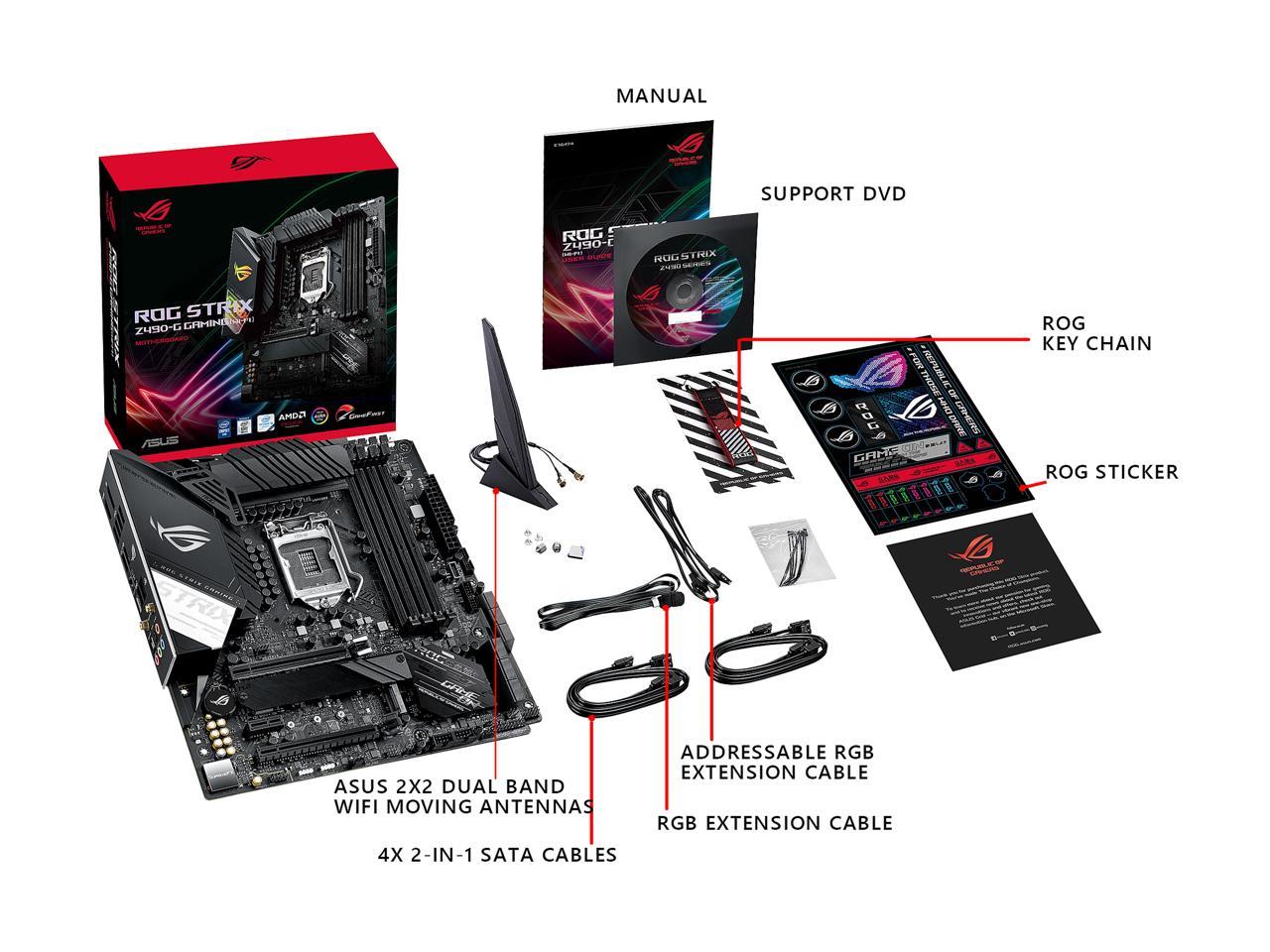

        Packaging
        Package Contents Accessories:
        User's manual
        4 x SATA 6Gb/s cable(s)
        1 x Supporting DVD
        1 x ROG Strix stickers
        1 x Cable ties pack(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x ROG Thank you card
        1 x 2-in-1 Rubber pad
        1 x Wi-Fi moving antenna
        1 x M.2 SSD screw package(s)
        1 ROG key chain
