ASUS

Asus Rog Strix Z490-A Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard

Name: Asus Rog Strix Z490-A Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard
Brand: ASUS
SKU: STRIX Z490-A GAMING
Price: 443.33 USD
Availability: InStock

SKU:STRIX Z490-A GAMING

$443.33

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
Robust Power Solution: 12+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit

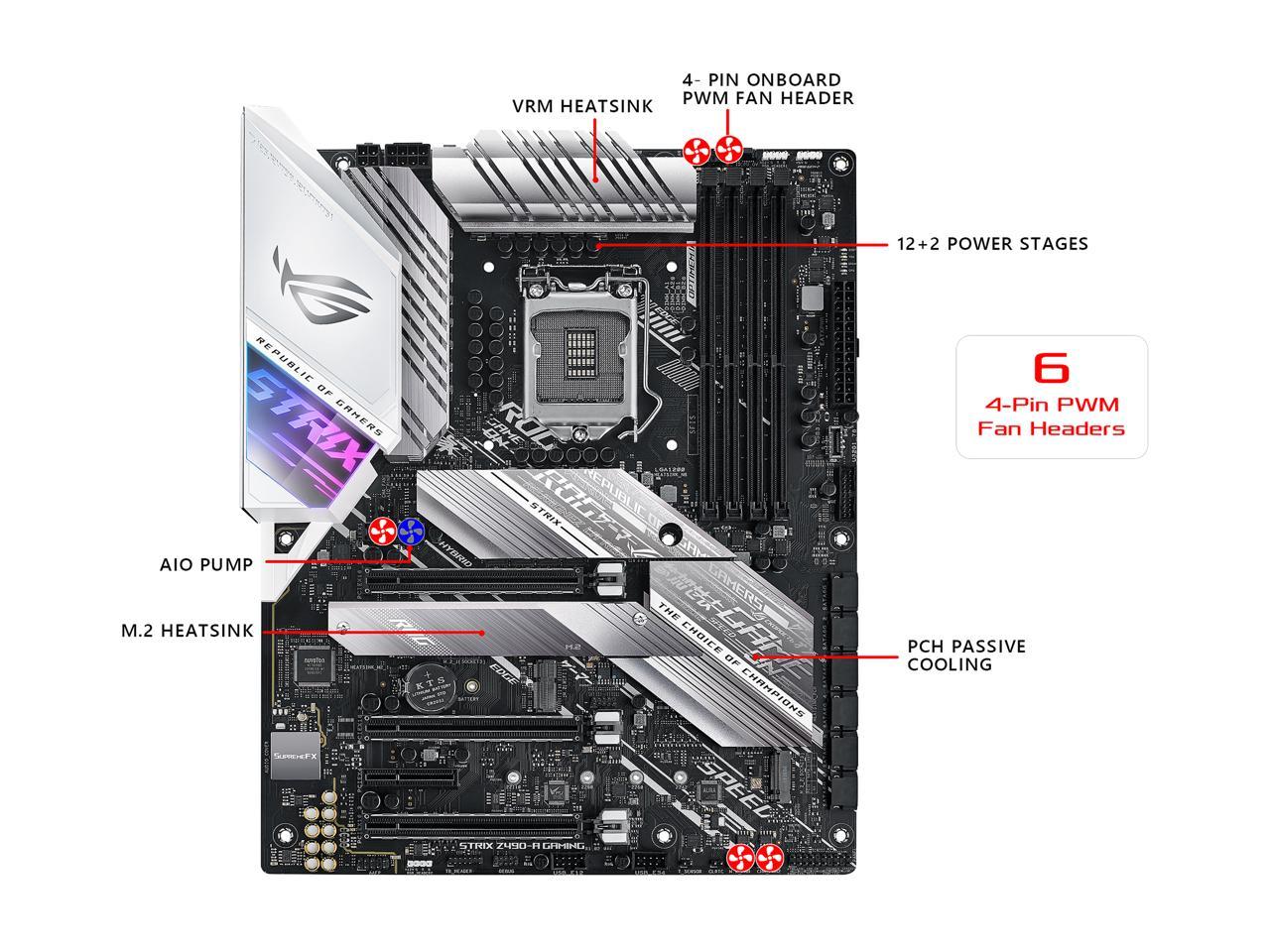

Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 1 Type-C connector
Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

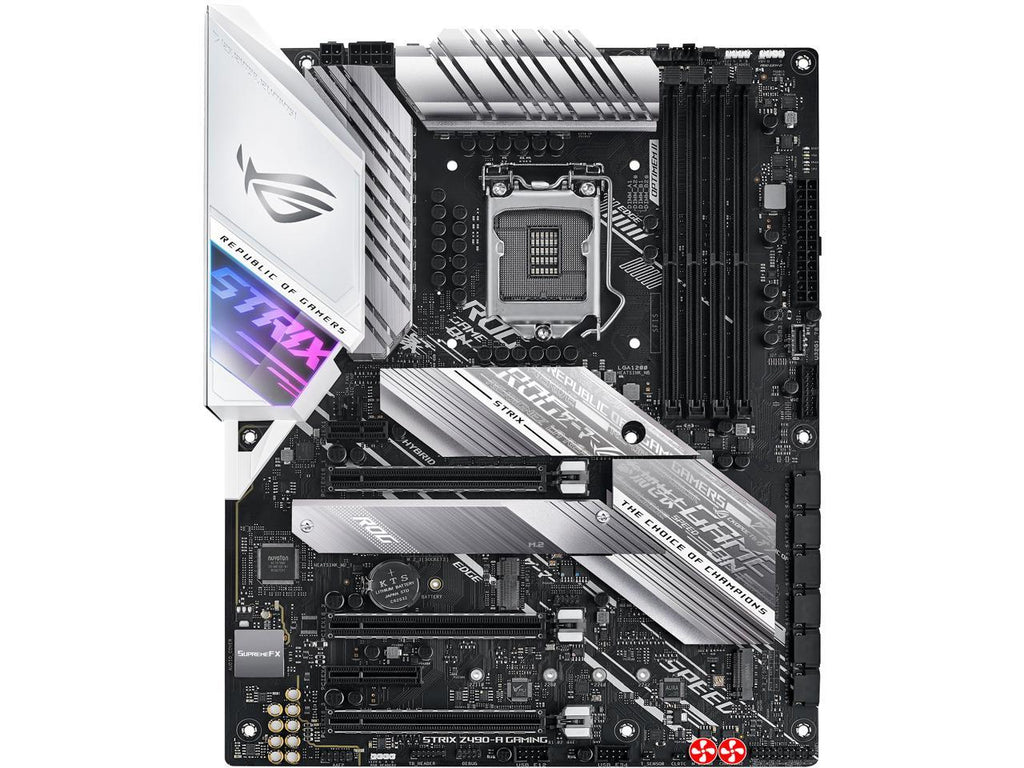

The ROG Strix Z490-A Gaming motherboard is perfect if you're looking for an eye-catching gaming build. Its cyberpunk-inspired aesthetics embodies the vibrant spirit of ROG Strix, and sports an all-new white and silver color scheme. Looks aside, ROG Strix Z490-A Gaming is designed to cope with the demands of 10^th Generation Intel® Core™ processors through its boosted power delivery and an improved cooling design, while featuring AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily.

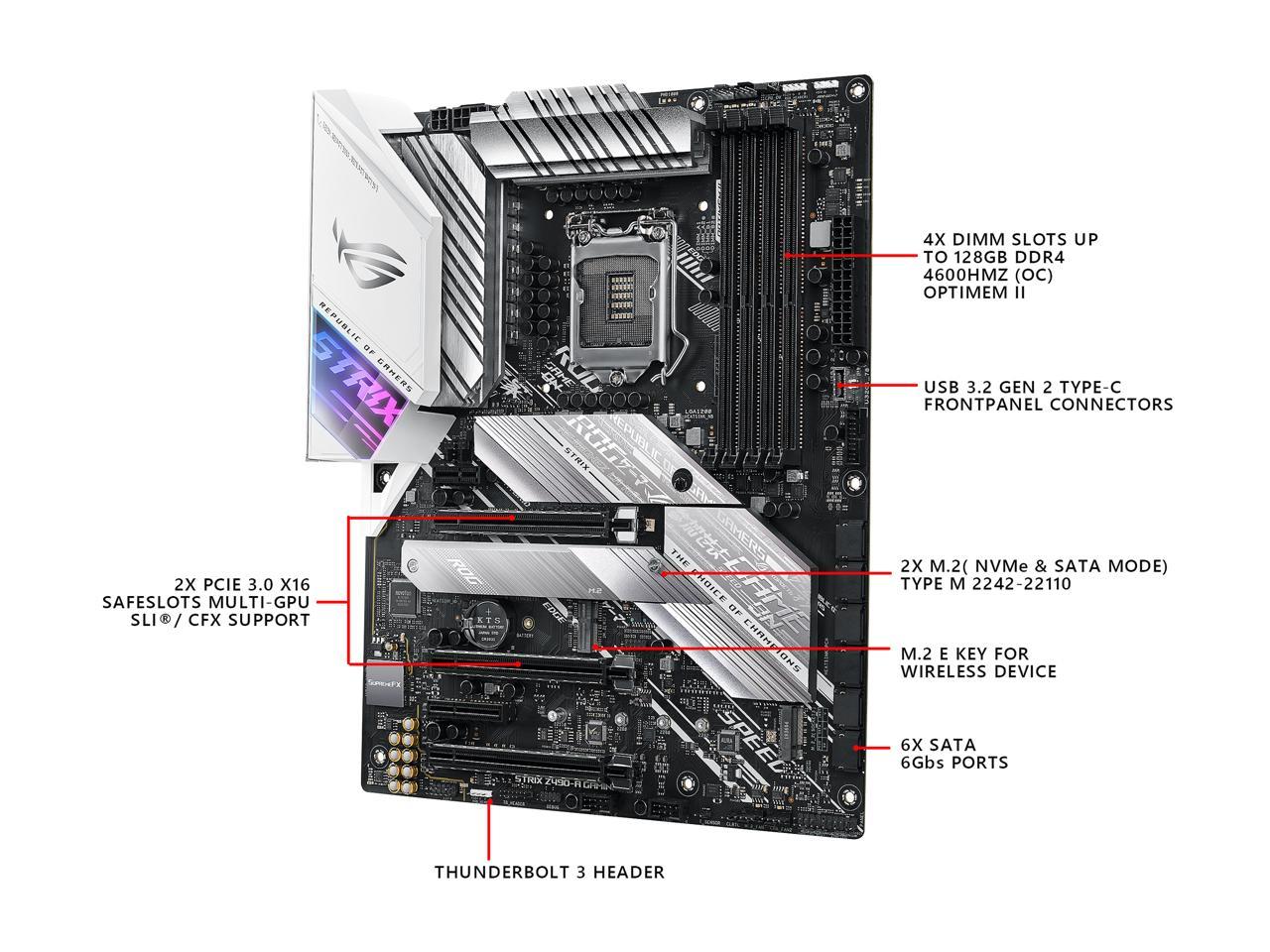

SPEC OVERVIEW

2 x 4-pin Aura RGB headers
1 x 3-pin Addressable Gen 2 RGB header
DDR4 4600 MHz (OC)
‧ 4 x DIMM
‧ Dual-channel
‧ OptiMem II
Intel® LGA 1200 Socket for 10th
Gen Intel® Core™, Pentium® Gold and
Celeron® processors
1 x USB 3.2 Type-C front panel connector

4 x USB 3.2 Gen 1 ports
2 x M.2 Socket 3
‧ 1 x Type 2242-22110, supports SATA & PCIe 3.0 x4 modes
‧ 1 x Type 2242-22110, supports PCIe 3.0 x4 mode
M.2 E Key for wireless device support
6 x SATA 6Gb/s
FlexKey

ROG Patented Pre-mounted I/O Shield

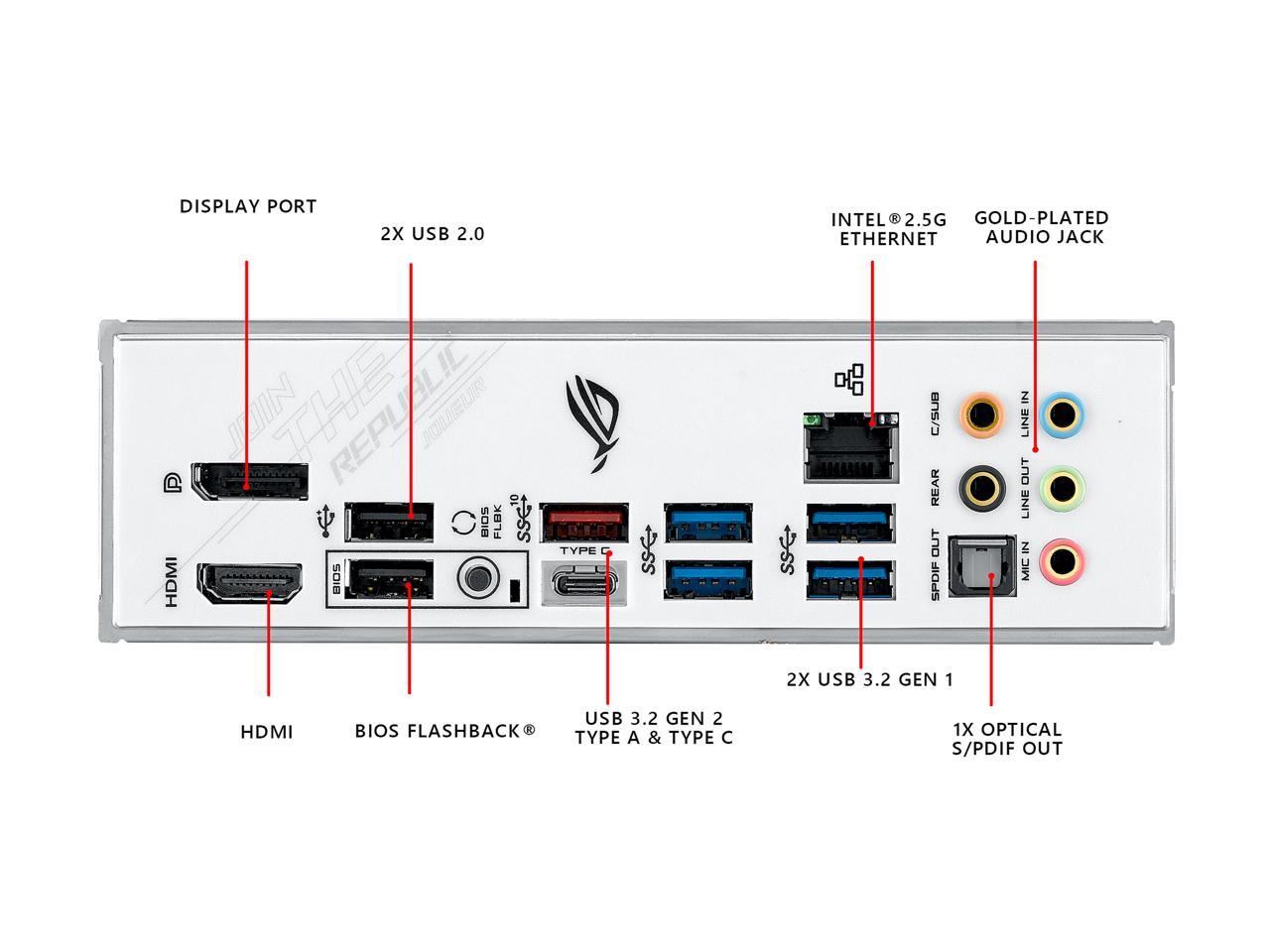

‧ DisplayPort 1.4
‧ HDMI™ 1.4
‧ BIOS FlashBack™ button
2 x USB 3.2 Gen 2 ports
‧ 1 x Type-A
‧ 1 x Type-C
Intel® I225-V Gigabit LAN
‧ ROG GameFirst VI
‧ Anti-surge LANGuard
Optical S/PDIF out
5 x Gold-plated audio jacks

Multi-GPU CFX support
‧ 3 x PCIe 3.0 x16 Safeslots (support x 16, x8/x4/x4 modes)
‧ 1 x PCIe 3.0 x4 slot (supports x 2 modes)
‧ 1 x PCIe 3.0 x1 slot
SupremeFX S1220A CODEC
‧ Impedance sense
‧ High quality output and input
‧ SupremeFX shielding
‧ Dual OP amplifiers
Sonic Studio III
Sonic Studio Virtual Mixer
Sonic Radar III
DTS® Sound Unbound
Thunderbolt header

ALL-ROUND PERFORMANCE

ROG Strix Z490-A Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.

Intelligent Control

ROG AI OVERCLOCKING

ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

Real-time Adjustments

The software monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooler to predict the optimal configuration for each individual system.
