Description
- AMD X570
- Supports AMD Ryzen 5000 / 3000 / 2000 Series Processors
- Supports AMD Ryzen 5000 / 4000 / 3000 / 2000 G-Series Processors
- DDR4 5100(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors)
- DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 Series / 3000 Series Processors)
- DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 2000 Series Processors)
- DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 2000 and 3000 G-Series Processors)
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

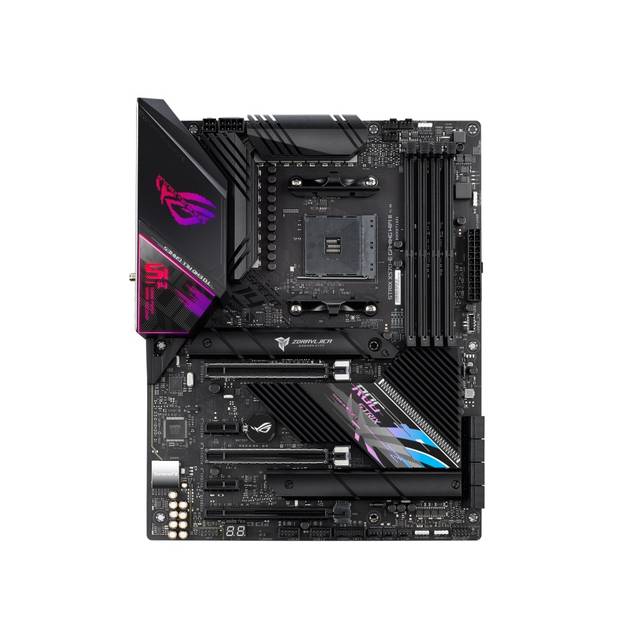

ROG STRIX X570-E GAMING WI-FI II
AMD X570 ATX gaming motherboard with PCIe® 4.0, 12+4 power stages, and Wi-Fi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning, including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Performance

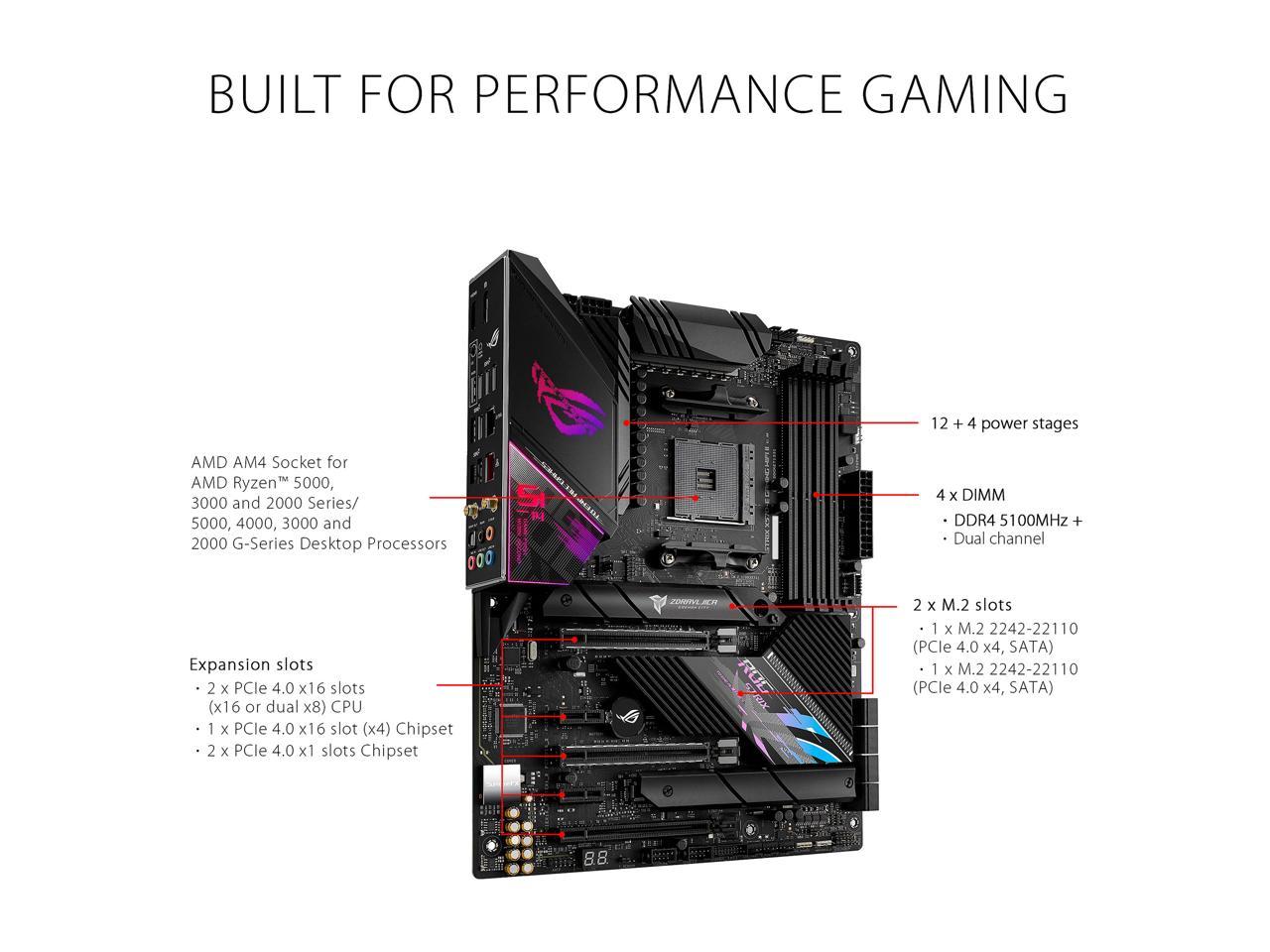

BUILT FOR PERFORMANCE GAMING
- AMD AM4 Socket for AMD Ryzen™ 5000, 3000 and 2000 Series/ 5000, 4000, 3000 and 2000 G-Series Desktop Processors
- Expansion slots
- 2 x PCIe 4.0 x16 slots (x16 or dual x8) CPU
- 1 x PCIe 4.0 x16 slot (x4) Chipset
- 2 x PCIe 4.0 x1 slots Chipset
- 12 + 4 power stages
- 4 x DIMM
- DDR4 5100 MHz +
- Dual channel
- 2 x M.2 slots
- 1 x M.2 2242-22110 (PCIe 4.0 x4, SATA)
- 1 x M.2 2242-22110 (PCIe 4.0 x4, SATA)
Cooling

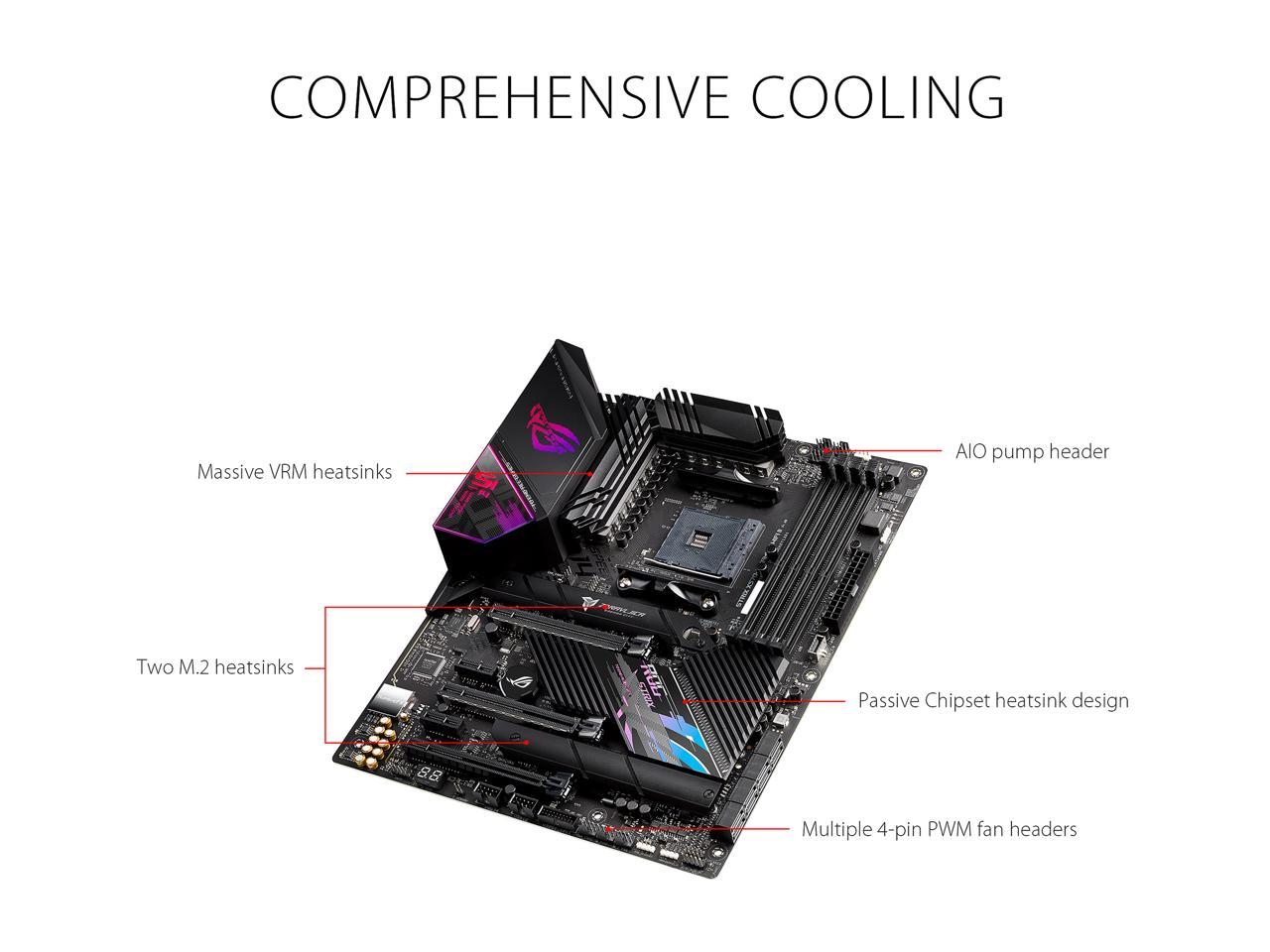

COMPREHENSIVE COOLING
- Massive VRM heatsinks
- Two M.2 heatsinks
- AIO pump header
- Passive chipset heatsink design
- Multiple 4-pin PWM fan headers
Gaming Immersion

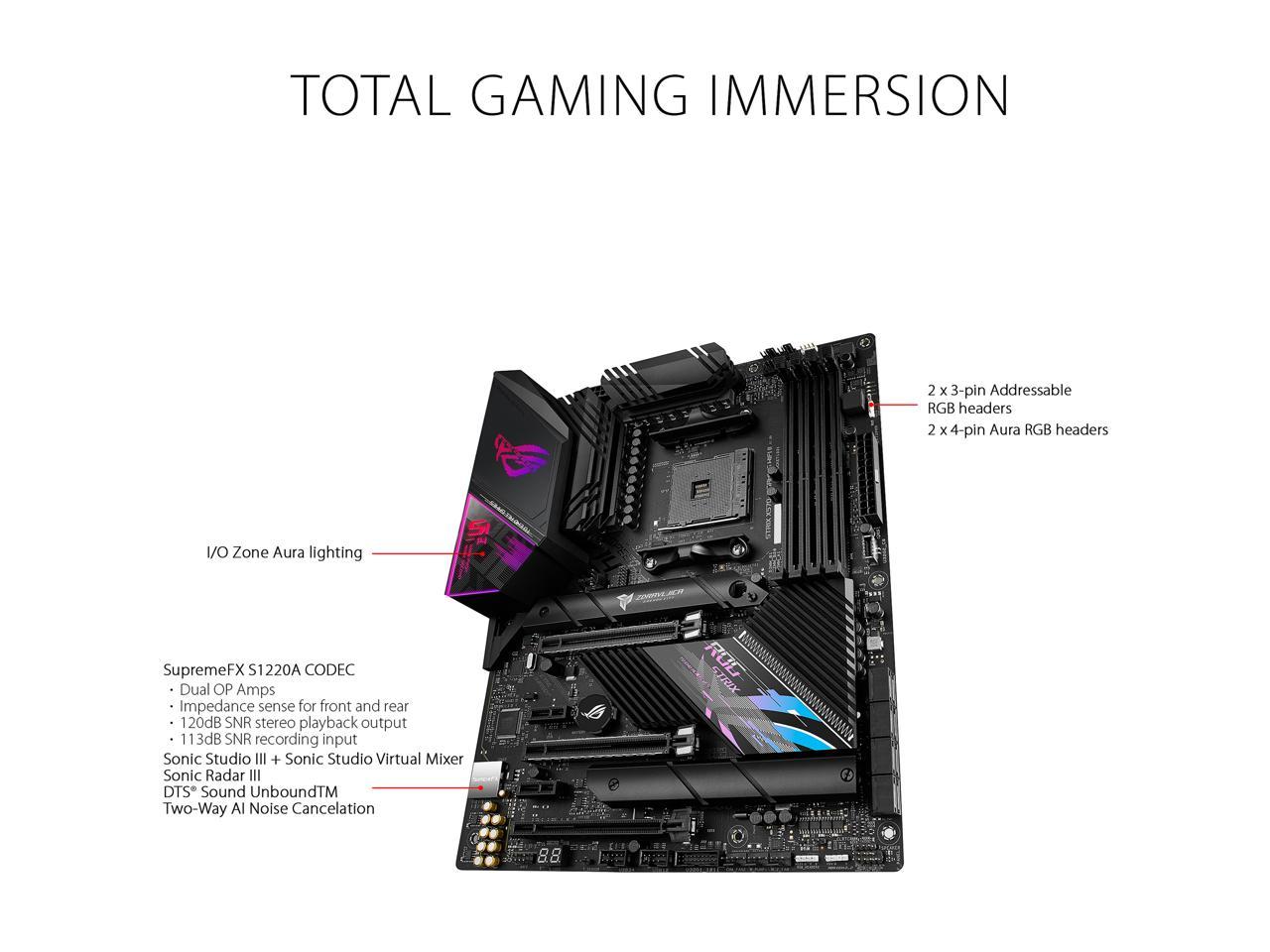

TOTAL GAMING IMMERSION
- I/O Zone Aura lighting
- SupremeFX S1220A CODEC
- Dual OP Amps
- Impedance sense for front and rear
- 120 dB SNR stereo playback output
- 113 dB SNR recording input
Sonic Radar III
DTS® Sound Unbound
Two-Way AI Noise Cancelation
- 2 x 3-pin Addressable RGB headers
2 x 4-pin Aura RGB headers
Connectivity

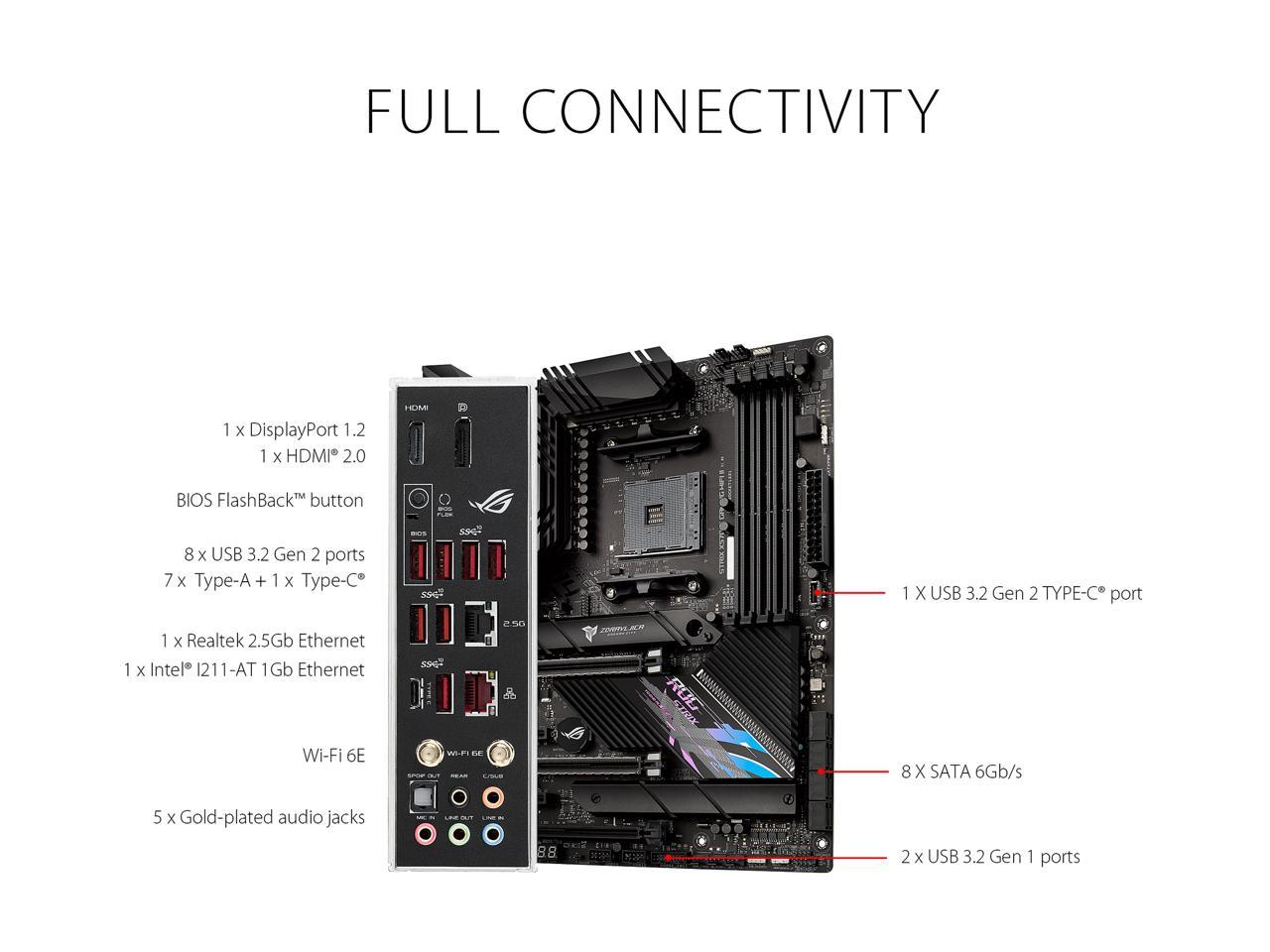

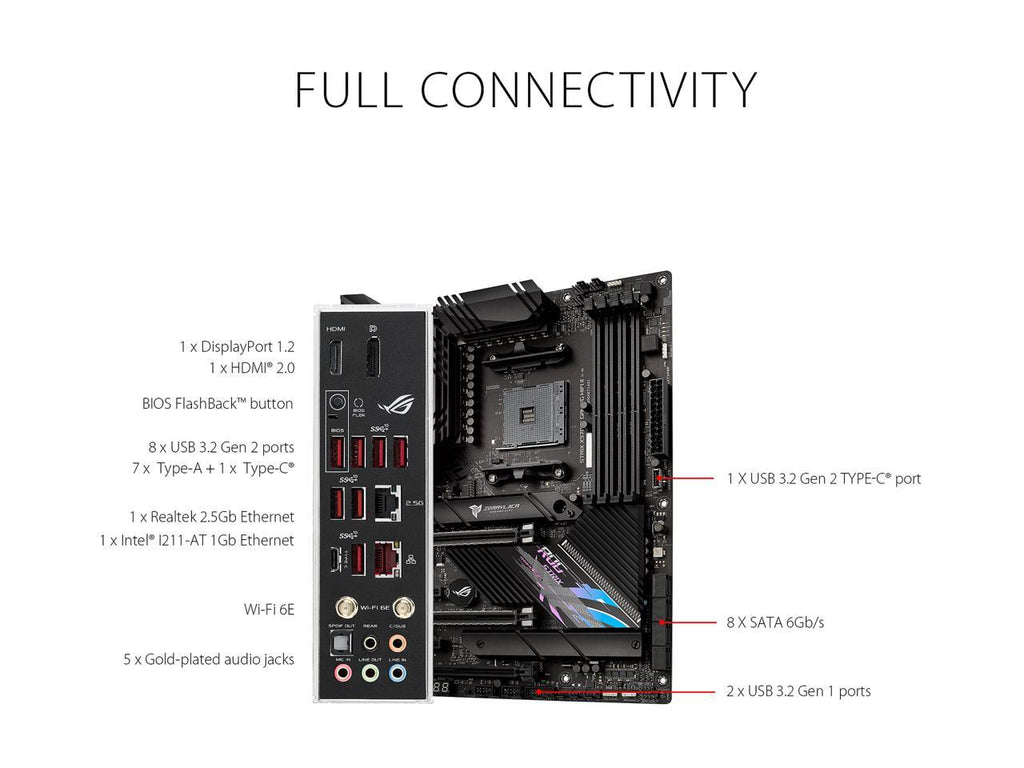

FULL CONNECTIVITY
- 1 x DisplayPort 1.2
- 1 x HDMI® 2.0
- BIOS FlashBack™ button
- 8 x USB 3.2 Gen 2 ports
7 x Type-A + 1 x Type-C® - 1 x Realtek 2.5 Gb Ethernet
- 1 x Intel® I211-AT 1 Gb Ethernet
- Wi-Fi 6E
- 1 x optical S/PDIF out
- 5 x Gold-plated audio jacks
- 1 x USB 3.2 Gen 2 Type-C® port
- 8 x SATA 6 Gb/s
- 2 x USB 3.2 Gen 1 ports
ALL-ROUND PERFORMANCE
Comprehensive cooling, upgraded power delivery to fuel the Ryzen CPUs, and superfast data transfer provide the foundation you need to exploit the full potential of the components in your top-tier gaming build.Cooling
COOLING INNOVATION
-
VRM Heatsink and L-Shaped Heatpipe
The two VRM heatsinks are connected by an L-shaped heat pipe to provide ample surface area and mass to deal with the heat generated by the power array. -
Thermal pad
A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
-
Dual M.2 heatsinks
The M.2 heatsinks keeps the M.2 SSD at optimum operating temperature for consistent performance and reliability. -
Passive chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
COOLER BY DESIGN
ROG Strix X570 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.CPU
CPU Fan Header
A dedicated PWM/DC fan header for CPU coolers.AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups.Water Pump Header
A dedicated header that can supply over 3 amps to high-performance PWM or DC water pumps.M2
M.2 Heatsink
Keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.M.2 Backplate
A dedicated M.2 fan header helps keeps temperatures low for improved performance and longevity.* The M.2 fan holder is 3D-printable.
CHASSIS
4-pin PWM/DC Fan Header
Each header supports auto-detection of PWM or DC fans.
* Supports ASUS HYDRANODE.
* Supports ASUS HYDRANODE.
Power Design
ALLOY CHOKES AND DURABLE CAPACITORS
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
Storage & Memory
Dual PCIe 4.0 M.2
Dual PCIe® 4.0 M.2 slots that are compatible with the 22110 socket provide maximum storage flexibility and the fastest data speeds available with the AMD Zen 3 platform. The slots also offer NVM Express® RAID support.ASUS OptiMem II
The ROG Strix X570-E Gaming Wi-Fi II supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.
DYNAMIC OC SWITCHER
Dynamic OC Switcher gives Ryzen processors newfound agility to crush multi-threaded workloads and slice through single-threaded apps. Simply configure a manual overclock for heavy tasks and then select a current threshold for Dynamic OC Switcher to automatically flip between your profile and AMD Precision Boost Overdrive (PBO).* Performance shown is for illustration purposes only.
IMMERSIVE GAMING
Get deeper into the game with buffed networking for smoother online play and customizable audio that amplifies every detail and intelligently banishes unwanted noise.Networking
Wi-Fi 6E
Onboard Wi-Fi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.
Dual Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
-
Wi-Fi 6E Antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands. -
Adjustable Design
Four-way positioning enables better signal reception. -
Magnetic Base
A powerful magnetic base secures the antenna on the top or side of the PC case.
Audio
ROG SUPREMEFX
Built-in ROG SupremeFX audio technology ensures pristine audio. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
AUDIO COVER
Effective shielding against electromagnetic interference preserves the integrity of audio signals to ensure the best sound quality.
TWO-WAY AI NOISE CANCELATION
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed, so you can hear and be heard with perfect clarity while gaming or during calls.* A splitter cable is necessary when using a 3.5 mm headset.
500 M
Deep-learning Database
Deep-learning Database
Audio
Input/output
Input/output
High
Fidelity
Fidelity
Minimal
Performance Impact
Performance Impact
COD: MW - FPS (2560 x 1440)
* Testing configuration: CPU: 11th Gen Intel Core Processor; Motherboard: ROG MAXIMUS XIII HERO; Graphics card: NVIDIA RTX 3070; DRAM: G.SKILL F4-3200C16Q-32GVK; Power: SUPER FLOWER 550 W; HDD: ADATA SX910 SSD 128G; Cooling: Enermax T.B.APOLLISH; Game: CALL OF DUTY: MODERN WARFARE; Voice Communication App: Discord (In-app noise-canceling effects disabled); Background noise: Keyboard typing, mouse clicking, people talking, and music playing.
* Actual performance varies by configuration.
* Actual performance varies by configuration.
HEAR THE DIFFERENCE
.jpg)
0:17
.jpg)
0:17
AI OFF
AI ON
Background noise
Other human voice
Human speech
PLAY IN STYLE
Pair the ROG Strix X570-E Gaming Wi-Fi II with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.Customization
ID design
UNDENIABLY ROG STRIX
The ROG Strix X570-E Gaming Wi-Fi II boasts striking aesthetics with a pixelated ROG logo and cyber text across the VRM cover, as well as diagonal grooves that cut across the chipset heatsink and motherboard. Together, they combine to create a motherboard that’s distinctively ROG.
Aura Sync
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music
Smart
The addressable Gen 2 RGB headers on the Strix X570-E Gaming Wi-Fi II are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
DIY Friendly
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
BIOS FLASHBACK™
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-CODE
Diagnostic codes provide a reference for fast and easy lookup of common installation and component issues.
PRE-MOUNTED I/O SHIELD
The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.Certified Compatibility
CERTIFIED COMPATIBILITY
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices.ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. The highly acclaimed AIDA64 utility is also included to give you a hand with system setup and performance tuning.Optimization
5-WAY OPTIMIZATION
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
DIGI+ POWER CONTROLS
PRECISE DIGITAL POWER CONTROL
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.ADVANCED MODE
When you’re ready for a deeper dive into the configuration of your system, delve into the UEFI’s Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you’re ready to take charge, parameters have the granularity to dial in performance just the way you want.
Prediction
AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
AI OC Guide
The AI OC Guide allows you to enable the AI Optimization or view a quick guide.
SMART
Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Search Function
Quickly and easily find the option or setting you're looking for.
ASUS User Profile
Port configuration settings between different BIOS versions, or share them with friends.
AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
AI OC Guide
The AI OC Guide allows you to enable the AI Optimization or view a quick guide.
SMART
Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Search Function
Quickly and easily find the option or setting you're looking for.
ASUS User Profile
Port configuration settings between different BIOS versions, or share them with friends.
EZ MODE
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
Z Tuning Wizard
Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
View SATA port details for easy device recognition.
Fast Clock Adjustment
Use mouse controls to change the time and date.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
View SATA port details for easy device recognition.
Fast Clock Adjustment
Use mouse controls to change the time and date.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Audio Effect
SONIC STUDIO III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
APP-SPECIFIC PROFILES
Apply customized audio settings to various applications, so that each is perfectly tuned to the way you want to listen.
* A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process audio that's true to life.
DTS: SOUND UNBOUND
ROG Strix X570 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.
STEREO SOUND
Discrete left and right audio channels enable headphone or two-speaker setup.
SURROUND SOUND
Audio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.SPATIAL SOUND
A virtual audio-sphere effect creates astonishing 360° immersion – with you at the center, where sounds seem to arrive from all directions.
AIDA64 EXTREME
ROG Strix X570-E Gaming Wi-Fi II includes a 60-day AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers*.* Support available for ROG Ryujin II and later models.
ARMOURY CRATE
Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.* Windows 10 is required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
RAMCACHE III
RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. A Smart mode automatically caches all storage devices to maximize system resources.
- The product (electrica, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
About ASUS
ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
General Information
| UPC | 195553453448 |
|---|
