Description
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5
- AI Motherboard : AI overclocking, AI cooling and Two-way AI noise cancellation
- Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support
- Boosted Memory Performance: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking with ASUS OptiMem II
- New Prime Aesthetics: New ID design, sliver scheme, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
- All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

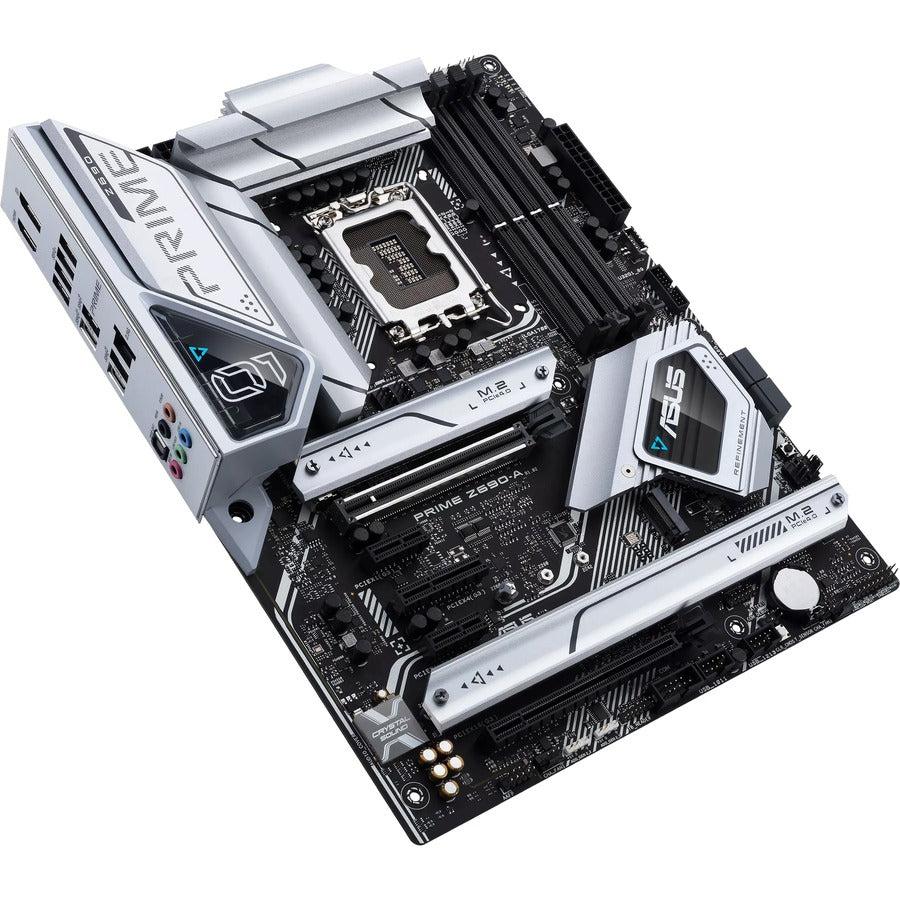

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI®, DisplayPort™, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
- Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
- AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
- Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
- Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

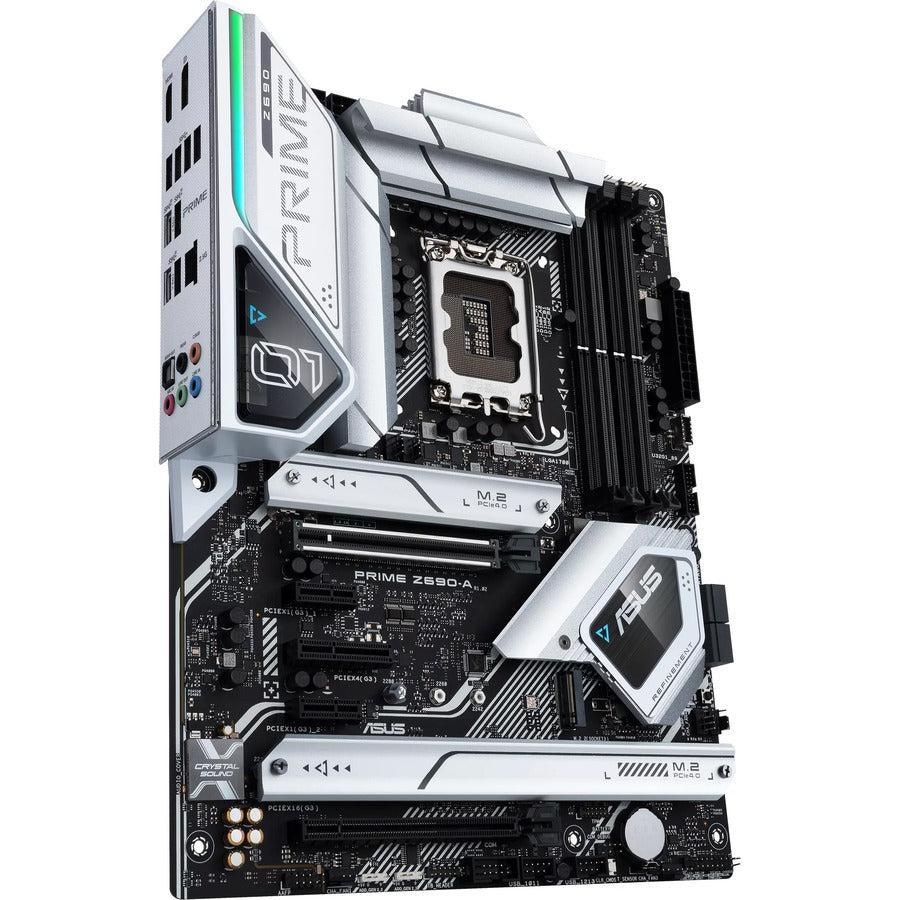

ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

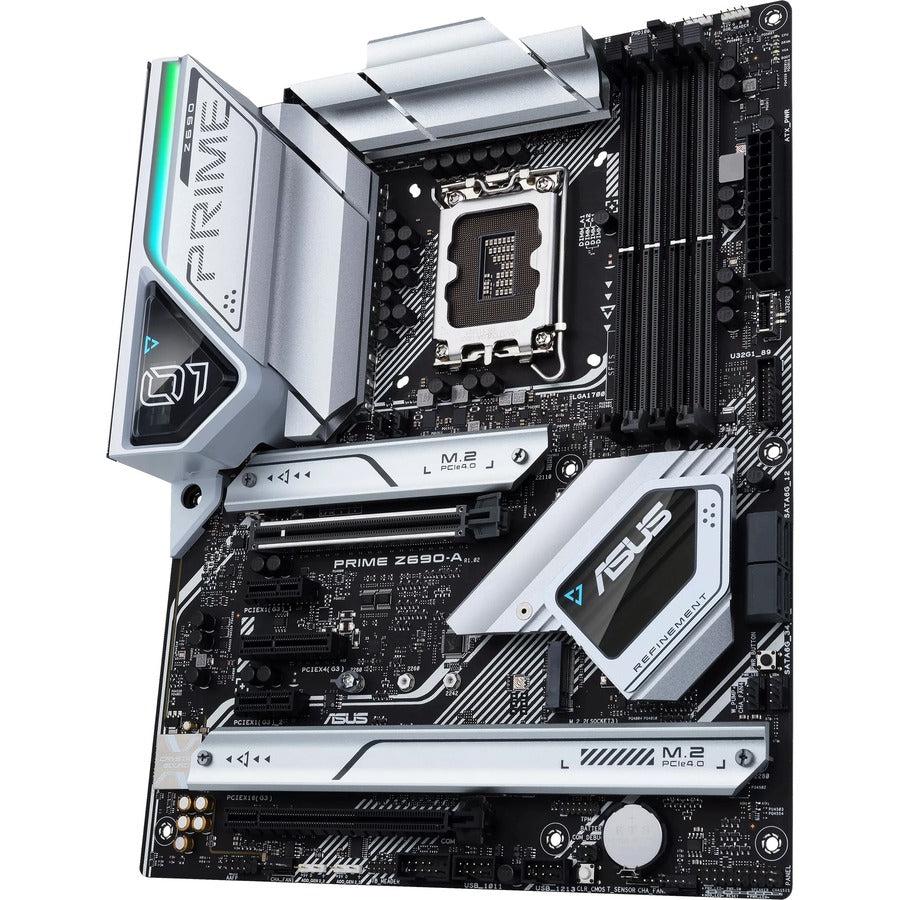

Performance
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
-
Expansion slots
- 1 x PCIe 5.0 x16 SafeSlot
- 1 x PCIe 3.0 x4
- 2 x PCIe 3.0 x1
- 1 x PCIe 3.0 x16 (max @ x4)
- 16+1 DrMOS
-
4 x DIMM
- DDR5 6000 (OC)
- Dual Channel
- OptiMem II
-
4 x M.2 slots
- 2 x M.2 22110 (PCIe 4.0 x4 mode)
- 1 x M.2 2280 (PCIe 4.0 x4 mode)
- 1 x M.2 2280 (PCIe 4.0 x4 & SATA modes)
Cooling
- CPU fan headers
- VRM heatsinks
- Two M.2 heatsinks for three M.2 slots
- AIO pump header & CHA fan header
- Chipset heatsink
- W_PUMP+ header
- CHA fan headers
Personalization
- Aura lighting
-
Crystal Sound 3
- Realtek® S1220A Codec
- DTS:X® Ultra
- 2 x AURA Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x AURA Addressable Gen 2 headers

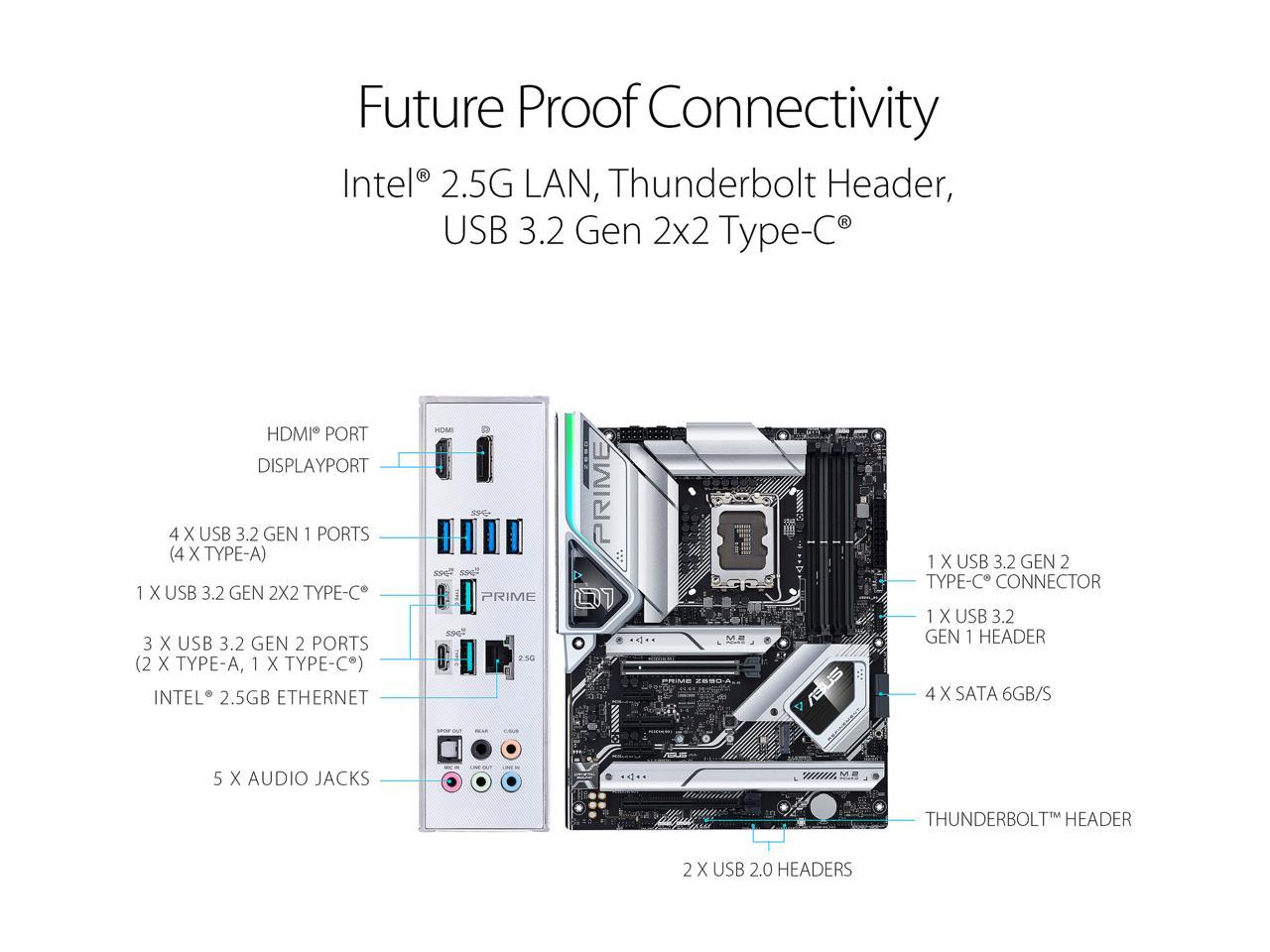

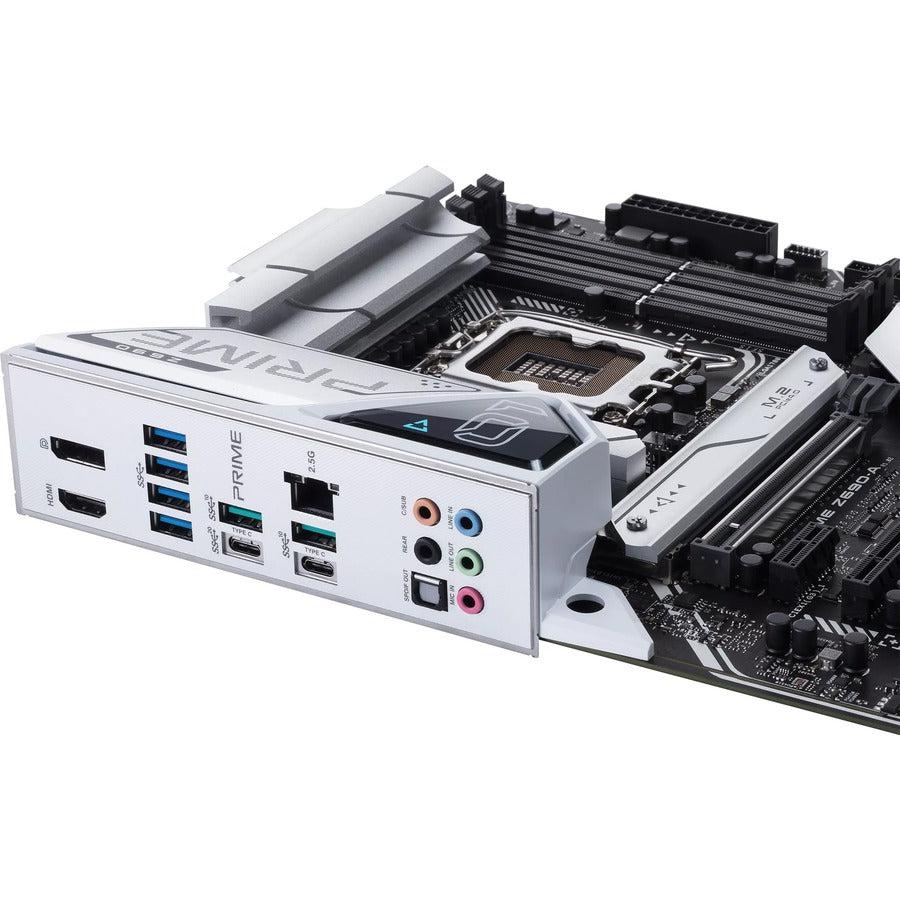

Connectivity
- HDMI® port
DisplayPort - 4 x USB 3.2 Gen 1 ports
(4 x Type-A) - 1 x USB 3.2 Gen 2x2 Type-C®
- 3 x USB 3.2 Gen 2 ports
(2 x Type-A, 1 x Type-C®) - Intel® 2.5 Gb Ethernet
- 5 x Audio Jacks
- 1 x USB 3.2 Gen 2 Type-C® Connector
- 1 x USB 3.2 Gen 1 header
- 4 x SATA 6 Gb/s
- Thunderbolt™ header
- 2 x USB 2.0 headers
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.5-Way Optimization
ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig.- Easy Optimization is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration.
- A stress test feature allows you to optimize and overclock for CPU- or memory-centric workloads.
EPU
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
ASUS AI Overclocking
ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
AI Overclocking at a Glance
Designed by Experts
At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.Predictive Edge
The algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.Real-time Adjustments
The software monitors workload, system temperature, fan speed and power draw every minute, and it makes real-time adjustments to ensure ongoing optimal performance.
AI Overclocking in AI Suite
Onboard intelligence offers automated overclocking with full, flexible control available via Easy Optimization within AI Suite (in Windows).AI Cooling
ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.Self-Adaptive Fan Tuning
CPU Temperature Detection
AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.Automated Optimization
Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.*Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / W_PUMP+ / AIO Pump.
Ongoing Monitoring
AI Cooling continues to monitor the system and adjust fan speed based on current load.
Manual Tuning
Fan Speed References
For those who prefer manual control, AI Cooling provides reference points on a graph that details fan speed in relation to temperature, providing a guide for fan settings.UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want.
MemTest 86
This memory testing software is pre-installed into the UEFI BIOS and lets you pinpoint memory issues with just one click, without the need for a USB stick or going into the OS. It stores the memory report in the BIOS archives for reference.
Prediction
AI Overclocking monitors system vitals such as temperature, fan speed, and power draw to estimate overclocking performance.
AI Overclocking Guide
Refer to the guide offered in the UEFI BIOS for step-by-step instructions detailing how to use AI Overclocking.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions, or share them with friends.
FlexKey
Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.
EZ Mode
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
AI Overclocking
Enable AI Overclocking via a shortcut.Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

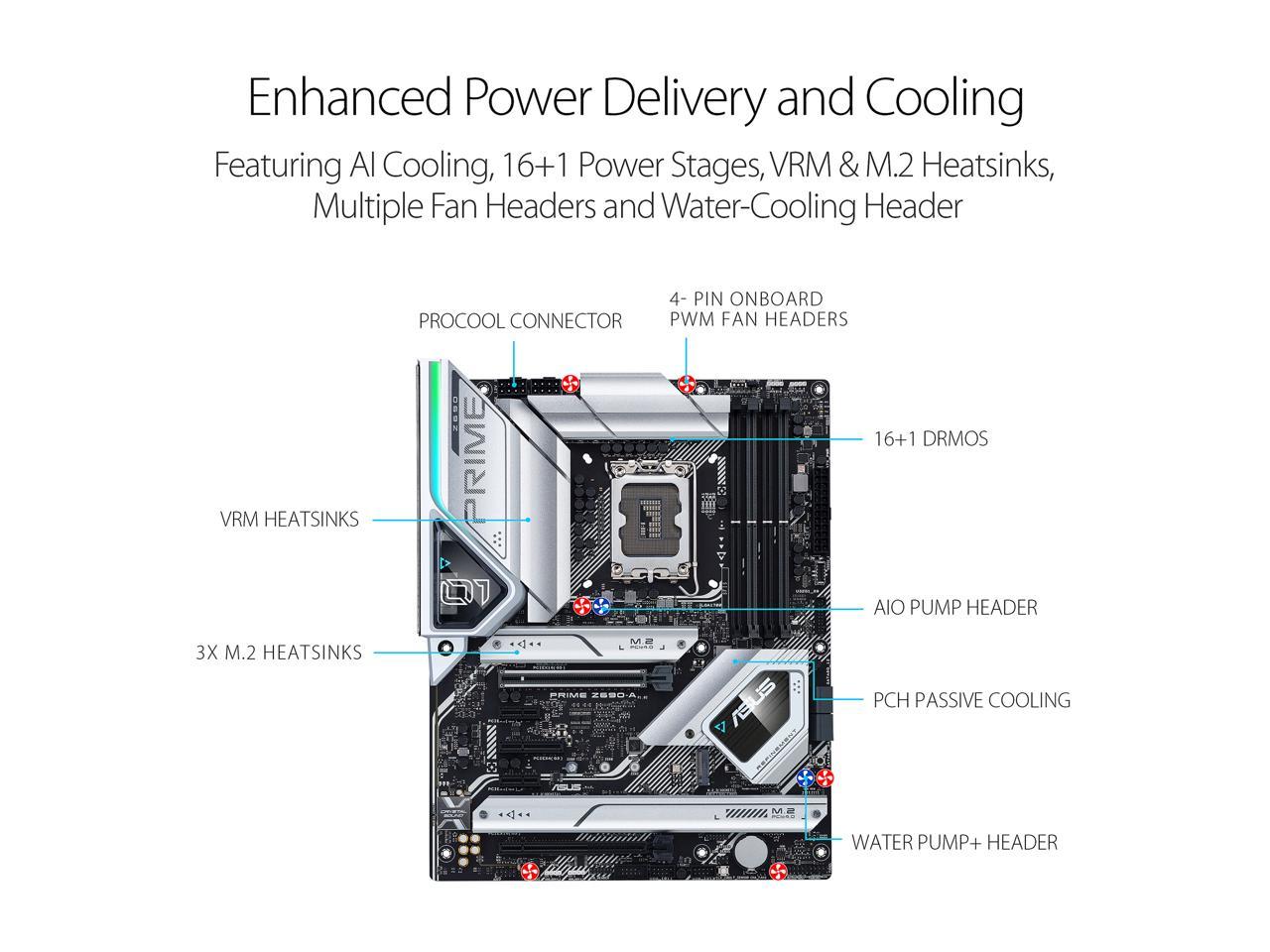

COOLING
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.Heatsinks
M.2 Heatsink
Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.Removable captive screws reduce risk of drops or loss during heatsink removal.
VRM Heatsink and Thermal Pads
The two VRM heatsinks on Prime Z690-A are significantly larger than those found on earlier Z590 motherboards. Together with the thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.M.2 Backplate
An M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted. The backplate includes the Q-Latch mechanism to allow you to secure or remove an M.2 SSD without the need for traditional screws.
Cooler by Design
Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.Robust Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690-A is geared to cater to the demands of these high-core-count CPUs.Memory
ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.Benefits of ASUS OptiMem II:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin

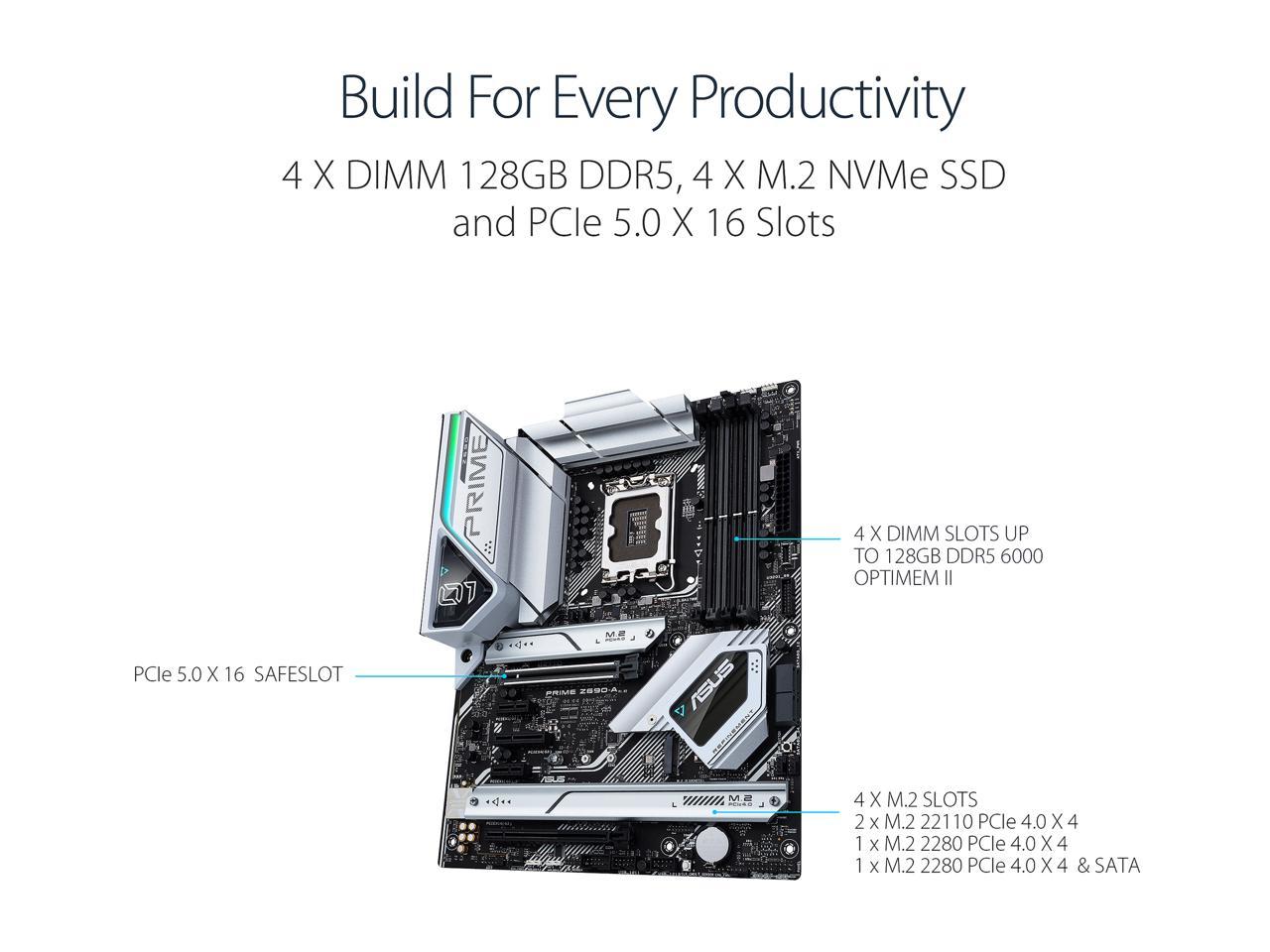

Storage
Four M.2 slots (up to 64 Gbps)
Prime Z690-A offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.*Actual transmission speeds will be lower than the theoretical maximum speed.
Connectivity
USB 3.2 Gen 2x2 Type-C®
Numerous USB ports support high-end rigs loaded with peripherals, including both front and rear USB Type-C® connectors with fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.
CUSTOMIZATION
Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.Audio
Two-Way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises, so you can hear and be heard with crystal clarity while gaming or in calls.
500 M
Deep-learning database
Deep-learning database
Audio
Input/output
Input/output
High
Fidelity
Fidelity
Minimal
Performance Impact
Performance Impact
COD: MW - FPS (2560 x 1440)
*Testing configuration: CPU: 11th Gen Intel Core Processor; Motherboard: ROG MAXIMUS XIII HERO; Graphics card: NVIDIA RTX 3070; DRAM: G.SKILL F4-3200C16Q-32GVK; Power: SUPER FLOWER 550 W; HDD: ADATA SX910 SSD 128G; Cooling: Enermax T.B.APOLLISH; Game: CALL OF DUTY: MODERN WARFARE; Voice Communication App: Discord (In-app noise-canceling effects disabled); Background noise: Keyboard typing, mouse clicking, people talking, and music playing.
*Actual performance varies by configuration.
*Actual performance varies by configuration.
Hear the Difference
.jpg)
0:17
.jpg)
0:17
AI OFF
AI ON
Background noise
Other human voice
Human speech
Exclusive Codec
Realtek Codec and Unique Design Features for Pristine, Powerful Audio
Prime Z690-A utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR and extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS® codecs.
Crystal Sound 3
Flawless Audio that Immerses You in the Game
Power Pre-Regulator
Reduces power-input noise to ensure consistent performance.Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.Separate Layers for Left and Right Tracks
Ensures minimal crosstalk between audio paths.Integrated Amplifier
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.De-Pop Circuit
Reduces start-up popping noise to all audio outputs.Premium Audio Capacitors
Premium parts provide a sound signature with exceptional fidelity.Personalization

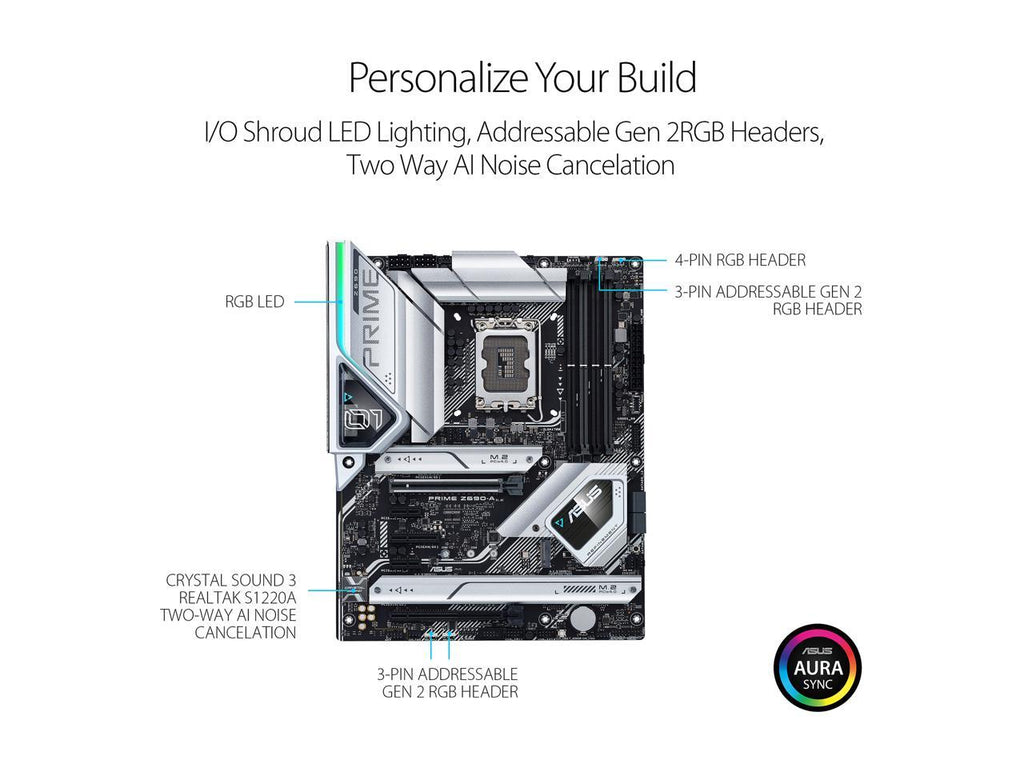

Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Static
Breathing
Strobing
Rainbow
Color Cycle
Starry Night
Music Effect
Smart
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
DIY Friendly
.gif)
SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted the SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy, and confidence.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model. Please refer to the specification page
- The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
About ASUS
ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
General Information
| Manufacturer | ASUS Computer International |
|---|---|
| Manufacturer Part Number | PRIME Z690-A |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | Z690-A |
| Product Name | Prime Z690-A Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 195553447324 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Width | 12" |
|---|---|
| Depth | 9.6" |

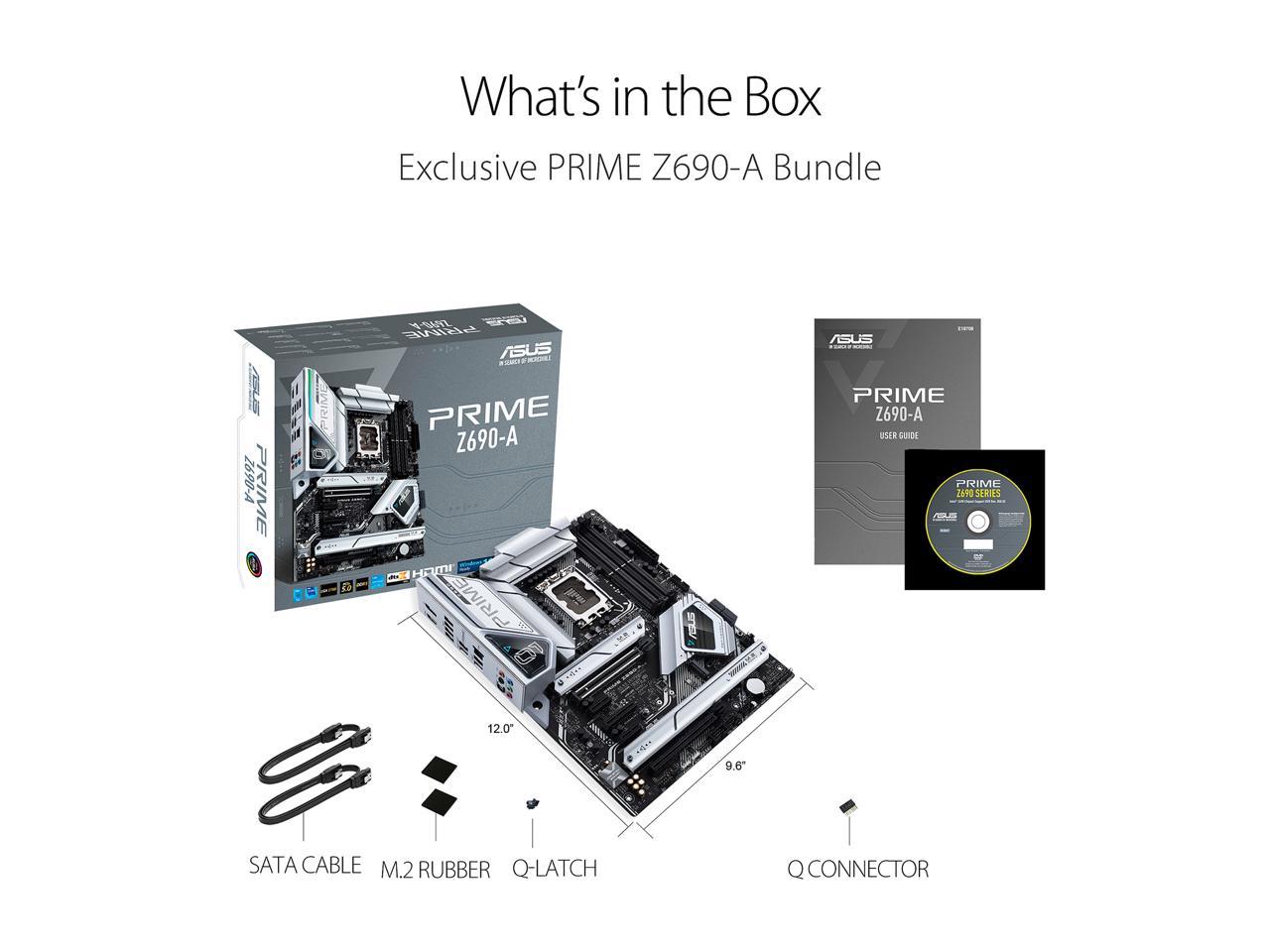

| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
