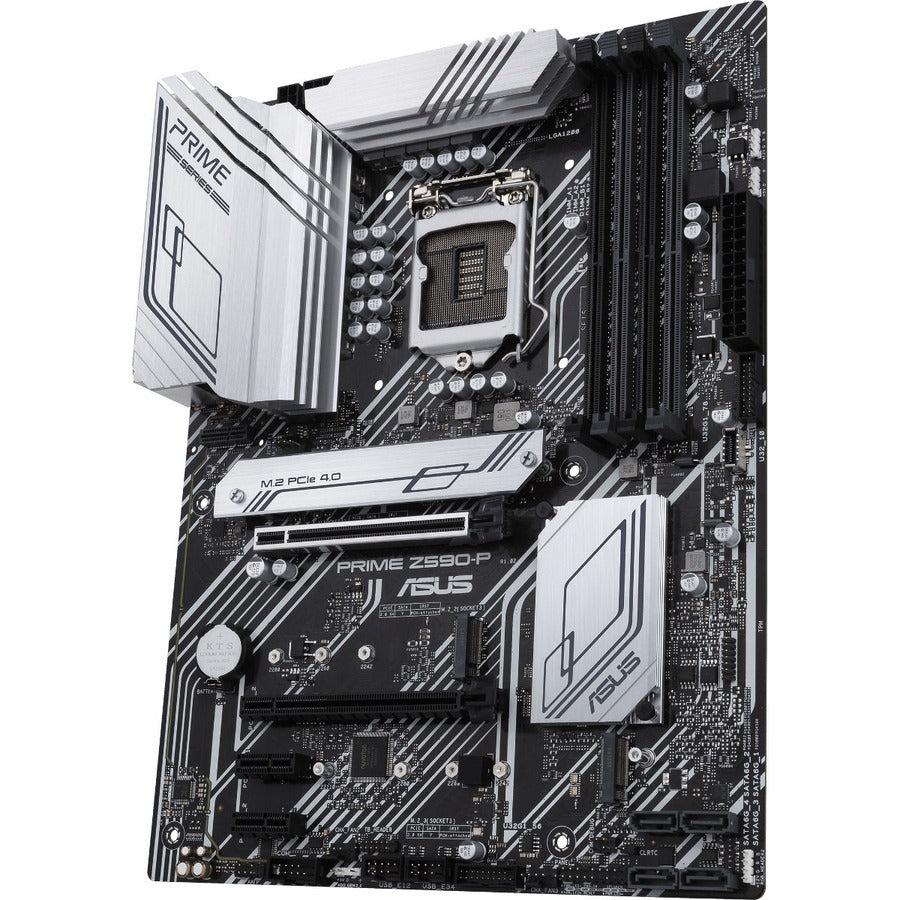

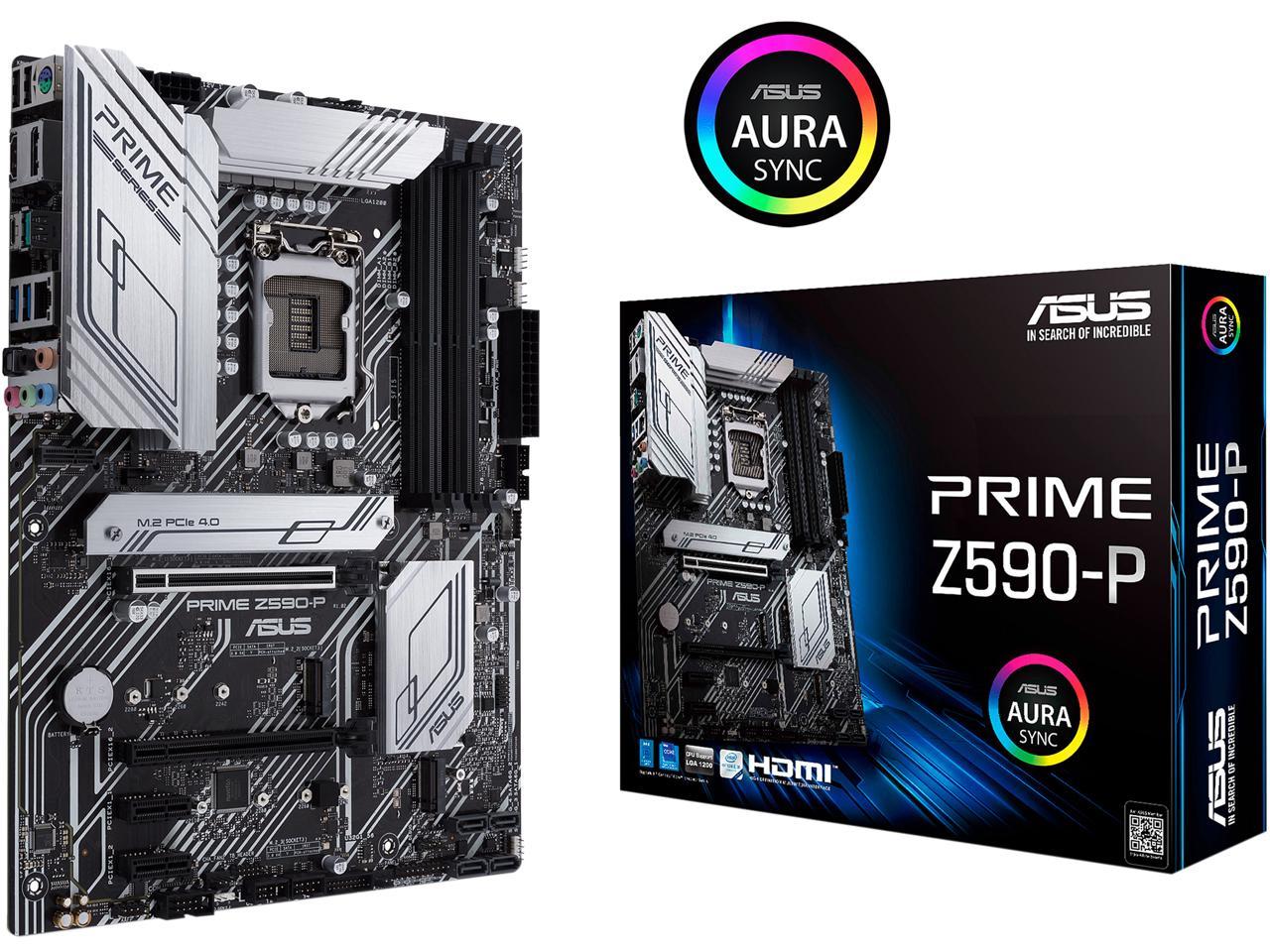

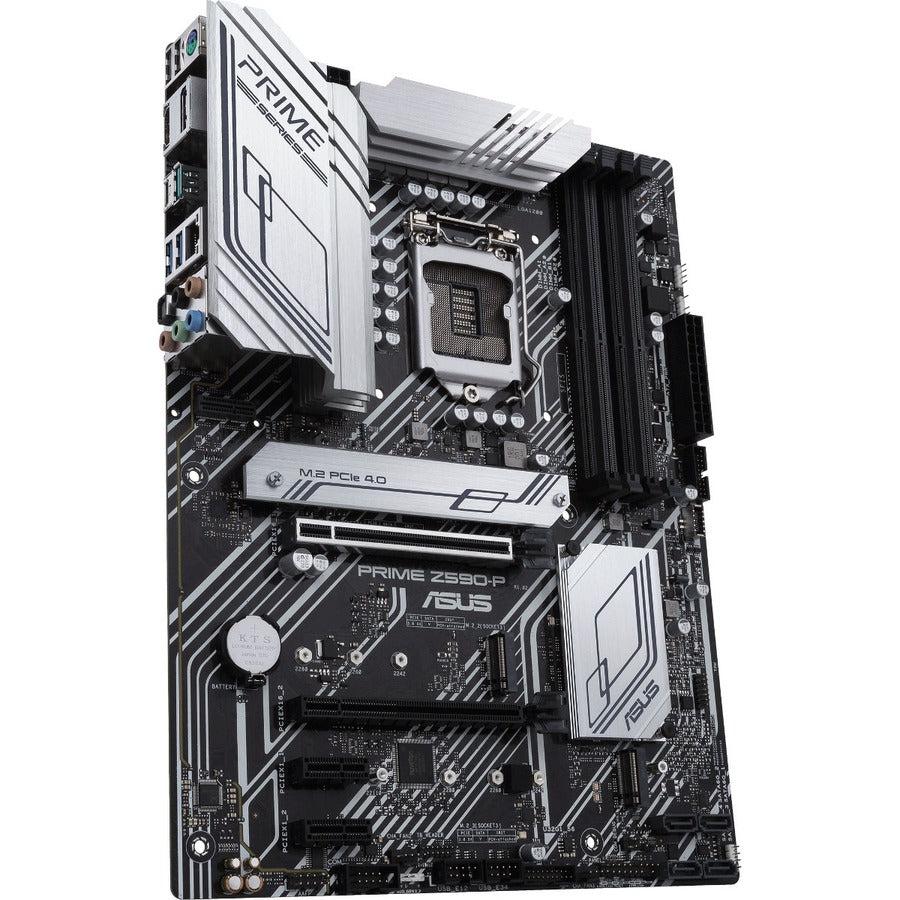

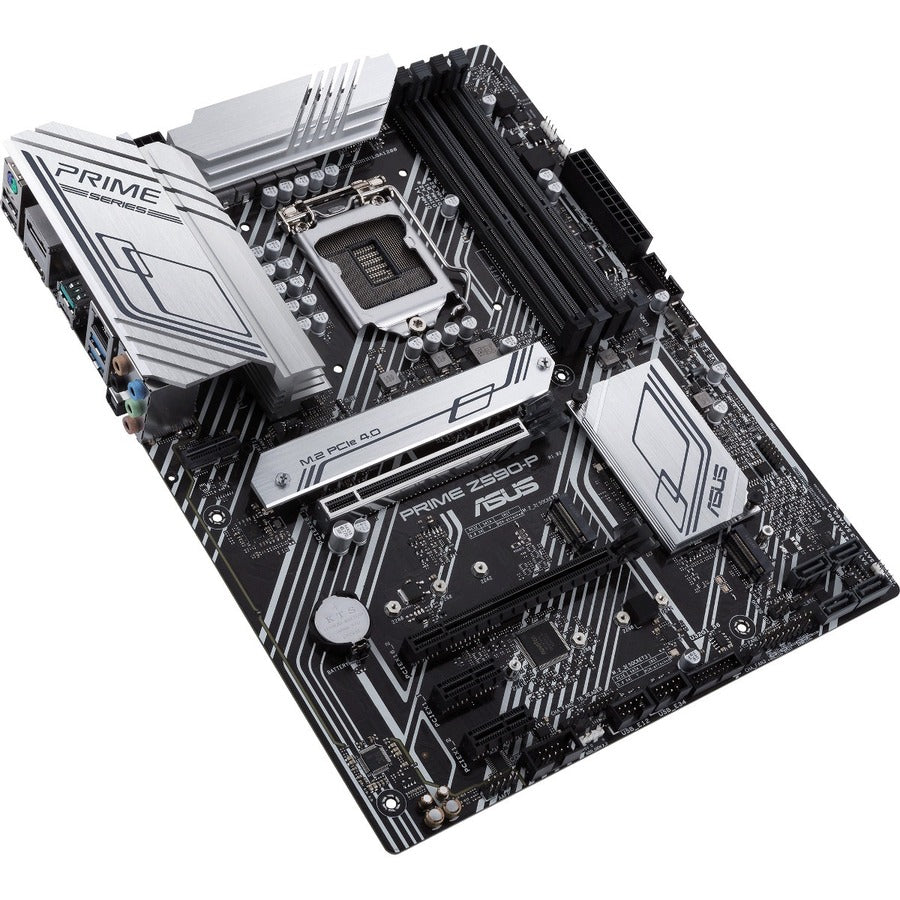

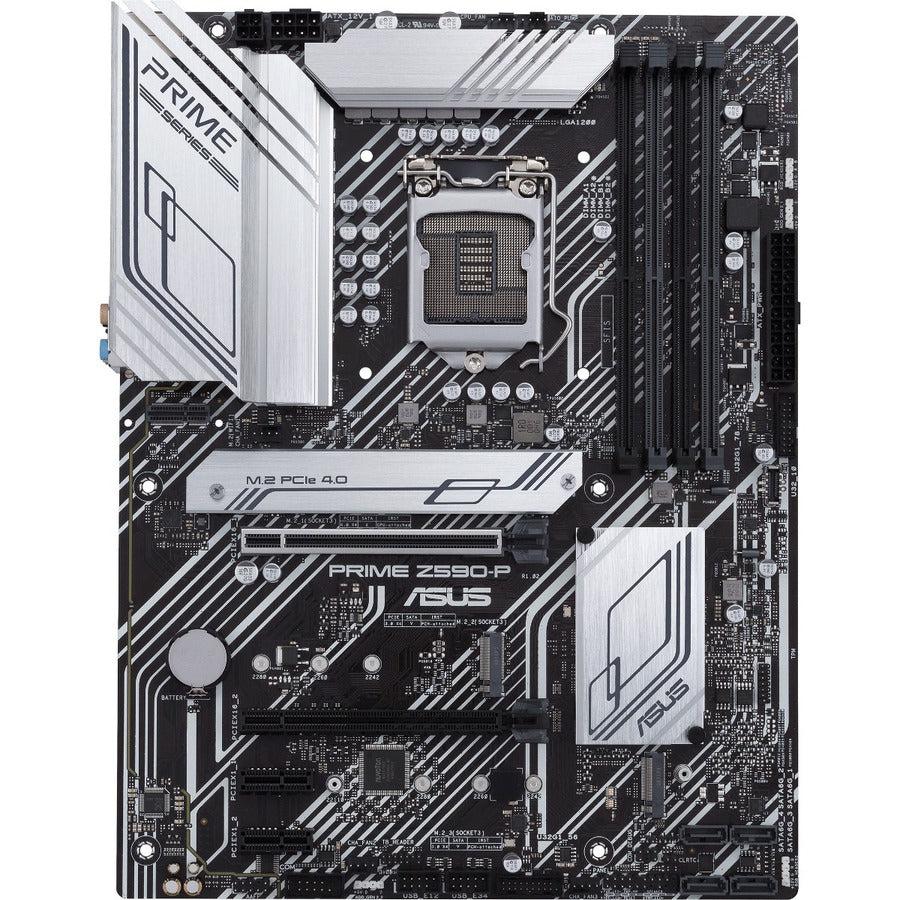

Asus Prime Z590-P Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

Asus Prime Z590-P Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

SKU:PRIME Z590-P

Regular price $204.99
Regular price Sale price $204.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Intel Z590
        • Supports 11th Gen / 10th Gen Intel Core Processors
        • Supports Intel Pentium Gold and Celeron Processors
        • DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
        Model
        Brand ASUS
        Model PRIME Z590-P
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Supports 11th Gen / 10th Gen Intel Core Processors*
        Supports Intel Pentium Gold and Celeron Processors*

        * Refer to www.asus.com for CPU support list.
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

        * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z590
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic
        Memory

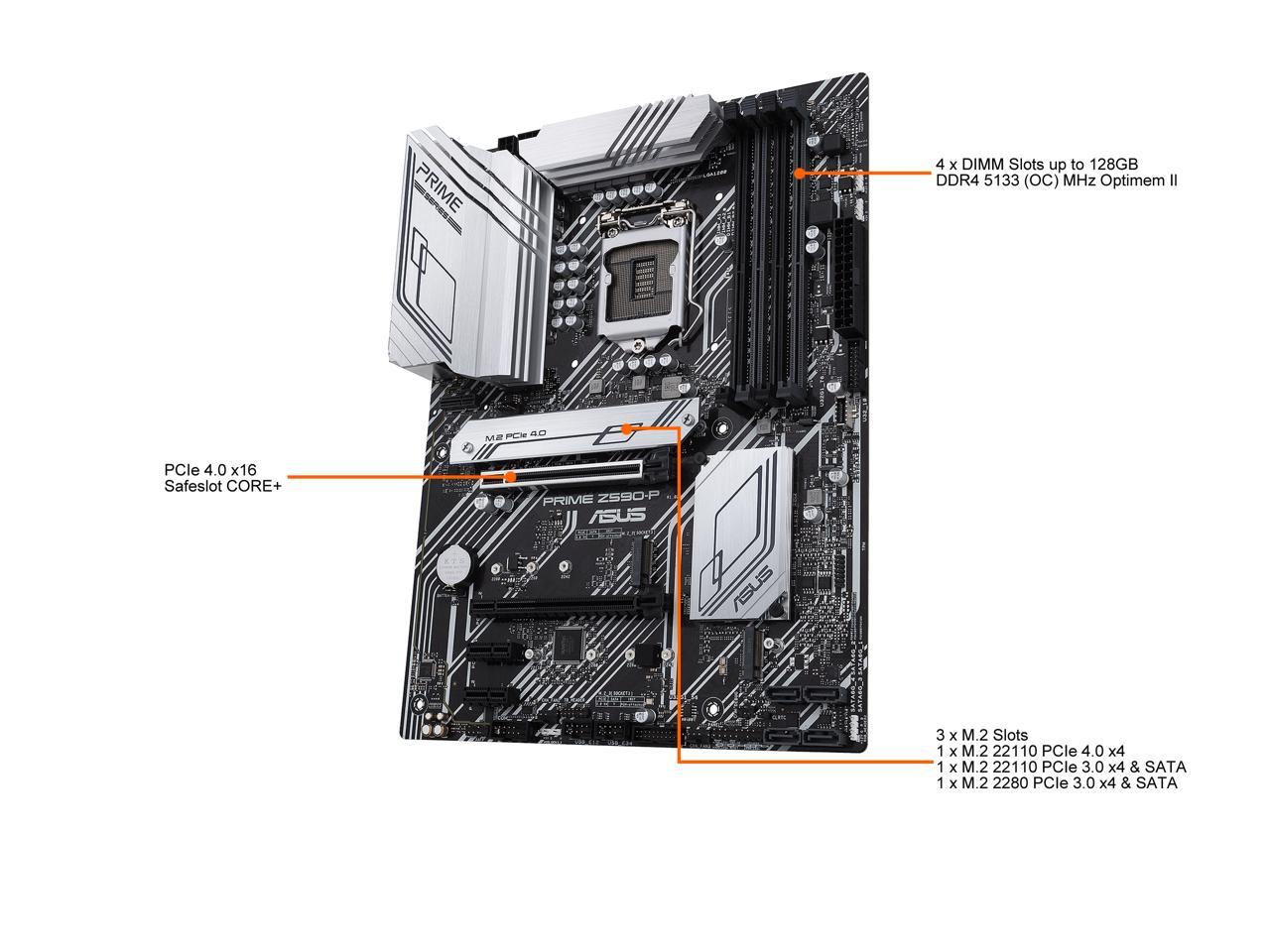

        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

        * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
        * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot

        * Actual support may vary by CPU.
        PCI Express 3.0 x16 1 x PCI Express 3.0 x16
        PCI Express x1 2 x PCIe 3.0 x1
        Storage Devices
        SATA 6Gb/s  4 x SATA 6Gb/s
        M.2 Intel 11th Gen Processors:
        M.2_1 slot (Key M), type 2242/2260/2280/22110
        - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

        Intel Z590 Chipset:
        M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
        M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

        * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
        Intel Optane Ready Yes
        Onboard Audio
        Audio Chipset  Realtek ALC897
        Audio Channels  7.1 Channels
        Onboard LAN
        LAN Chipset Realtek 2.5Gb Ethernet
        Max LAN Speed 10/100/1000/2500Mbps

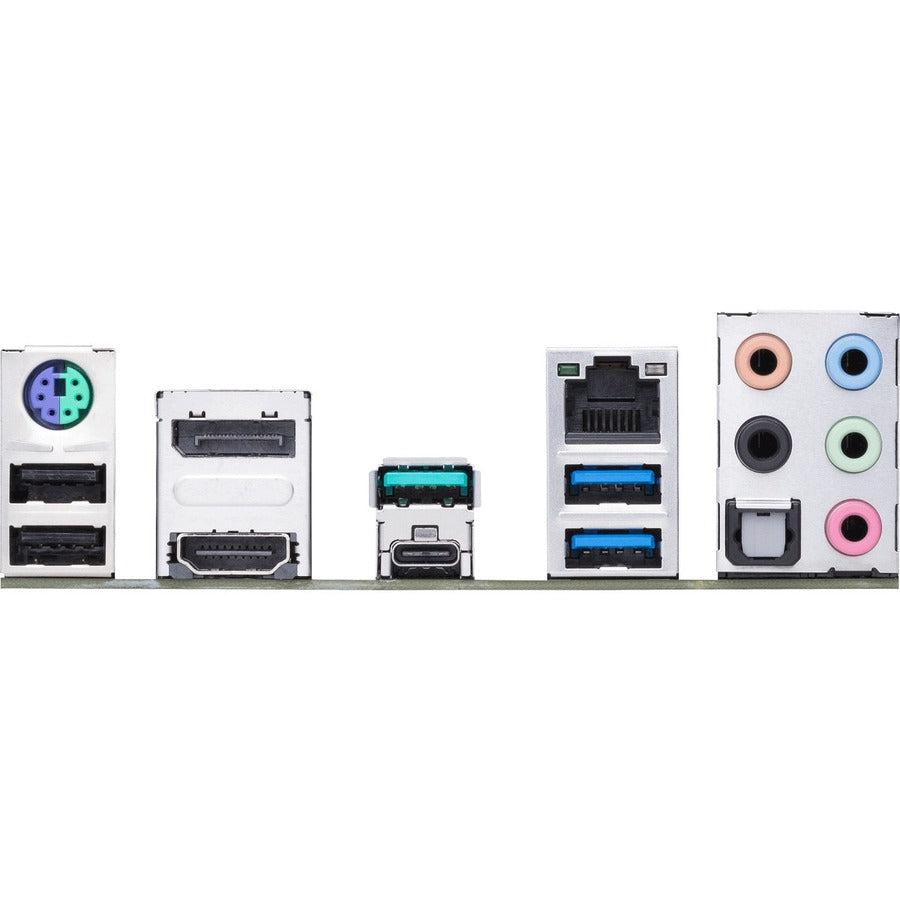

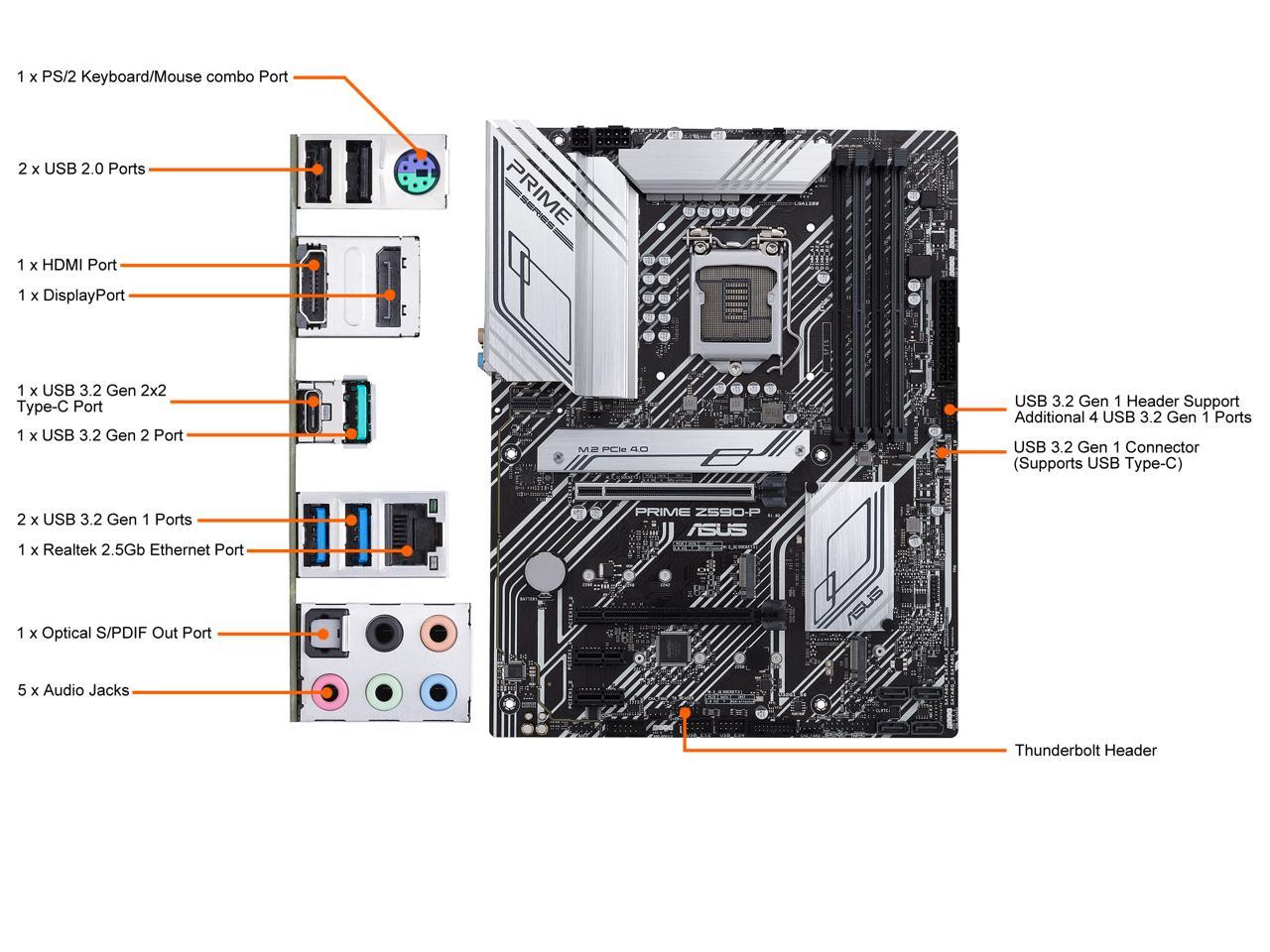

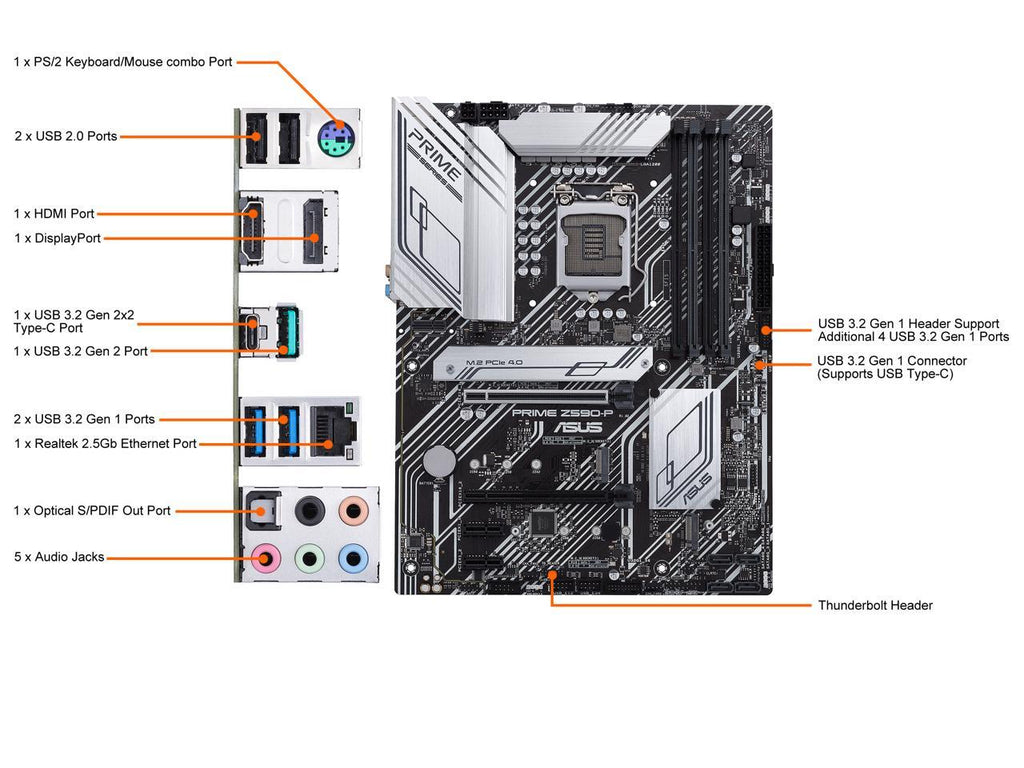

        Rear Panel Ports
        Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
        1 x USB 3.2 Gen 2 port (1 x Type-A)
        2 x USB 3.2 Gen 1 ports (2 x Type-A)
        2 x USB 2.0 ports (2 x Type-A)
        1 x DisplayPort
        1 x HDMI port
        1 x Realtek 2.5Gb Ethernet port
        5 x Audio jacks
        1 x Optical S/PDIF out port
        1 x PS/2 Keyboard/Mouse combo port
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
        2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
        2 x USB 2.0 headers support additional 4 USB 2.0 ports

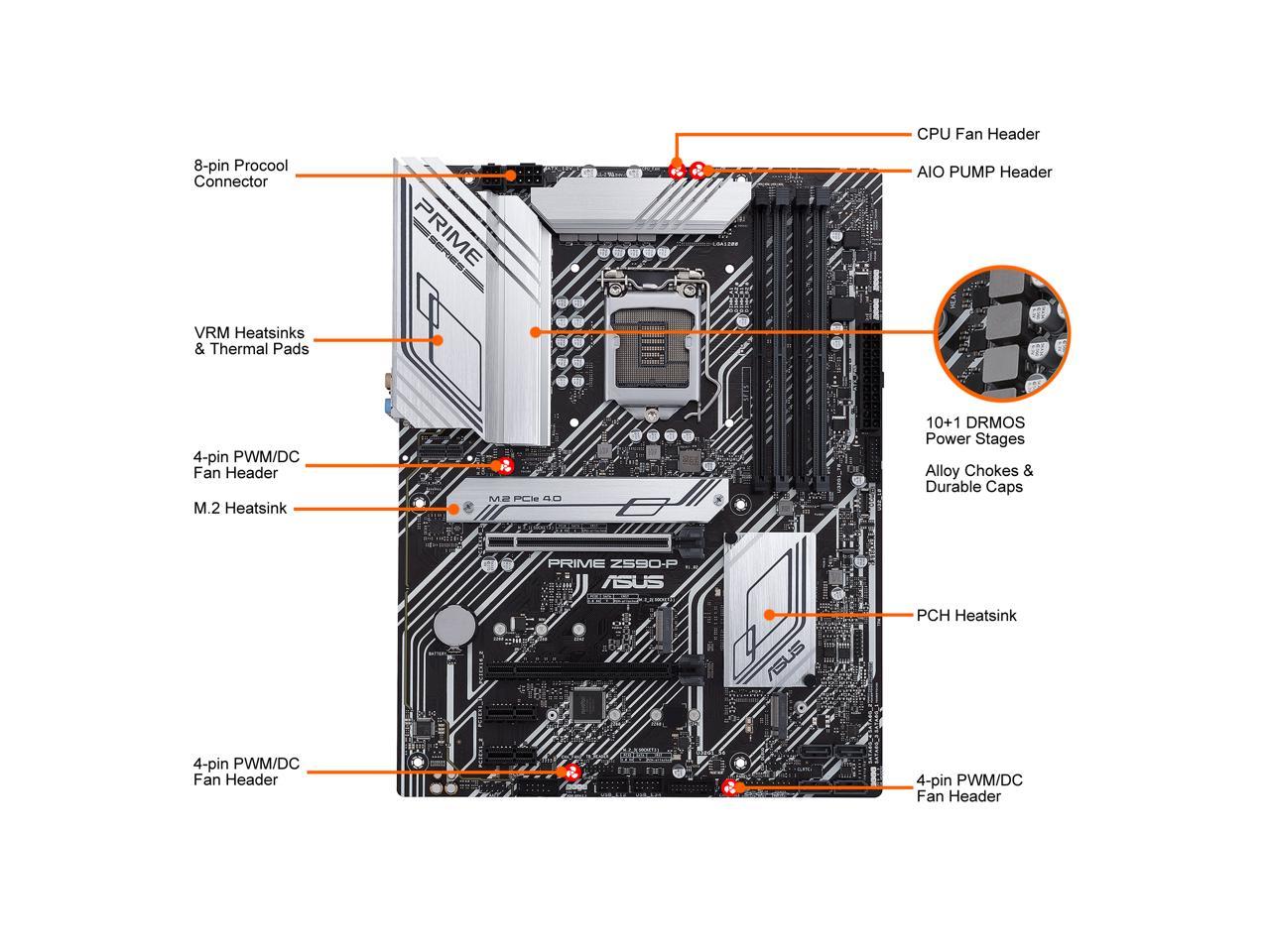

        Other Connectors Fan and Cooling related
        1 x 4-pin CPU Fan header
        1 x 4-pin AIO Pump header
        3 x 4-pin Chassis Fan headers
        Miscellaneous

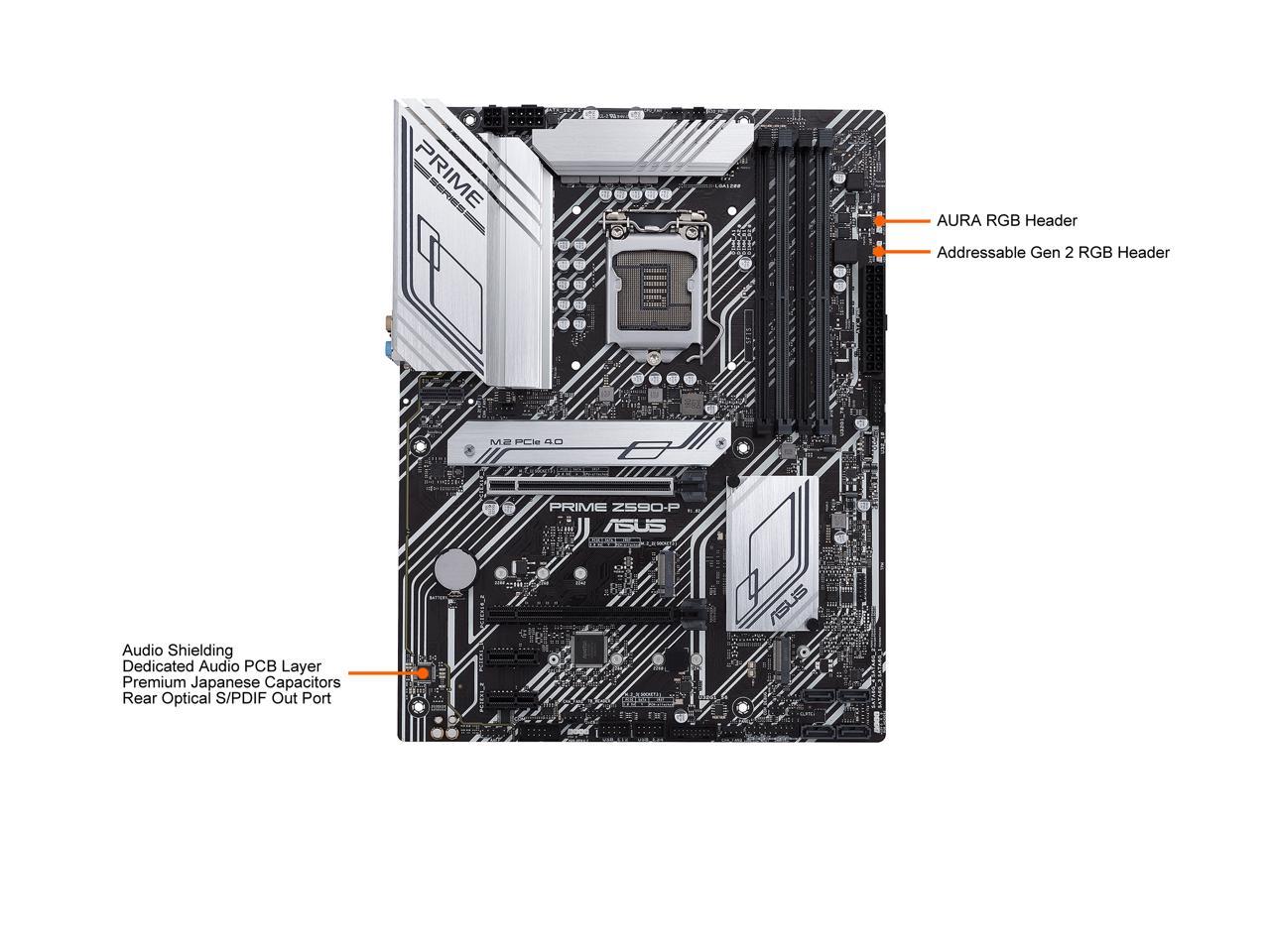

        2 x AURA Addressable Gen 2 headers
        2 x AURA RGB headers
        1 x Clear CMOS header
        1 x COM Port header
        1 x Front Panel Audio header (AAFP)
        1 x SPI TPM header (14-1pin)
        1 x 20-5pin System Panel header
        1 x Thunderbolt header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 12.0" x 9.2"
        Power Pin 1 x 24-pin Main Power connector
        1 x 8-pin +12V Power connector
        1 x 4-pin +12V Power connector
        Windows Compatibility
        Windows 11 Supported
        Features
        Features Special Features:
        ASUS 5X PROTECTION III
        - DIGI+ VRM (- Digital power design with DrMOS)
        - LANGuard
        - Overvoltage Protection
        - SafeSlot Core+
        - Stainless-Steel Back I/O
        ASUS Q-Design
        - Q-DIMM
        - Q-Slot
        ASUS Thermal Solution
        - Flexible M.2 heatsink
        - VRM heatsink design
        ASUS EZ DIY
        - ProCool
        AURA Sync
        - AURA RGB headers
        - Addressable Gen 2 RGB headers

        Software Features:
        ASUS Exclusive Software
        Armoury Crate
        - AURA Sync
        AI Suite 3
        - Performance And Power Saving Utility
        TurboV EVO
        EPU
        DIGI+ VRM
        Fan Xpert 4
        - EZ update
        ASUS CPU-Z
        AI Charger
        DAEMON Tools
        Norton Anti-virus software (Free Trial version)
        WinRAR
        UEFI BIOS
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode

        BIOS:
        192 (128+64) MB Flash ROM, UEFI AMI BIOS

        Manageability:
        WOL by PME, PXE

        Operating System:
        Windows 10 64-bit
        Packaging

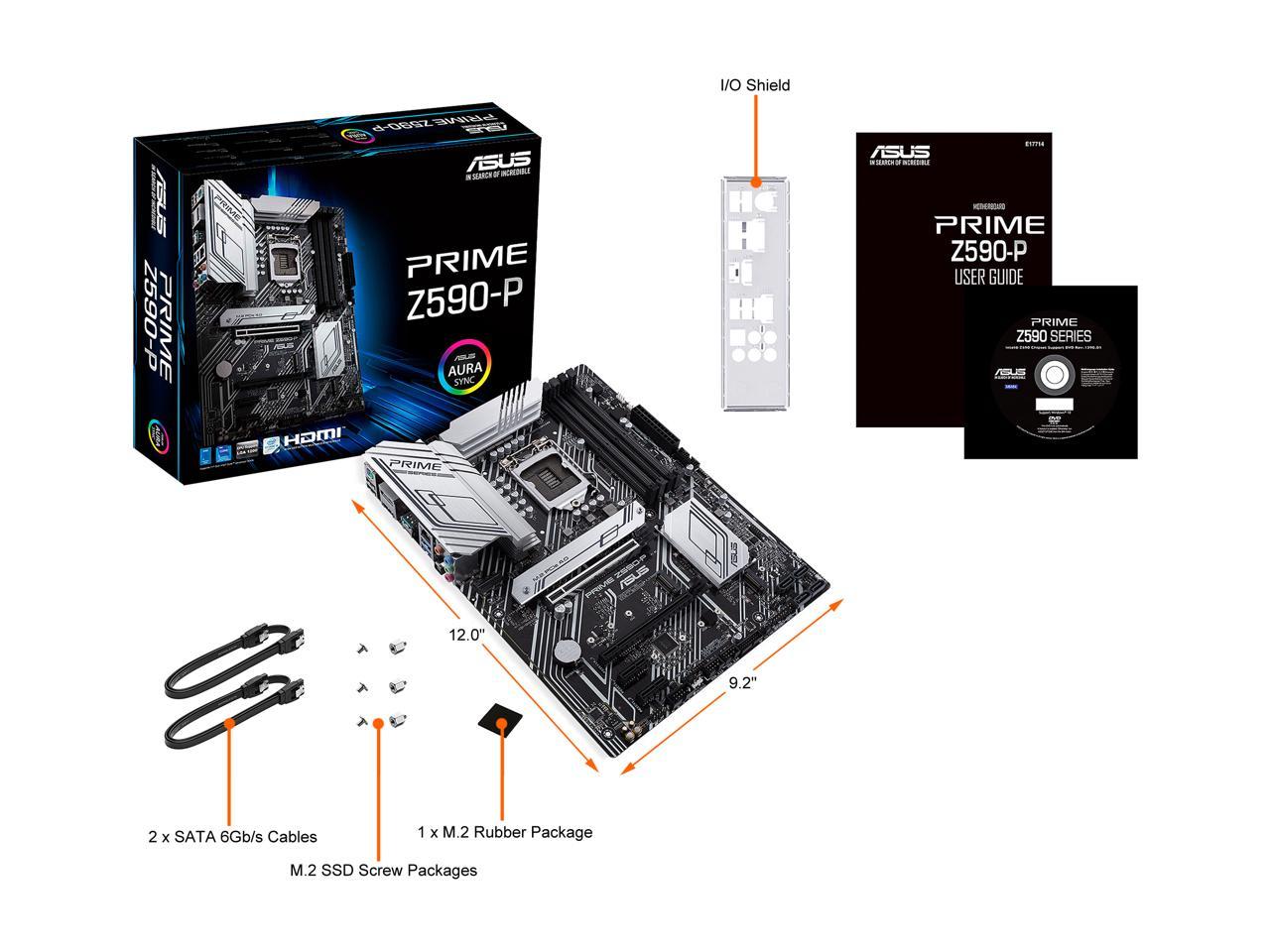

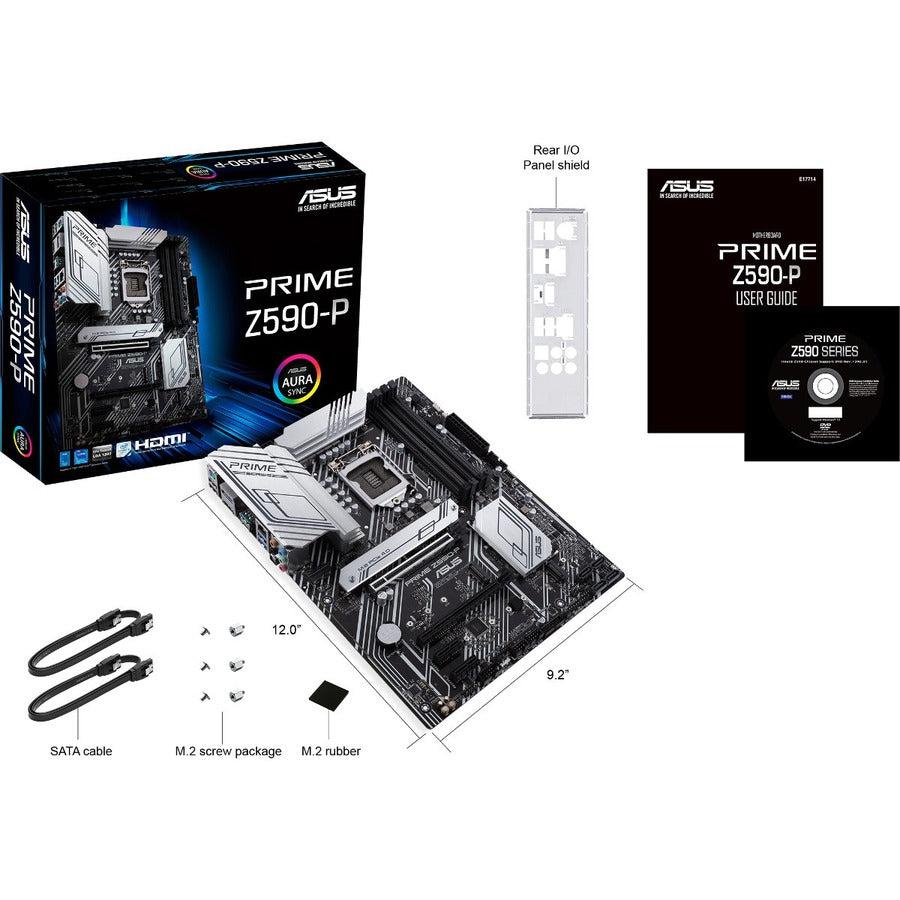

        Package Contents Accessories:
        Cables
        2 x SATA 6Gb/s cables
        Miscellaneous
        1 x I/O Shield
        1 x M.2 Rubber Package
        2 x M.2 SSD screw packages
        Installation Media
        1 x Support DVD
        Documentation
        1 x User manual
