ASUS

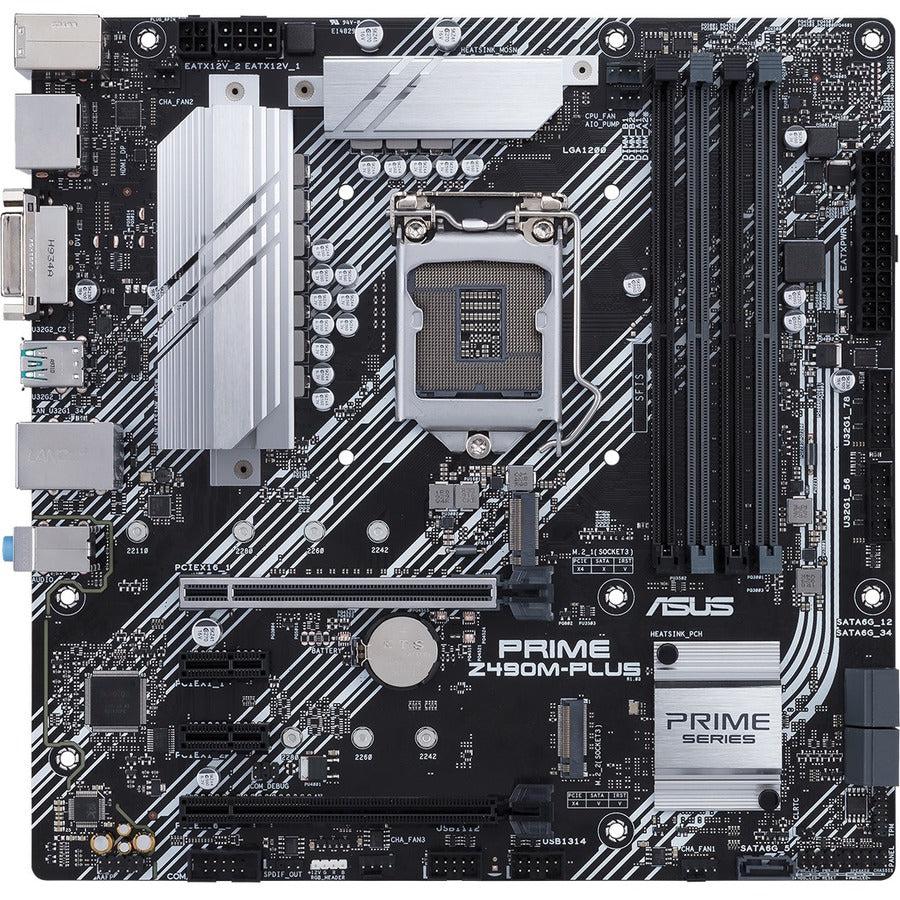

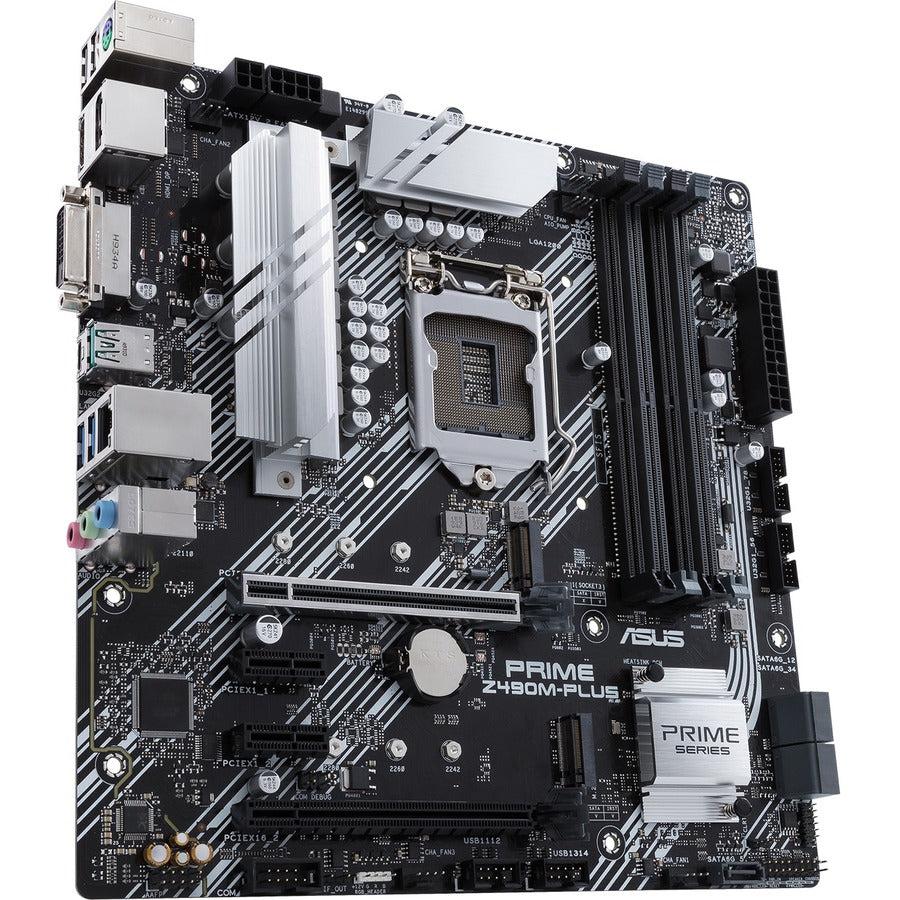

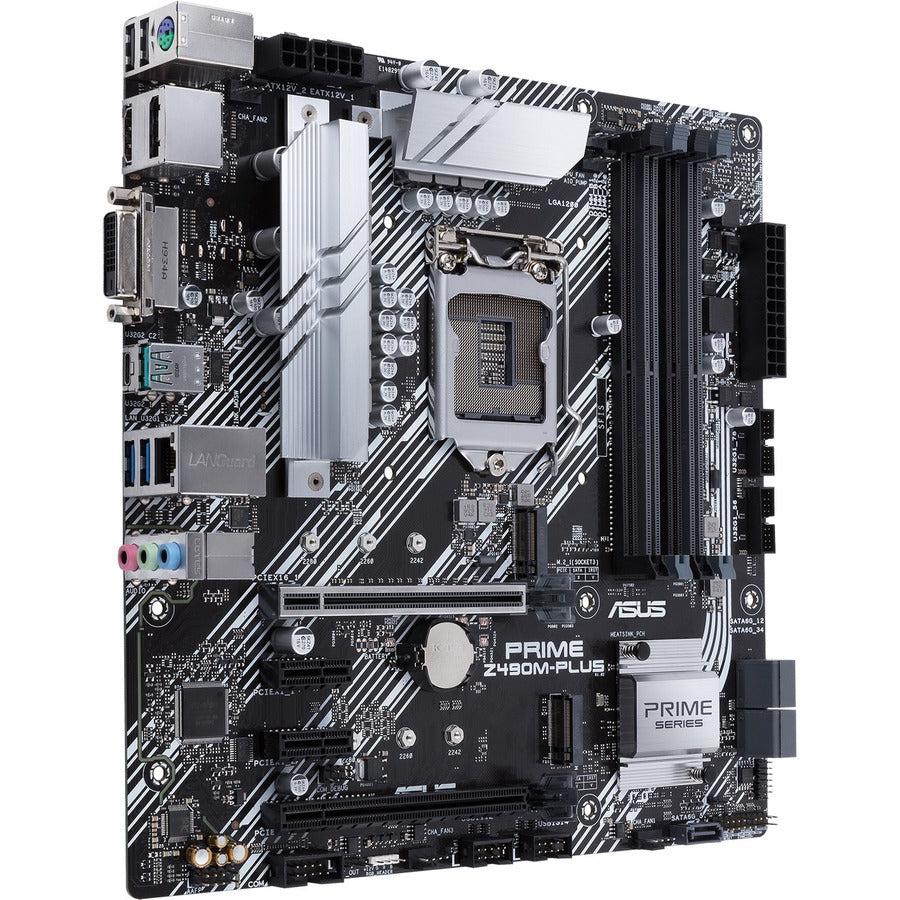

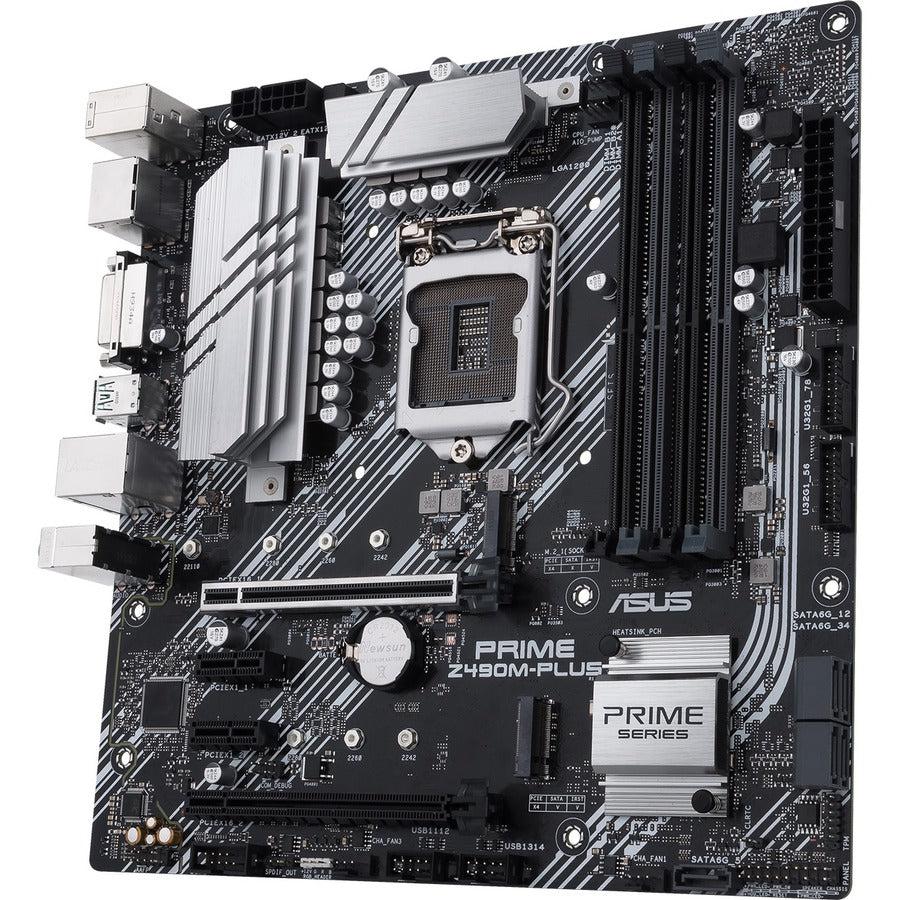

Asus Prime Z490M-Plus Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard

Asus Prime Z490M-Plus Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard

SKU:PRIME Z490M-PLUS

$259.00
$259.00
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

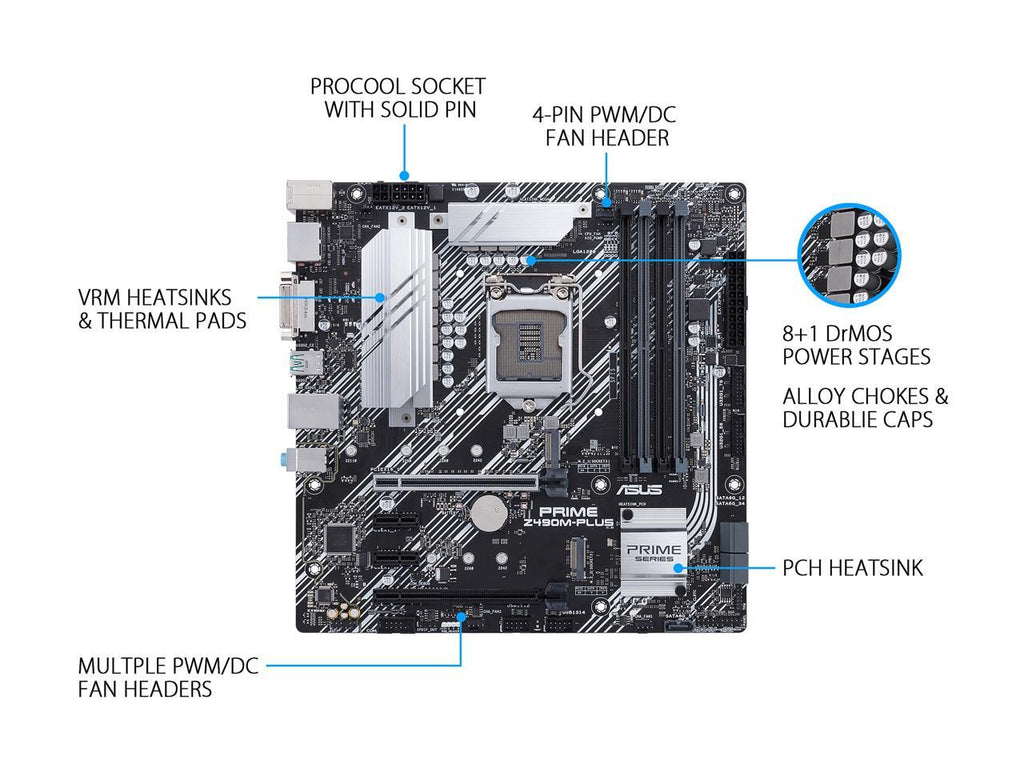

        • Enhanced Power Solution: 8+1 DrMOS power stages, ProCool connector, alloy chokes and durable capacitors for stable power delivery
        • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
        • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
        • Ultrafast Connectivity: Dual M.2, 1Gb Ethernet, USB 3.2 Gen 2 Type-A
        Model
        Brand ASUS
        Model PRIME Z490M-PLUS
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
        * Refer to www.asus.com for CPU support list.
        Chipsets
        Chipset  Intel Z490
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic:
        1 x DisplayPort 1.4**
        1 x HDMI 1.4b
        1 x DVI-D
        * Graphics specifications may vary between CPU types.
        ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
        Memory

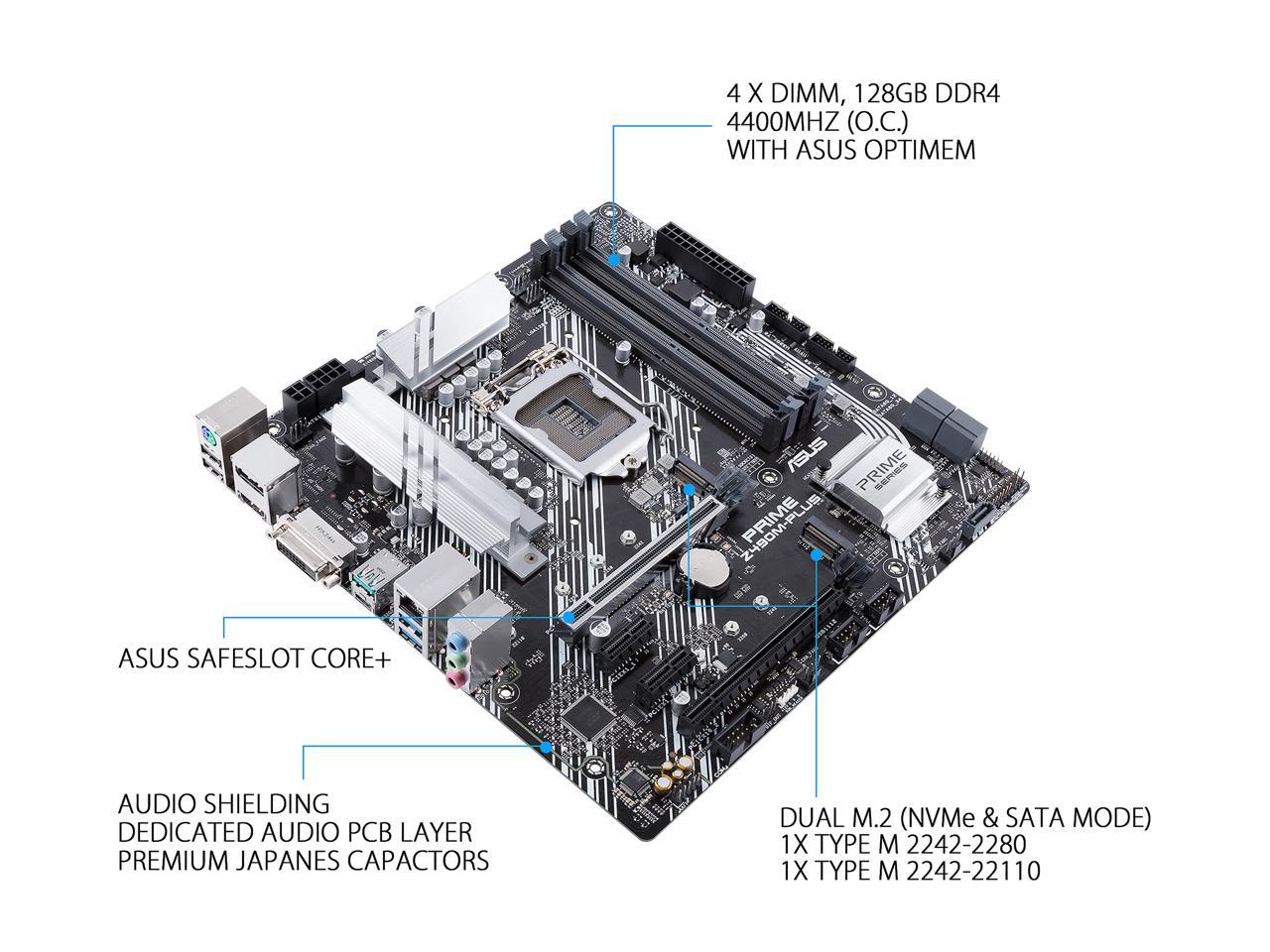

        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
        * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 Intel Socket LGA1200*
        1 x PCIe 3.0 x16 slot (supports x16 mode)
        Intel Z490 Chipset
        1 x PCIe 3.0 x16 slot (supports x4 mode)
        * Support PCIe bifurcation for RAID on CPU function.
        PCI Express x1 2 x PCIe 3.0 x1 slots
        Storage Devices
        SATA 6Gb/s  5 x SATA 6Gb/s
        M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
        M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x4 mode)*
        * When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  Realtek ALC887
        Audio Channels  8 Channels
        * A chassis with an HD audio module in the front panel is required to support 8-channel audio output.
        Onboard LAN
        LAN Chipset Intel I219-V
        Max LAN Speed 10/100/1000Mbps

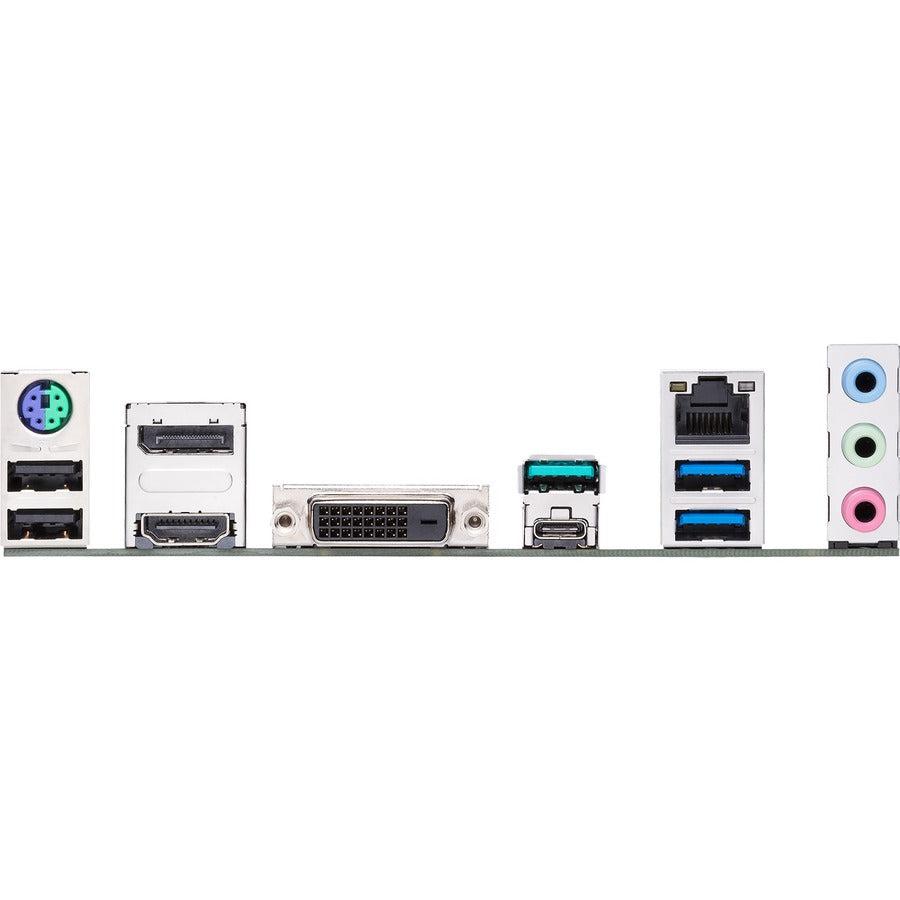

        Rear Panel Ports
        Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
        2 x USB 3.2 Gen 1 ports (2 x Type-A)
        2 x USB 2.0 ports (2 x Type-A)
        1 x DisplayPort
        1 x HDMI port
        1 x DVI-D port
        1 x Intel I219V 1Gb Ethernet
        3 x Audio jacks
        1 x PS/2 Keyboard/Mouse combo port
        Internal I/O Connectors
        Onboard USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
        2 x USB 2.0 headers support additional 4 USB 2.0 ports
        Other Connectors Fan and cooling related
        1 x 4-pin CPU Fan header
        1 x 4-pin AIO Pump header
        3 x 4-pin Chassis Fan header(s)
        Miscellaneous

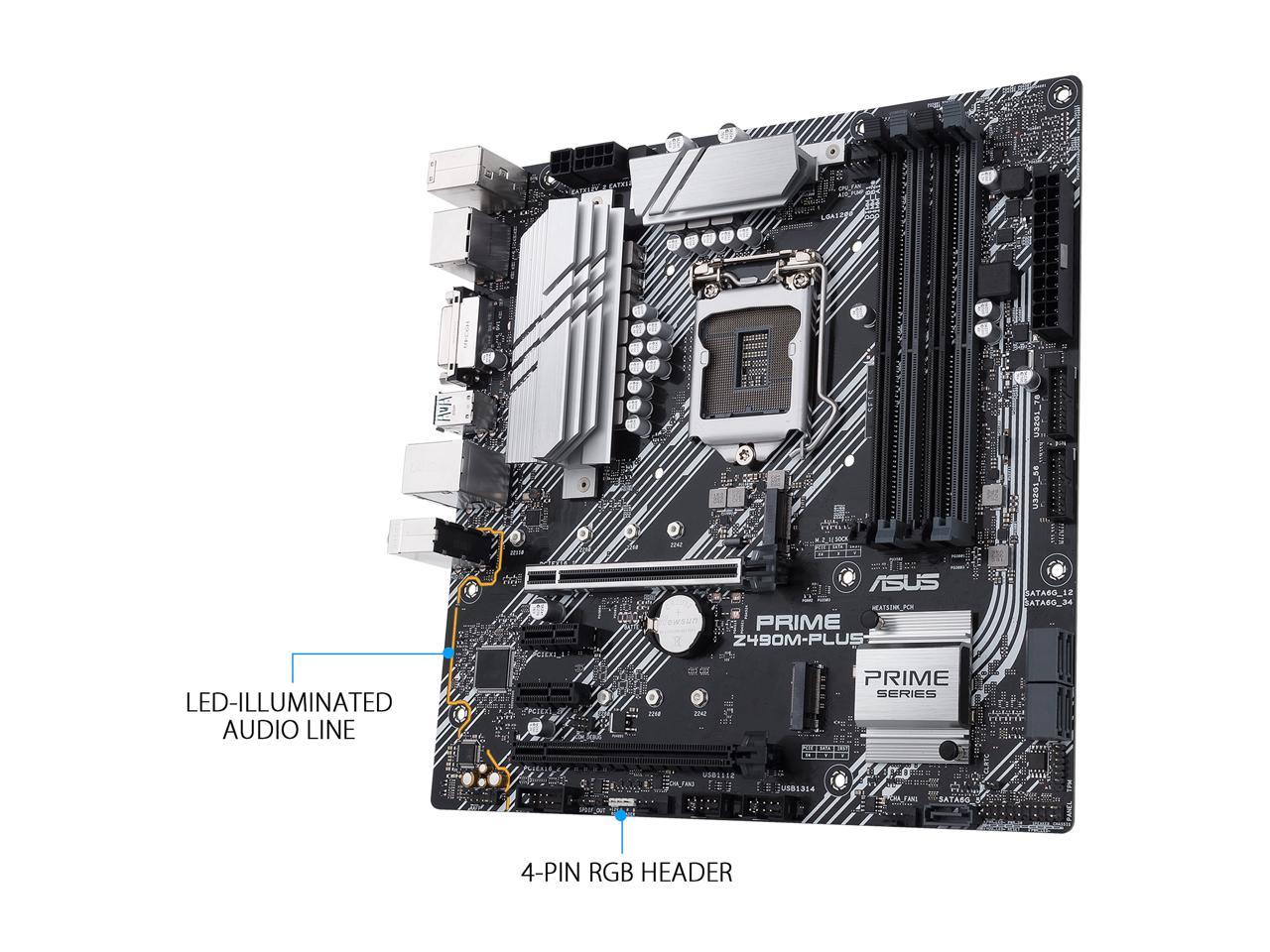

        1 x RGB header
        1 x Clear CMOS header
        1 x COM Port header
        1 x Front Panel Audio header (AAFP)
        1 x S/PDIF Out header
        1 x 20-3-pin System Panel header with Chassis intrude function
        1 x SPI TPM header (14-1-pin)
        Physical Spec
        Form Factor Micro ATX
        LED Lighting RGB
        Power Pin 1 x 24-pin Main Power connector
        1 x 8-pin +12V Power connector
        1 x 4-pin +12V Power connector
        Features
        Features Multi-GPU Support:
        Supports AMD 2-Way CrossFireX Technology

        Special Features:
        ASUS 5X PROTECTION III
        - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
        - ASUS LANGuard
        - ASUS Overvoltage Protection
        - ASUS SafeSlot Core+
        - ASUS Stainless-Steel Back I/O
        ASUS Q-Design
        - ASUS Q-DIMM
        - ASUS Q-Slot
        ASUS Thermal Solution
        - Stylish heatsink
        ASUS EZ DIY
        - Procool

        Software Features:
        ASUS Exclusive Software
        Armoury Crate
        AI Suite 3
        - Performance And Power Saving Utility
        EPU
        Digi+ VRM
        Fan Xpert 4
        - EZ update
        AI Charger
        WinRAR
        UEFI BIOS
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode

        BIOS:
        128MB Flash ROM, UEFI AMI BIOS

        Manageability:
        WOL by PME, PXE

        Operating System:
        Windows 10 - 64-bit
        Packaging

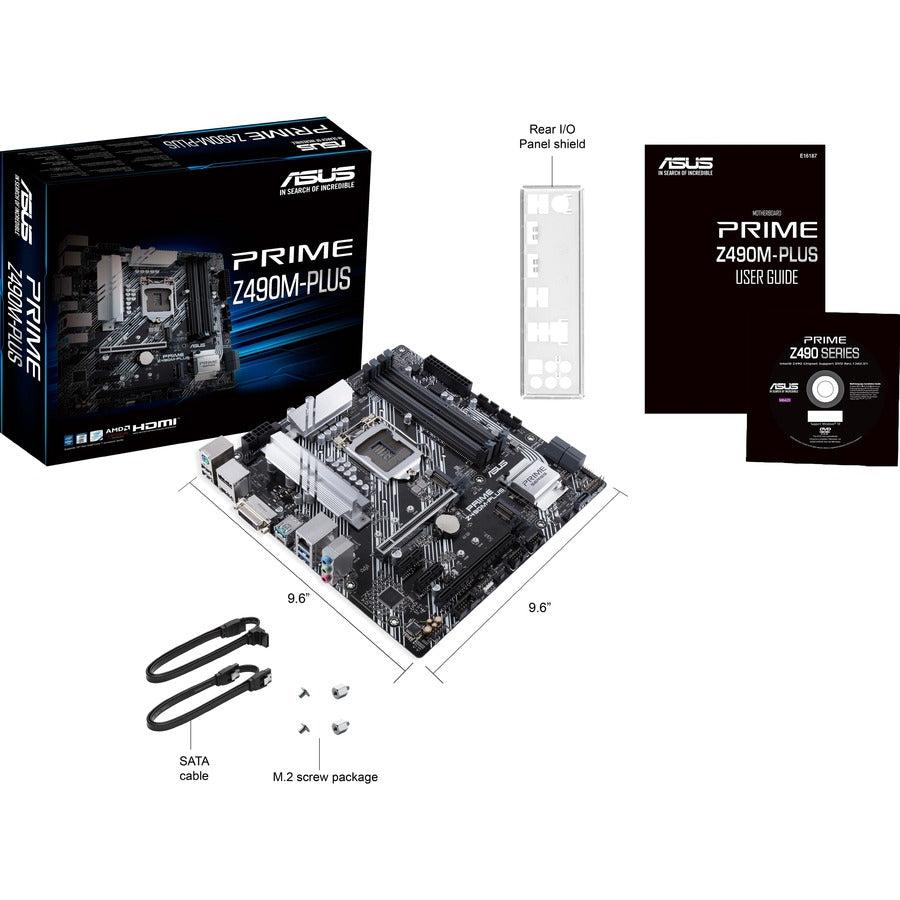

        Package Contents Accessories:
        Cables
        2 x SATA 6Gb/s cables
        Miscellaneous

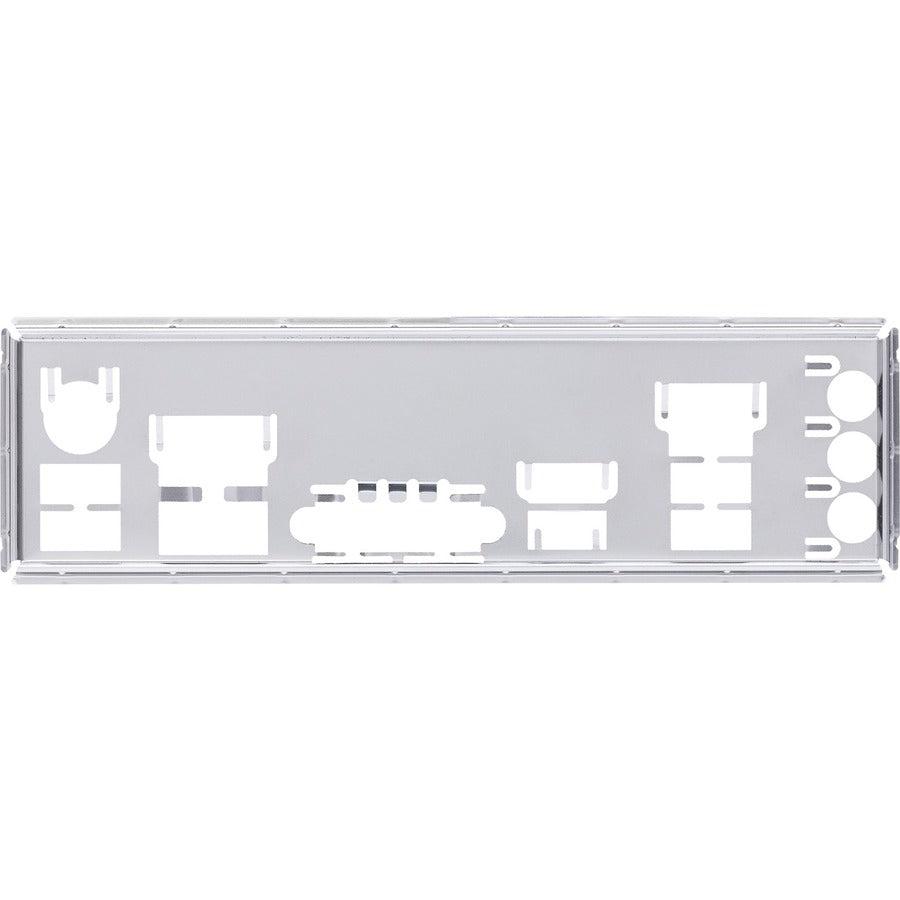

        1 x I/O Shield
        1 x M.2 SSD screw package
        Installation Media
        1 x Support DVD
        Documentation
        1 x User manual

        Specifications :

        General Information

        Manufacturer ASUS Computer International
        Manufacturer Part Number PRIME Z490M-PLUS
        Manufacturer Website Address http://usa.asus.com
        Brand Name Asus
        Product Line Prime
        Product Model Z490M-PLUS
        Product Name Prime Z490M-PLUS Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 192876667835

        Chipset

        Chipset ManufacturerIntel

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports6
        Width9.6"
        Depth9.6"

        Miscellaneous

        Package Contents
        • Prime Z490M-PLUS Desktop Motherboard
        • I/O Shield
        • 2 x SATA 6Gb/s cable(s)
        • 1 x M.2 Screw Package
        • 1 x Supporting DVD
        • User Manual
        Environmentally FriendlyYes

        Warranty

        Limited Warranty3 Year
