- Intel H410
- Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- DDR4 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

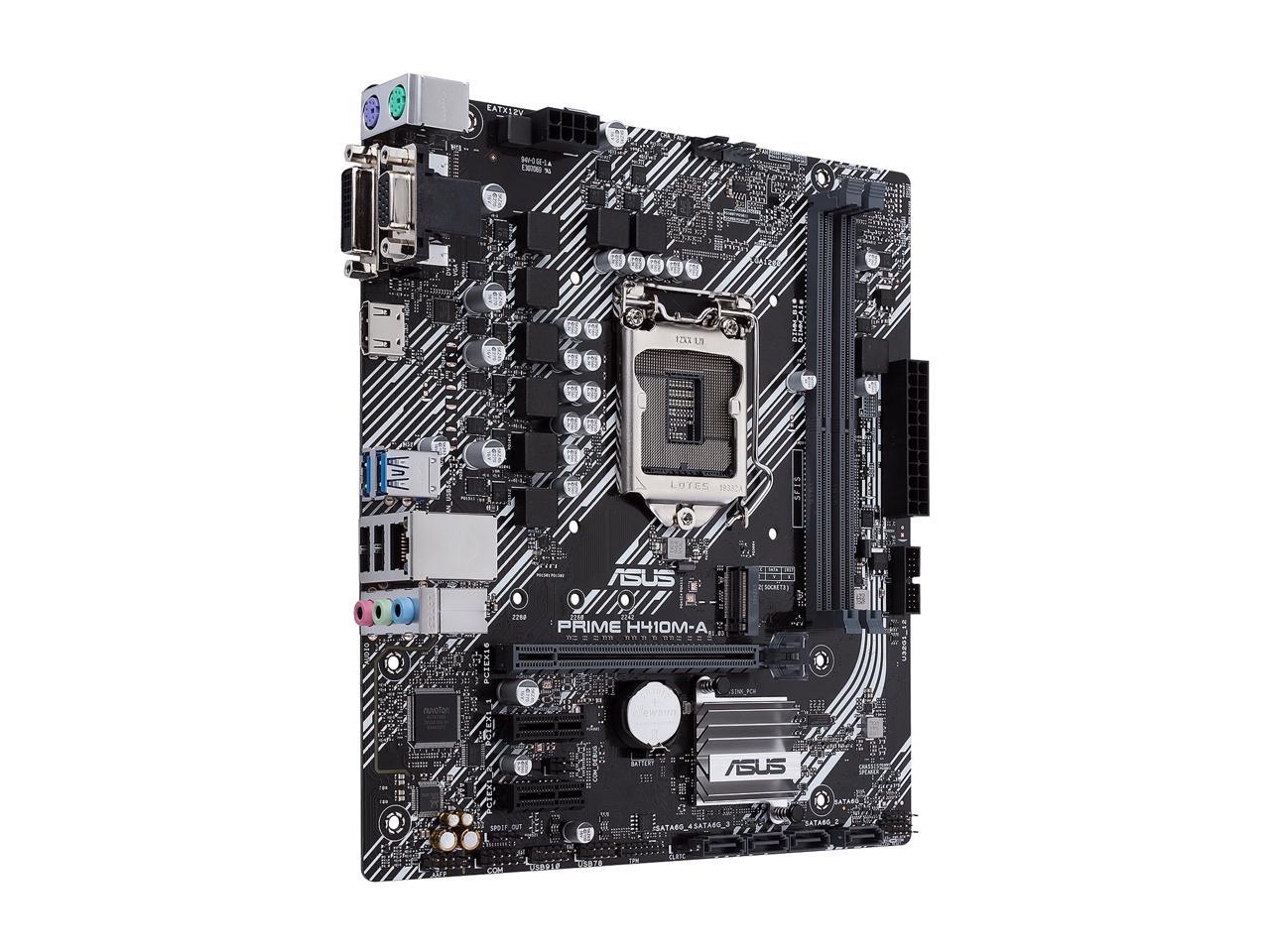

LEARN MORE ABOUT THE ASUS PRIME H410M-A/CSM
Model
| Brand |
ASUS |
| Model |
PRIME H410M-A/CSM |

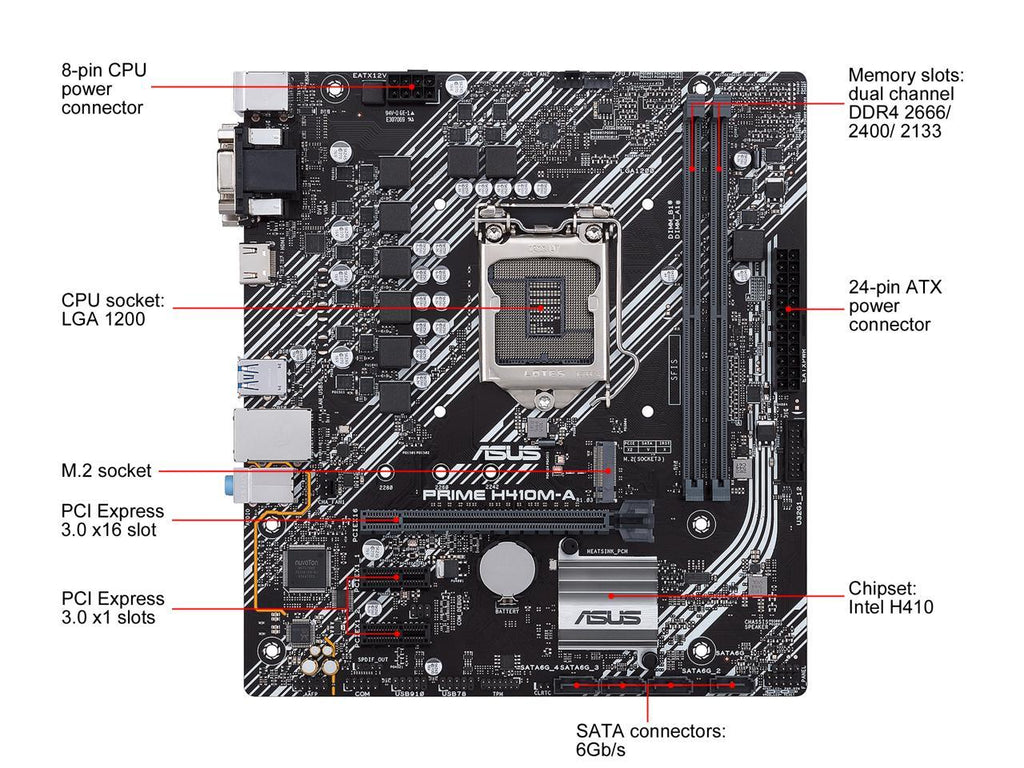

Supported CPU
| CPU Socket Type
|
LGA 1200 |
| CPU Type |
Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipsets
| Chipset
|
Intel H410 |
Onboard Video
| Onboard Video Chipset
|
Supported only by CPU with integrated graphic |
Memory
| Number of Memory Slots |
2×288pin |
| Memory Standard |
DDR4 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported |
64GB |
| Channel Supported
|
Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 |
1 x PCIe 3.0 x16 slot (support x16 mode) |
| PCI Express x1 |
2 x PCIe 3.0 x1 slots |
Storage Devices
| SATA 6Gb/s
|
4 x SATA 6Gb/s |
| M.2 |
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 & SATA modes)
* When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used. |
Onboard Audio
| Audio Chipset
|
Realtek ALC887 |
| Audio Channels
|
7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
Onboard LAN
| LAN Chipset |
Realtek RTL8111H |
| Max LAN Speed |
10/100/1000Mbps |

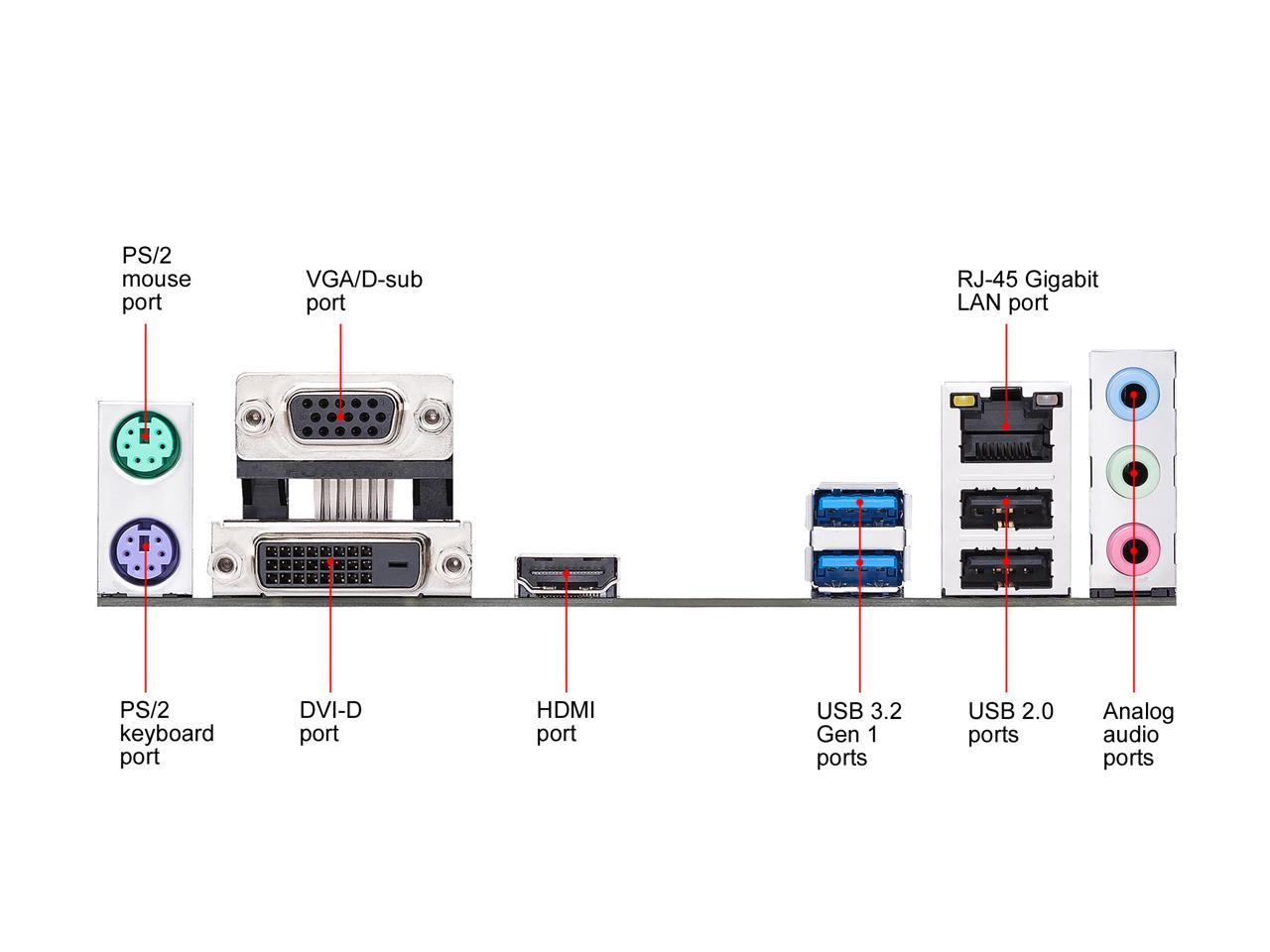

Rear Panel Ports
| Back I/O Ports |
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port |
Internal I/O Connectors
| Onboard USB |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Other Connectors |
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header |
Physical Spec
| Form Factor |
Micro ATX |
| Power Pin |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
Features
| Features |
Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
128MB Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 10 - 64-bit |

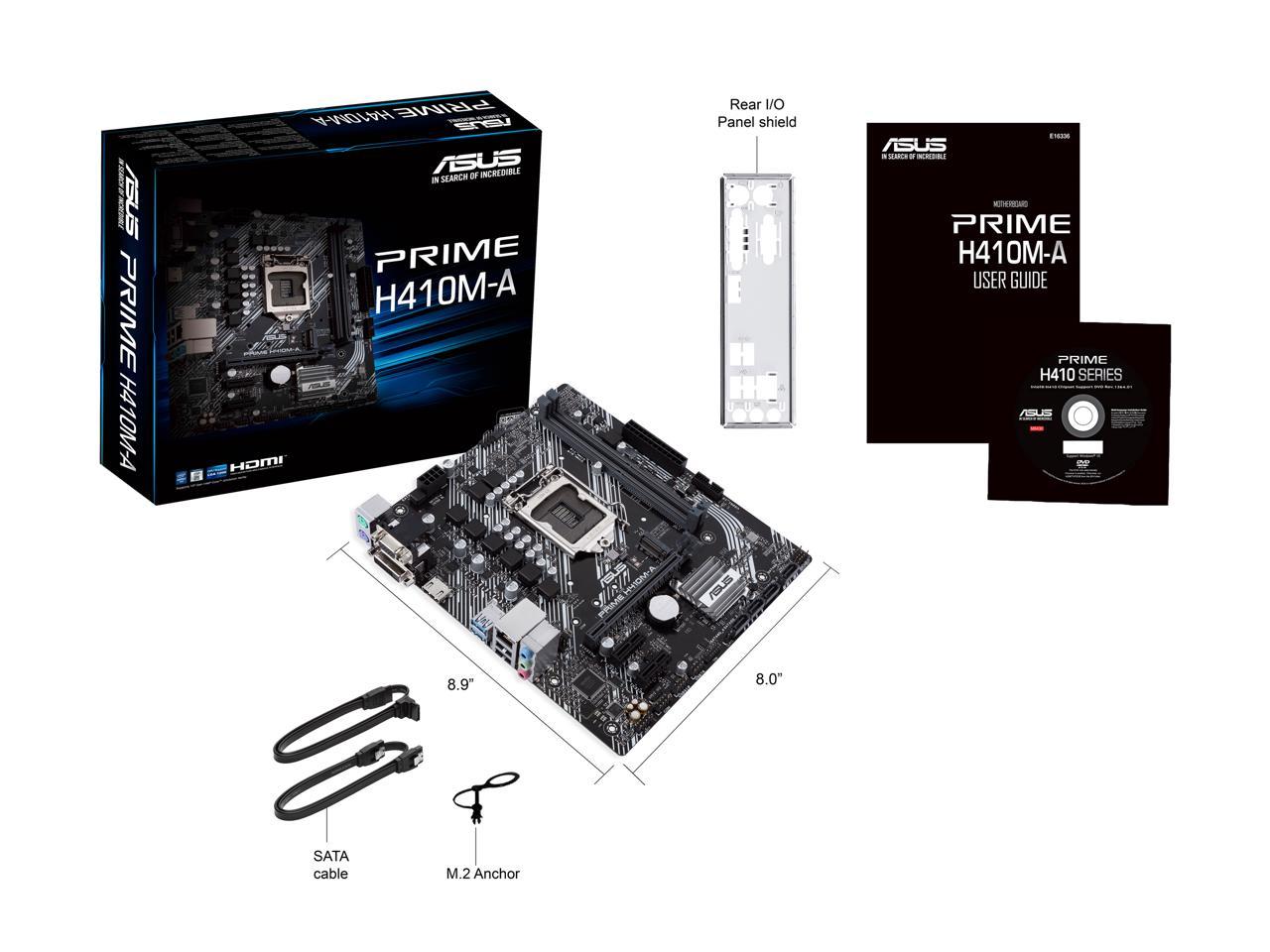

Packaging
| Package Contents |
Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User manual |
