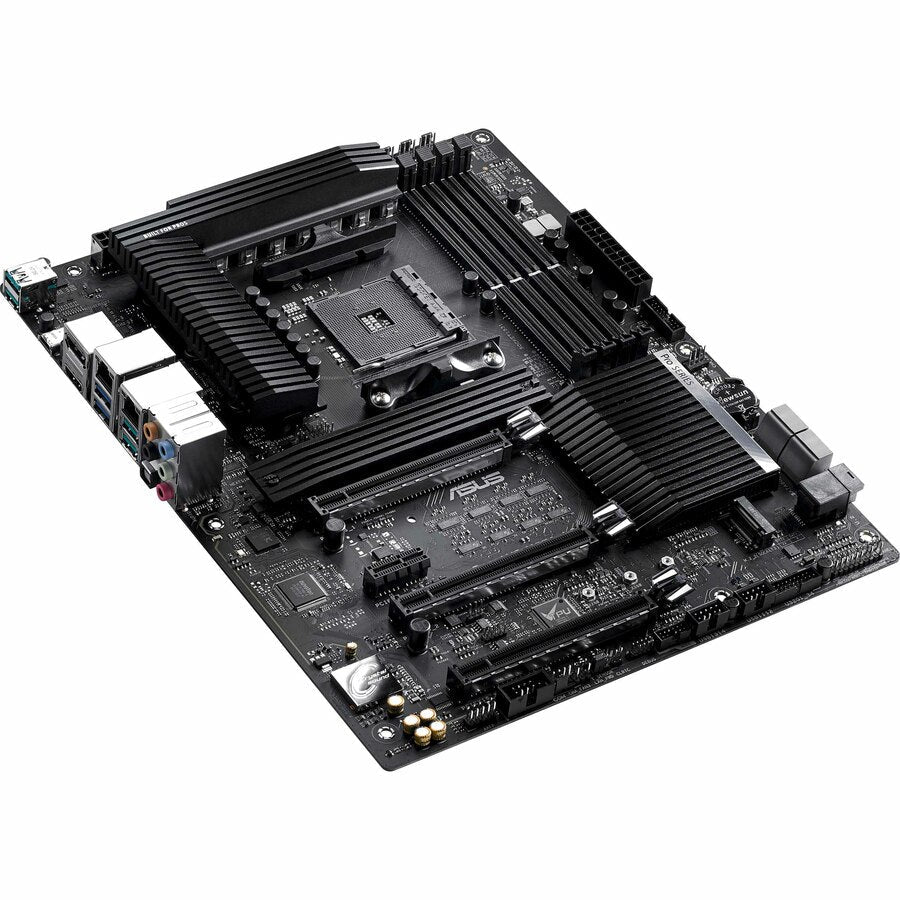

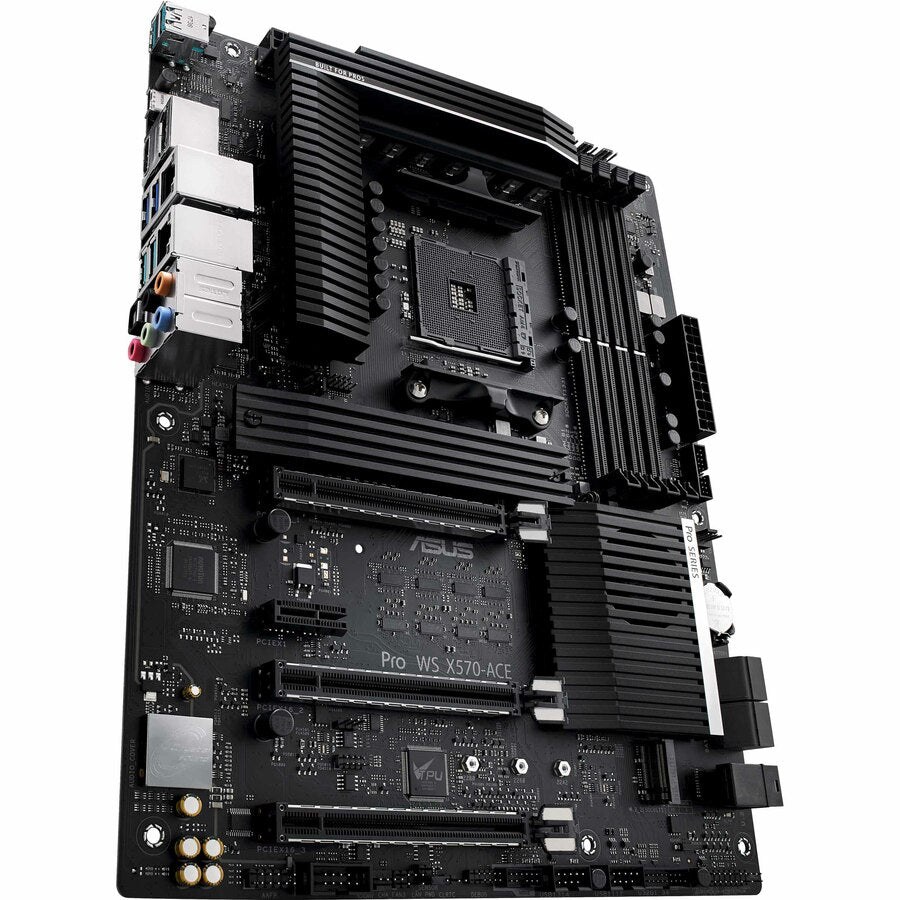

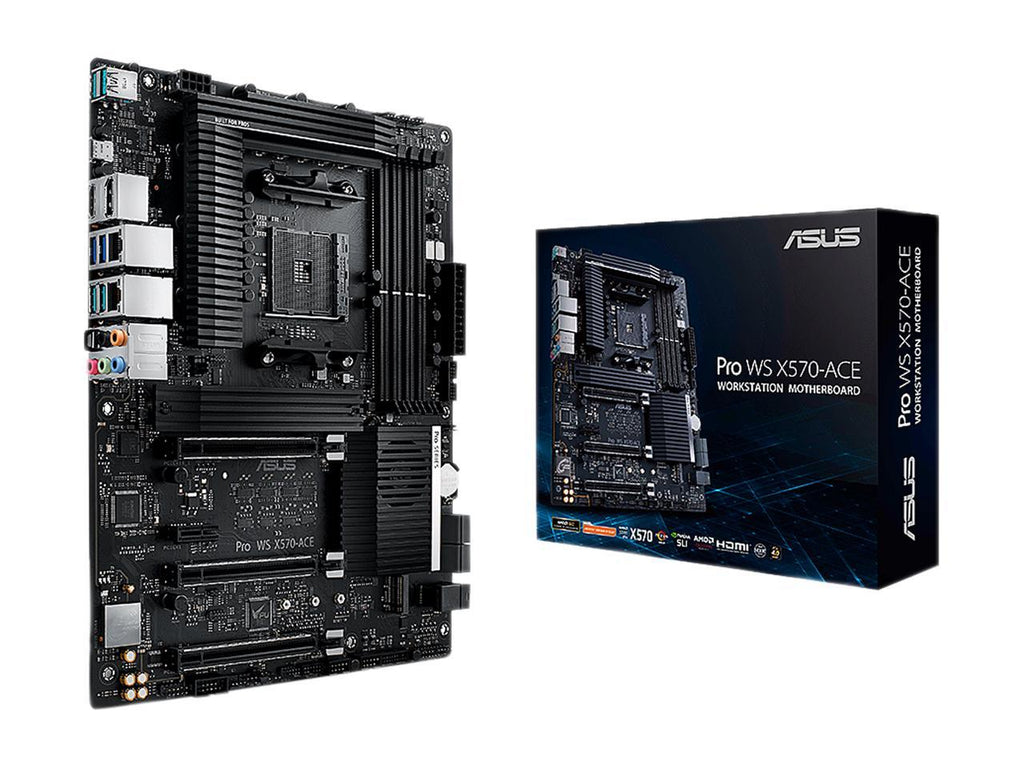

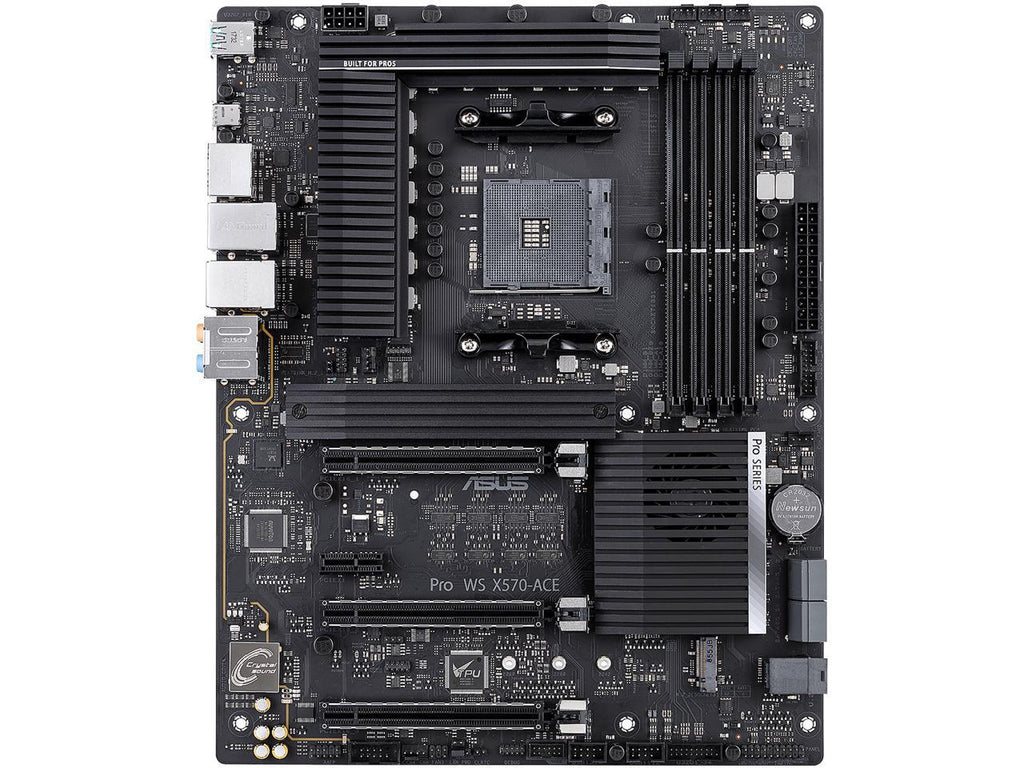

Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel

Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel

SKU:Pro WS X570-ACE

Regular price $880.00
Regular price Sale price $880.00
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
        • AMD X570
        • AMD AM4 socket: Ready for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series desktop processors

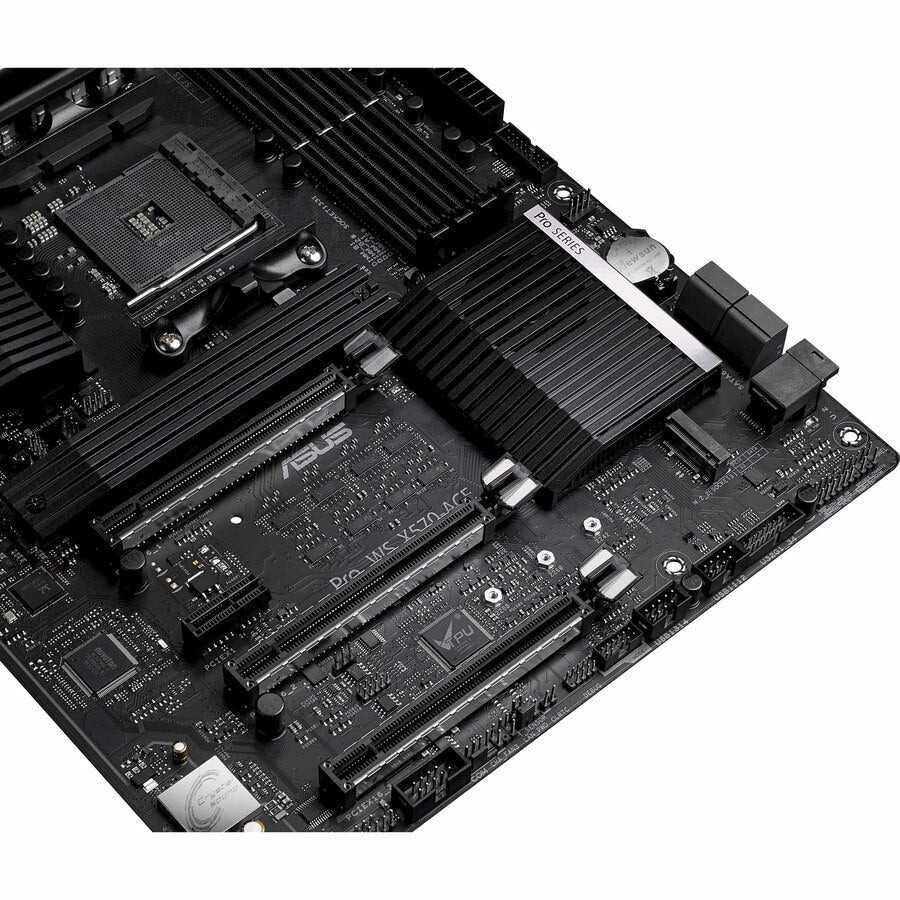

        • 3 PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workload
        • Reliable and responsive ECC memory suitable for mission critical task
        • ASUS Control Center Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
        • Ultra-fast storage: Up to 64Gbps M.2, U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports

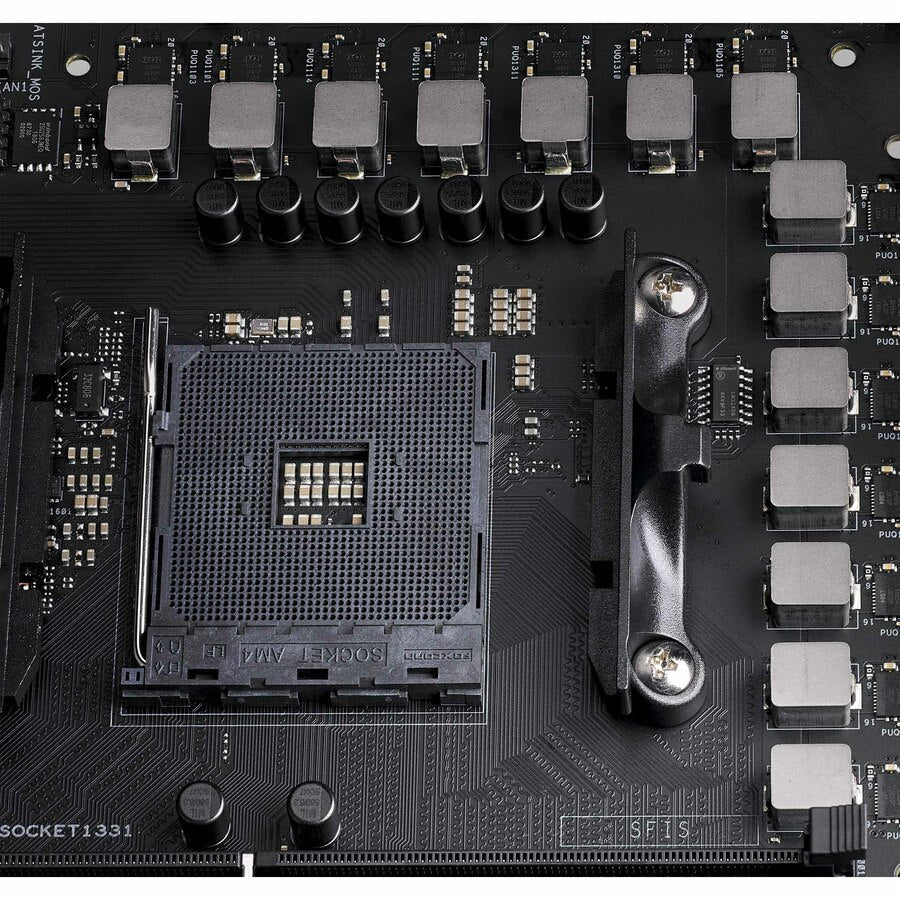

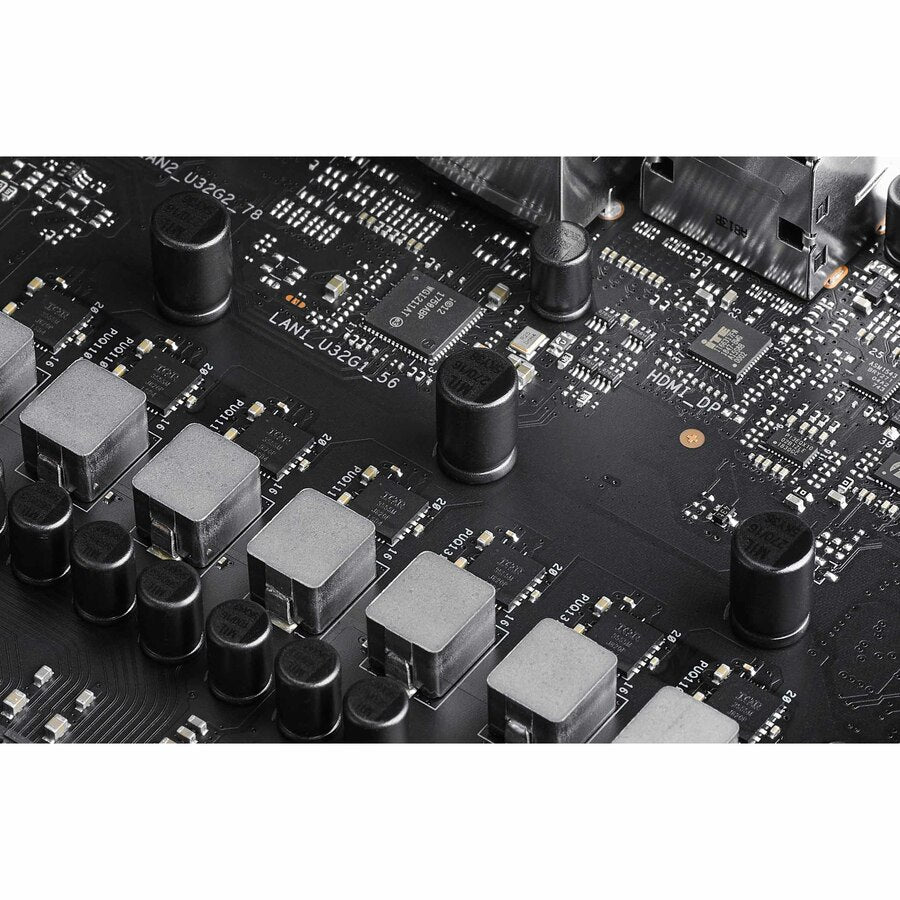

        • Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance
        Model
        Brand ASUS
        Model Pro WS X570-ACE
        Supported CPU

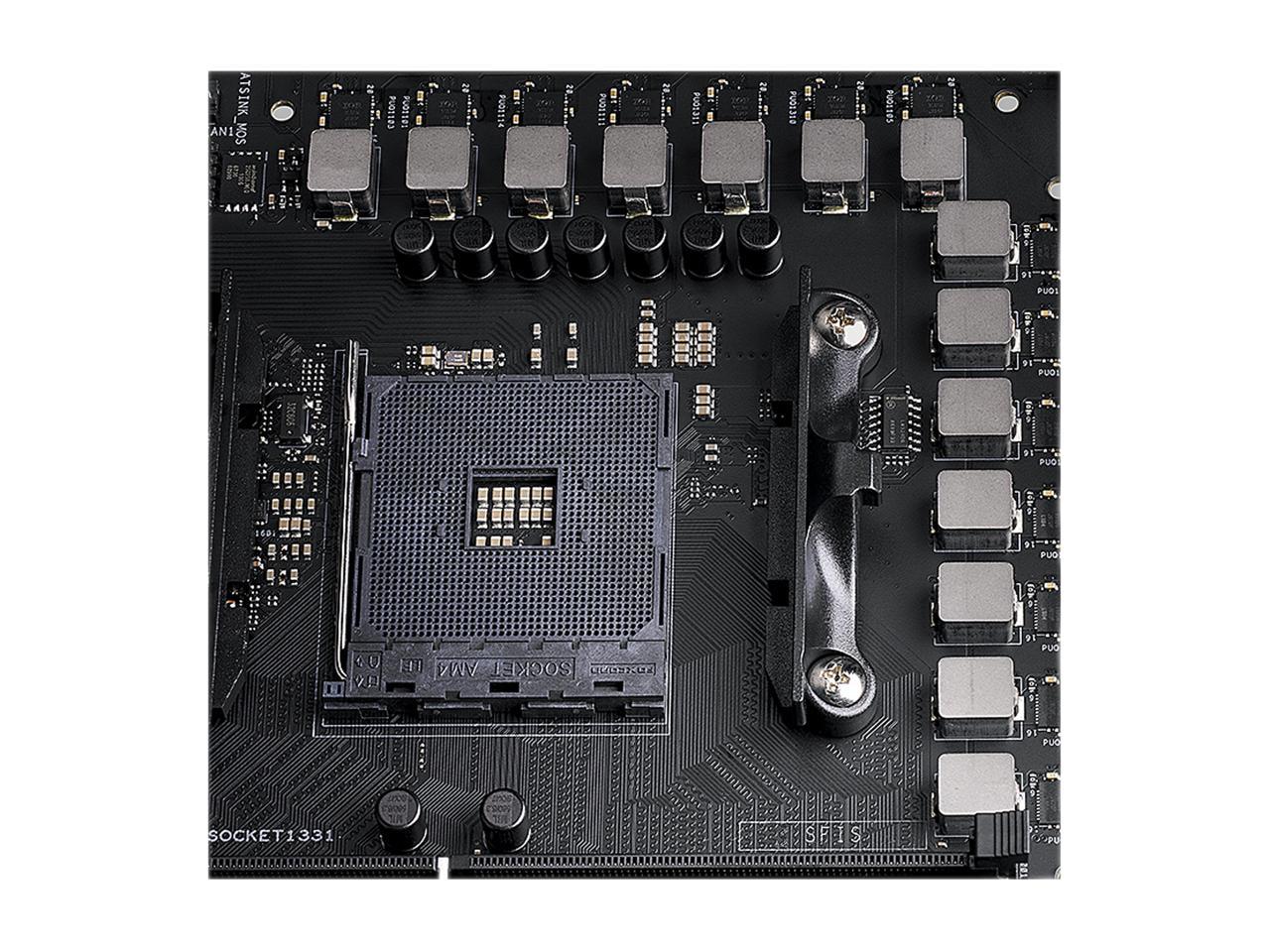

        CPU Socket Type  AM4
        CPU Type AMD AM4 Socket for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors Processors
        * Due to CPU limitation, CPU cores supported varies by processors.
        * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
        Chipsets
        Chipset  AMD X570
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        * The maximum memory capacity supported vary depending on the CPU you installed.
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel

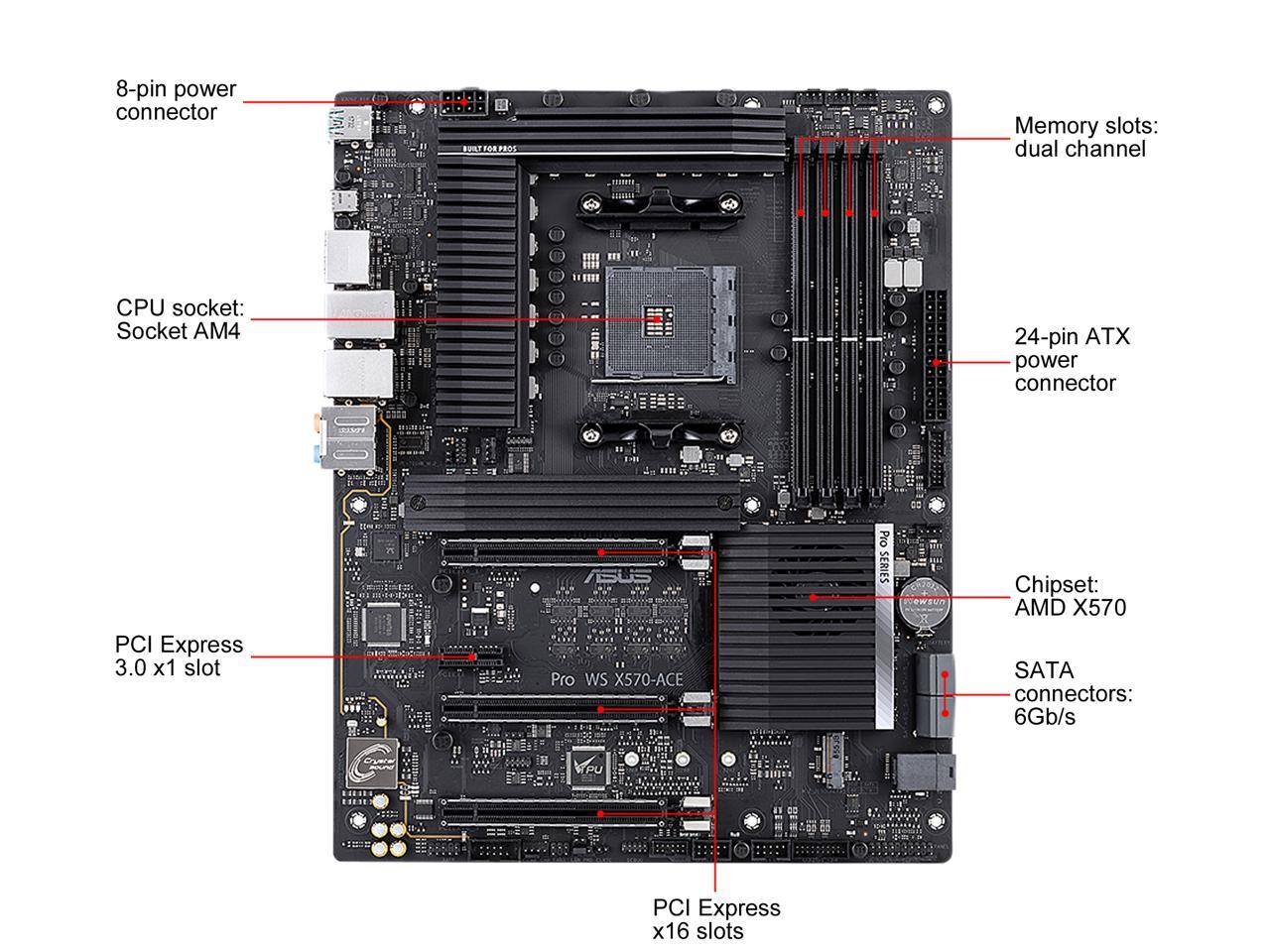

        Expansion Slots
        PCI Express 4.0 x16 AMD Ryzen 5000 Series / 3000 Series Desktop Processors
        2 x PCIe 4.0 x16 (x16 or dual x8)
        AMD Ryzen 4000 G-Series / 2000 Series Processors
        2 x PCIe 3.0 x16 (x16 or dual x8)
        AMD Ryzen 3000 G-Series / 2000 G-Series Processors
        1 x PCIe 3.0 x16 (x8 mode)
        AMD X570 chipset
        1 x PCIe 4.0 x16 (x8 mode)
        PCI Express x1 1 x PCIe 4.0 x1
        Storage Devices
        SATA 6Gb/s  4 x SATA 6Gb/s
        M.2 AMD Ryzen 5000 Series / 3000 Series Desktop Processors :
        1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :
        1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
        AMD X570 chipset :
        1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x2) storage devices support
        1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage
        SATA RAID 0/1/10
        Onboard Video
        Onboard Video Chipset  Integrated Graphics in AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 G-Series Desktop Processors
        Multi-VGA output support : HDMI/DisplayPort ports
        - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
        - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
        Onboard Audio
        Audio Chipset  Realtek S1200A High Definition Audio CODEC
        Audio Channels  8 Channels
        * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
        Onboard LAN
        LAN Chipset Realtek RTL8117
        Second LAN Chipset Intel I211-AT
        Max LAN Speed Dual 10/100/1000Mbps

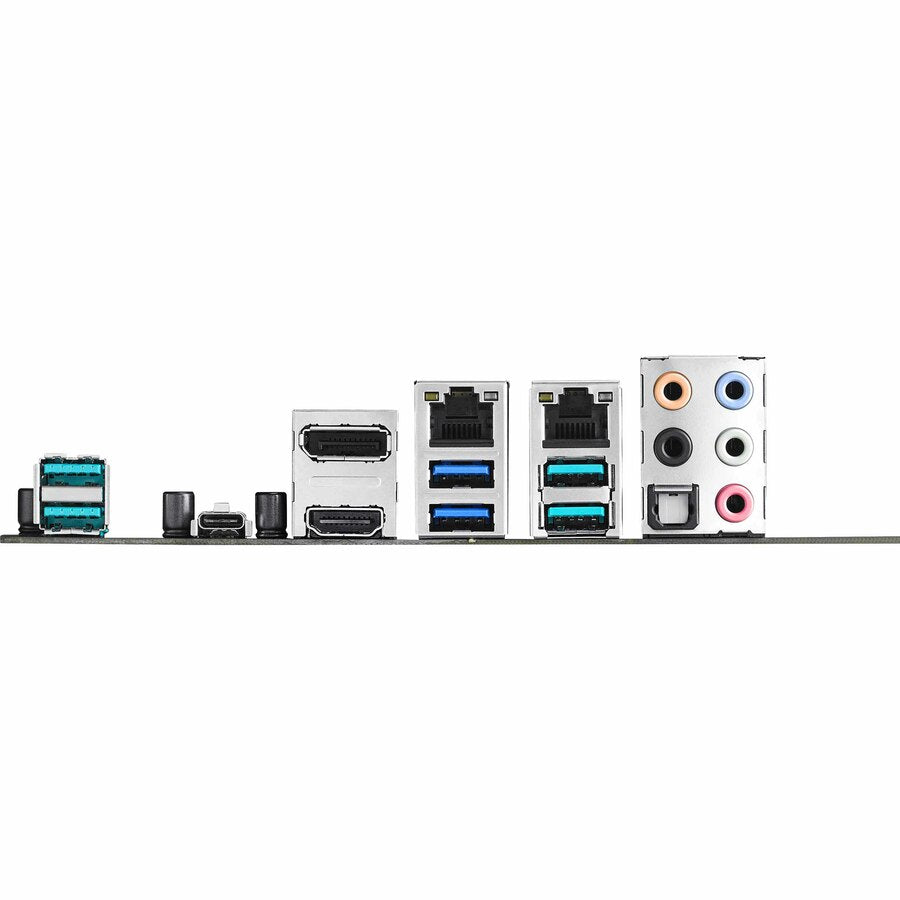

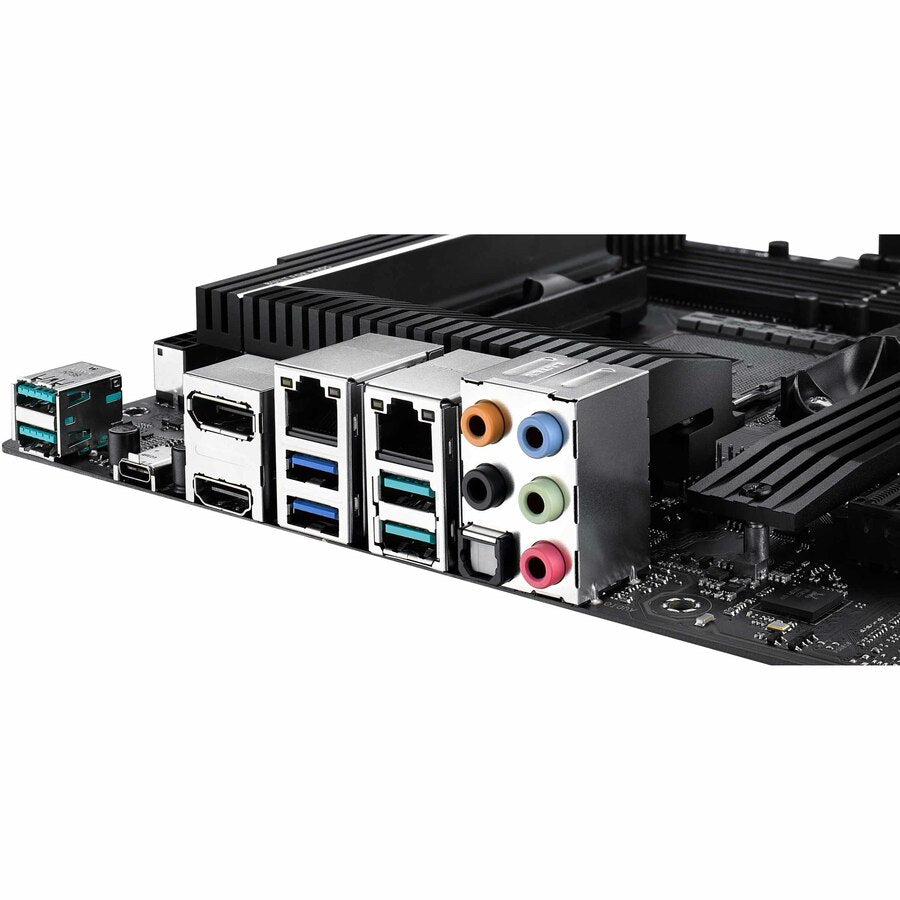

        Rear Panel Ports
        Back I/O Ports 1 x DisplayPort
        1 x HDMI
        2 x LAN (RJ45) port(s)
        1 x Optical S/PDIF out
        5 x Audio jack(s)
        2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
        4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A*)
        1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
        * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors
        Internal I/O Connectors
        Onboard USB 2 x USB 3.2 Gen 1 connector supporting additional 4 USB ports
        2 x USB 2.0 connectors support additional 4 USB ports
        Other Connectors 1 x PCH_FAN
        1 x COM port(s) connector(s)
        1 x CPU Fan connector(s) (1 x 4-pin)
        1 x CPU OPT Fan connector(s) (1 x 4-pin)
        3 x Chassis Fan connector(s) (3 x 4-pin)
        1 x AIO_PUMP connector (1 x 4-pin)
        1 x S/PDIF out header(s)
        1 x Front panel audio connector(s) (AAFP)
        1 x System panel(s)
        1 x Clear CMOS jumper(s)
        Physical Spec
        Form Factor ATX
        LED Lighting None RGB
        Dimensions (W x L) 12.0" x 9.6"
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Windows 11 Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Desktop Processors
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology

        Workstation Feature:

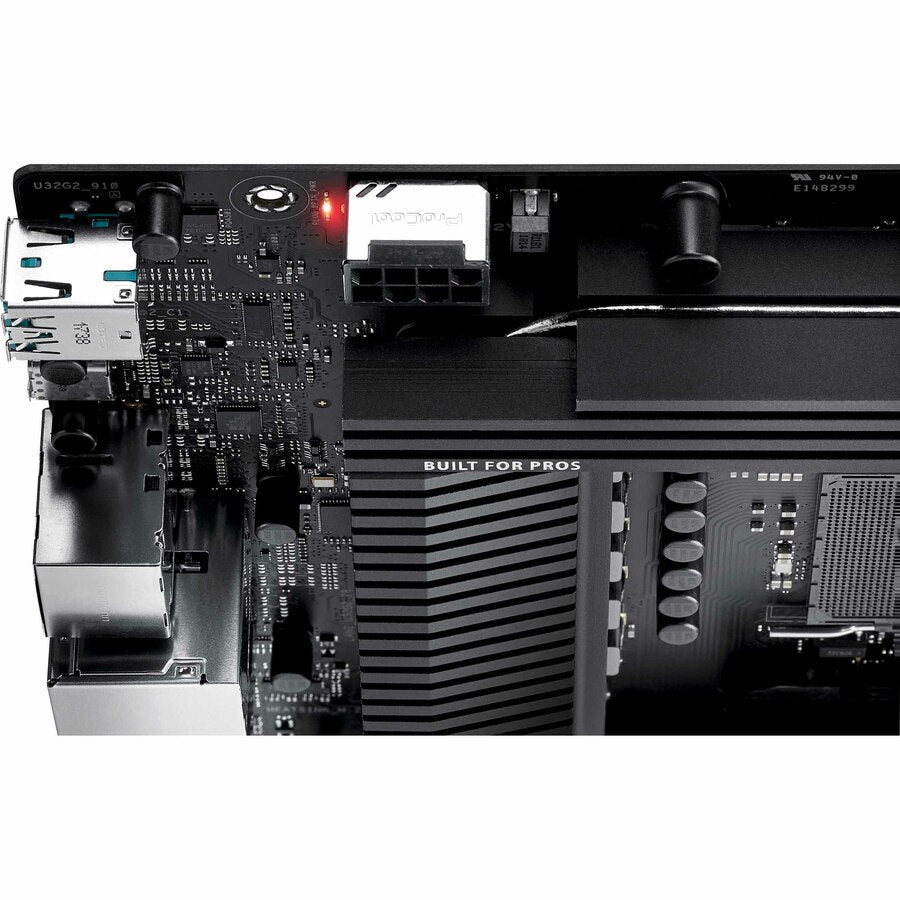

        ProCool Power Connector
        ASUS Control Center (ACC)

        Special Features:
        5-Way Optimization by Dual Intelligent Processors 5
        - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
        Fan Xpert4
        - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
        ASUS 5X Protection III:
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
        - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
        - ASUS ESD Guards - Enhanced ESD protection
        ASUS SafeSlot - Protect your graphics card Investment
        ASUS OptiMem:
        - Improved DDR4 Stability
        ASUS EPU:
        - EPU
        ASUS Exclusive Features:
        - OptiMem
        - AI Suite 3
        - Ai Charger
        - ESD Guards
        - Turbo LAN
        - Armoury Crate
        - ASUS EZ Flash 3
        - ASUS NODE: hardware control interface
        ASUS Quiet Thermal Solution:
        - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
        - ASUS Fan Xpert 4
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        ASUS Q-Design:
        - ASUS Q-Shield
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM

        BIOS:
        256MB Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

        Manageability:
        WOL by PME, PXE

        Operating System:
        Windows 10 64-bit
        Packaging

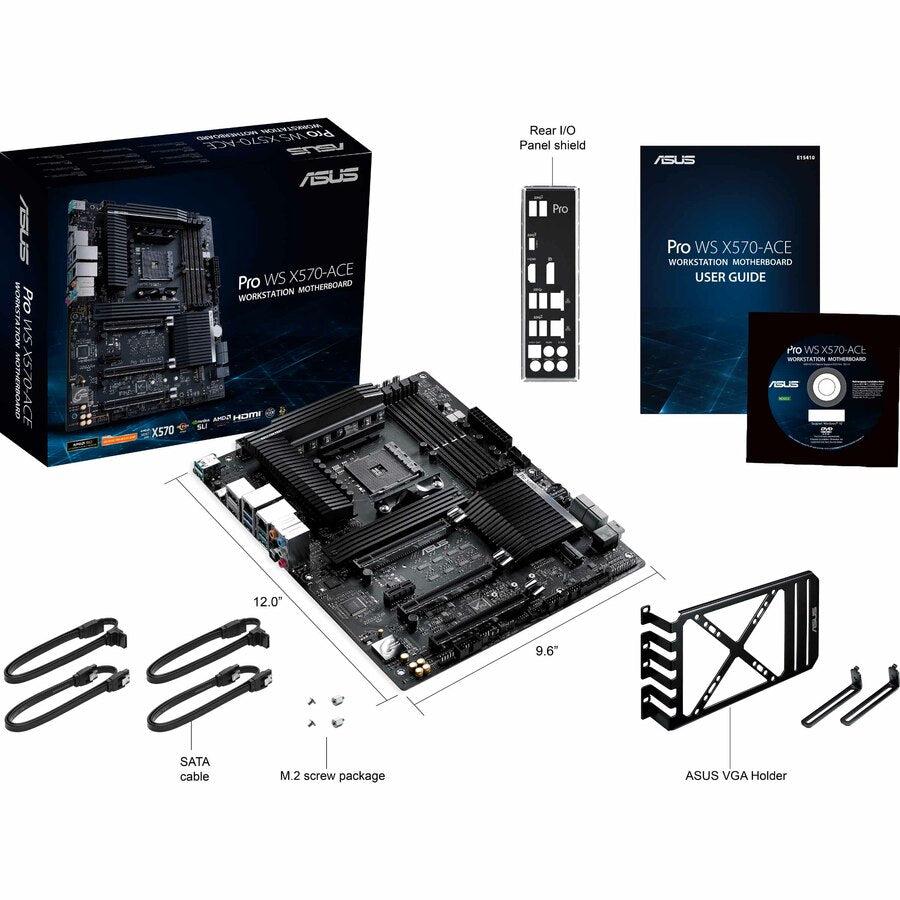

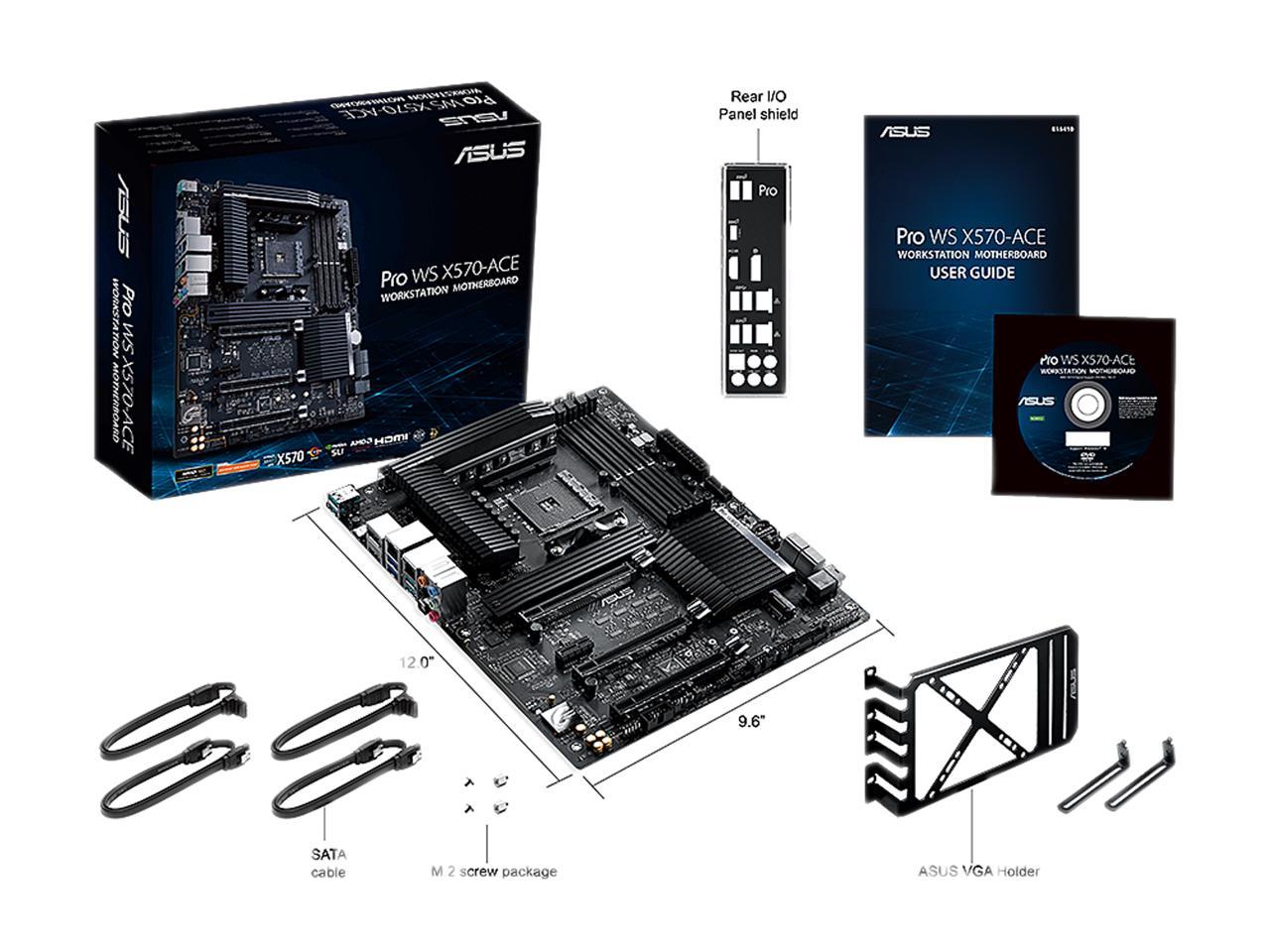

        Package Contents Accessories:
        User's manual

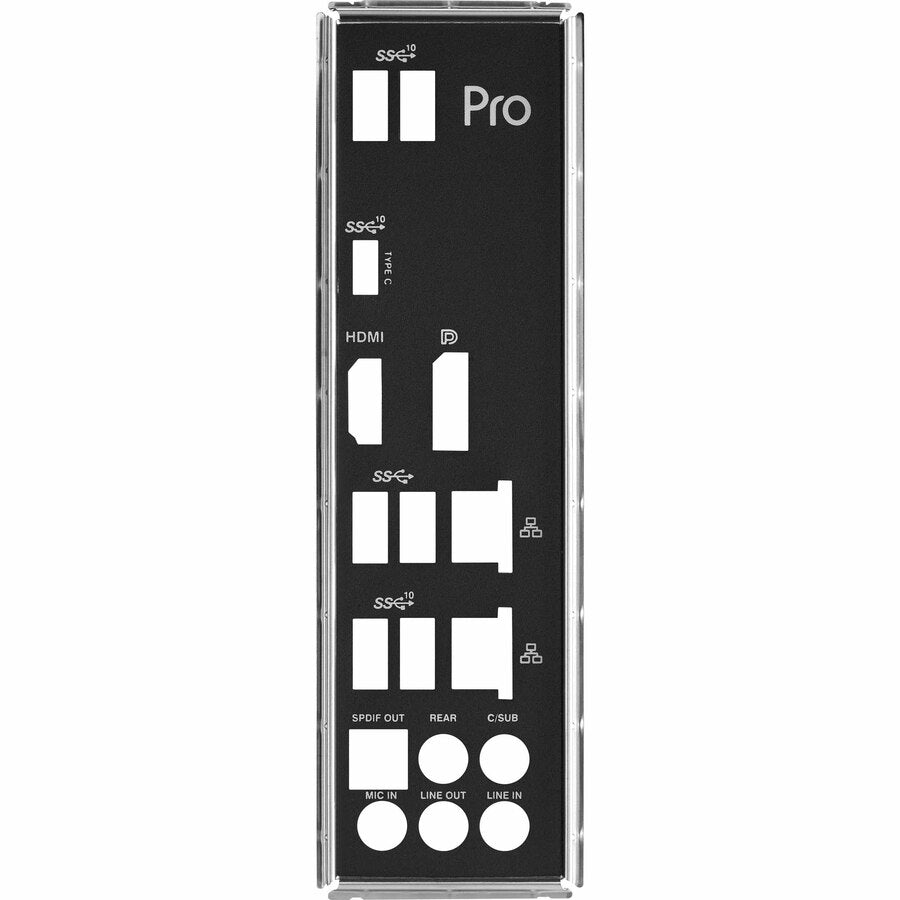

        I/O Shield
        4 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD

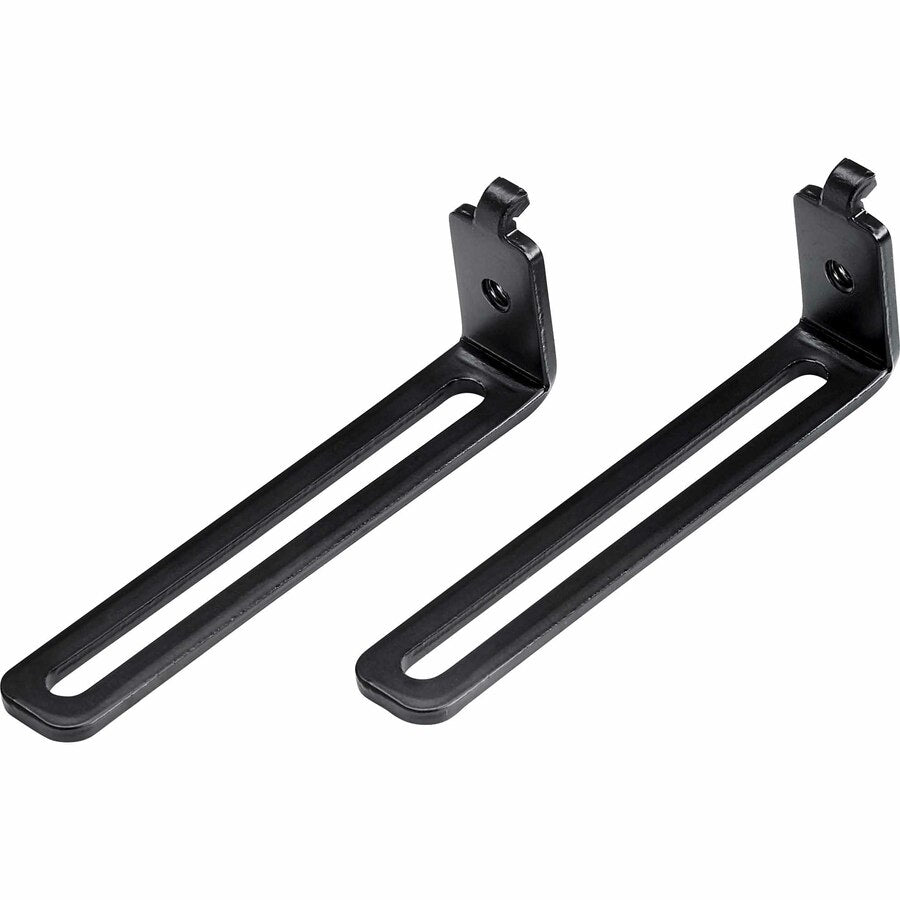

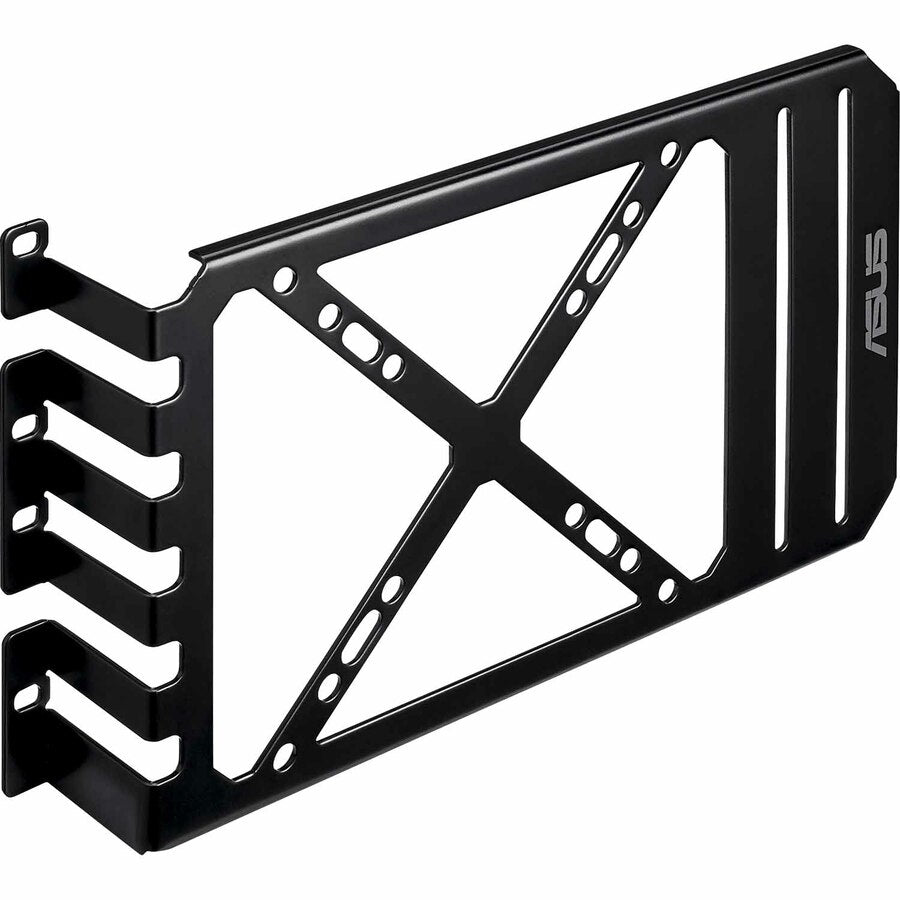

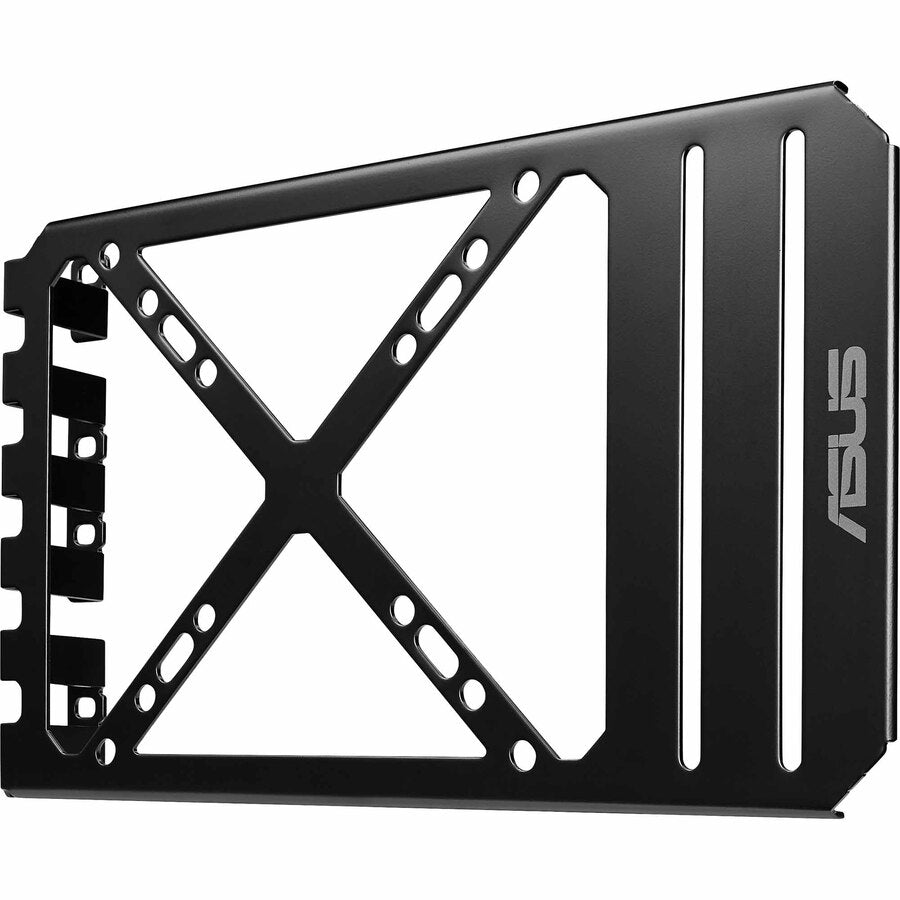

        1 x ASUS VGA Holder
