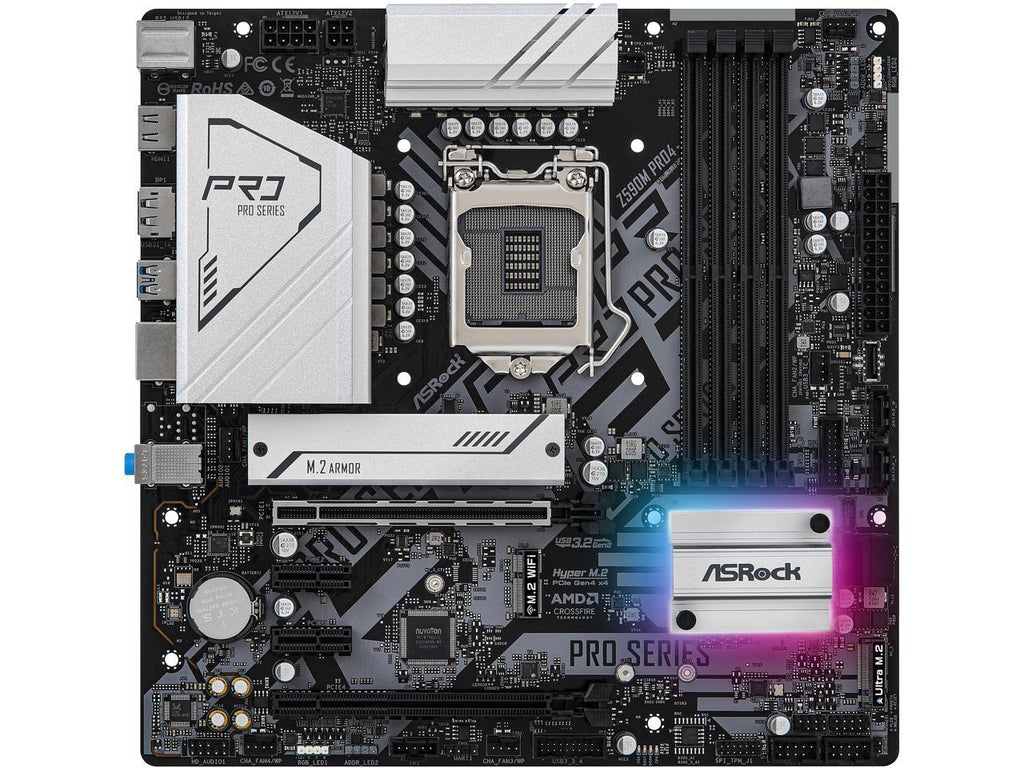

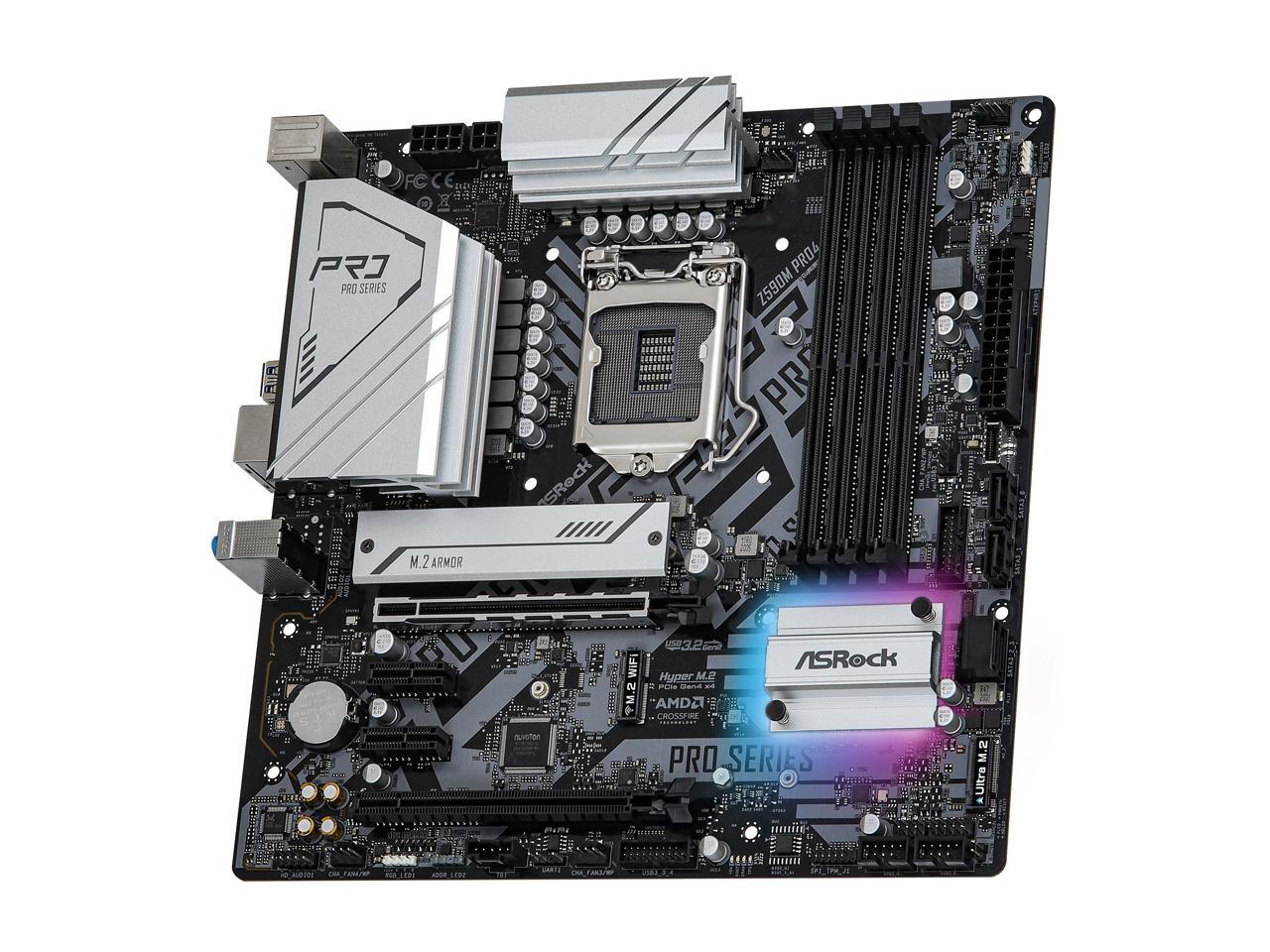

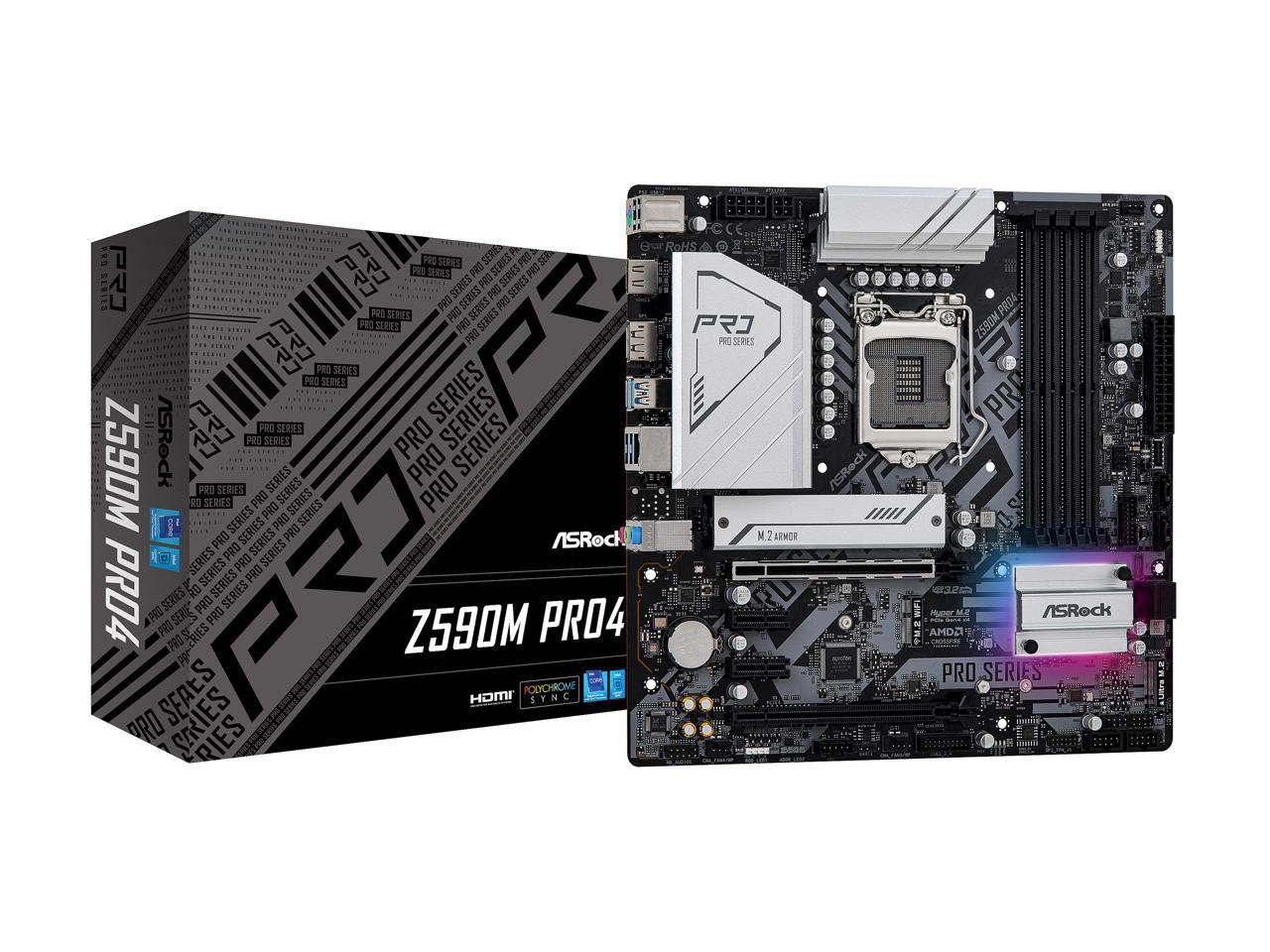

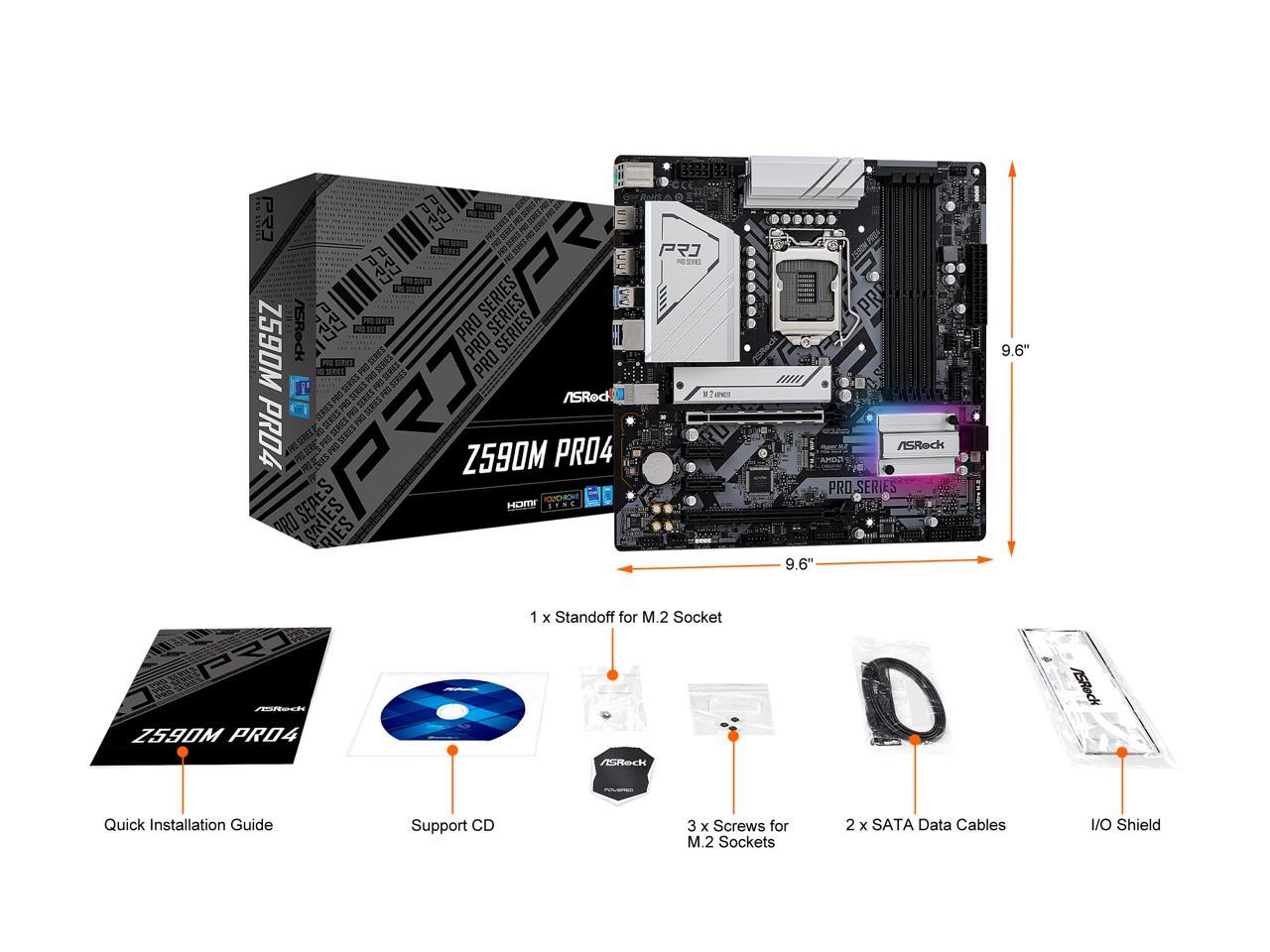

Asrock Z590M Pro4 Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard
Asrock Z590M Pro4 Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard
SKU:Z590M PRO4
Couldn't load pickup availability
Description :

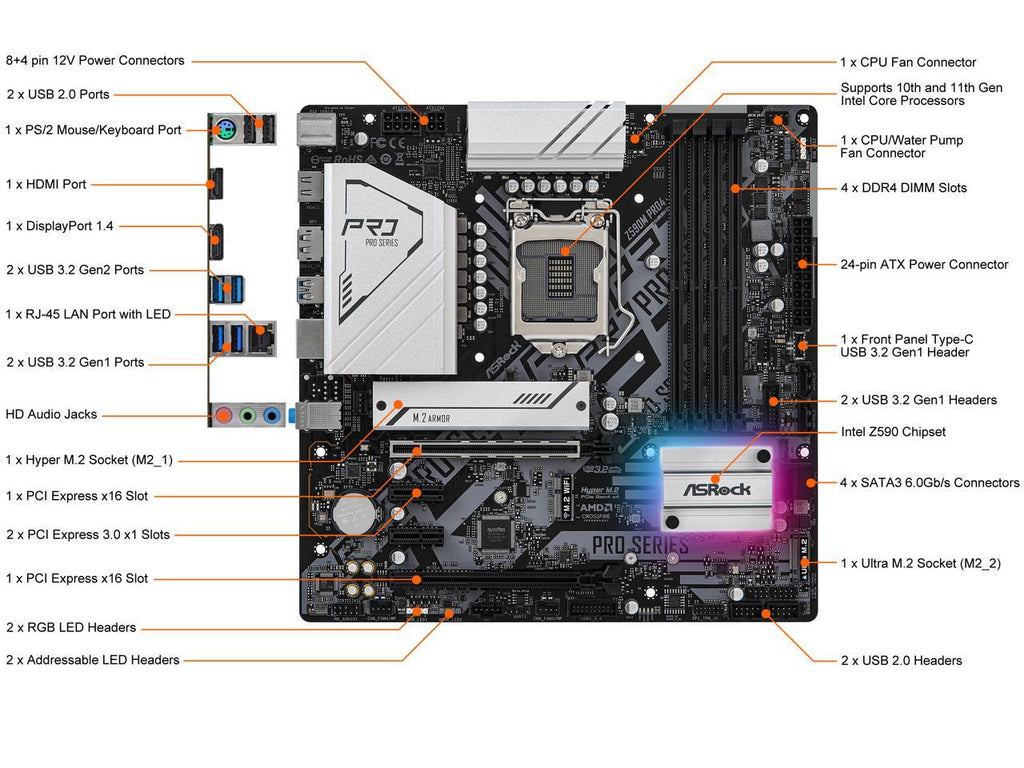

- Intel Z590
- Supports 10th Gen Intel Core Processors
- Supports 11th Gen Intel Core Processors
- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors

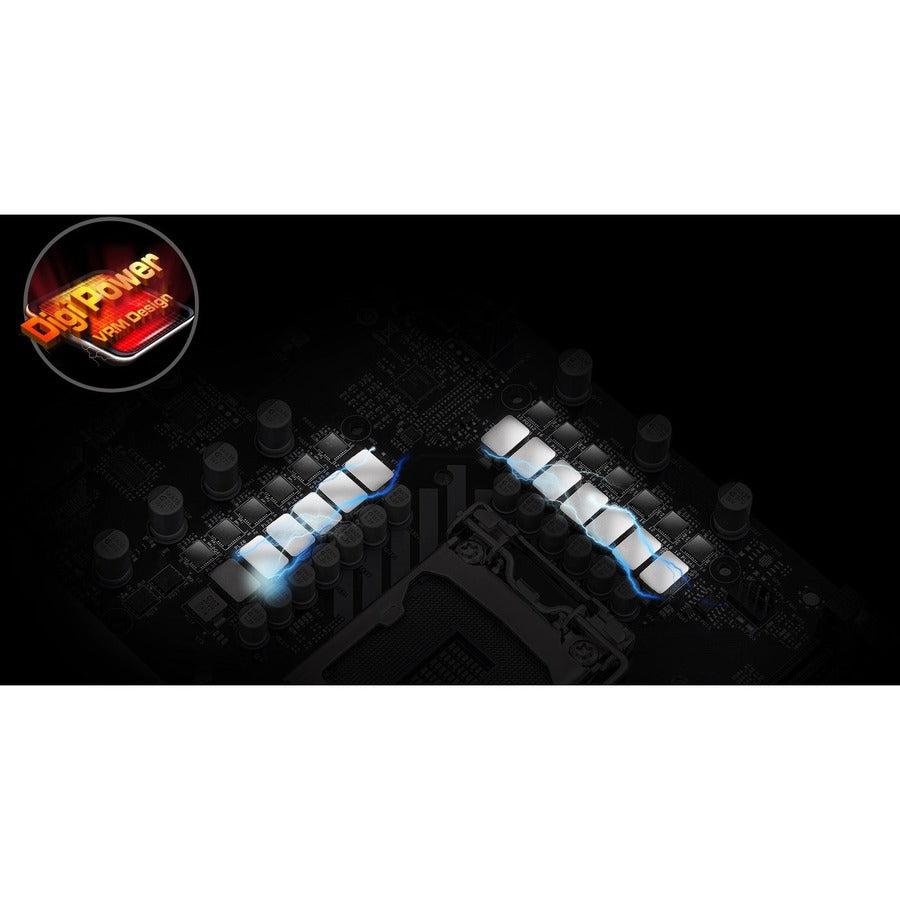

- 12 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, and 2 x PCIe 3.0 x1
- 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI and DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

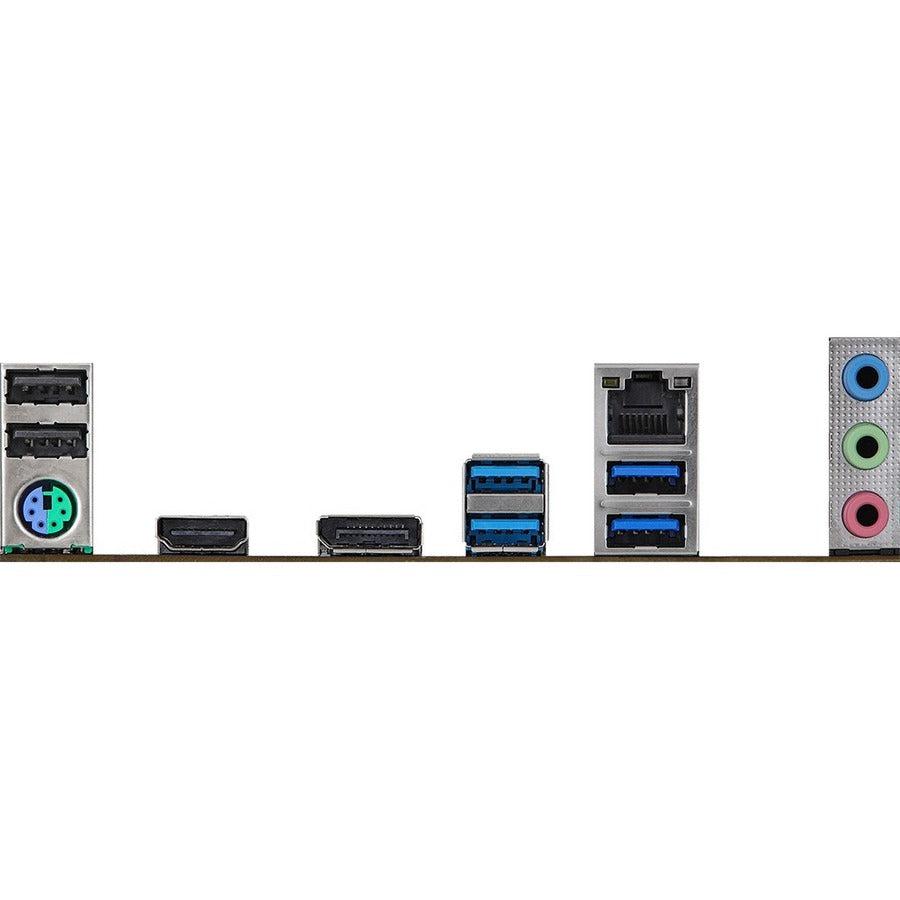

- 2 x Rear USB 3.2 Gen2 (10Gb/s)
- 7 x USB 3.2 Gen1 (2 x Rear, 4 x Front, and 1 x Front Type-C), 6 x USB 2.0 (2 x Rear, and 4 x Front)
- Intel Gigabit LAN

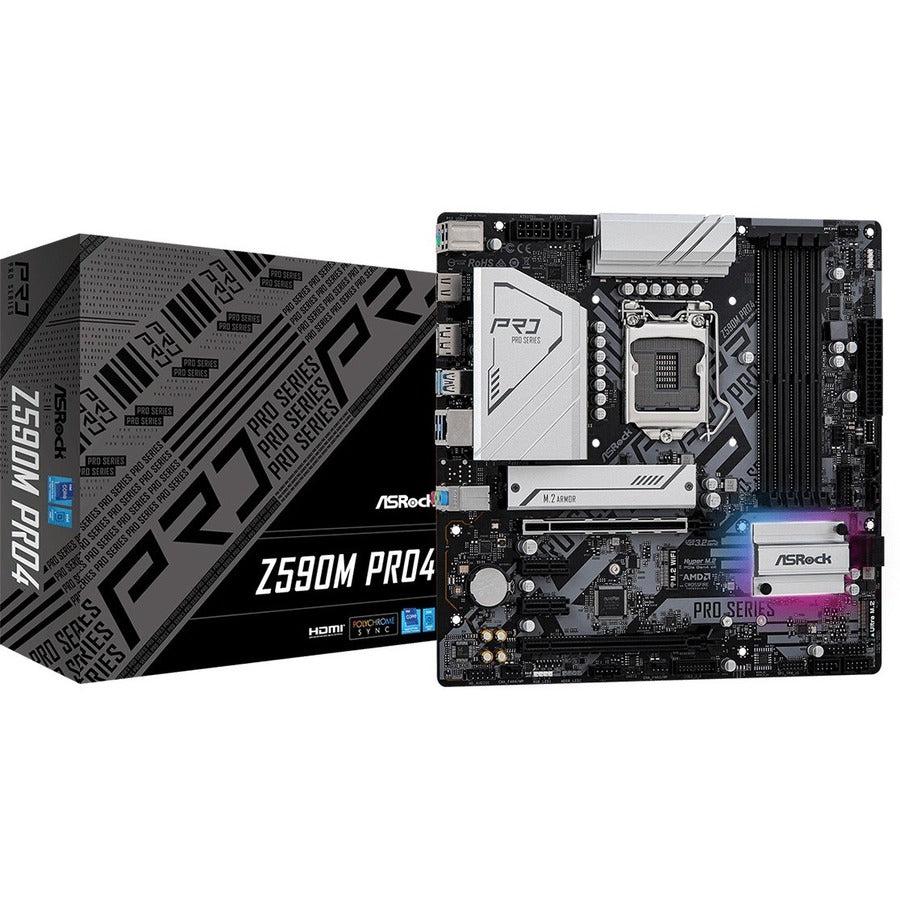

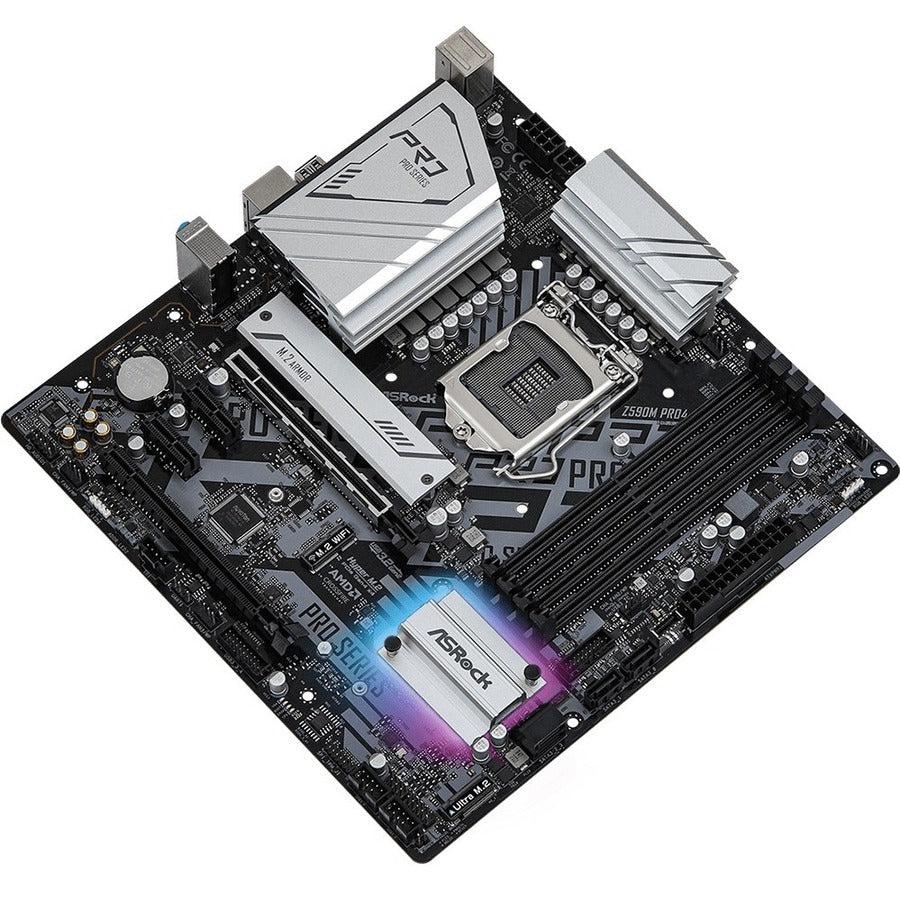

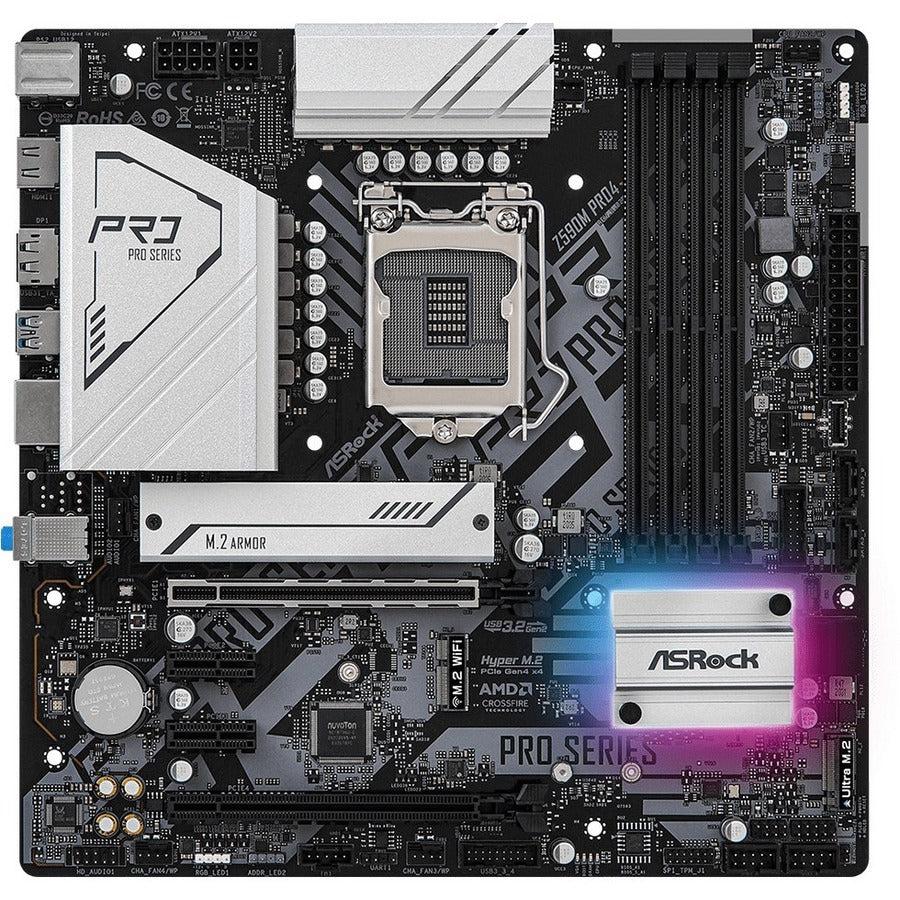

ASRock Z590M PRO4
With 12 power phase design and comprehensive onboard cooling, this micro ATX board is designed to unleash the full potential of the latest 11th / 10th gen Intel Core processors. It also brings ultra-fast PCIe 4.0 for graphics cards and M.2 SSDs, and has USB 3.2 Gen2 for quick data access at up to 10 Gbps. The built-in RGB lighting is fun and vivid, and can be customized and synchronized to create a system-wide lighting show.

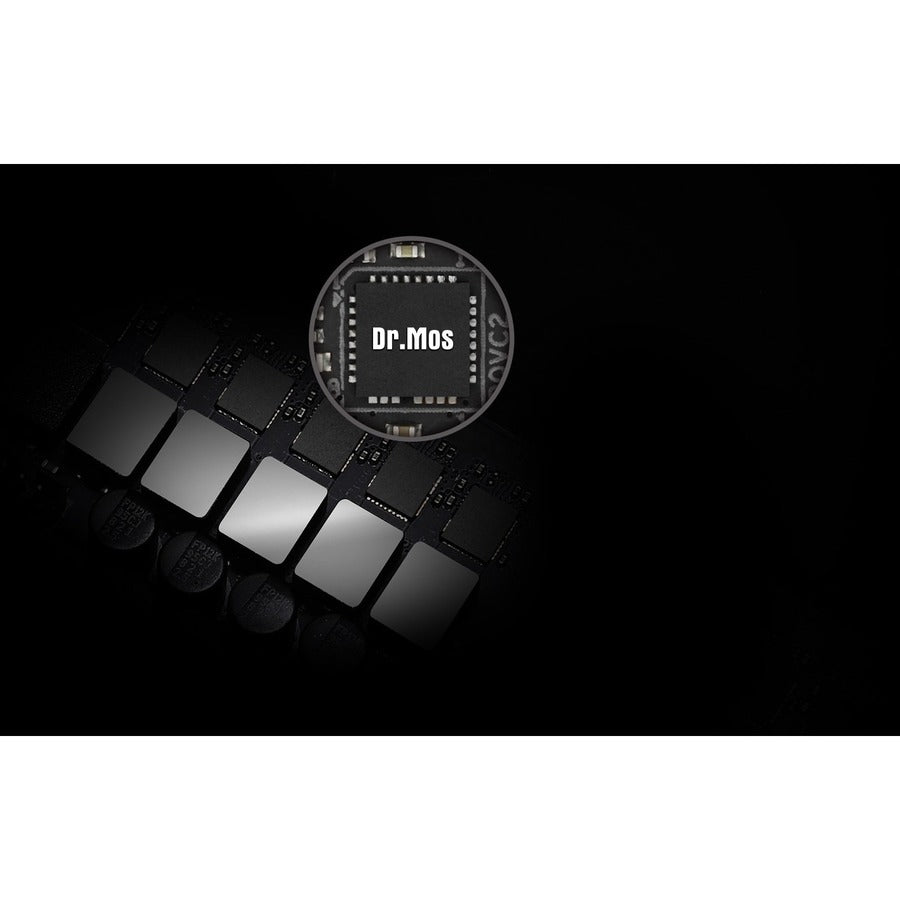

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Conventional PC system's processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removing the bottleneck and increasing performance.

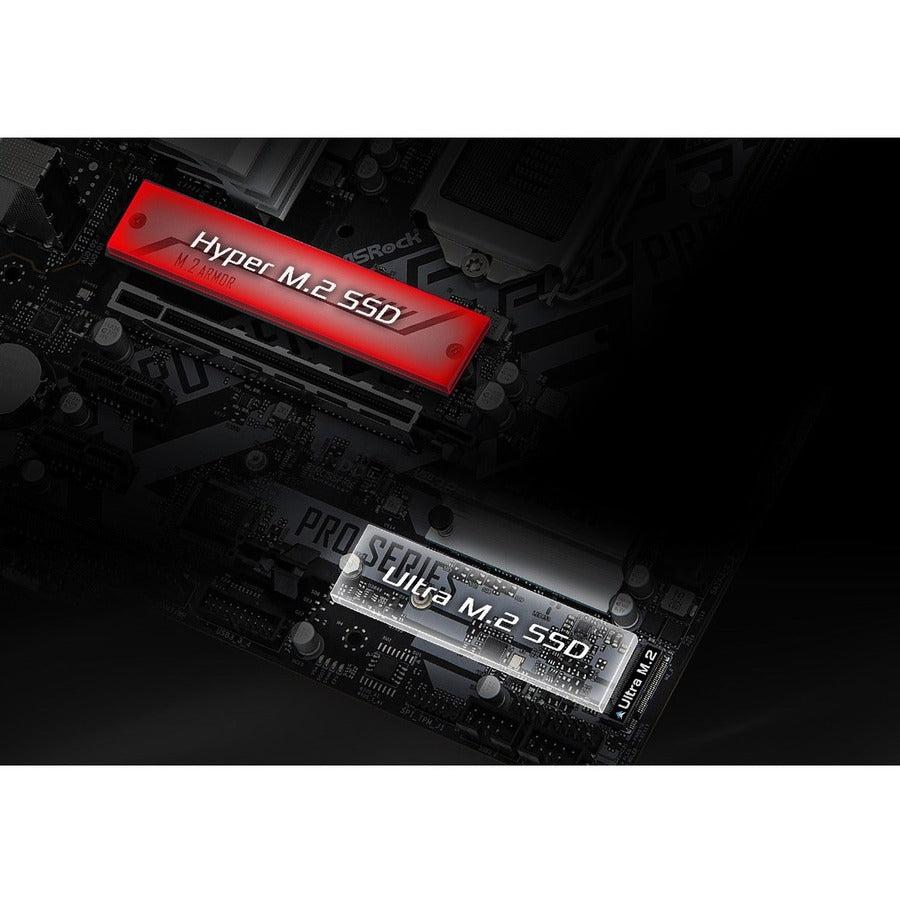

PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
6 Layer PCB
The 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest DDR4 memory modules with the most extreme memory performance!
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.

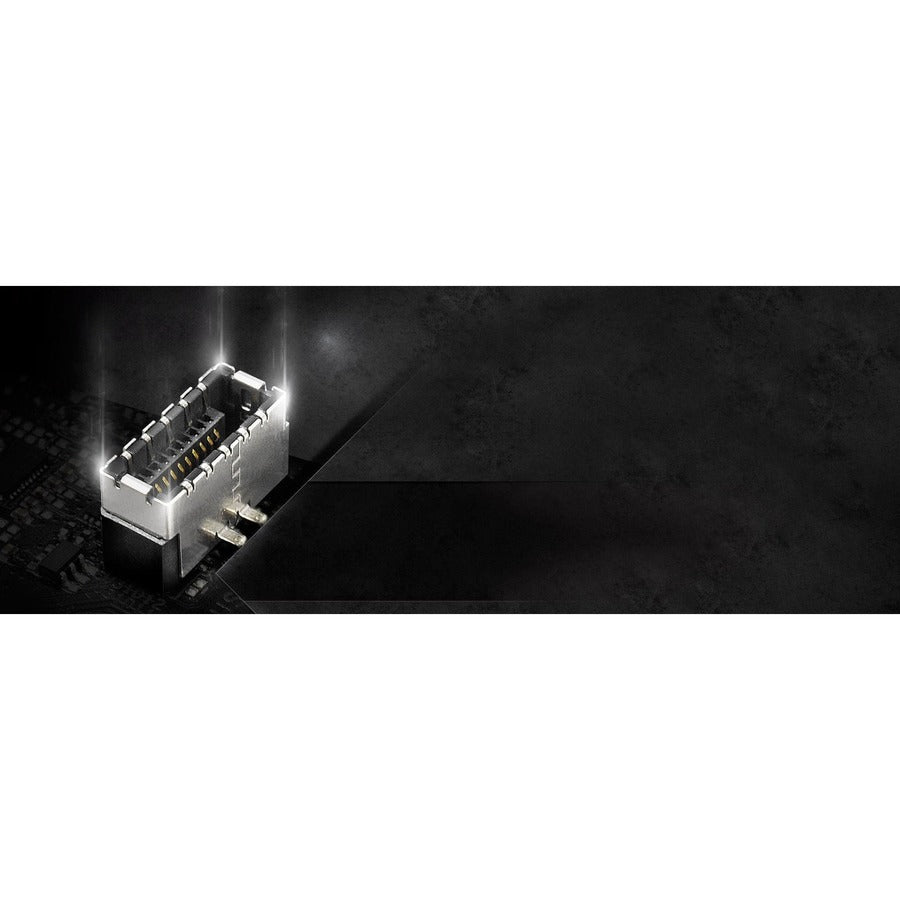

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
2 x USB3.2 Gen2
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allowing you to have a stunning data transfer experience.

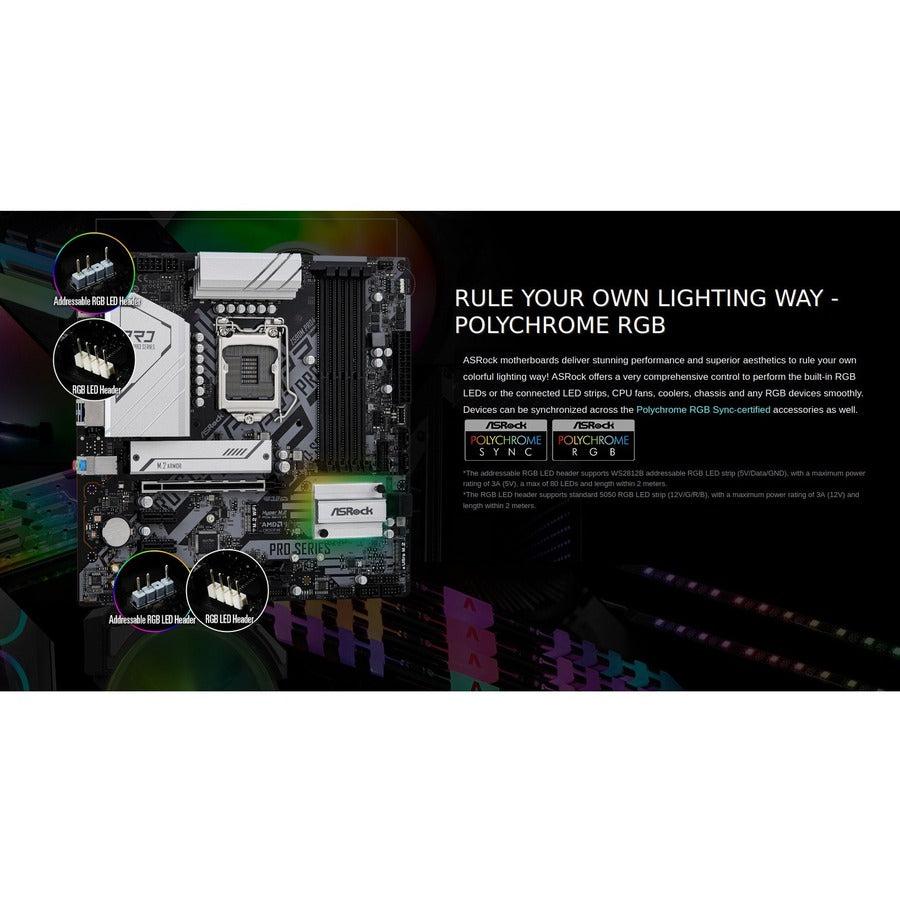

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
POST Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. POST Status Checker is a fast and easy way to identify the source of the problem.

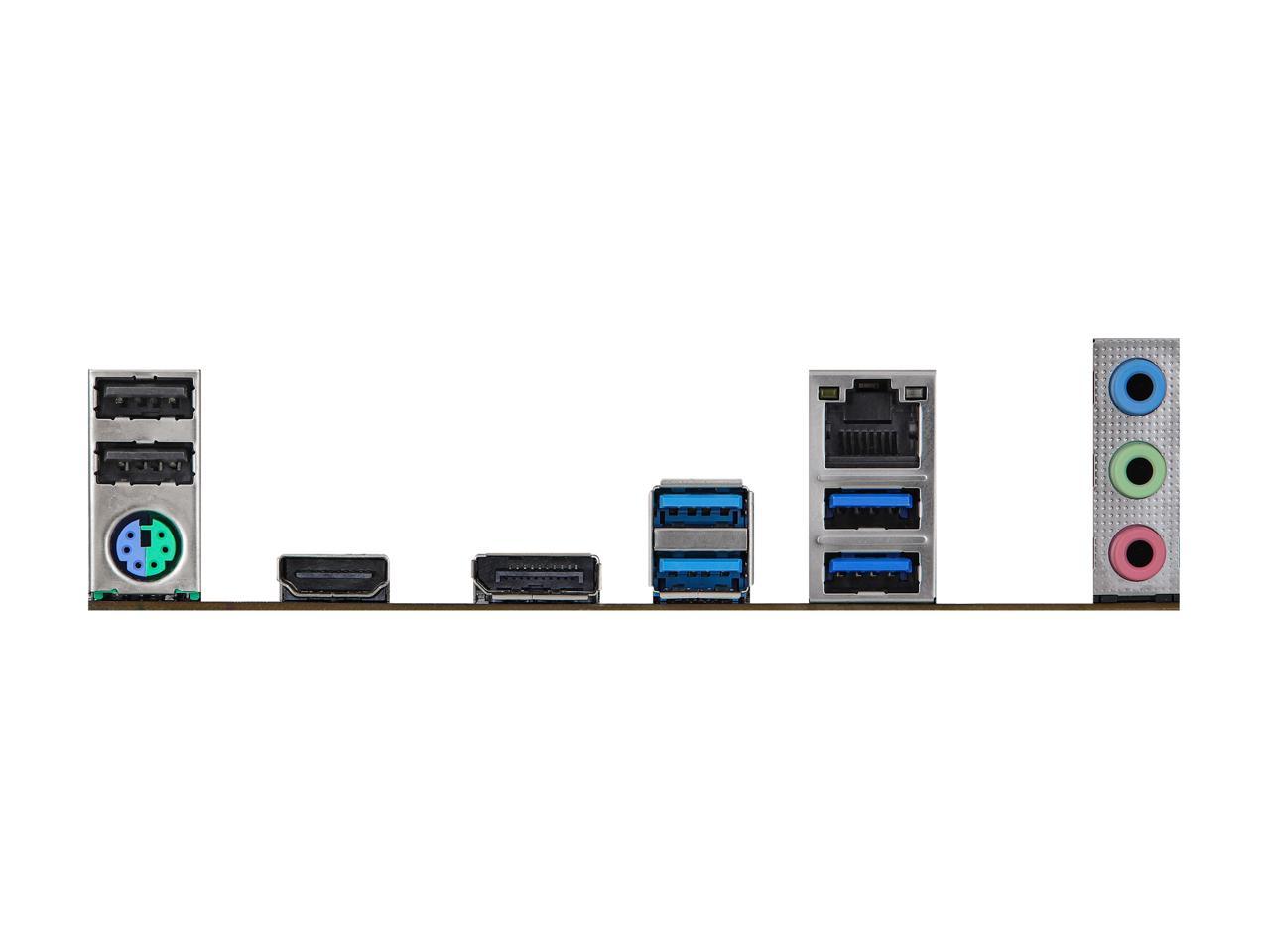

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specifications :
General Information
| Manufacturer | ASRock, Inc |
|---|---|
| Manufacturer Part Number | Z590M PRO4 |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | Z590M Pro4 |
| Product Name | Z590M Pro4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 4710483933844 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Width | 9.6" |
|---|---|
| Depth | 9.6" |
