Description :
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
- AMD X570
- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
- Thunderbolt 3 Type-C
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

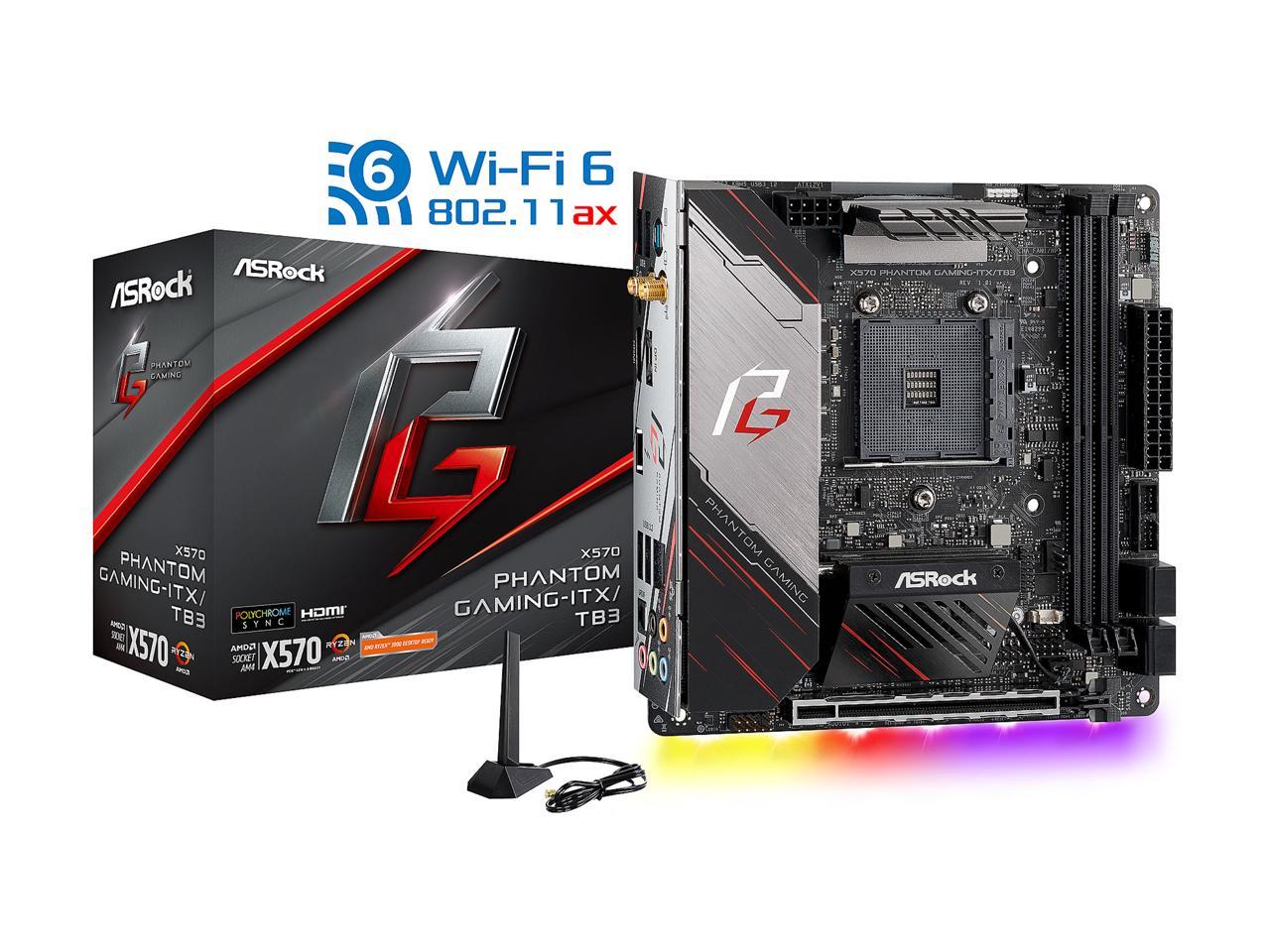

![X570 Phantom Gaming-ITX/TB3 Motherboard Next to Its Product Box, WiFi Device and AMD 50 Logo](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/1_072019.jpg)
- Supports AMD AM4 Socket Ryzenâ„¢ 2000 and 3000 Series Processors
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth 5.0
- Intel® Gigabit LAN
- Supports DDR4 4533+ (OC)
- 1x PCIe 4.0 x16
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Creative Sound Blaster Cinema 5
- 4x SATA3 & 1x Hyper M.2 (PCIe Gen4 x4)
- 3x USB 3.2 Gen2 (2x Rear Type A) & 4x USB 3.2 Gen1 (2x Front, 2x Rear)
- 1 Thunderbolt 3 Type-C
- ASRock Polychrome SYNC
![ASRock X570 Phantom Gaming-ITX/TB3 Motherboard Standing Up, Next to Closeup Shots of the Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/5_072019.jpg)
Your PC Transformed
Stylish. More reliable. Design that delivers.
![AMD Ryzen 3000 Banner Showing the CPU Rising from a Motherboard with Stylized Lighting Graphics. There Is Text That Reads: GET READY FOR AMD RYZEN 3000-SERIES, PLUG & PLAY READY](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/6_072019.jpg)
![ASRock X570 Phantom Gaming-ITX/TB3 Motherboard's](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/16_072019.jpg)
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
![ASRock X570 Phantom Gaming-ITX/TB3 Motherboard's Dr. MOS Chip](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/38_072019.jpg)
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
![X570 Phantom Gaming-ITX/TB3's Thunderbolt Port, Along with Badges that Read: Power Delivery Max 36W and USB 3.1 Gen 2 10Gb/s](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/39_072019.jpg)
Thunderbolt 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt 3 devices with a single wire, and even provides quick charging with 5V@3A (15W).
Just experience the world's fastest connectivity with Thunderbolt ready motherboards!
![X570 Phantom Gaming-ITX/TB3's WiFi Devices Next to Its Ports with Graphics for 802.11ax and Compatible Media](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/40_072019.jpg)
Welcome to the new Wi-Fi standard! ASRock's motherboard will be the first product to house a next-generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
![Badges for Bluetooth 5.0 and 2.4Gbps WiFi](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/icon-2T2R-X570-Phantom-Gaming-X-1_072019.png)
![Bar Graph Comparing 802.11ac (1.7Gbps) to 802.11ax (2.4Gbps), a 40% Boost](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/icon-2T2R-X570-Phantom-Gaming-X-2_072019.png)
![Closeup Shot of ASRock X570 Phantom Gaming-ITX/TB3 Motherboard's Steel-Slot PCIe Slot](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/10_072019.jpg)
The next-generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

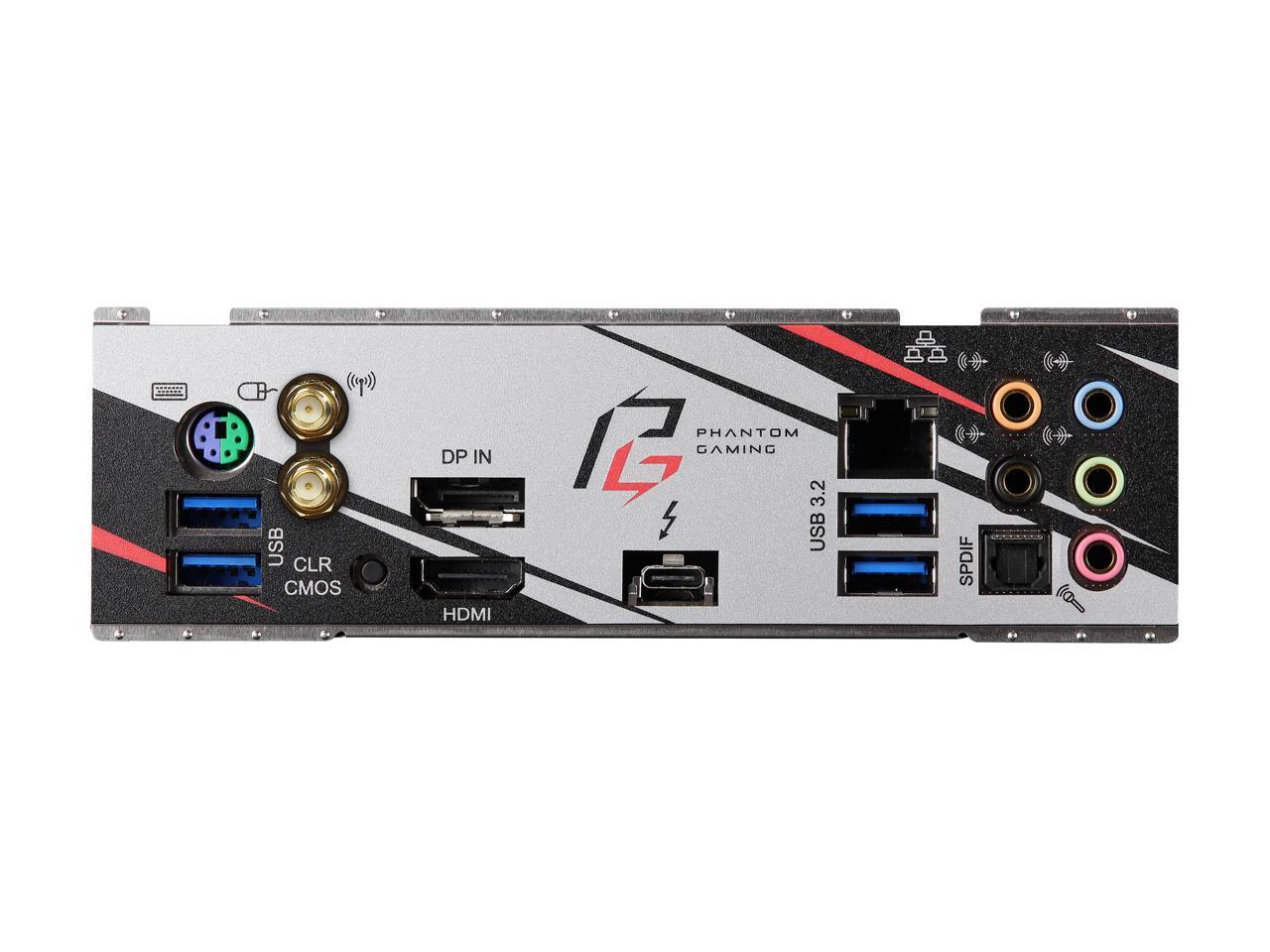

![X570 Phantom Gaming-ITX/TB3's I/O Panel](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/13_072019.jpg)
Unlike most so called pre-mounted I/O shields that are only decorated with fancy color schemes. We reserve more space and allow the IO shield to be adjustable when installing, thus fitting any chassis perfectly without any mechanical issue.
![ASRock X570 Phantom Gaming-ITX/TB3 Motherboard Next to a Multi-Color Light Array](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/11_072019.jpg)
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
![Badges for ASRock Polycrhome Sync and Polychrome RGB](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/Polychrome-RGB_072019.png)
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
![RGB Devices That Include Case Fans, Memory Modules, RGB Light Strips, Power Supplies, Cases and CPU Coolers](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/12_072019.jpg)
![Red Highlights For the Three Mounting Holes on the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/41_072019.jpg)
These motherboards utilize a special design that uses Intel® LGA 115X mounting holes instead of AMD retention bracket.
![Super Alloy Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/SA_072019.png)
![Power Chokes on the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/22_072019.jpg)
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
![Dr. MOS Chip on the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/24_072019.jpg)
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
![Nichicon 12K Black Caps on the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/27_072019.jpg)
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
![I/O Armor on the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/28_072019.jpg)
A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they cannot be easily damaged by static electricity.
![Corner of the ASRock X570 Phantom Gaming-ITX/TB3 Motherboard](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/29_072019.jpg)
A new mysterious matte-black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
![High Density Design versus Traditional Graphic](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/30_072019.jpg)
The high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
![PCB Layer Graphic of 2oz Copper Underneath](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/37_072019.jpg)
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
![Full Spike Protection Logo](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/31_072019.jpg)
Some sensitive digital components on the motherboard are vulnerable to power surges, excessive currents that may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
![ASRock App Shop Logo with Compatible Apps](https://images10.newegg.com/BizIntell/item/13/157/13-157-891/32_072019.jpg)
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specifications :
General Information
UPC | 4717677339147 |
---|
