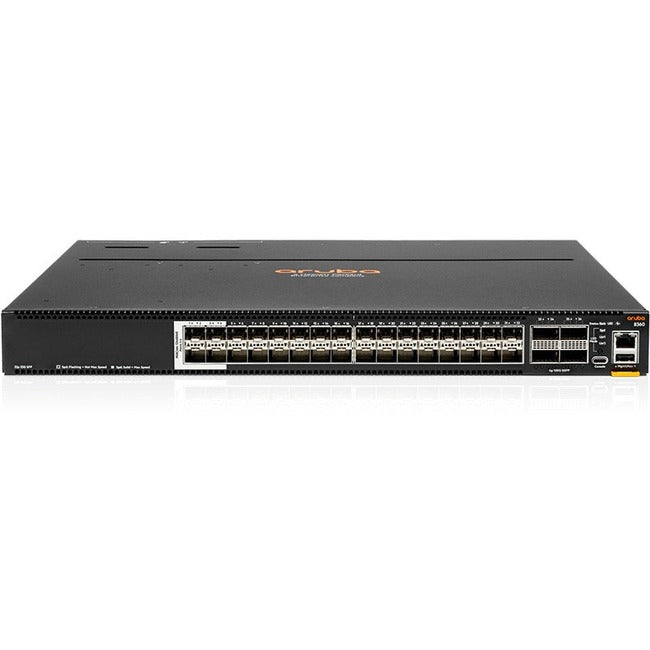

Aruba Cx 8360-32Y4Cv2 Ethernet Switch

Description :

Aruba CX 8360-32Y4CV2 Ethernet Switch

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 3.6Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50 Gbps, and 100Gbps.

The 8360 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port 8360 models support low- density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. And MACsec with 2 x40/100G port with the 48x25 8360 model

PRODUCT DIFFERENTIATORS
The Aruba CX 8360 switch series is based on ArubaOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.

Modular Architecture with native cloud-native ArubaOS-CX
ArubaOS-CX is built on a modular Linux architecture with OVSDB, providing the following unique capabilities: ?

• Safe and powerful access to all state at all times allows unique visibility and analytics capabilities.
• REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services
• Supports Aruba Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
• Continual state synchronization provides superior fault tolerance and high availability ?
• All software processes communicate with the database rather than with each other, ensuring high stability with minimal inter-process communication

• High-performance 4.8Tbps and 2,678 Mpps


• Intelligent monitoring and visibility with Aruba Network Analytics Engine


• High availability with industry leading VSX redundancy, and redundant power supplies and fans


• Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments


• MACsec secured connectivity over untrusted domains


• ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts


• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6


• 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches


• Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Compatible Rack Unit: 1U
Taa Compliant: Yes
Product Series: CX 8360
Brand Name: Aruba
Form Factor: Surface Mount
Manufacturer: Hewlett Packard Enterprise
Product Model: 8360-32Y4CV2
Product Name: CX 8360-32Y4CV2 Ethernet Switch
Manufacturer Part Number: R9G09A#ABA
Manufacturer Website Address: http://www.hpe.com
Package Contents:

• CX 8360-32Y4CV2 Ethernet Switch
• 2-post Rack Kit
