Description :

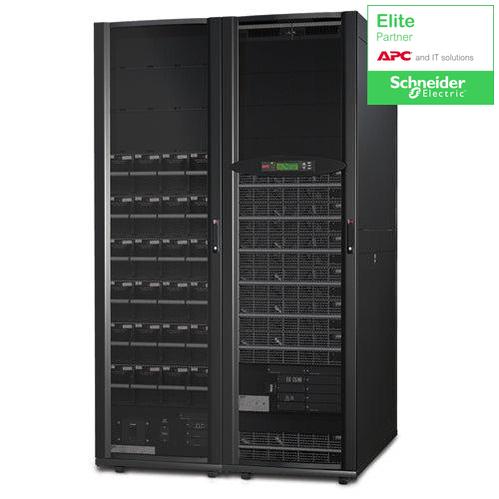

Symmetra PX 60kW Scalable to 100kW, 208V with StartupAPC SY60K100F. Output power capacity: 60 kVA, Output power: 60000 W, Efficiency: 93%. AC outlets quantity: 1 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 2 h. Form factor: Tower, Product colour: Black, Certification: CE,EN/IEC 62040-3,FCC Part 15 Class A,ISO 14001,ISO 9001,UL 1778. Width: 1200 mm, Depth: 1070 mm, Height: 2011 mm
Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency
5x8 Start-up service included
Required for full coverage of factory warranty
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Audible alarms
Provides notification of changing utility power and UPS conditions
Battery replacement without tools
Allows quick, easy battery replacement.
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | SY60K100F |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Symmetra |
Product Series | PX |
Product Model | SY60K100F |
Product Name | Symmetra PX SY60K100F 60kVA Tower UPS |
Product Type | Double Conversion Online UPS |
UPC | 731304282631 |
Battery Chemistry | Lead Acid |
---|
Height | 79.2" |
---|---|
Width | 47.2" |
Depth | 42.1" |
Weight (Approximate) | 3113.72 lb |
Package Contents |
|
---|
Limited Warranty | 1 Year |
---|
