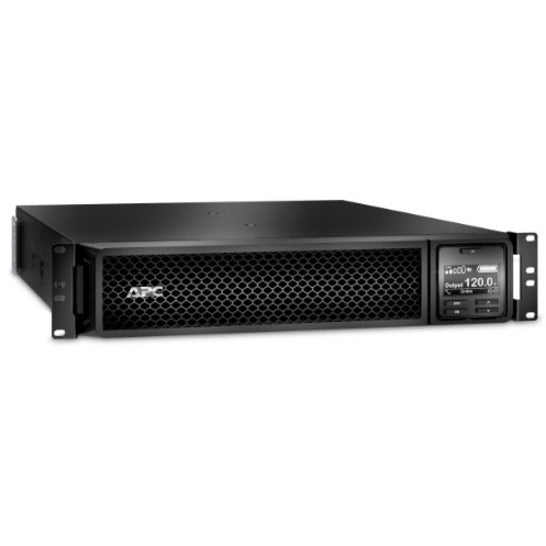

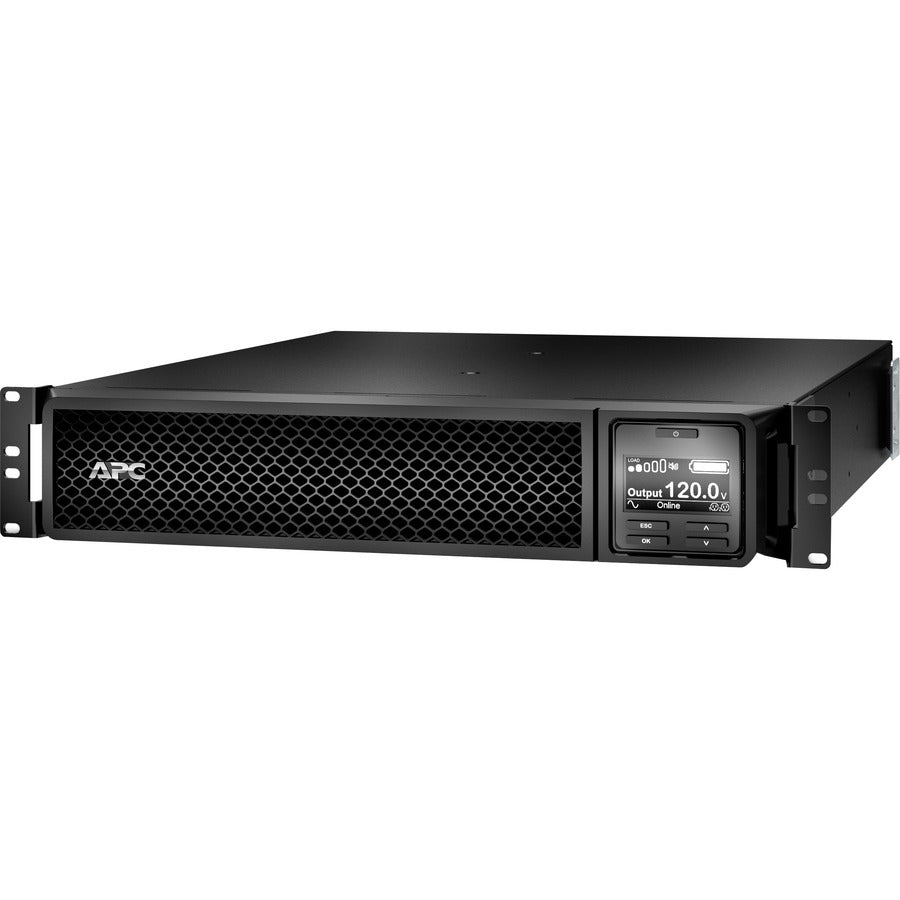

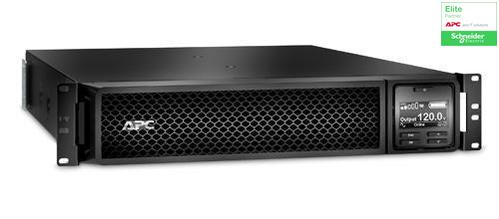

APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W


Regular price $2,031.81
Regular price Sale price $2,031.81
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          Smart-UPS 2200VA, RM, 2U, LCD, 120V

          APC SRT2200RMXLA. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–20R,NEMA L5-20R, Power plug: NEMA 5-20P, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 306 Ah, Typical backup time at full load: 3.3 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 584 mm, Height: 85 mm

          APC Smart-UPS SRT 2200VA RM 120V

          - High density, double-conversion on-line power protection with scalable runtime
          - Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
          - Battery failure notification
          - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
          - ECO Mode
          - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
          - LCD graphics display
          - Text and mimic diagrams that display modes of operation, system parameters and alarms.
          - Rack/Tower convertible

          Automatic restart of loads after UPS shutdown
          Automatically starts up the connected equipment upon the return of utility power.
          Hot-swappable batteries
          Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
          Intelligent battery management
          Maximizes battery performance, life, and reliability through intelligent, precision charging.
          Scalable runtime
          Allows additional run time to be quickly added as needed.
          Automatic internal bypass
          Supplies utility power to the connected loads in the event of a UPS power overload or fault.
          Temperature-compensated battery charging
          Prolongs battery life by regulating the charge voltage according to battery temperature.
          Protects the initial investment in the UPS when migrating from tower to rack-mount environment.


          Customize UPS capabilities with management cards.
          LED status indicators
          Quickly understand unit and power status with visual indicators.
          InfraStruXure Manager Compatible
          Enables centralized management via the APC InfraStruXure Manager.
          Serial connectivity
          Provides management of the UPS via a serial port.
          Network manageable
          Provides remote power management of the UPS over the network.


          Flash upgradeable firmware
          Install maintenance releases of firmware remotely using FTP.
          Rack/Tower convertible
          Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
          Plug-and-Play external batteries
          Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

          Marketing Features

          Low operating and maintenance costs with proven reliability and intelligent battery management.
          Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
          Avoids costly power problems by keeping your IT equipment and data protected and available.
          Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
          Peace of mind that comes with full equipment compatibility and reliability of a leader
          Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
          Save time with easy and convenient remote accessibility.
          Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.


          Automatic self-test
          Periodic battery self-test ensures early detection of a battery that needs to be replaced.
          User-replaceable batteries
          Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
          Audible alarms
          Provides notification of changing utility power and UPS power conditions
          Disconnected battery notification
          Warns when a battery is not available to provide backup power.
          Predicitive failure notification
          Provides early-warning fault analysis ensuring proactive component replacement.


          Generator compatible
          Ensures clean, uninterrupted power to protected equipment when generator power is used.
          Input power factor correction
          Minimizes installation costs by enabling the use of smaller generators and cabling.
          Power conditioning
          Protects connected loads from surges, spikes, lightning, and other power disturbances.
          Frequency and voltage regulation
          Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
          Safety-agency approved
          Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
          Cold-start capable
          Provides temporary battery power when the utility power is out.
          Resettable circuit breaker
          Easy recovery from overloads; no need to replace a fuse.
