APC

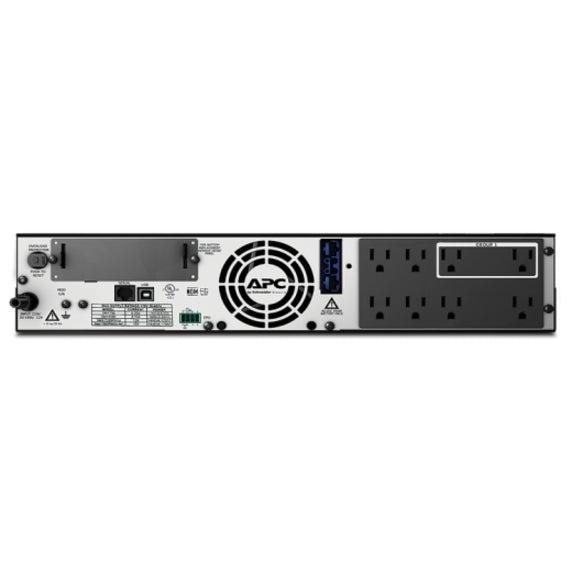

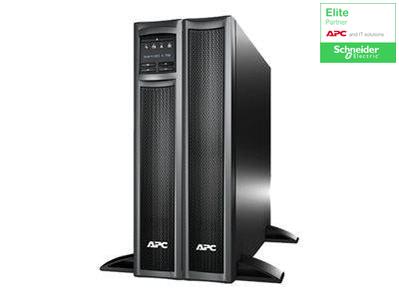

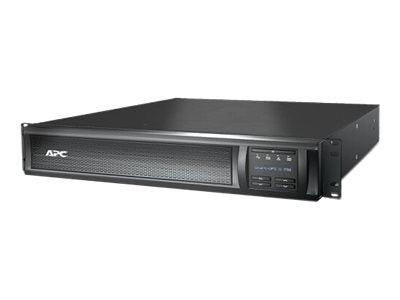

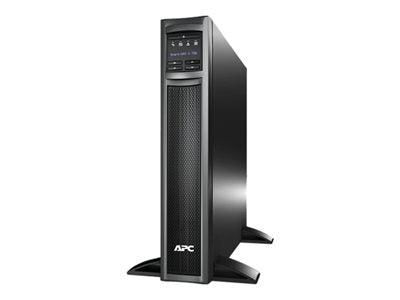

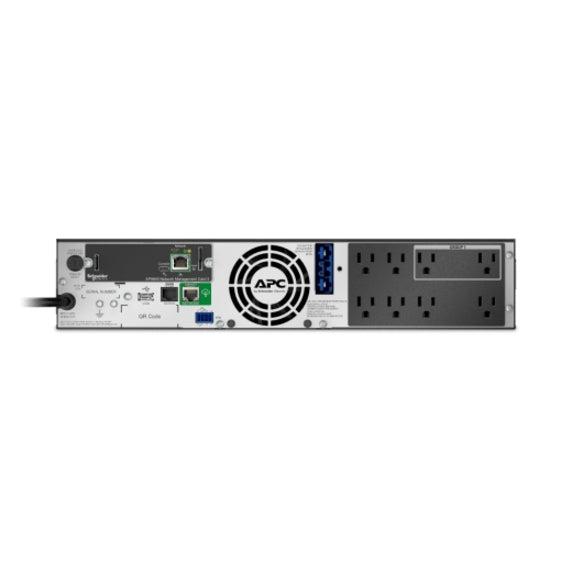

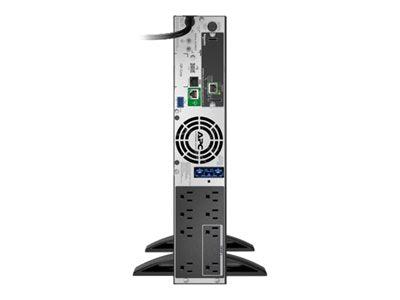

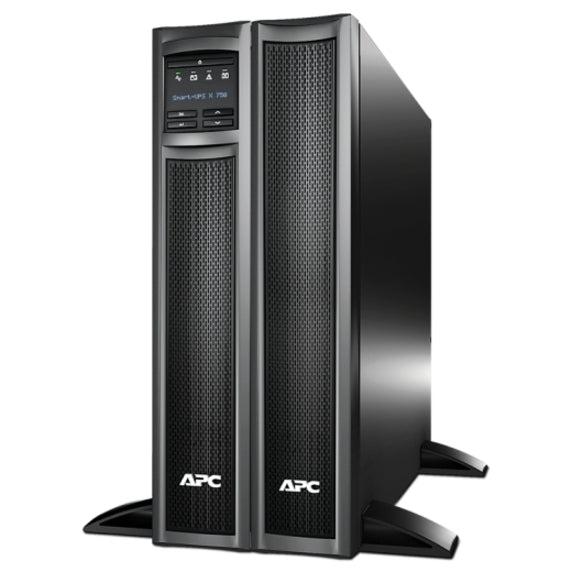

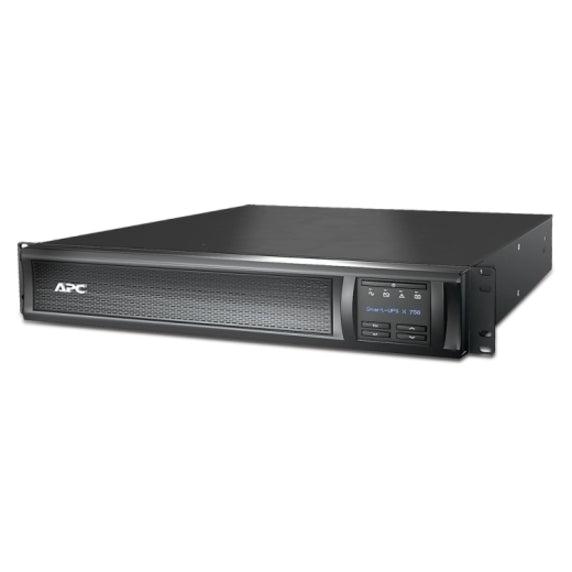

Apc Smx750Cnc Uninterruptible Power Supply (Ups)

Apc Smx750Cnc Uninterruptible Power Supply (Ups)

SKU:SMX750CNC

Regular price $1,213.90
Regular price Sale price $1,213.90
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          APC Smart-UPS X SMX750CNC - UPS (rack-mountable / external) - AC 120 V - 675 Watt - 750 VA - Ethernet, USB, serial - output connectors: 8

          Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.



          WHAT'S IN THE BOX



          • Cat 5 Ethernet cable
          • Installation guide
          • Rack mounting brackets
          • Removable mobile power pack
          • Smart UPS signalling RS-232 cable
          • USB cable



          MAIN SPECIFICATIONS

          Product Description APC Smart-UPS X SMX750CNC - UPS - 675 Watt - 750 VA
          Device Type UPS - rack-mountable / external
          Weight 48.5 lbs
          Input Voltage AC 120 V
          Output Voltage AC 120 V
          Power Capacity 675 Watt / 750 VA
          Input Connectors 1 x power NEMA 5-15R
          Output connectors 8 x power NEMA 5-15
          Run Time (Up To) 12 min at full load
          Networking Ethernet, USB, serial
          Dimensions (WxDxH) 17 in x 19.3 in x 3.5 in
          Environmental Standards ENERGY STAR


          EXTENDED SPECIFICATIONS

          General
          Device Type UPS - rack-mountable / external
          Power Device
          Input Voltage AC 120 V
          Input Voltage Range AC 82 - 144 V
          Input Voltage Range (Adjustable) AC 75 - 154 V
          Input Connectors 1 x power NEMA 5-15R
          Power Output Connectors Details 8 x power NEMA 5-15
          Output Voltage AC 120 V
          Power Capacity 675 Watt / 750 VA
          Output Waveform Sinewave
          Circuit Protection Circuit breaker
          Battery
          Run Time (Up To) 17.24 min at 500 Watts ¦ 50.99 min at 200 Watts
          Networking
          Remote Management Interface Ethernet, USB, serial
          Expansion / Connectivity
          Interfaces Management (USB) ¦ 1 x serial - RJ-45 ¦ 1 x management (Ethernet) - RJ-45
          Expansion Slots 1 (total) / 1 (free) x SmartSlot
          Miscellaneous
          Features Audible alarm, LCD display, Automatic Voltage Regulation (AVR), automatic self-test, predicitive failure notification, hot-swappable batteries, auto restart, Intelligent Battery Management, adjustable voltage sensitivity, battery failure notification, SmartConnect port, 2 switched outlet groups
          Software / System Requirements
          Software Included APC PowerChute Business Edition
          Environmental Standards
          ENERGY STAR Yes
          Dimensions & Weight
          Width 17 in
          Depth 19.3 in
          Height 3.5 in
          Weight 48.5 lbs

          Specifications :

          General Information

          Manufacturer Schneider Electric SA
          Manufacturer Part Number SMX750CNC
          Manufacturer Website Address http://www.schneider-electric.com
          Brand Name APC by Schneider Electric
          Product Line Smart-UPS
          Product Series X
          Product Name Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
          Product Type Line-interactive UPS
          UPC 731304401117
          Network (RJ-45)Yes

          Battery Information

          Battery ChemistryLead Acid
          Product ColorBlack
          Height17"
          Width3.5"
          Depth19.3"
          Weight (Approximate)48.61 lb

          Miscellaneous

          Package Contents
        • Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
        • Cat 5 Ethernet cable
        • Installation guide
        • Rack mounting brackets
        • Removable mobile power pack
        • Smart UPS signalling RS-232 cable
        • USB cable
        • Energy StarYes
          Environmentally FriendlyYes
          Environmental CertificationRoHS

          Warranty

          Limited Warranty3 Year
          Additional Warranty Information3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
