APC

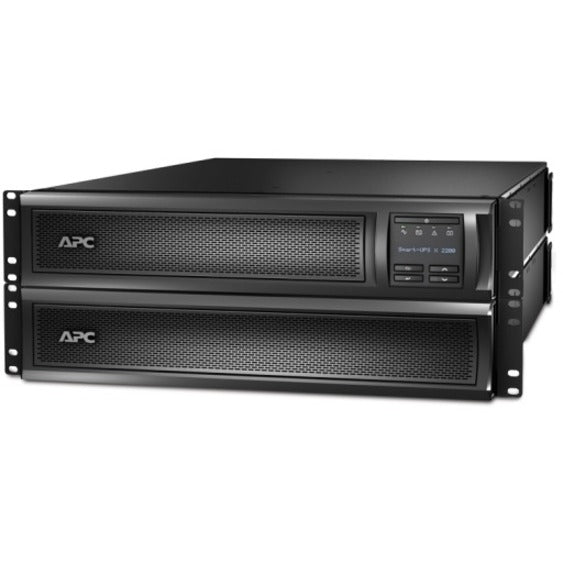

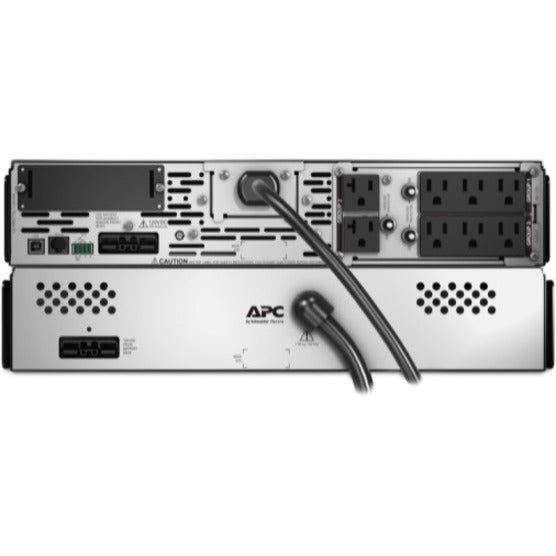

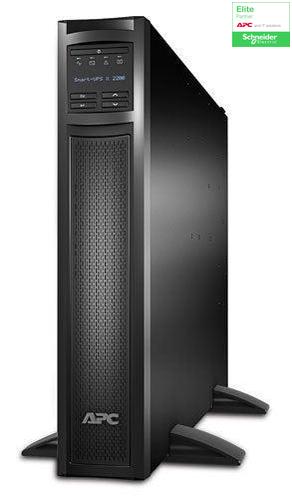

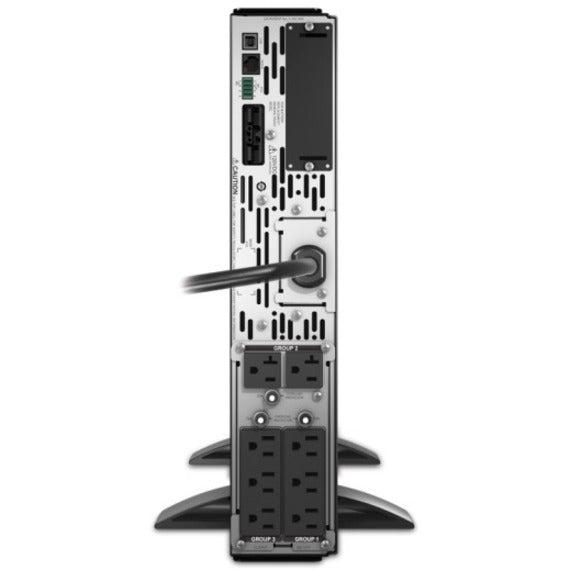

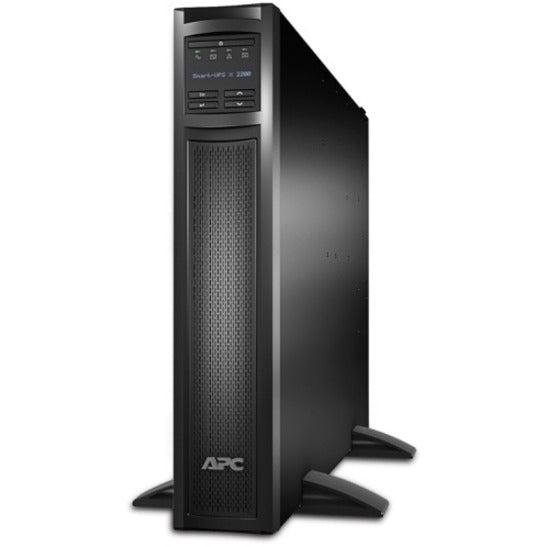

Apc Smx2200Rmlv2U Uninterruptible Power Supply (Ups) 2.2 Kva 1980 W

Apc Smx2200Rmlv2U Uninterruptible Power Supply (Ups) 2.2 Kva 1980 W

SKU:SMX2200RMLV2U-teci

Regular price $1,771.23
Regular price Sale price $1,771.23
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          AC 120V, 1980W, 2200VA, RS-232, USB, Lead-Acid, 2U, 38.45kg, Black

          APC SMX2200RMLV2U. Output power capacity: 2.2 kVA, Output power: 1980 W, Input operation voltage (min): 70 V. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7 min, Typical backup time at half load: 26 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 431 mm, Depth: 667 mm, Height: 85 mm. Package weight: 45.4 kg

          Intuitive LCD interface
          Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

          High frequency design
          Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

          Auto recognition of external batteries
          UPS recognizes when external battery packs are attached and automatically adjusts runtime.

          Predictive replace battery date
          Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

          Green mode
          Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

          Energy meter
          Provides actual kilowatt hours of usage for energy conscious users.

          Outlet group control
          Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

          Sequenced shutdown and restart
          Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

          Load shedding
          Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).

          Pure sine wave output on battery
          Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

          Multiple switched outlet groups
          Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

          Wide input voltage range
          Designed for harsh electrical environments to save battery life.

          StruxureWare Central compatible
          Enables centralized management via StruxureWare Central.

          Battery failure notification
          Provides early-warning fault analysis on batteries enabling timely preventive maintenance
          High online efficiency Reduces utlility costs, generates less heat.

          LED Indicators
          Provide easy-to-read status of the unit and utility power conditions.

          Overload protection
          Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

          SmartSlot
          Customize UPS capabilities with management cards.

          Cold-start capable
          Provides temporary battery power when the utility power is out.

          Hot-swappable batteries
          Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

          Disconnected battery notification
          Warns when a battery is not available to provide backup power.

          Automatic self-test
          Periodic battery self-test ensures early detection of a battery that needs to be replaced.

          Automatic restart of loads after UPS shutdown
          Automatically starts up the connected equipment upon the return of utility power.

          Adjustable voltage-transfer points
          Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

          Adjustable voltage sensitivity
          Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

          Audible alarms
          Provides notification of changing utility power and UPS conditions

          User-replaceable batteries
          Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

          USB connectivity
          Provides management of the UPS via a USB port (not available on all models).

          Serial Connectivity
          Provides management of the UPS via a serial port.

          Temperature-compensated battery charging
          Prolongs battery life by regulating the charge voltage according to battery temperature.

          Boost and Trim Automatic Voltage Regulation (AVR)
          Gives higher application availability by correcting low and high voltage conditions without using the battery.

          Scalable runtime
          Allows additional run time to be quickly added as needed.

          Intelligent battery management
          Maximizes battery performance, life, and reliability through intelligent, precision charging.

          Safety-agency approved
          Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

          Rack/Tower convertible
          Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

          Power conditioning
          Protects connected loads from surges, spikes, lightning, and other power disturbances.

          Network manageable
          Provides remote management of the UPS over the network.

          Frequency and voltage regulation
          Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

          Predicitive failure notification
          Provides early-warning fault analysis ensuring proactive component replacement.
