Description
Specifications
Description :

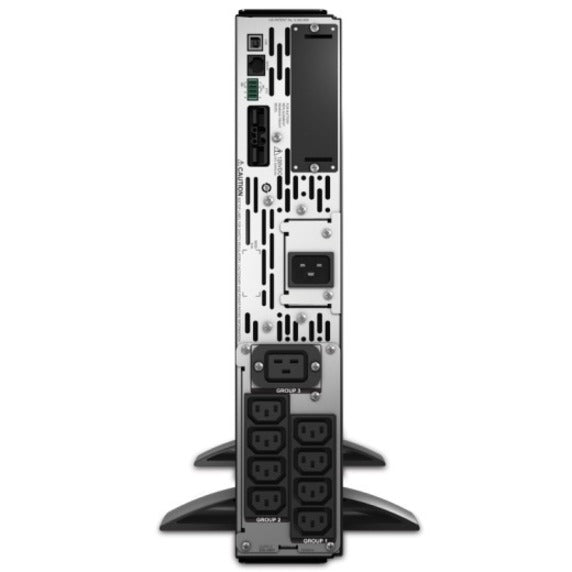

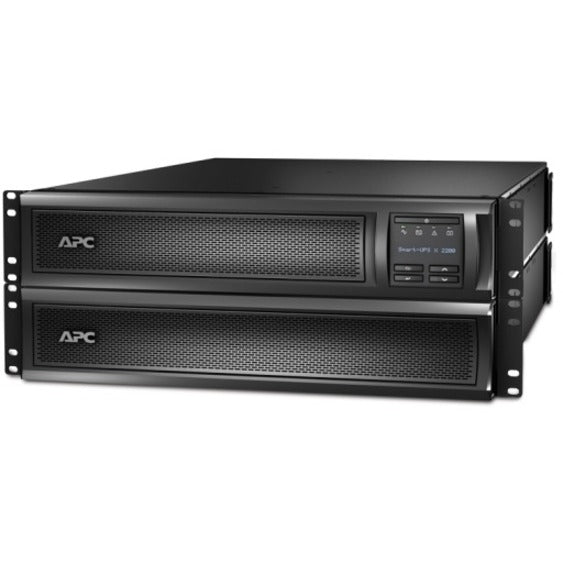

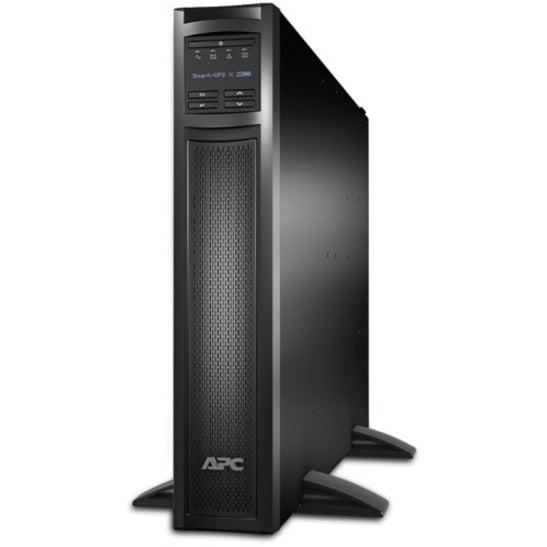

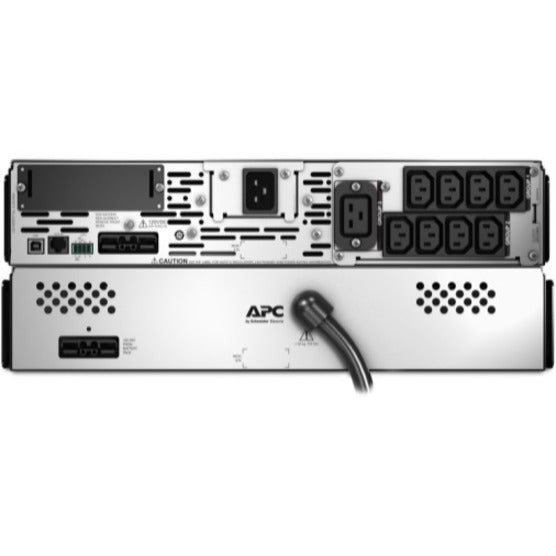

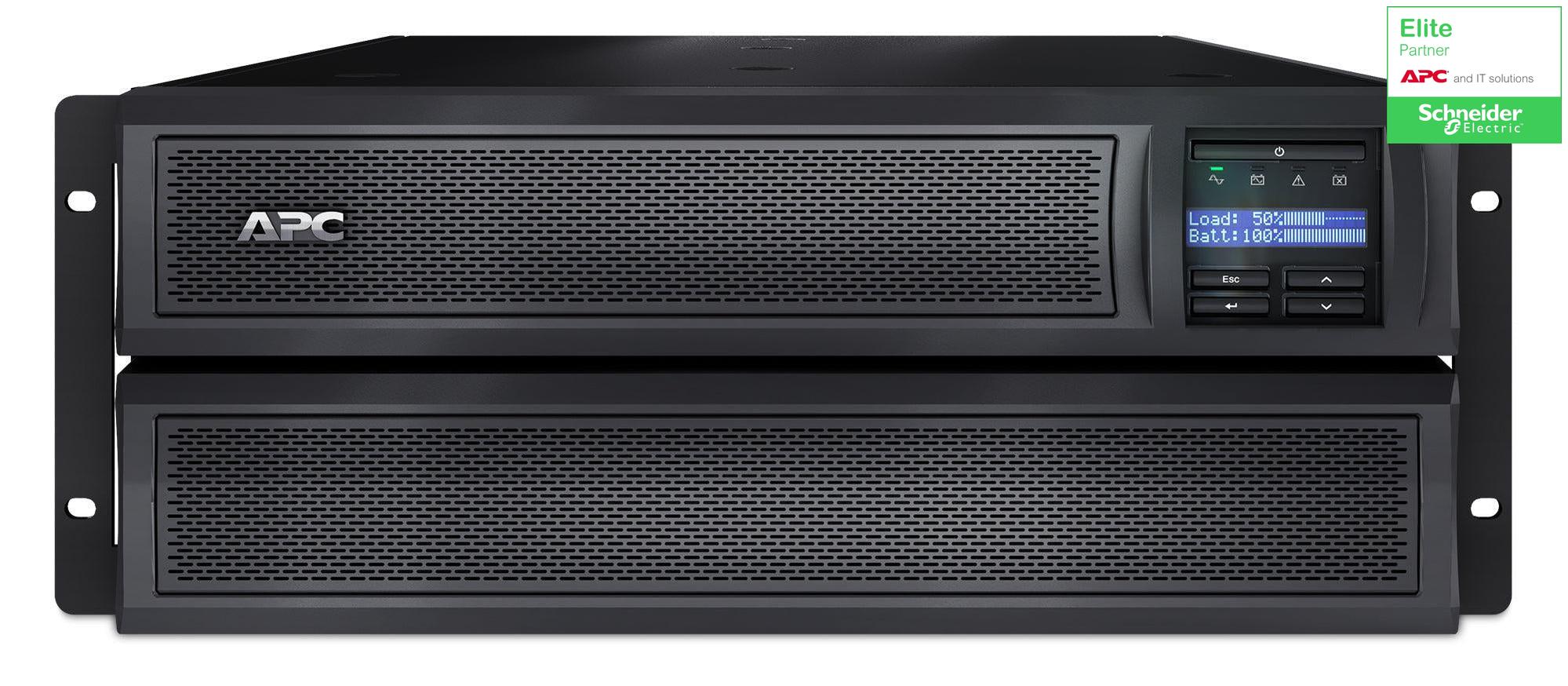

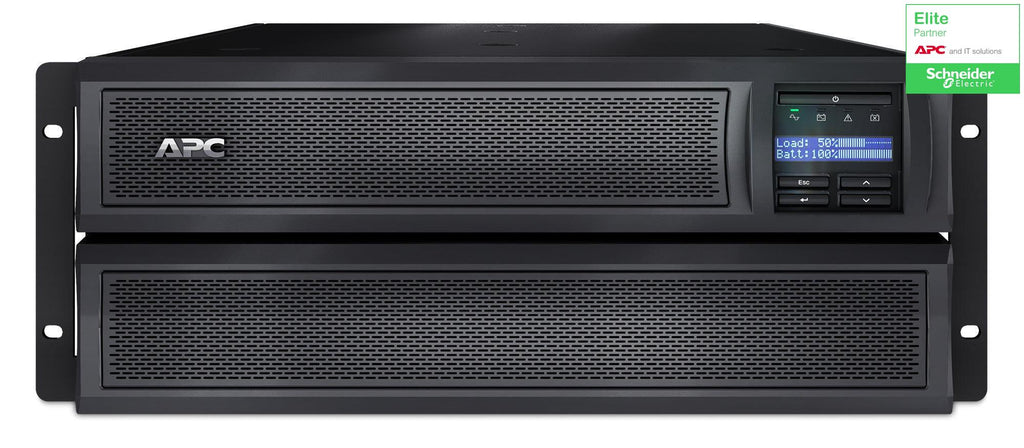

Smart-UPS X 2200VA Rack/Tower LCD 200-240VAPC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | SMX2200RMHV2U |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS |
Product Series | SMX |
Product Model | SMX2200RMHV2U |
Product Name | Smart-UPS 2200 VA Tower/Rack Mountable UPS |
Product Type | Line-interactive UPS |
UPC | 731304272687 |
Battery Chemistry | Lead Acid |
---|
Product Color | Black |
---|---|
Height | 3.3" |
Width | 17" |
Depth | 26.3" |
Weight (Approximate) | 82.28 lb |
Package Contents | |
---|---|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Limited Warranty | 3 Year |
---|---|
Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
