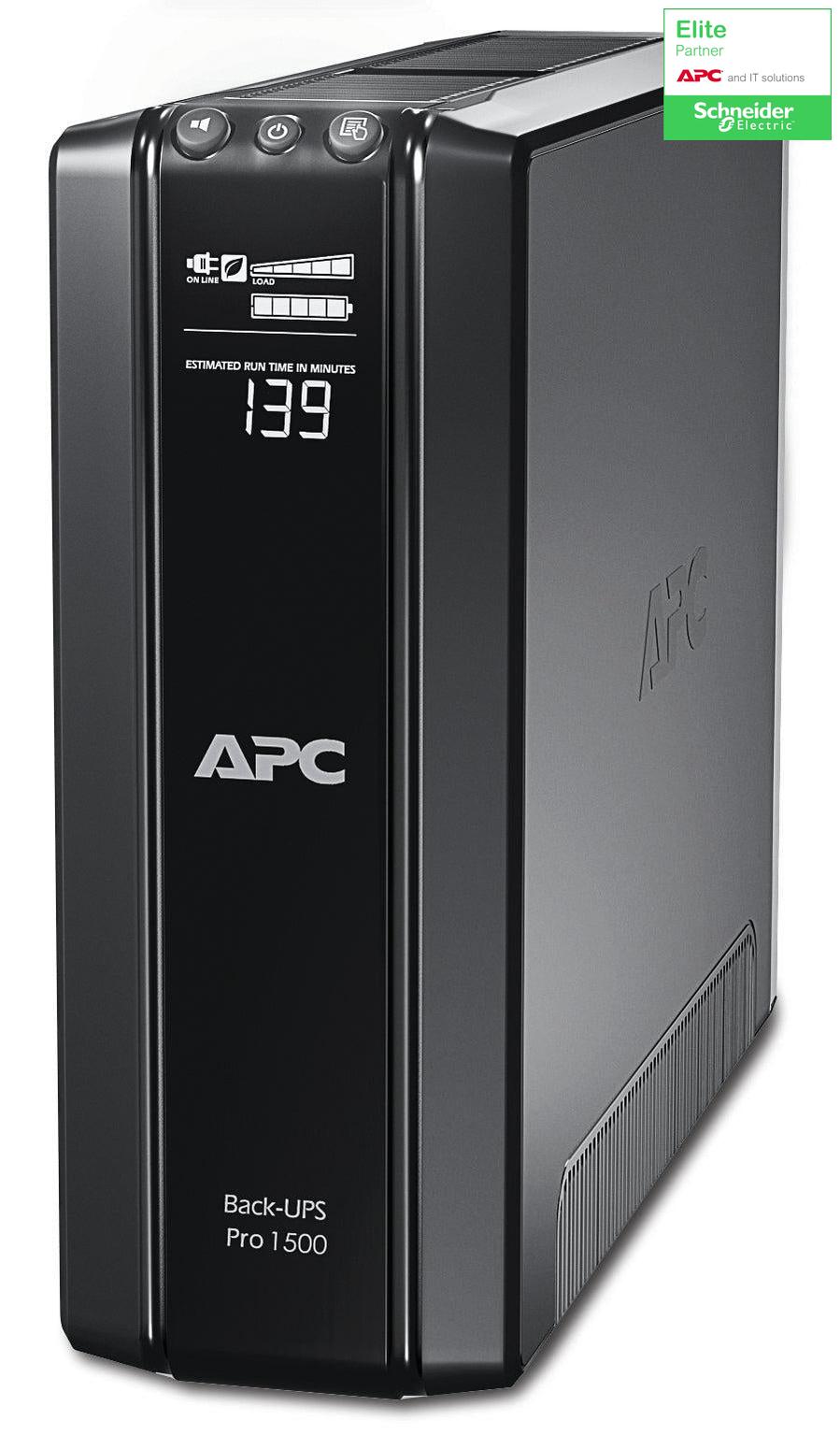

APC Back-UPS Pro. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 865 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 187 VAh, Typical backup time at full load: 3.7 min. Product colour: Black, Display: LCD, Certification: A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS. Width: 112 mm, Depth: 380 mm, Height: 301 mm
Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Power-saving outlets Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.

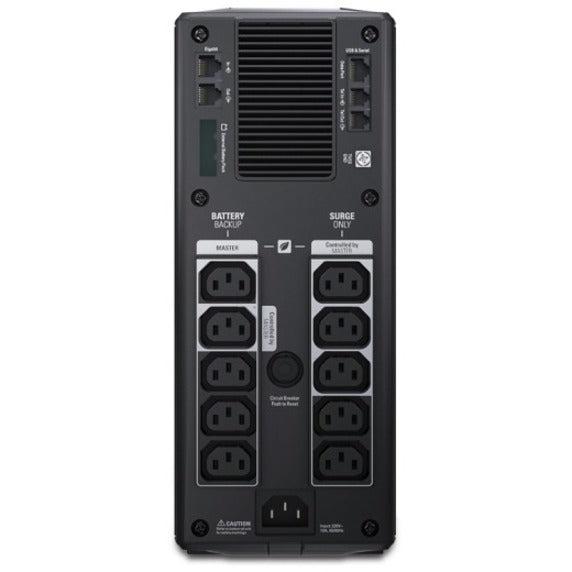

Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable Provides temporary battery power when the utility power is out.
Serial Connectivity Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification Warns when a battery is not available to provide backup power.
Dataline Surge Protection Provides protection of connected equipment from power surges on the data lines.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
