Description :
- Mfr Part Number: BE850G2
-
Output
- Output Power Capacity: 450 Watts / 850 VA
- Nominal Output Voltage: 120V
- Output Frequency (sync to mains): 50/60 +/- 3 Hz
- Waveform type: Stepped approximation to a sinewave
-
Output Connections
- 6x NEMA 5-15R (Battery Backup)
- 3x NEMA 5-15R (Surge Protection)
-
Input
- Nominal Input Voltage: 120V
- Input Frequency: 50/60 Hz
- Input Connections: NEMA 5-15P
- Input voltage range for main operations: 92 - 139V
-
Batteries & Runtime
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Typical recharge time: 8 hour(s)
- Replacement battery cartridge: RBC17
- Expected Battery Life (years): 2 - 5
- Battery Charge Power (Watts): 13Watts
- Battery Volt-Amp-Hour Capacity: 104
-
Communications & Management
- Interface Port(s): USB
- Control panel: LED status display with On Line; On Battery; Replace Battery and Building Wiring Fault
- Audible Alarm: Alarm when on battery; distinctive low battery alarm, overload continuous tone alarm
-
Surge Protection and Filtering
- Surge energy rating: 354 Joules
- Regulatory Approvals: California (CEC) Battery Charger, CSA C22.2 NO. 107.3, cTUVus, FCC Part 15 Class B, UL 1778
- Color: Black
- Dimension (WxDxH): 327.0 x 105.0 x 139.0 mm
- Weight: 4.4 kg
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | BE850G2 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Back-UPS |

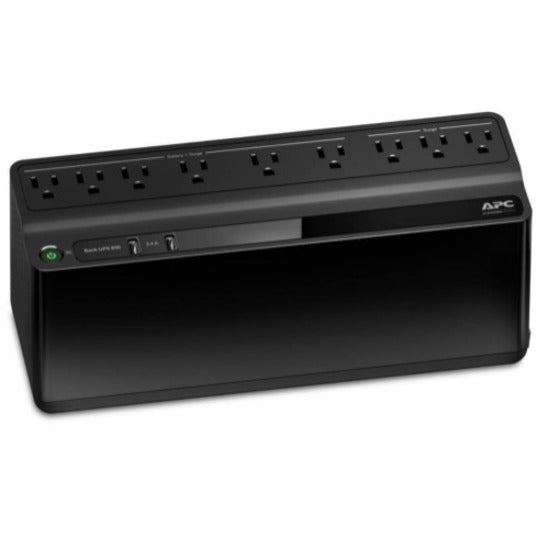

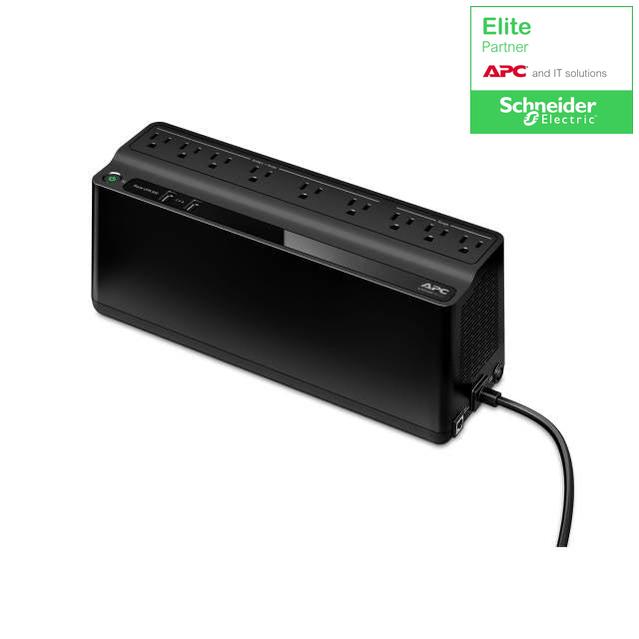

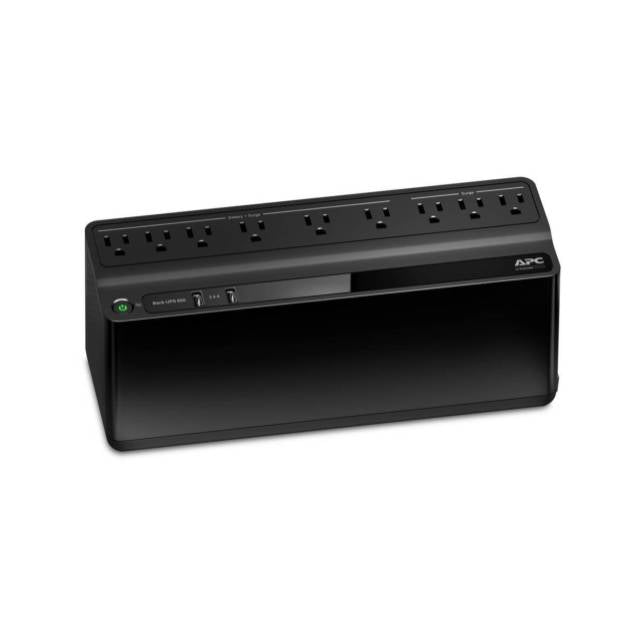

Product Name | Back-UPS 850VA Wall Mountable UPS |
Product Type | Standby UPS |
UPC | 0731304413592 |
Battery Chemistry | Lead Acid |
---|
Product Color | Black |
---|---|
Height | 5.5" |
Width | 12.9" |
Depth | 4.1" |
Weight (Approximate) | 9.04 lb |
Package Contents | |
---|---|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Limited Warranty | 3 Year |
---|---|
Additional Warranty Information | 3 years repair or replace |
