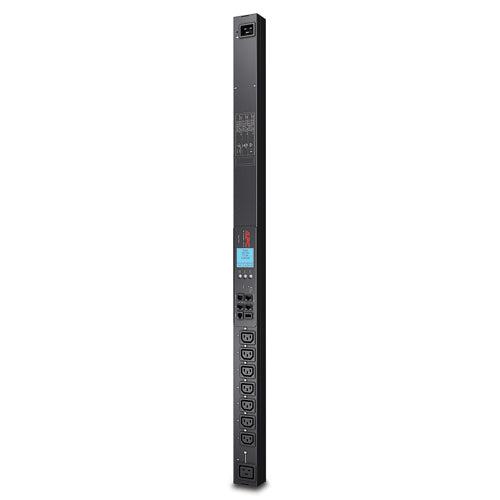

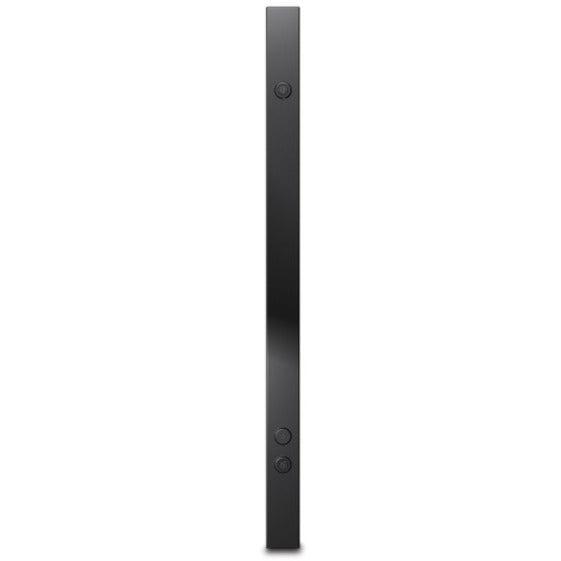

Apc Ap8958Na3 Power Distribution Unit (Pdu) 8 Ac Outlet(S) 0U Black

Apc Ap8958Na3 Power Distribution Unit (Pdu) 8 Ac Outlet(S) 0U Black


Regular price $1,015.02
Regular price Sale price $1,015.02
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

          Rack PDU 2G, Switched, ZeroU, 20A, 208V, (7) C13 & (1) C19, L620 Cord

          APC AP8958NA3. PDU types: Switched, Rack capacity: 0U, Product colour: Black. AC outlets quantity: 8 AC outlet(s), Power plug: NEMA L6-20P. Cable length: 3 m, Certification: cUL,EN 55022 A,EN 55024,EN 61000-3-2,EN 61000-3-3,FCC 15 A,ICES-003,PSE,UL,VCCI A,VDE. Nominal input voltage: 200-230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 56 x 46 x 988 mm, Weight: 3.23 kg

          Network Management
          Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

          Remote Individual Outlet Control
          Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

          Alarm Thresholds
          Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

          Local Current Monitoring Display
          The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

          Power Delays
          Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

          Load indicator LED
          Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

          Flash Upgradeable
          Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

          Integrates with InfraStruXure Central
          An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

          Specifications :

          General Information

          Manufacturer Schneider Electric SA
          Manufacturer Part Number AP8958NA3
          Manufacturer Website Address
          Brand Name APC by Schneider Electric
          Product Line Switched Rack
          Product Model AP8958NA3
          Product Name Switched Rack PDU
          Product Type PDU
          UPC 731304277125
          Weight (Approximate)7.12 lb


          Package Contents
        • Switched Rack PDU
        • Installation guide

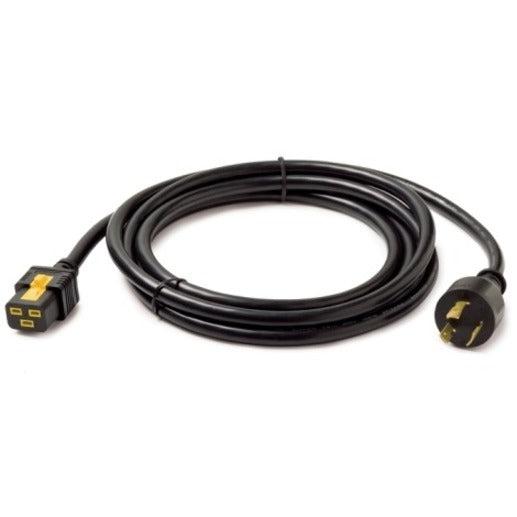

        • Locking input power cord
        • Rack mounting brackets
        • Safety guide
        • Serial configuration cable
        • Environmentally FriendlyYes
          Environmental CertificationRoHS


          Limited Warranty2 Year
          Additional Warranty Information2 years repair or replace
