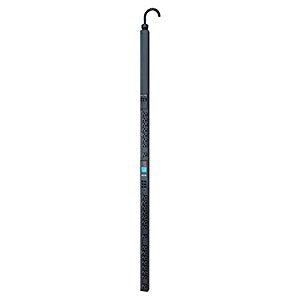

Apc Ap8632 Power Distribution Unit (Pdu) 24 Ac Outlet(S) 0U Black

Apc Ap8632 Power Distribution Unit (Pdu) 24 Ac Outlet(S) 0U Black


Regular price $1,623.87
Regular price Sale price $1,623.87
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

          Rack PDU 2G, Metered-by-Outlet with Switching, ZeroU, 30A, 100-120V, (24) 5-20R

          APC AP8632. PDU types: Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA L5-20R, Power plug: NEMA L5-30P. Cable length: 3 m, Certification: cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 55 x 51 x 1829 mm, Weight: 8.05 kg

          APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

          Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable

          Specifications :

          General Information

          Manufacturer Schneider Electric SA
          Manufacturer Part Number AP8632
          Manufacturer Website Address
          Brand Name APC by Schneider Electric
          Product Name Metered-by-Outlet with Switching Rack PDU
          Product Type PDU
          UPC 731304307457
          Product ColorBlack
          Weight (Approximate)17.75 lb


          Package Contents
        • Metered-by-Outlet with Switching Rack PDU
        • Installation guide
        • Rack mounting brackets
        • Safety guide
        • Serial configuration cable
        • Environmentally FriendlyYes
          Environmental CertificationRoHS


          Limited Warranty2 Year
          Additional Warranty Information2 years repair or replace
