Aorus GP-ASM2NE6200TTTD 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4)

Description :

Aorus GP-ASM2NE6200TTTD 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4)

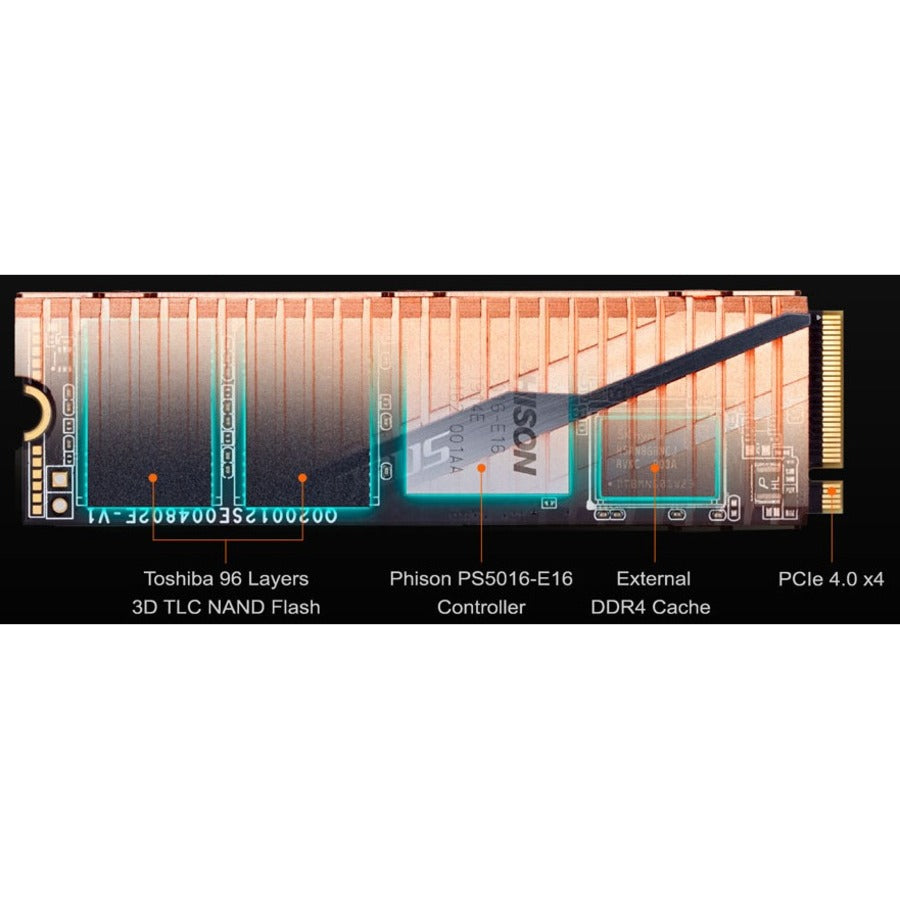

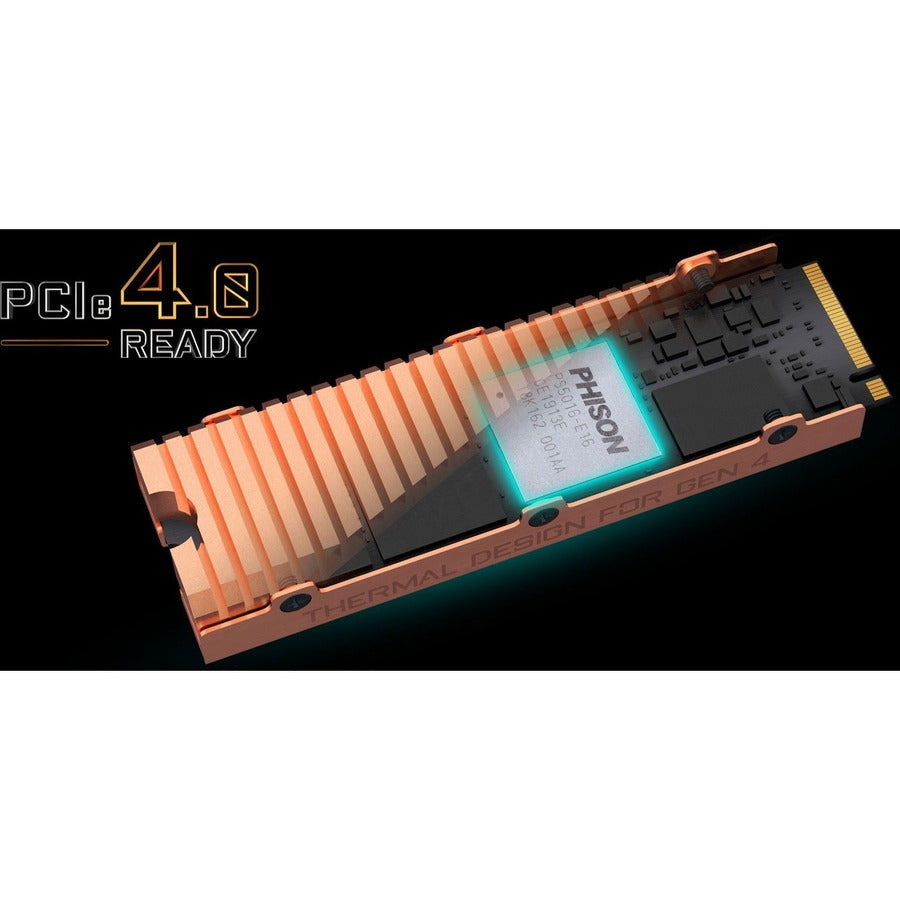

World First PCIe 4.0x4 Controller

The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

• PCIe 4.0x4, NVMe 1.3 Interface
• DDR4 DRAM cache
• 8 CH with 32 CEs
• Phison 4th Gen LDPC & RAID ECC
• Support Pyrite
• Heat spreader for controller

NAND Flash Selected for High Quality and Performance

TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)

Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.

Xtreme Storage Performance

With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

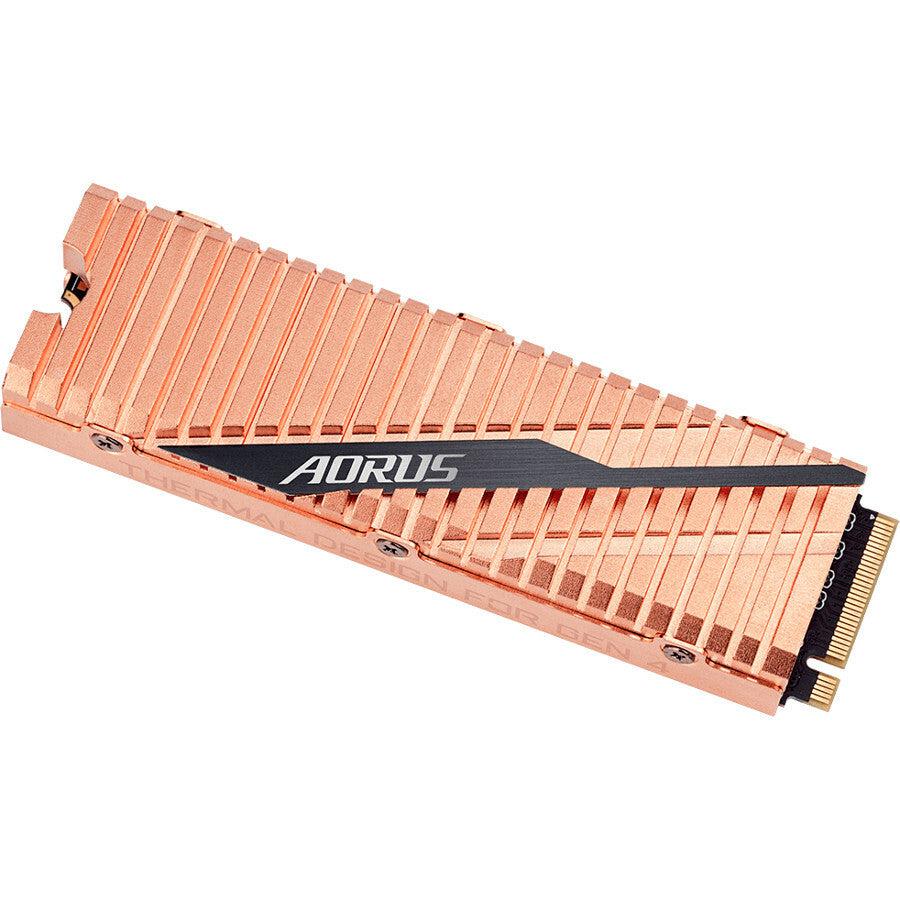

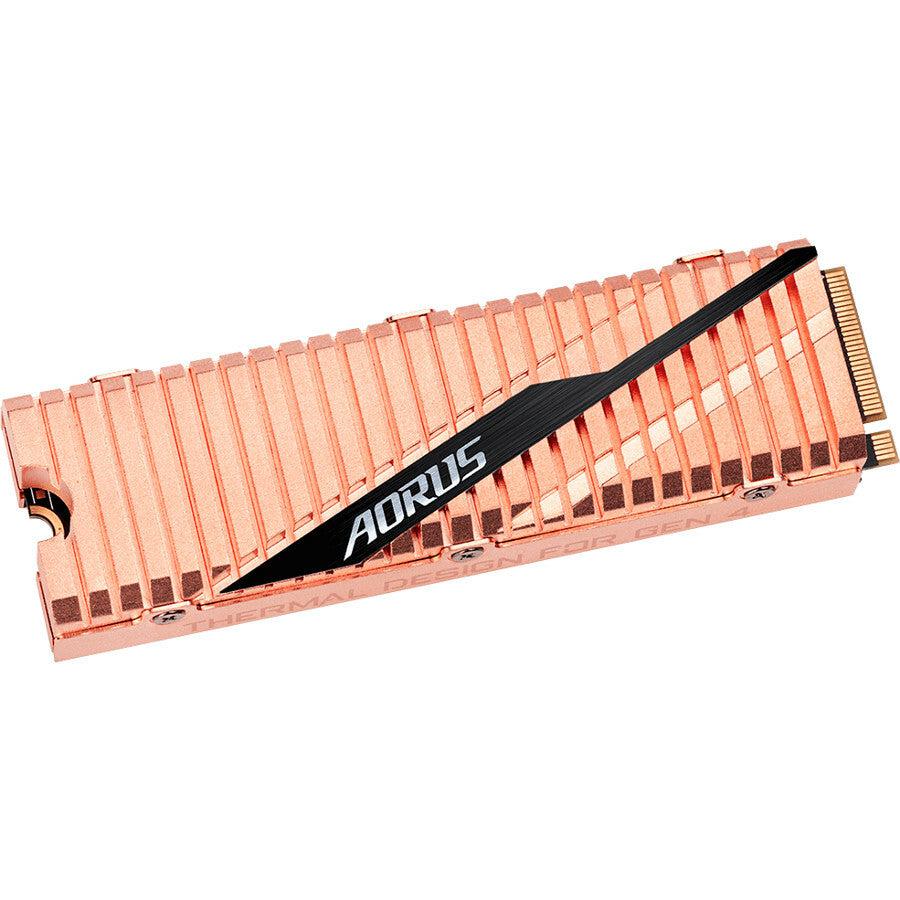

Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance

The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance.

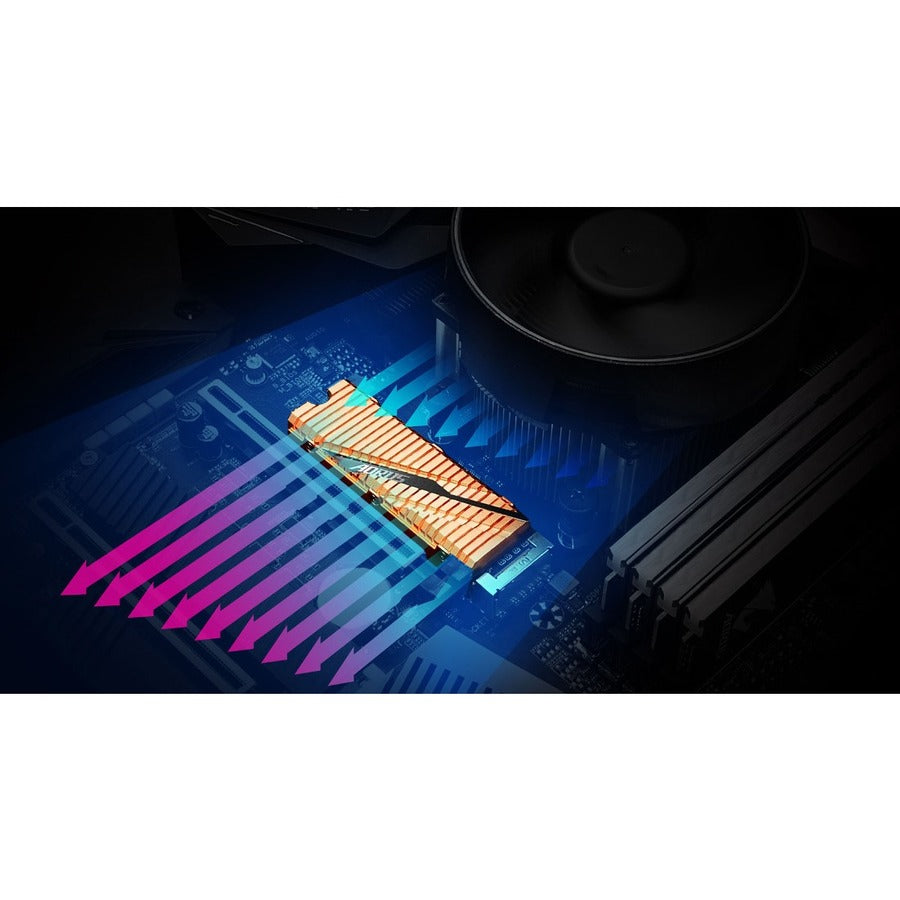

Efficient Copper Heat Spreader Design

Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate.

Why is keeping an SSDs at lower temperatures so important?

• Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
• With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.

SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

SSD tool box function may vary by model

Quality Guaranteed

Extreme Performance

Comes From High Standard Test

• Store as many documents, pictures and videos as you need with 2 TB capacity


• With the stunning reading speed of 5000 MB/s, get faster boot times and improved overall computing performance


• Write speed of 4400 MB/s enables you to perform write-related tasks in seconds rather than minutes


• Experience rapid processing speed with 2 GB cache buffer


• With PCI Express NVMe 4.0 x4 interface get superb reliability and high-speed data transfer

Product Type: Solid State Drive
Brand Name: Aorus
Drive Type: Internal
Form Factor: M.2 2280
Manufacturer: GIGABYTE Technology, Inc
Product Model: GP-ASM2NE6200TTTD
Product Name: NVMe Gen4 SSD 2TB
Manufacturer Part Number: GP-ASM2NE6200TTTD
Manufacturer Website Address: http://www.gigabyte.us
