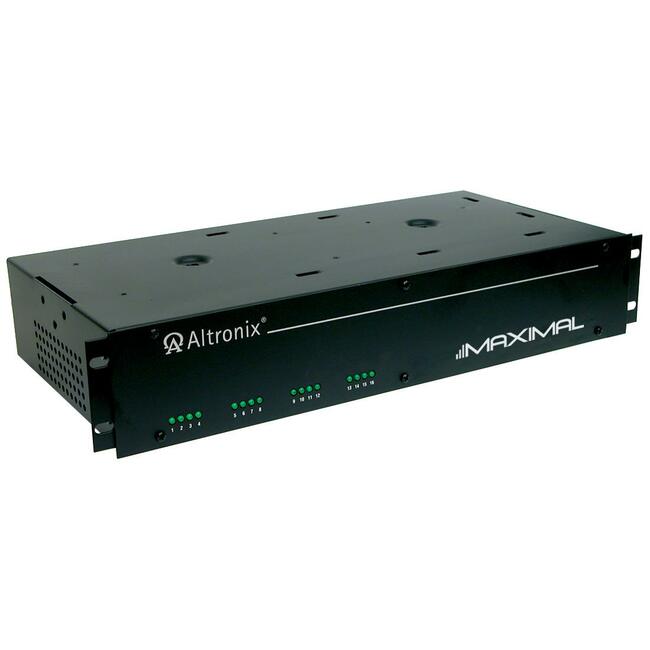

Altronix MAXIMAL33RD Power Module
Maxim33RD units distribute and switch power to access control systems and accessories. They convert a 115VAC 50/60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC PTC protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.
- 2U EIA 19" Rack Chassis.
- Fire alarm disconnect selectable by out.
- 16 PTC outputs, each 8 out are selectable for 12/24VDC @ 6A, individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts.
- Rack Mount Access Power Controller with 2 power supplies.
Product Type: Power Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: 33RD
Product Name: MAXIMAL33RD Power Module
Product Line: MAXIMAL
Manufacturer Part Number: MAXIMAL33RD
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 14.30 lb
