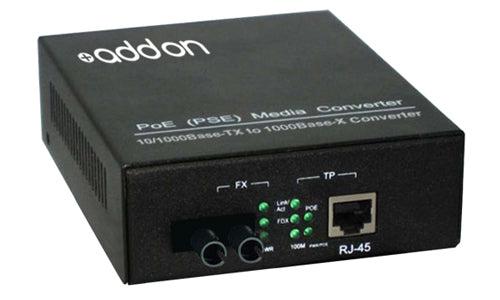

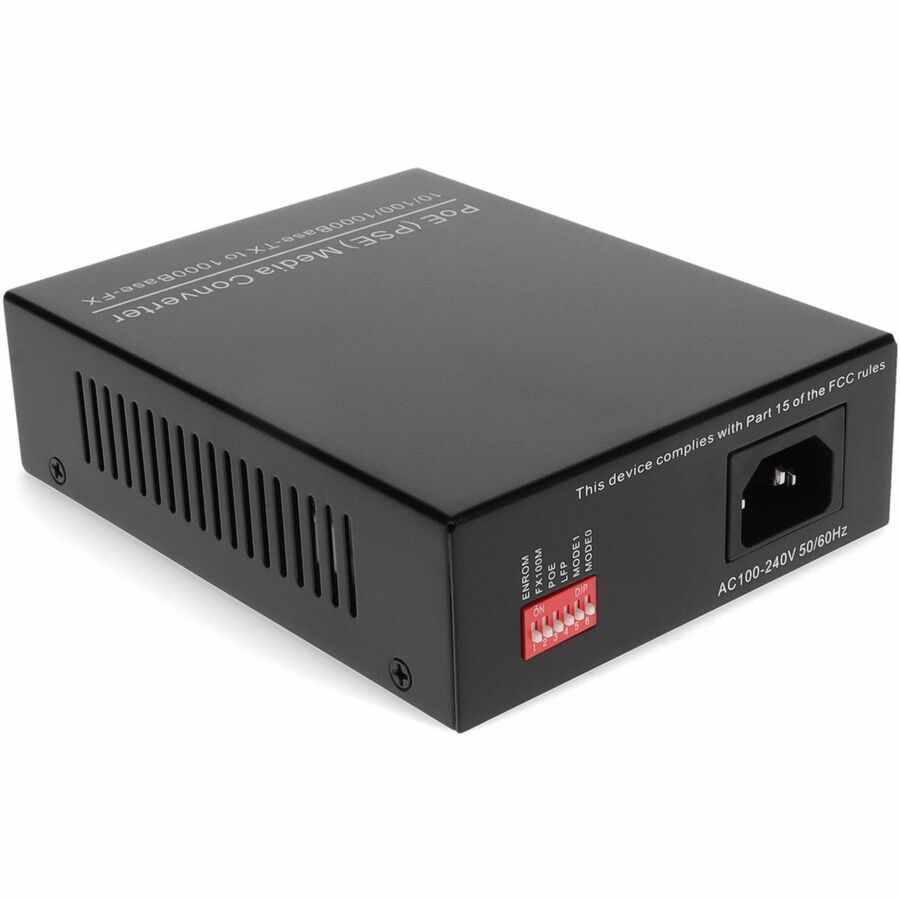

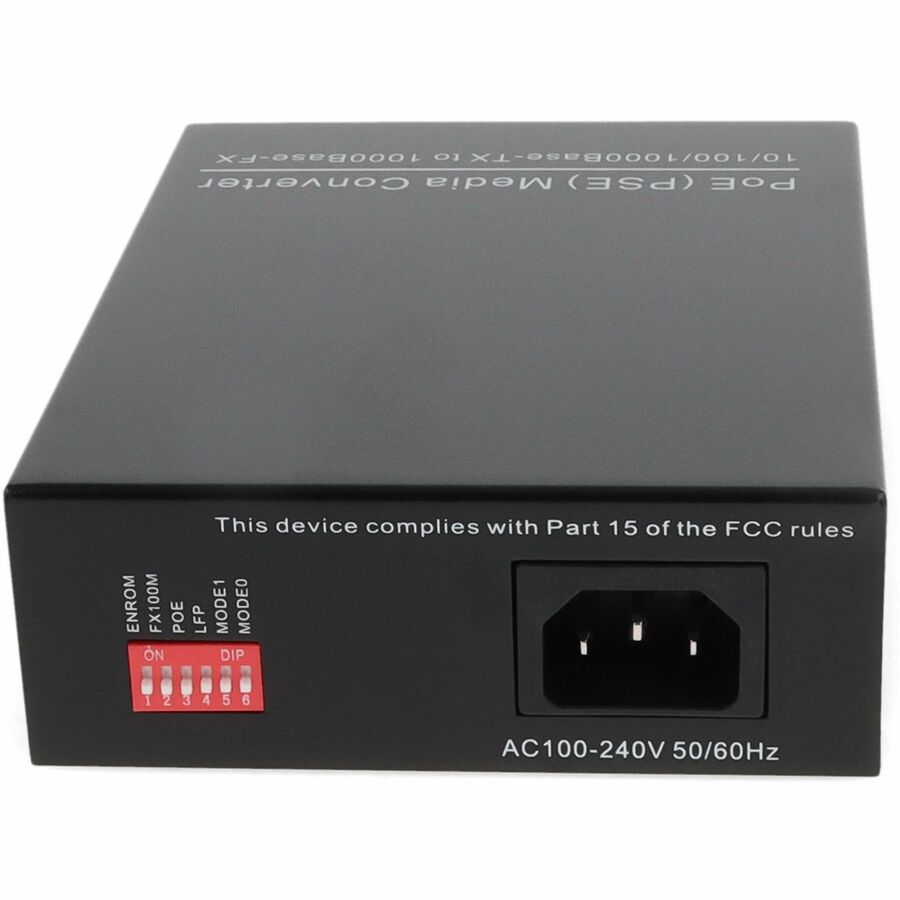

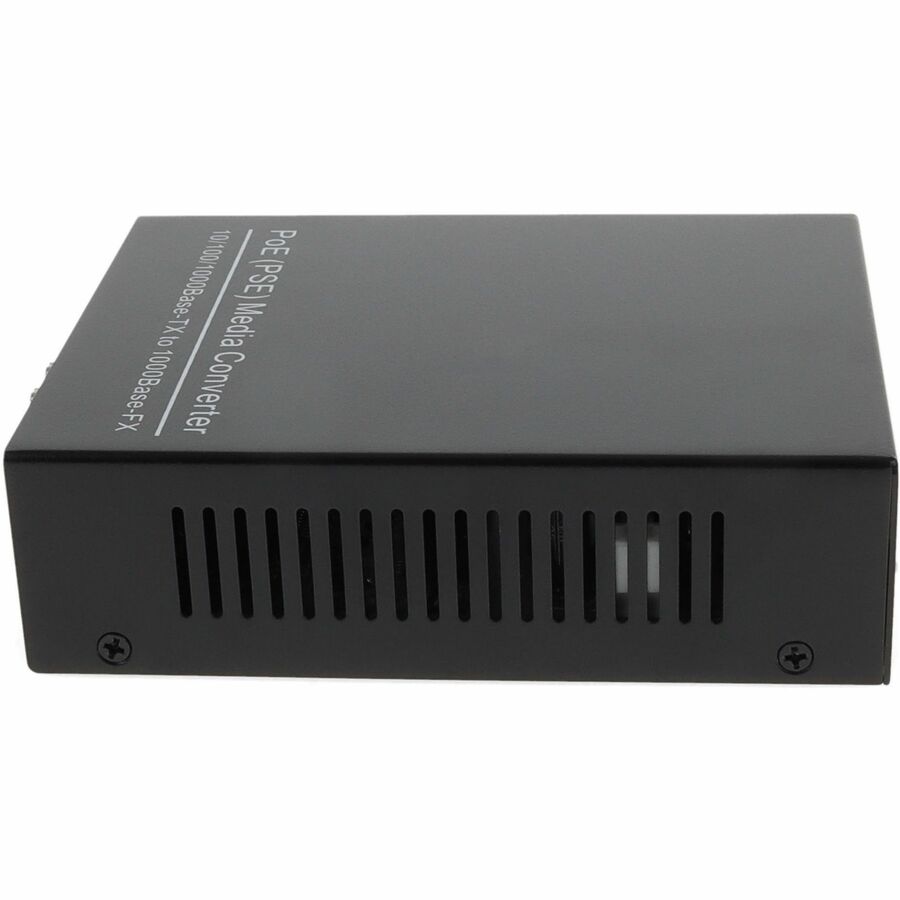

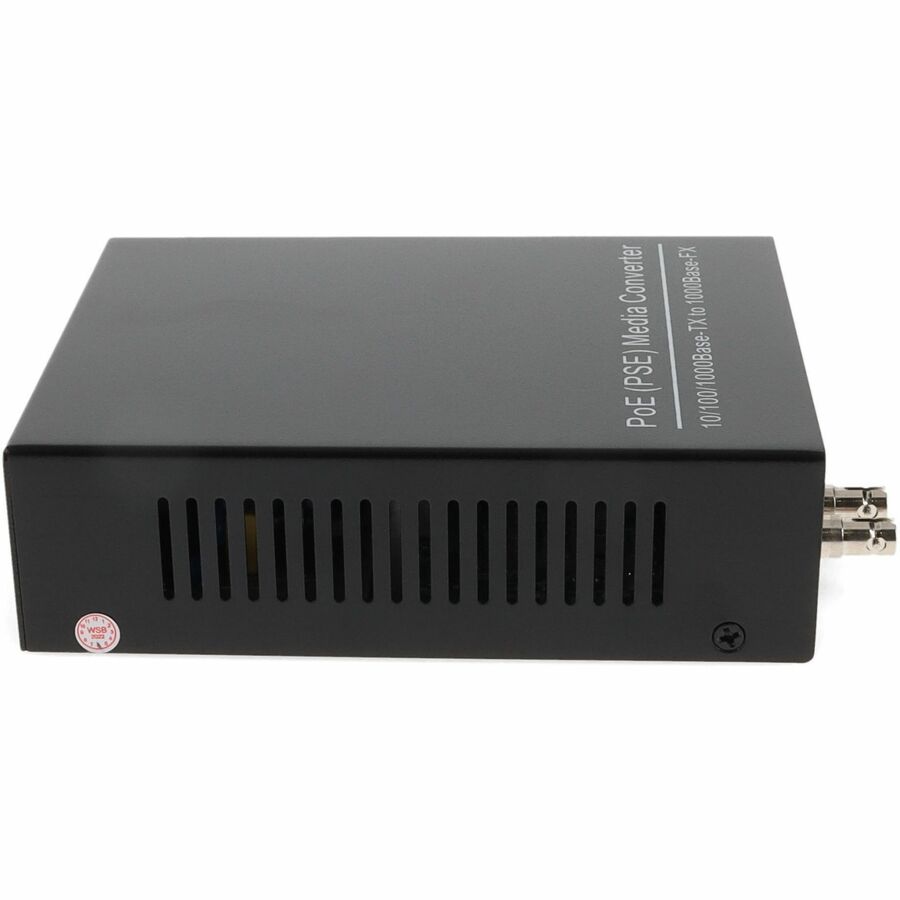

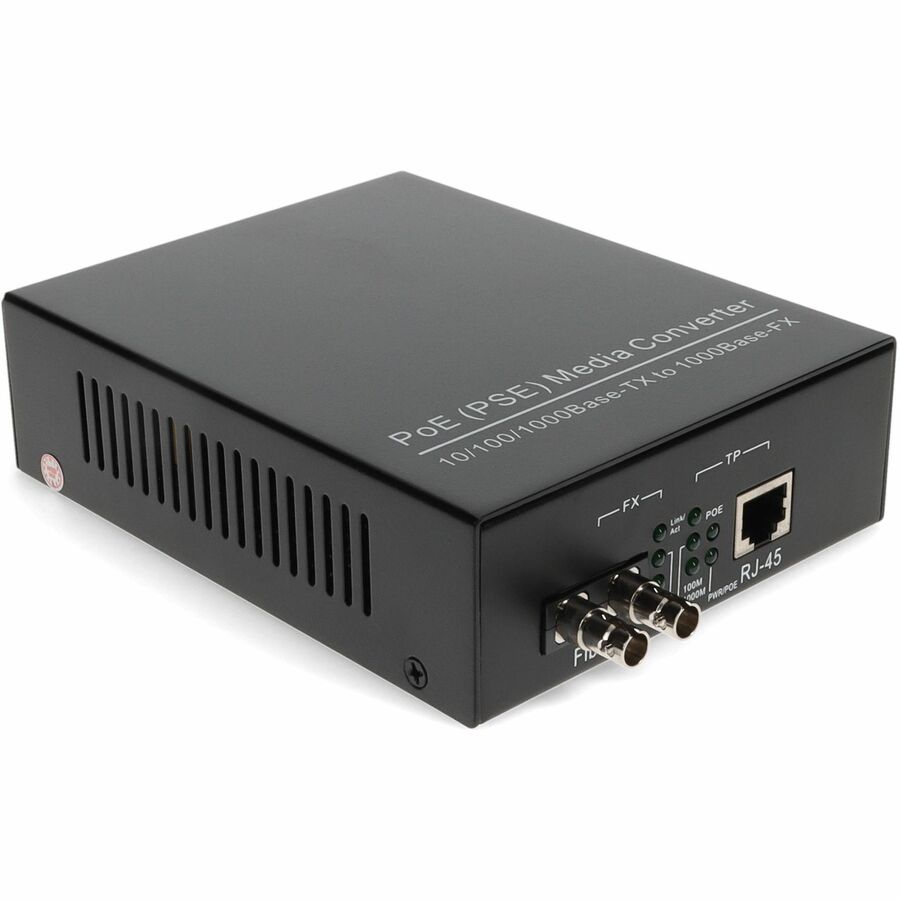

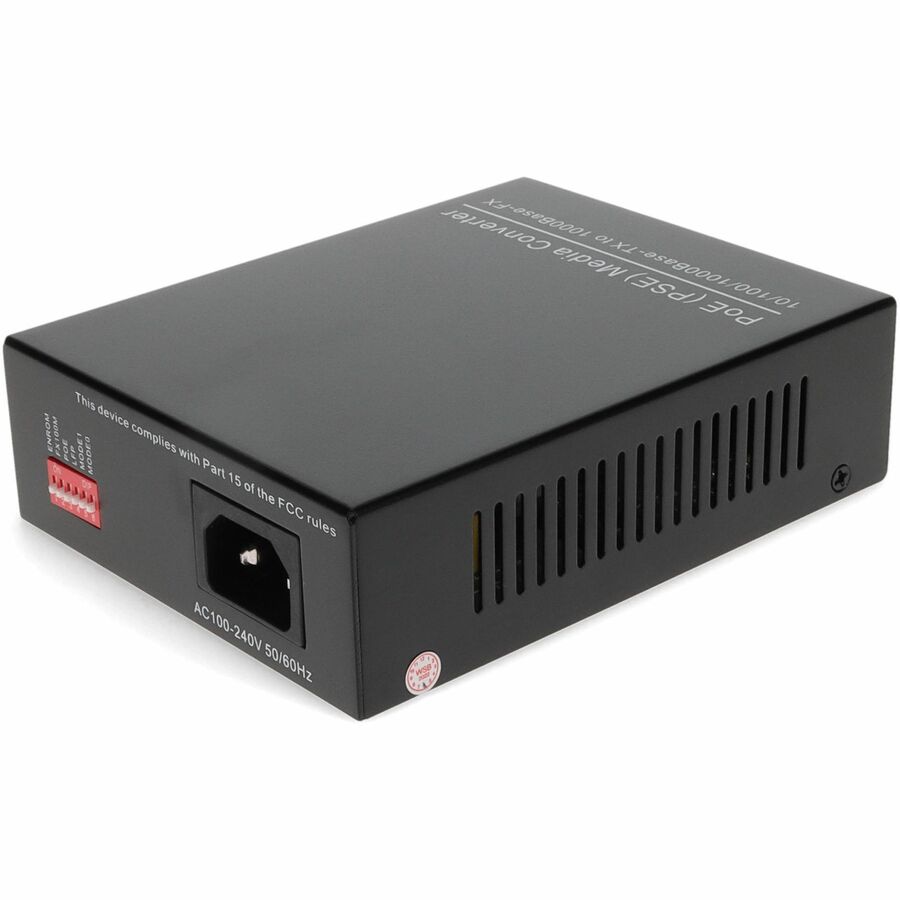

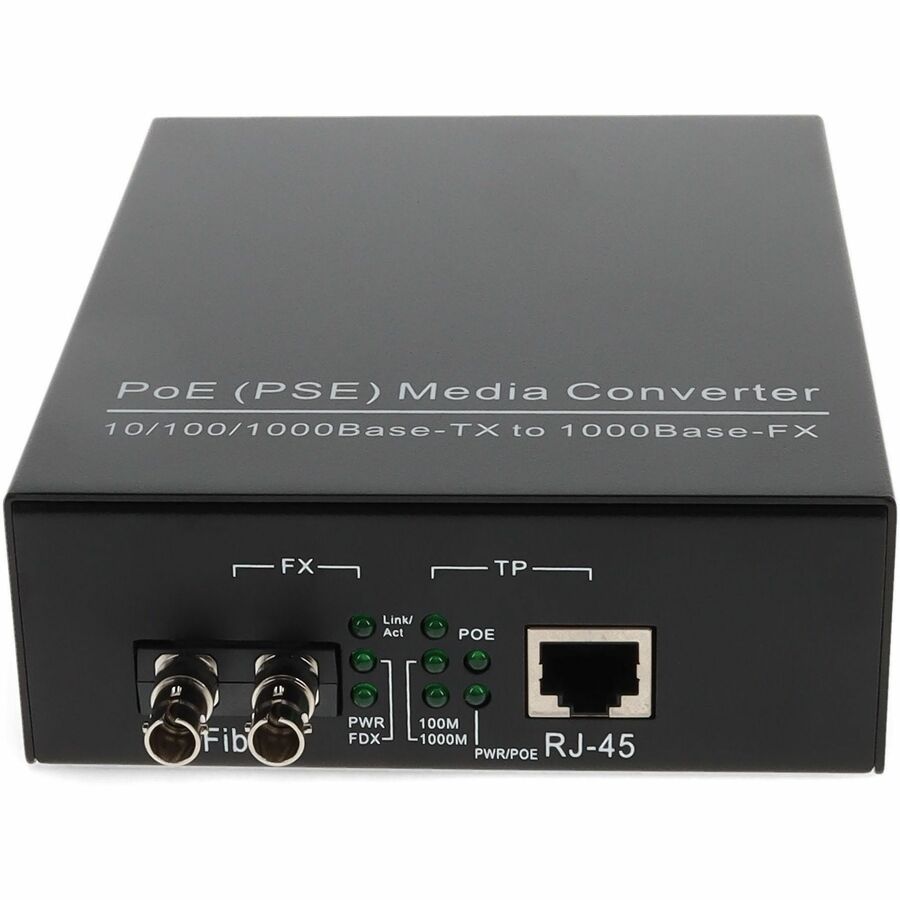

Addon Networks 1000Base-Tx(Rj45) To 1000Base-Sx(St), 850Nm Network Media Converter 1000 Mbit/S Multi-Mode Black

1000Base-TX(RJ45) to 1000Base-SX(ST), 850nm

AddOn Networks 1000Base-TX(RJ45) to 1000Base-SX(ST), 850nm. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-SX. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black

ADD-GMCP-SX-5ST is a Media Converter that converts a 1000Base-TX(RJ45) to 1000Base-SX(ST) via a 850nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 550m. ADD-GMCP-SX-5ST provides a cost effective conversion from 1000Base Copper to 1000Base-SX fiber , while extending your network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
