Addon 10/100Base-Tx(Rj-45) To Open Sfp Port Poe Media Converter

Addon 10/100Base-Tx(Rj-45) To Open Sfp Port Poe Media Converter

SKU:ADD-FMC-SFP-POE

Regular price $120.19
Regular price Sale price $120.19
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

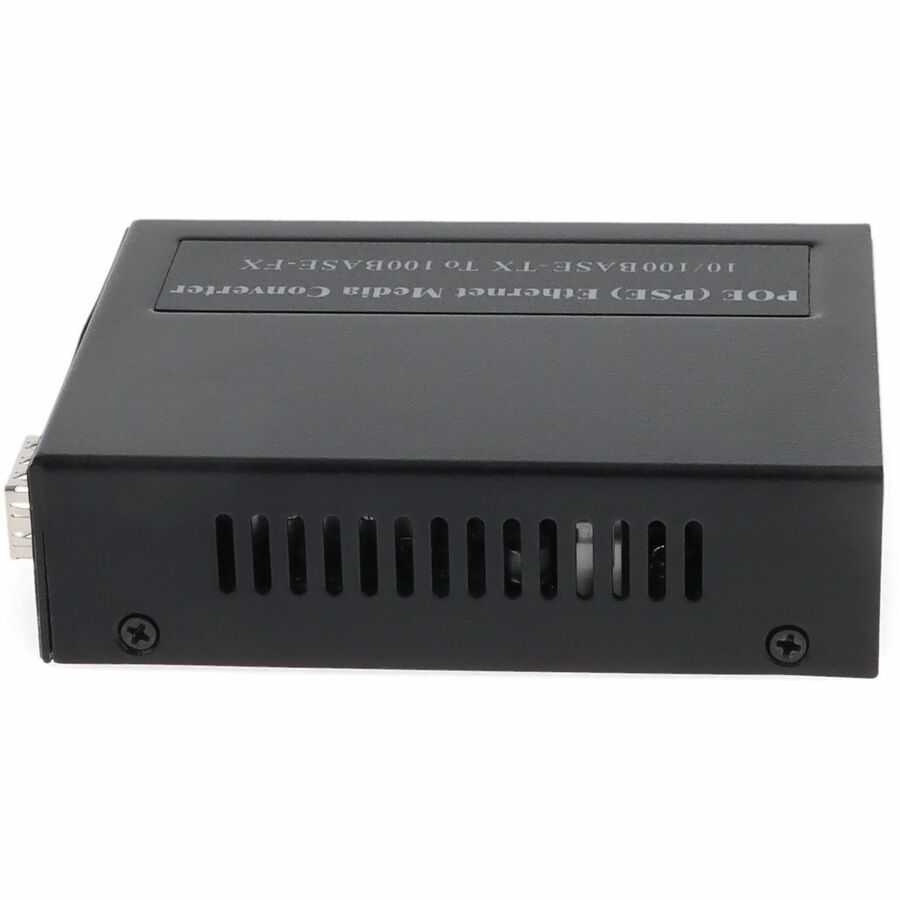

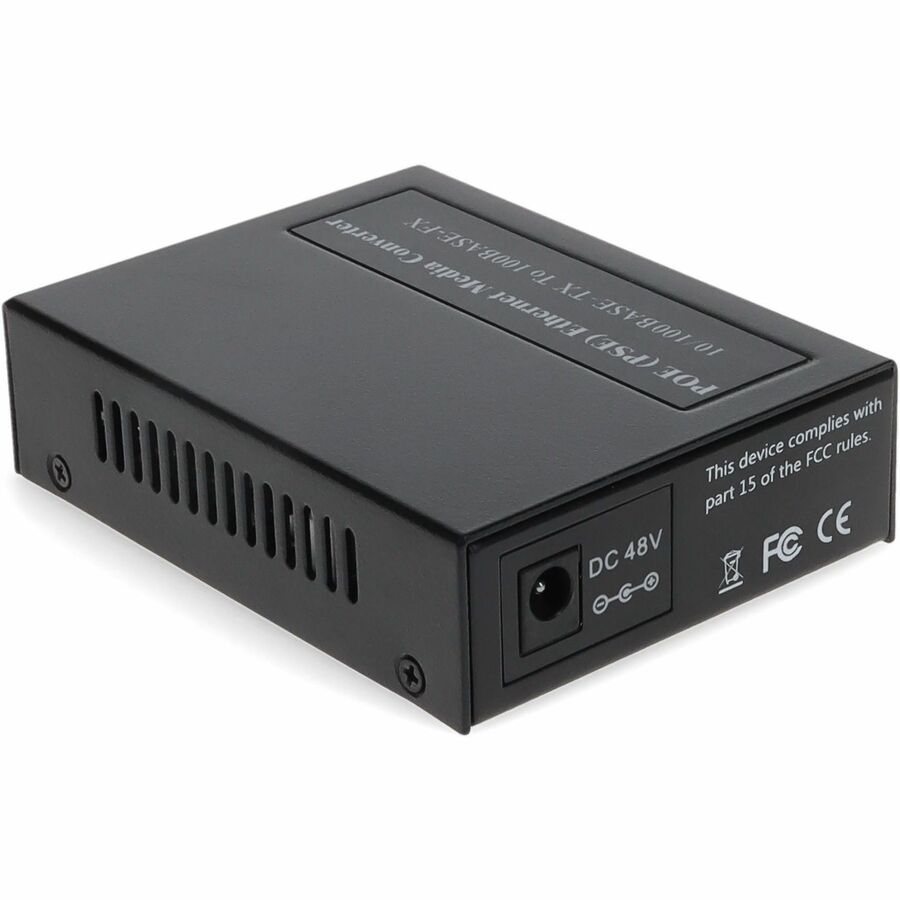

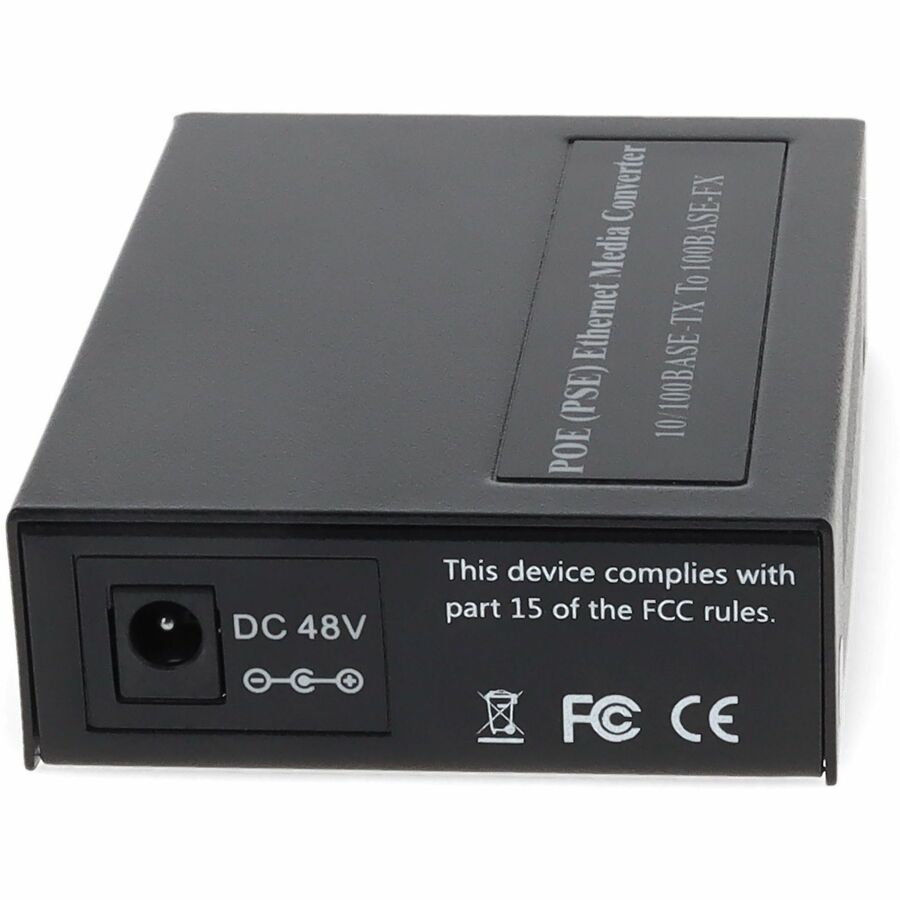

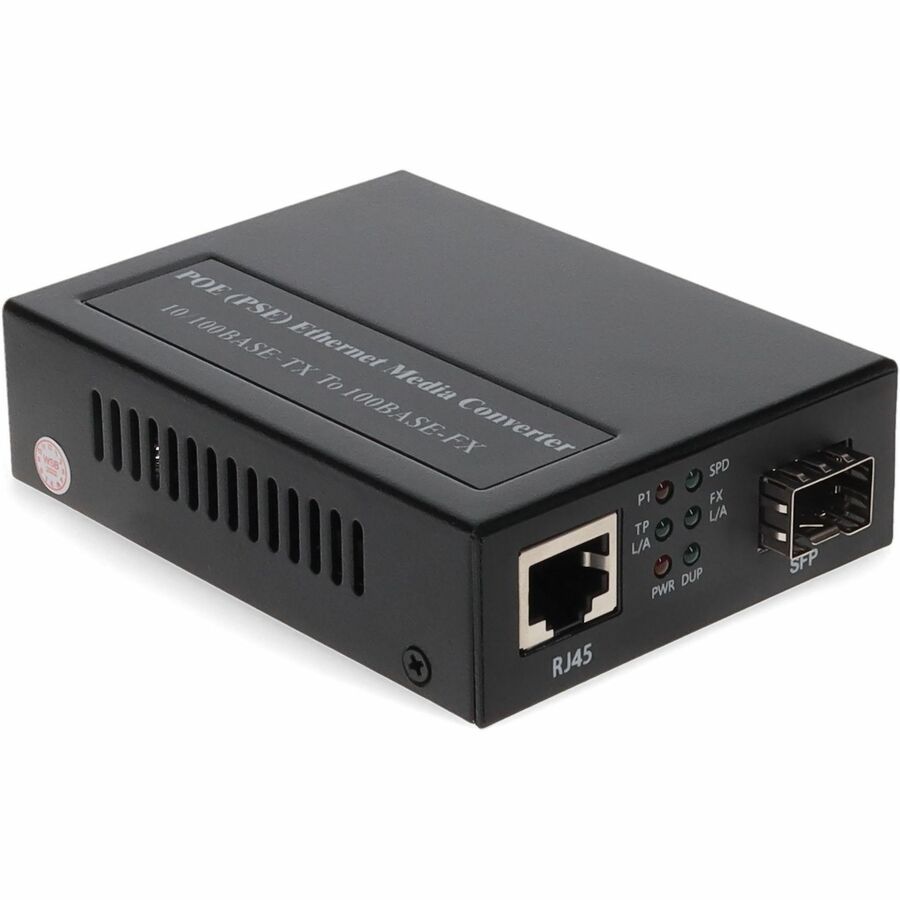

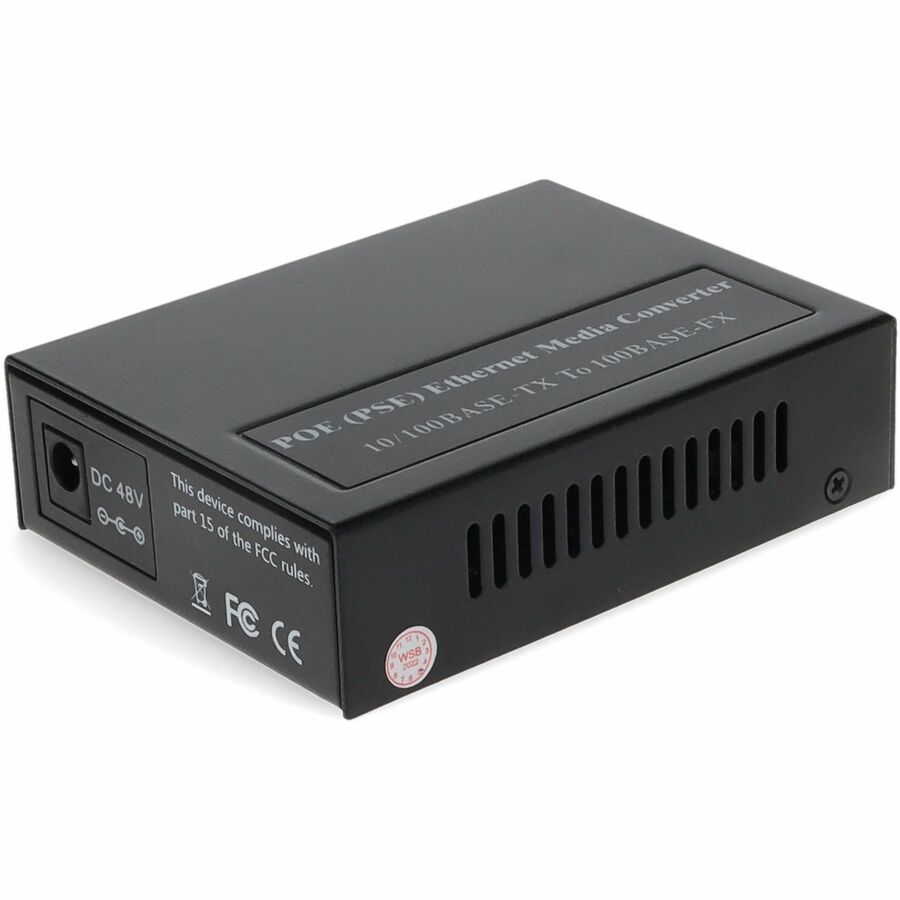

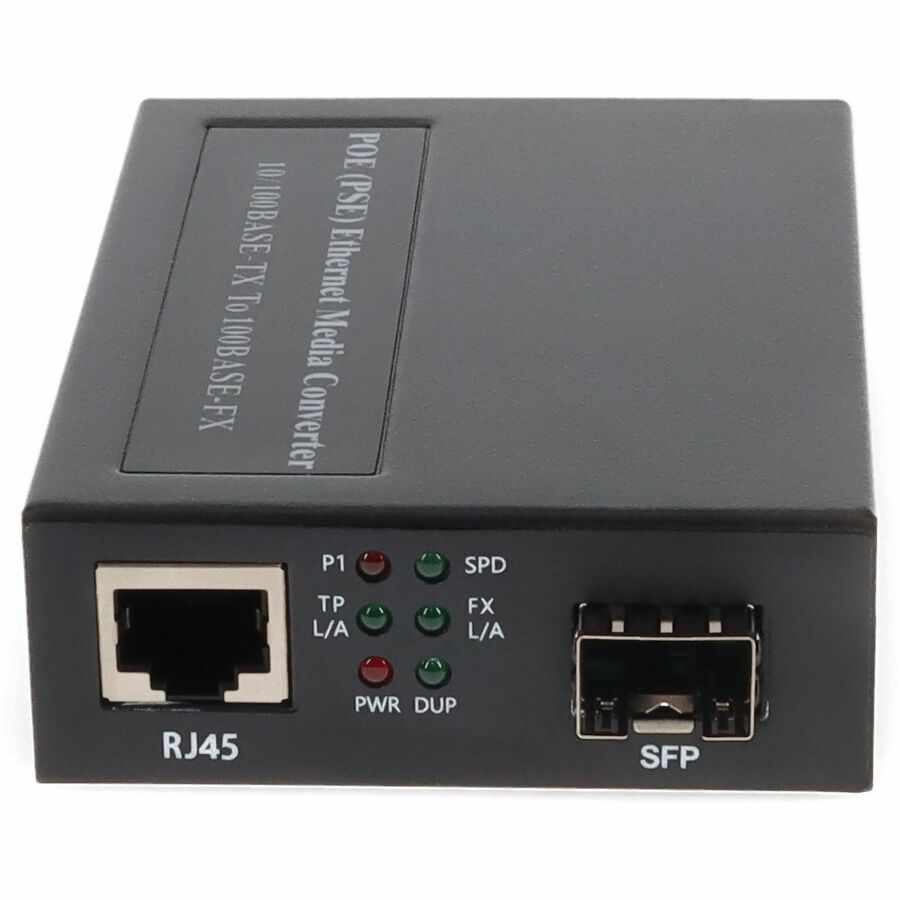

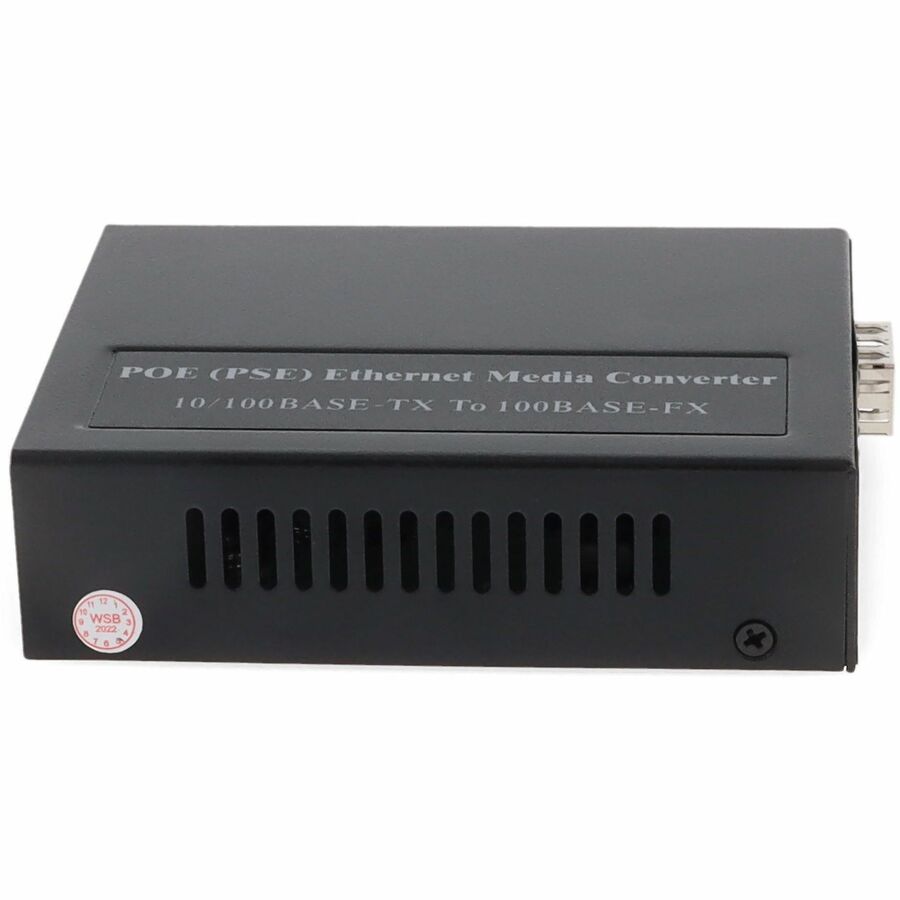

          AddOn 10/100Base-TX(RJ-45) to Open SFP Port POE Media Converter
          This is a media converter that converts a 10/100Base-TX(RJ-45) to 100Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.


          • Connect different types of media within a network with this single port

          • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances

          • With 10/100Base-T technology get up to 100Mbps data transfer rate over optical fiber cable

          Product Type: Transceiver/Media Converter
          Country Of Origin: United States
          Brand Name: AddOn
          Manufacturer: AddOn
          Product Model: ADD-FMC-SFP-POE
          Product Name: 10/100Base-TX(RJ-45) to Open SFP Port POE Media Converter
          Manufacturer Part Number: ADD-FMC-SFP-POE
          Manufacturer Website Address: http://www.addoncomputer.com
          Package Contents:

          • 10/100Base-TX(RJ-45) to Open SFP Port POE Media Converter
          • Power Supply (Internal 120V AC)

          Limited Warranty: Lifetime
          Weight (Approximate): 6.50 lb

          Specifications :

          General Information

          Manufacturer AddOn
          Manufacturer Part Number ADD-FMC-SFP-POE
          Manufacturer Website Address http://www.addoncomputer.com
          Brand Name AddOn
          Product Model ADD-FMC-SFP-POE
          Product Name 10/100Base-TX(RJ-45) to Open SFP Port POE Media Converter
          Product Type Transceiver/Media Converter
          UPC 0821455492444
          Ethernet TechnologyFast Ethernet
          Network (RJ-45)Yes
          Height6"
          Width5"
          Depth2"
          Weight (Approximate)6.50 lb

          Miscellaneous

          Package Contents
          • 10/100Base-TX(RJ-45) to Open SFP Port POE Media Converter
          • Power Supply (Internal 120V AC)

          Warranty

          Limited WarrantyLifetime
