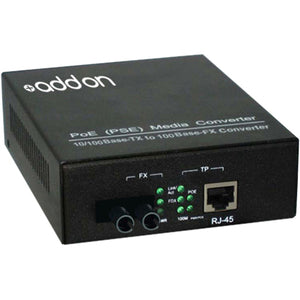

Addon 10/100Base-Tx(Rj-45) To 100Base-Fx(St) Mmf 1310Nm 2Km Poe Media Converter Add-Fmcp-Fx-St

Description :

AddOn 10/100Base-TX(RJ-45) to 100Base-FX(ST) MMF 1310nm 2km POE Media Converter
ADD-FMCP-FX-ST is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-FX(ST) via a 1310nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 2km. ADD-FMCP-FX-ST provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• With Optical Fiber cable, get the desired data transfer rate up to a required distance


• With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable


• The Desktop provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: AddOn
Form Factor: Desktop
Manufacturer: AddOn
Product Model: ADD-FMCP-FX-ST
Product Name: 100Base-TX To 100Base-LX SMF ST 1310nm 2k POE Media Converter
Manufacturer Part Number: ADD-FMCP-FX-ST
Manufacturer Website Address: http://www.addoncomputer.com
Limited Warranty: 3 Year
Weight (Approximate): 1.40 lb
