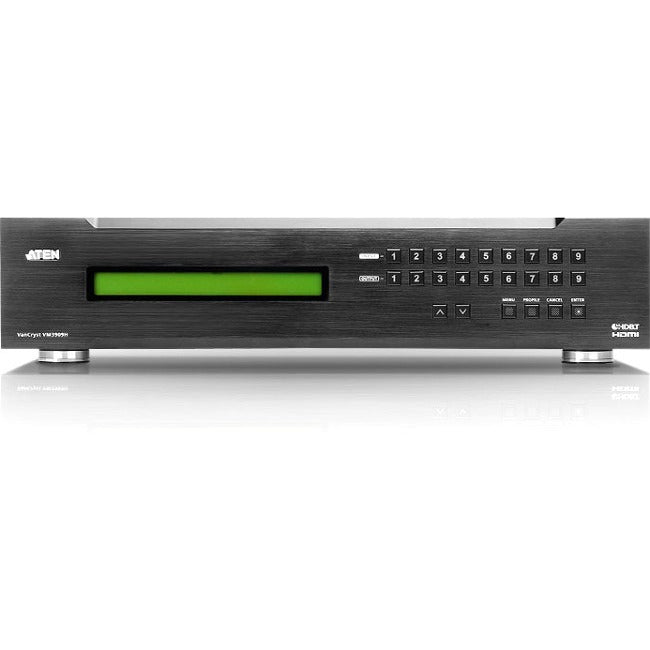

9X9 Hdmi Matrix W/ Hdbaset,Outputs Video Wall & Fast Switch

SKU: VM3909H

Regular price $4,798.39
Regular price Sale price $4,798.39
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          ATEN VM3404H HDMI HDBaseT-Lite Matrix Switch-TAA Compliant


          9 x 9 HDMI HDBaseT-Lite Matrix Switch

          With the rapid development of HDBaseT technology, ATEN has released the new VM3909H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.

          When the VM3909H is combined with VE805R receivers, it supports both ATEN Seamless Switch™ technology and Video Wall functionality. ATEN's exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.

          • Use this audio video switchbox and eliminate the need to manually switch cables between sources

          • Trouble free connection with display

          • Enjoy watching any class of content on 4096 x 2160 resolution

          Product Type: Audio/Video Switchbox
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Country Of Origin: Taiwan
          Brand Name: ATEN
          Manufacturer: ATEN Technology Inc
          Product Model: VM3909H
          Product Name: VM3404H HDMI HDBaseT-Lite Matrix Switch
          Product Line: VanCryst
          Manufacturer Part Number: VM3909H
          Manufacturer Website Address:
          Package Contents:

          • VM3909H HDMI HDBaseT-Lite Matrix Switch
          • 1 x Power Cord
          • 1 x Mounting Kit
          • 1 x User Instructions

          Weight (Approximate): 16.16 lb
