8Input / 2Output Processor,

Description :

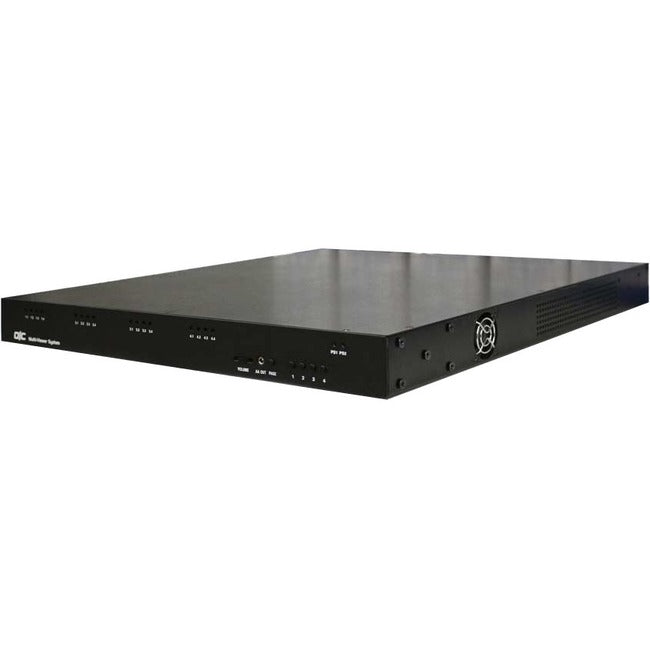

ORION Images Multiviewer System
The OIC-M802 is ORION Images's first high definition multi-window monitoring system featuring 8 universal inputs/windows, with user selectable resolutions up to 2048 x 1080 (including 1920 x 1080p) and infinitely adjustable the screen layouts. This 1 RU, rackmountable video scaler/processor allows for maximum flexibility in screen layout and for viewing multi-window content of video and graphics at the same time over a single or multiple displays.

The OIC-M802 supports inputs for all HD video sources including, DVI, HDMI (opt.), VGA, YPbPr (opt.), SD / HD / 3G-SDI (opt.). The OIC-M802 unit can be controlled several ways; through the front panel buttons for up to 30 assignable preset viewing layouts, or via standard RS-232C protocol, or through a control module with GPI inputs assigned to preset buttons, or via the OIC Commander software, a PC configuration and control application.

• Front panel buttons for quick preset recalls (30 presets)


• Compact (Height - 1RU) and Rack-Mount Kit provided


• Built-in CATx extender - extend 1080p up to 115 feet with optional cable


• Optional HDMI and SD / HD / 3G-SDI models with embedded audio


• Front panel headphone jack with volume adjustment for audio monitoring


• OIC Commander application allows on-screen graphical elements to be designed with any graphics tool


• Output resolution up to 2048 x 1080 including 1920 x 1080p through DVI or HDMI (Option - YPbPr, VGA or SD / HD / 3G-SDI)


• Output 1ch (for 8inputs) or 2ch (for each 4inputs)


• Universal Inputs and auto-detect (Standard - DVI and RGB, Option - HDMI, YPbPr and SD / HD /3G-SDI)

Product Type: Video Processor
Country Of Origin: South Korea
Brand Name: ORION Images
Form Factor: Rack-mountable
Manufacturer: ORION Images Corporation
Product Model: OIC-M802
Product Name: Multiviewer System
Manufacturer Part Number: OIC-M802
Manufacturer Website Address: http://www.orionimages.com
Package Contents:

• Multiviewer System
• Power Supply
• VGA to DVI-I Adaptor
• RJ45 to DVI-I Adaptor
• RJ45 to HDMI Adaptor
