8Dual Cone Sound Masking,Loudspeaker With 4W 70V Transfo M1000R-W

Description :

AtlasIED M1000R-W Ceiling Mountable Speaker - 4 W RMS - Gloss White

The M1000R-W is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead.

A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R-W. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.

• Safety Listed to UL 1480 & UL 2043


• White Finish to Blend in with Almost Any Ceiling Décor


• Tested and Approved to UL2043 Standard for Use in Air Handling (Plenum) Spaces


• Strain Relief to Facilitate Input Termination


• 382in3 (6.26L) Enclosure Volume for Accurate Low Frequency Masking Spectrum Reproduction

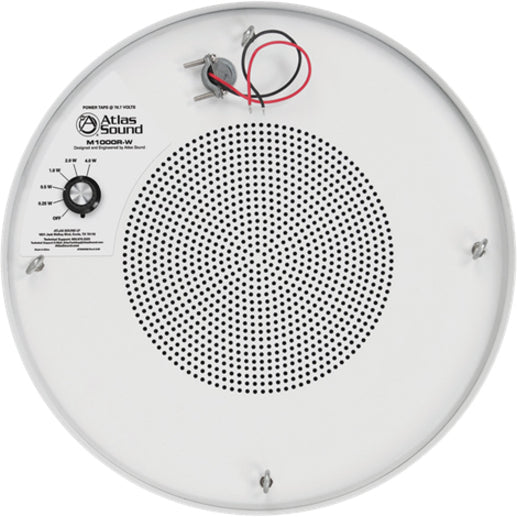

• 0.25 to 4 Watt (@70.7V) Power Selection (Plus OFF) via External Switch


• Fully Assembled Package Includes 8" Transducer with High Quality Line Matching Transformer

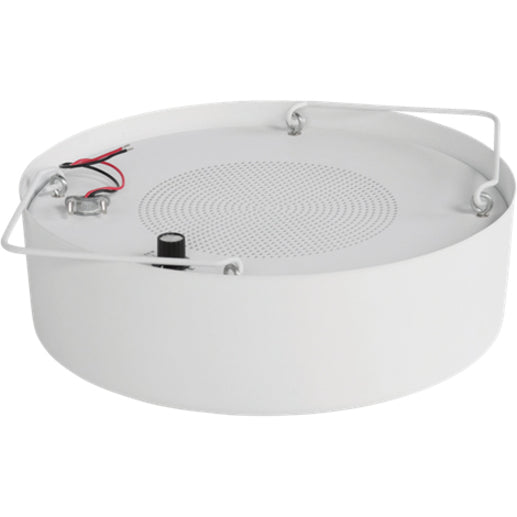

• Sleek, Round Appearance Designed for Mounting in Open Plenum Areas Where Speakers May be Visible


• Balanced Enclosure Design to Ensure Level Orientation When Suspended (78" (2m) Suspension Chain Included)

Product Type: Speaker
Product Color: Gloss White
Diameter: 13"
Brand Name: AtlasIED
Form Factor: Ceiling Mountable
Manufacturer: Atlas Sound LP.
Product Model: M1000R-W
Product Name: 8" Sound Masking Speaker With 70.7V-4W Transformer And Round Enclosure (White)
Manufacturer Part Number: M1000R-W
Manufacturer Website Address: http://www.atlassound.com
Package Contents:

• 8" Sound Masking Speaker With 70.7V-4W Transformer And Round Enclosure (White)


• 78" (2m) Suspension Chain
