7In Lcd Cap Touch 1024X600,700:1 Um-760C-Of Usb Open Frame

Description :

Mimo Monitors UM-760C-OF 7" Open-frame LCD Touchscreen Monitor - 16:9 - 15 ms

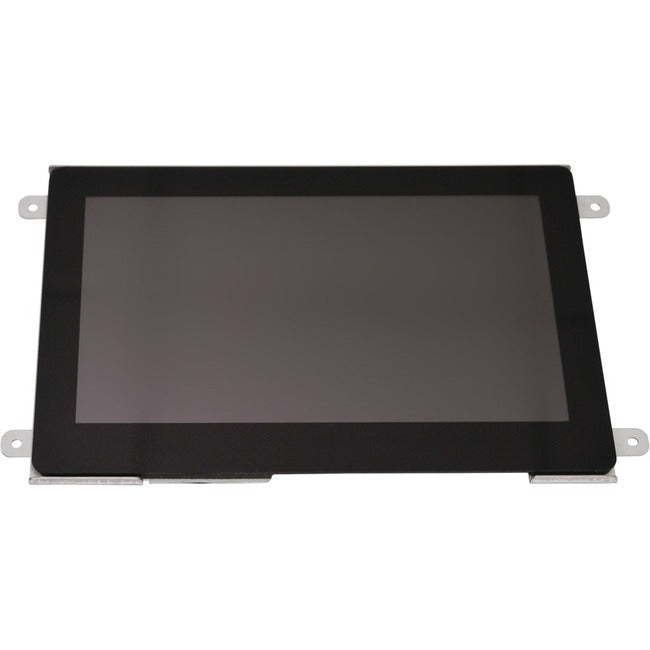

Open Frame 7" USB Capacitive Touch Screen Monitor

The UM-760C-OF/UM-760CH-OF adds Capacitive touch to the 7" line of open frame displays. The UM-760C-OF/UM-760CH-OF is a 7" small capacitive open frame touchscreen monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but now with the responsiveness of a 5 point multi-touch capacitive touchscreen all in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The screen can display in either landscape or portrait orientations. The UM-760C-OF/UM-760CH-OF open frame touchscreen monitor is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.

Available in Single Cable USB Video

Utilizing the same single cable USB display technology as our line of displays, the UM-760C-OF sends video, touch, and power over a single USB connection.

And now available with HDMI

Now optionally available with the ubiquitous HDMI input for video. Previously only available with the convenience of single cable USB video, the UM-760CH-OF from Mimo Monitors now offers HDMI to supplement where USB video is not supported or inconvenient. With the HID compliant touch screen plus HDMI video, the new UM-760CH-OF can be installed to almost any platform without drivers.

Uniquely, this new monitor line still reduces number of cables. While a typical HDMI touch display will require 3 separate cables, the new HDMI touch displays from Mimo Monitors only require 2 cables. This simplifies connection, and makes for a more attractive installation.

• Utilizes Displaylink for power, touch and video over single USB connection


• Rear 4 point mounting for secure installation


• Response time: 15ms


• Windows and Linux HID support


• Capacitive 5 point touch panel


• Display colors: 262,144


• Luminance, White: 250 CD/m2


• Pixel arrangement: RGB vertical stripe


• Driver element: a-si TFT active matrix

Product Type: Open-frame LCD Touchscreen Monitor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Vesa Mount Compatible: Yes
Country Of Origin: South Korea
Product Series: UM-760
Brand Name: Mimo Monitors
Manufacturer: Mimo Monitors, Inc
Product Model: UM-760C-OF
Product Name: 7" Open Frame USB Capacitive Touch Screen Monitor - UM-760C-OF
Manufacturer Part Number: UM-760C-OF
Manufacturer Website Address: http://www.mimomonitors.com
Limited Warranty: 1 Year
