71500 A/C Hydraulic Hose Crimper Tool Kit Crimping Set Hose Fittings Hand Tool

Regular price
$189.99
Sale price
$189.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Description

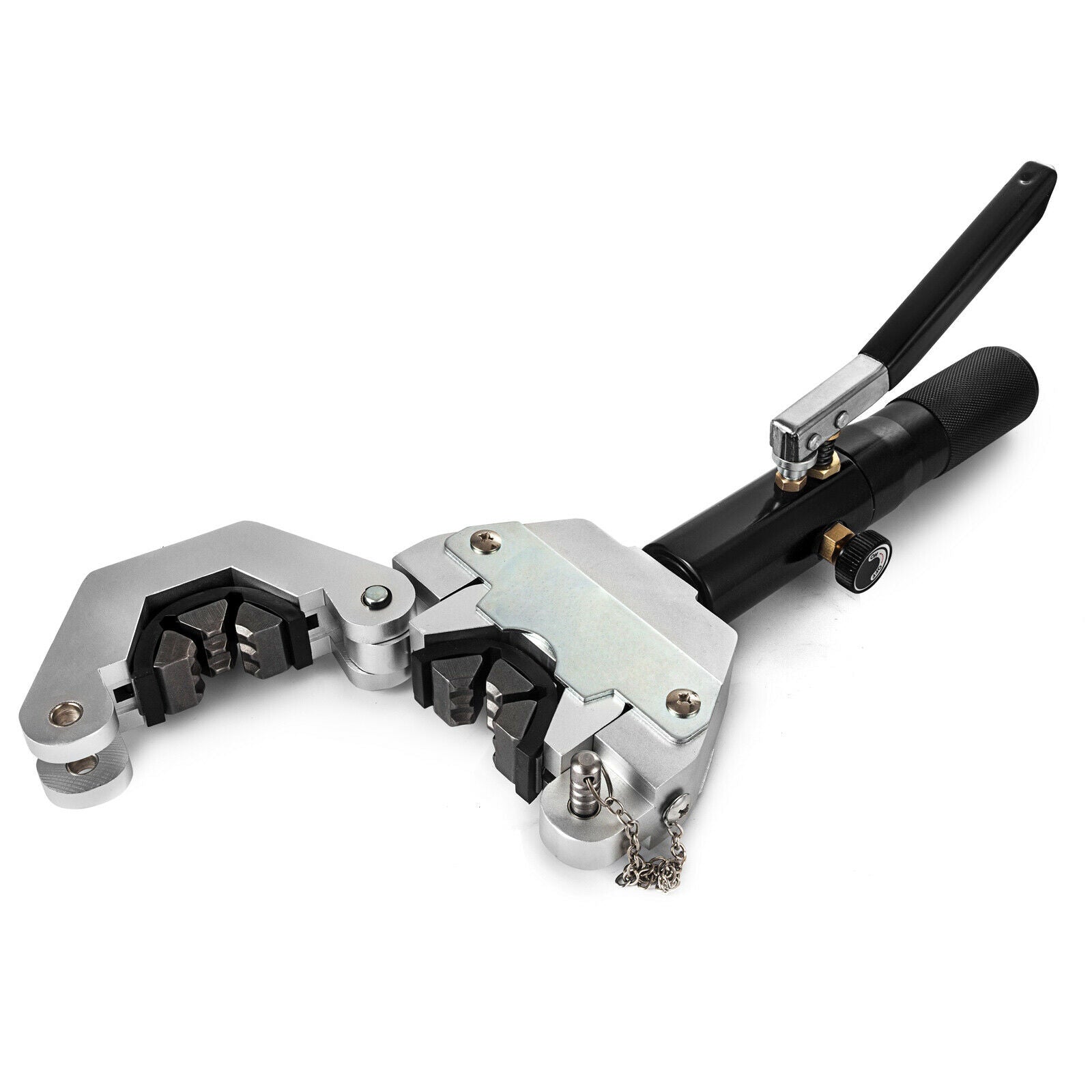

The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.

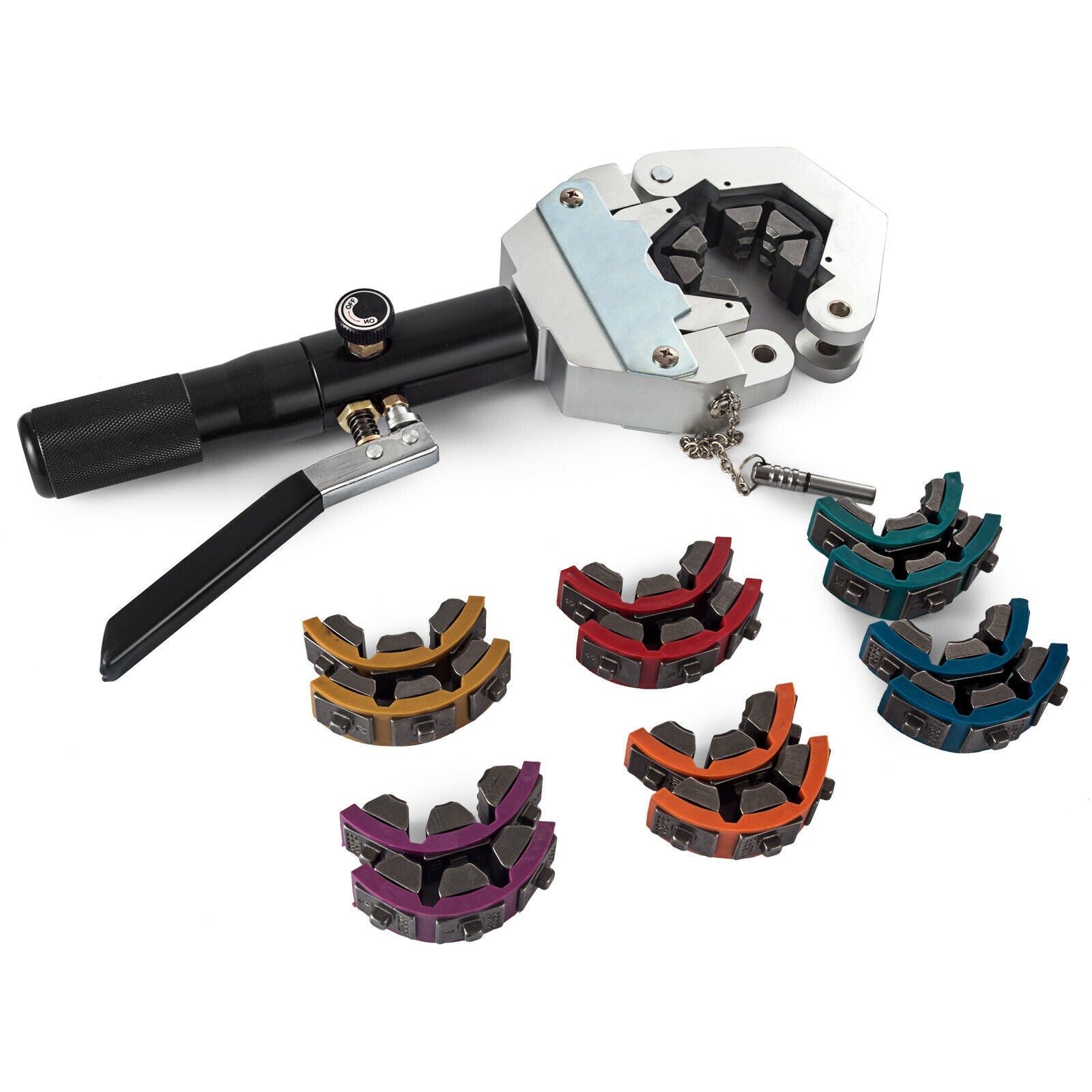

The Hydra- Krimp can be used on both beaded and barbed hose fittings. The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.

The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded

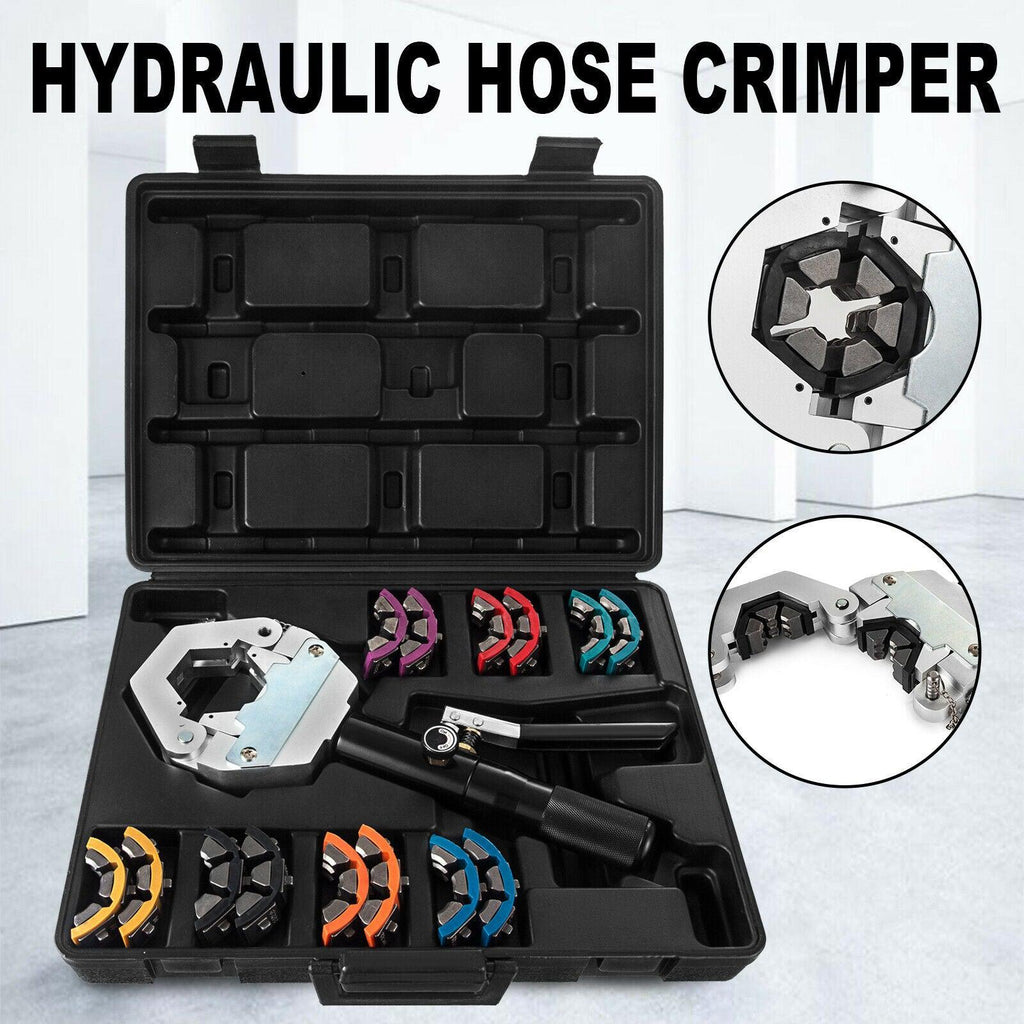

Hydra-Krimp Hose Crimper dies snap quickly into the press fixture, requiring no pins or screws.  Kit comes in custom molded case.

Brand New In Original Box, 2 Year Manufacturer Warranty, You can contact us if you have any questions or need more information about this item.




Details:

Using the 71500 Crimp Machine, Crimping barbed and beaded fittings as easy as 1 - 2 - 3 !  The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.


Pre-operation set-up:

Open the relief valve to fully recess the piston

Rotate the yoke fully counter clockwise to bottom out the adapter seat

Reay To Go!




Operating Instructions:

1.Remove pin and loose the handle till you can Open top yoke

2.select correct die set (refer to back page for description )

3.insert the die into joke

4.position fitting and hose in the crimper and close the yoke.

5.insert pin securely

6.Turn Body of tool clock wise until dies are snug against hose  fitting

7.Turn hydraulic valve to closed position

8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop

9. Once crimp is complete,turn hydraulic valve to OPEN position




WARNING:


Do NOT actuate the piston without having a hose and fitting in plave to crimp. This could cause damage to the tool. BE CAREFUL not to place hands near any pinch point while using the tool!




Specification

  • Condition : Brand new
  • Model : 71500
  • Type : Hose Crimper Tool
  • Quantity : 1 piece
  • Weight : 17.6LBS 8KG
  • Material : Steel

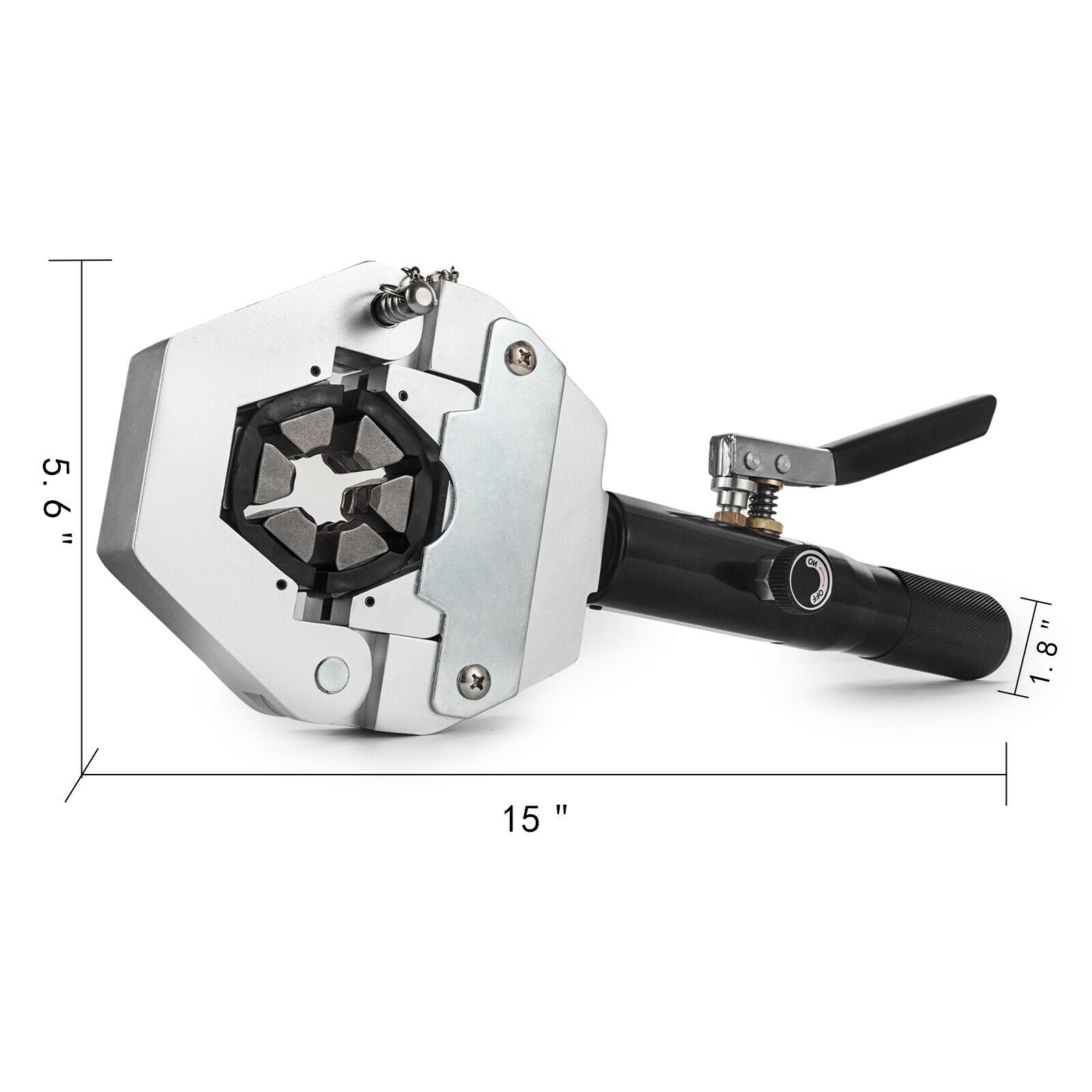

  • Product Size : 18*15* 9 in /46*38*23 cm
  • Warranty : 2 Years

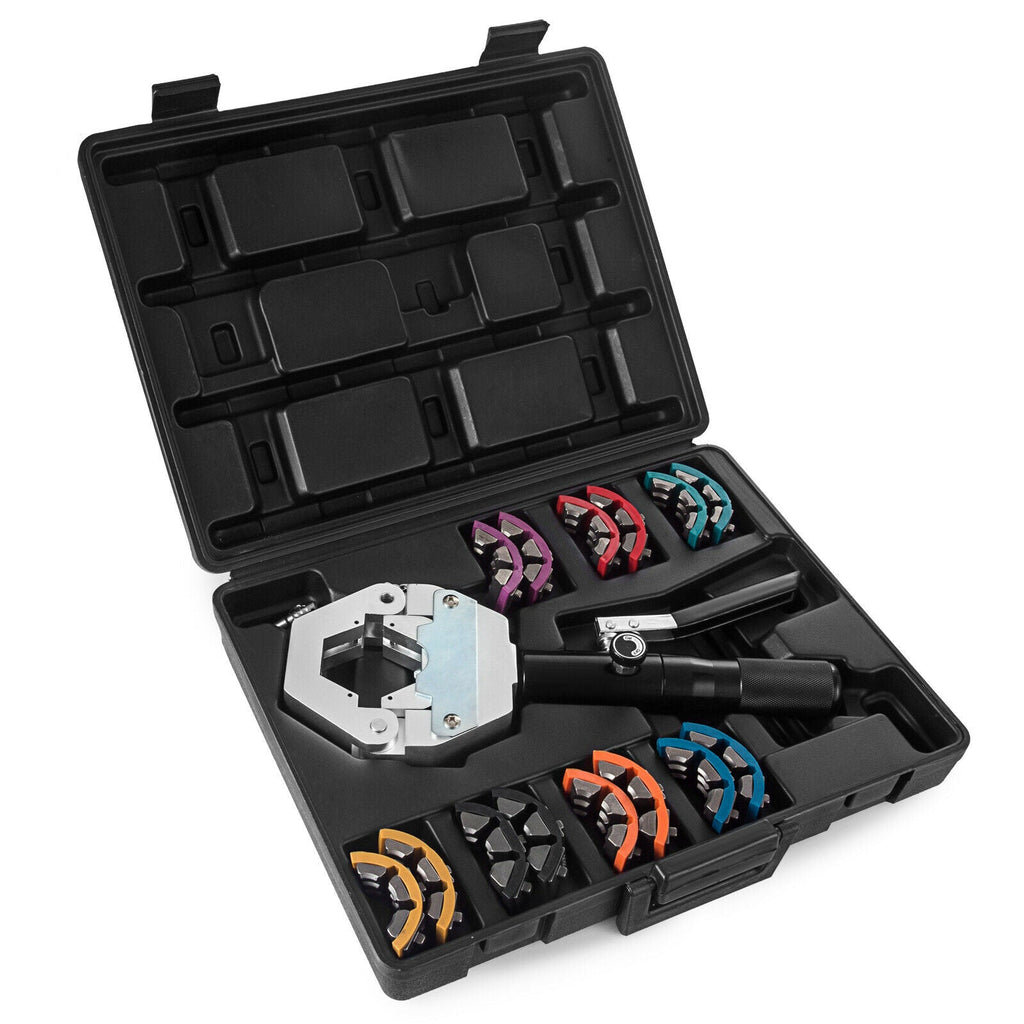

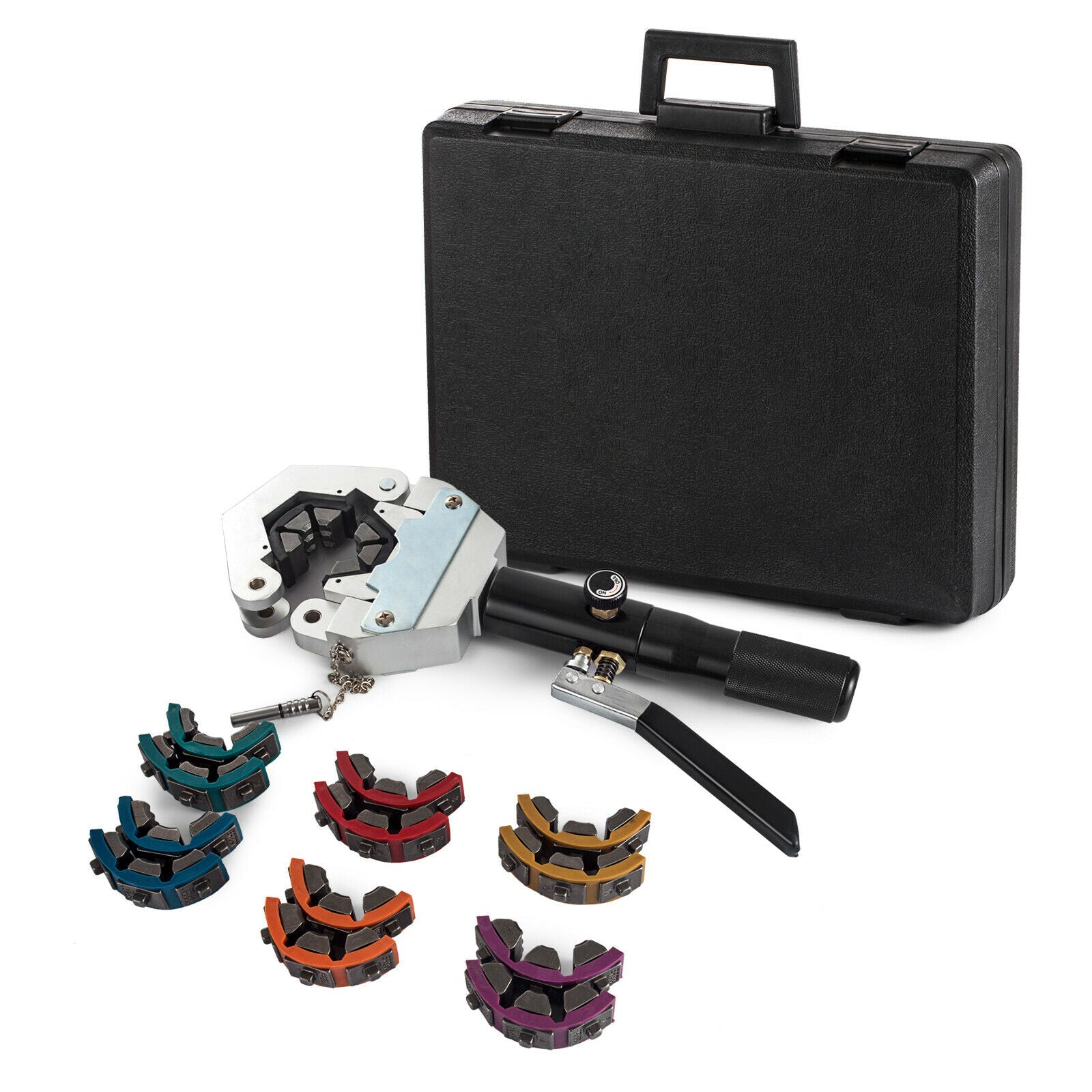

In The Box

  • 71500 - 001A   x   Hydra - Krimp Pump
  • 71500-001B   x   ydra-Krimp Yoke

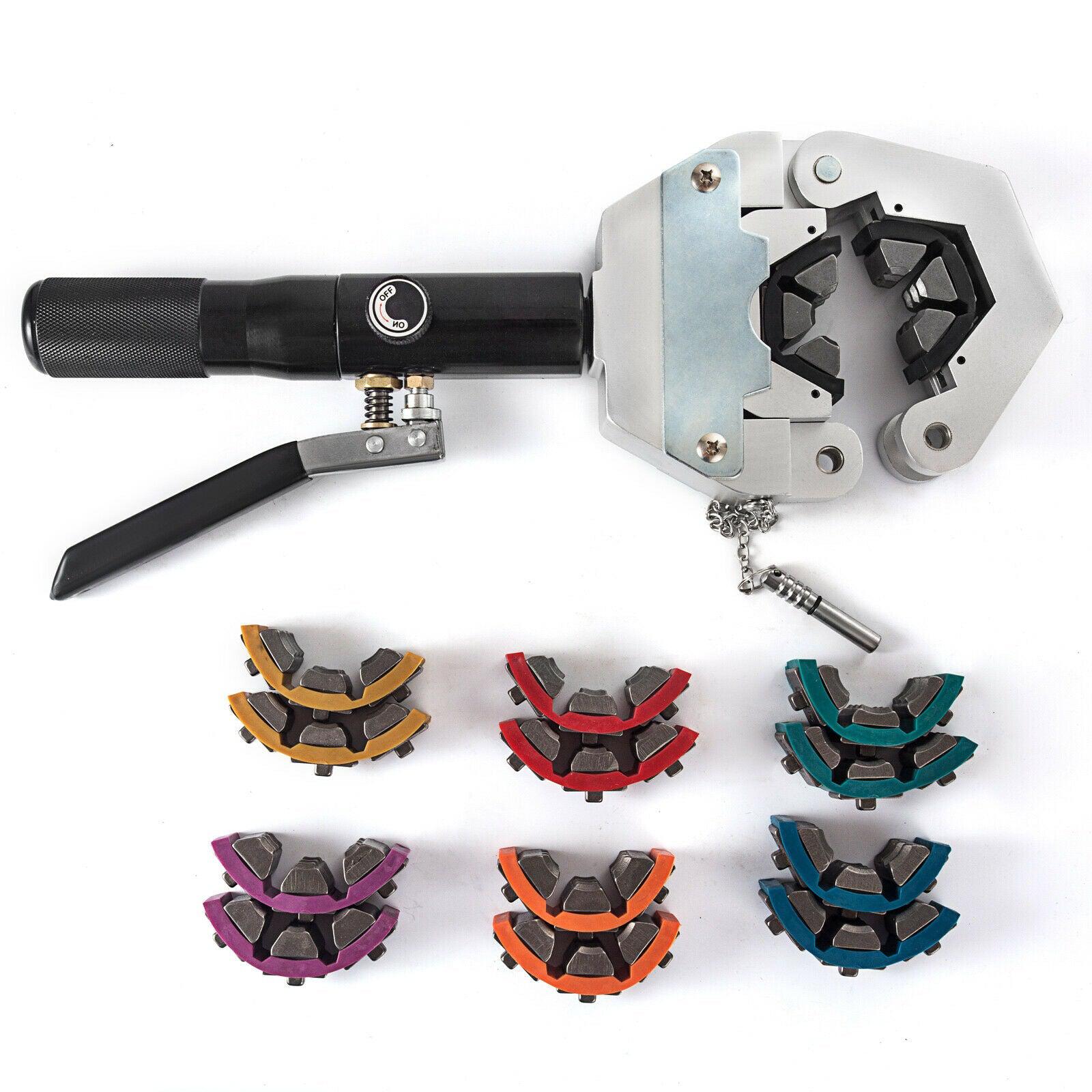

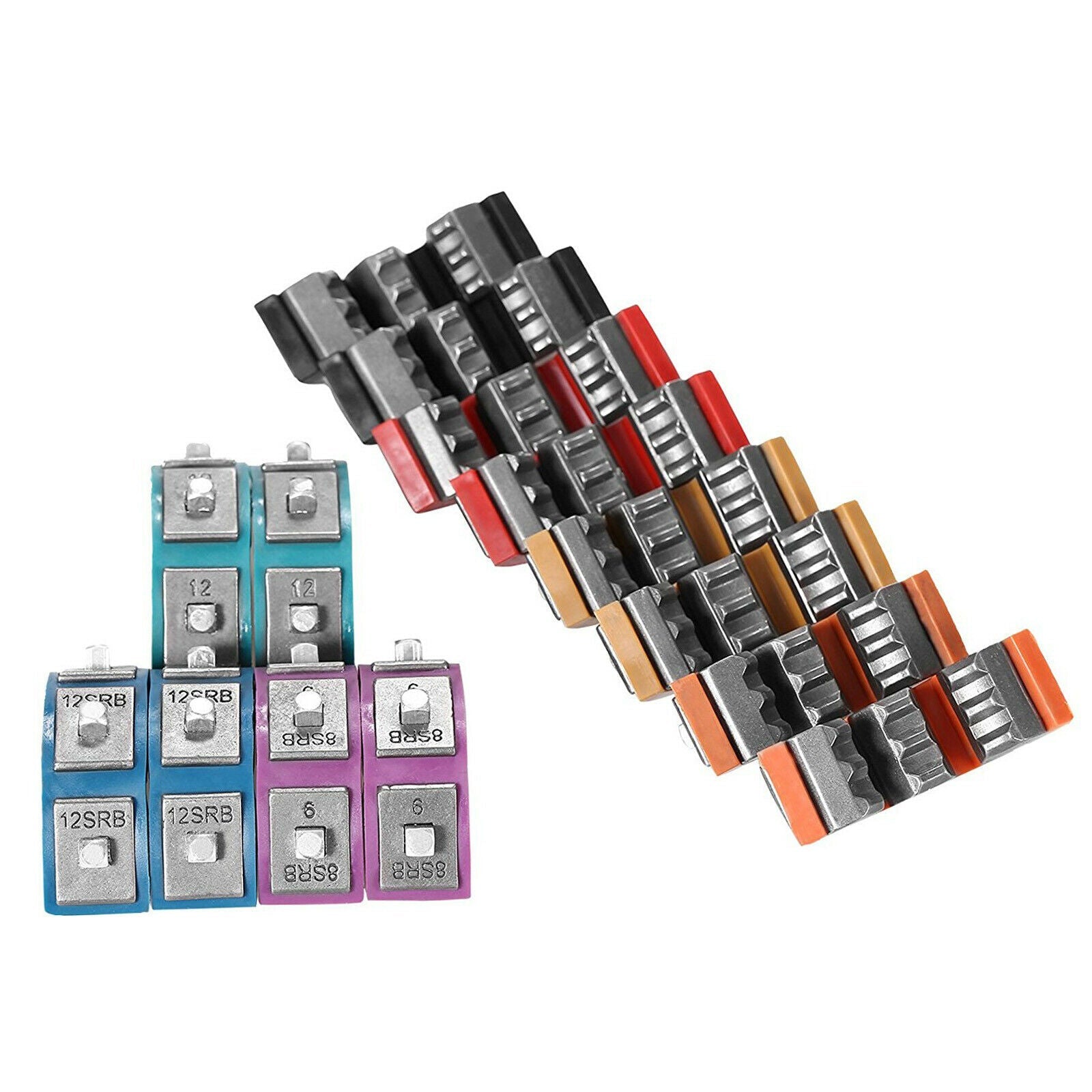

  • 71500-001C   x   Complete Die Set Assembly (7 pc. set)
  • 71500 - 6   x   Die Set - #6 (5/16in)
  • Die Set   x   - #8(13/32in) (Reduced Barrier)
  • 71500 - 8   x   Die Set - #8 (13/32in)
  • 71500 - 10   x   Die Set - #10 (1/2in)
  • 71500 - 12   x   Die Set - #12 (5/8in)
  • 71500 - 6SRB   x   Die Set - #6 (5/16in) (Reduced Barrier)
  • 71500 - 10SRB   x   Die Set - #10 (1/2in) (Reduced Barrier)
  • 71500 - 12SRB   x   Die Set - #12 (5/8in) (Reduced Barrier)
  • 71500-PB   x   Custom Molded Box

Features

  • The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications
  • The Hydra- Krimp can be used on both beaded and barbed hose fittings
  • The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced
  • Barrier #6, #8, #10 and #12
  • The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded
