5Ghz Long Range Ptp Wireless Bridge Ap5G4

5Ghz Long Range Ptp Wireless Bridge Ap5G4

SKU:AP5G4

$407.40
$407.40
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

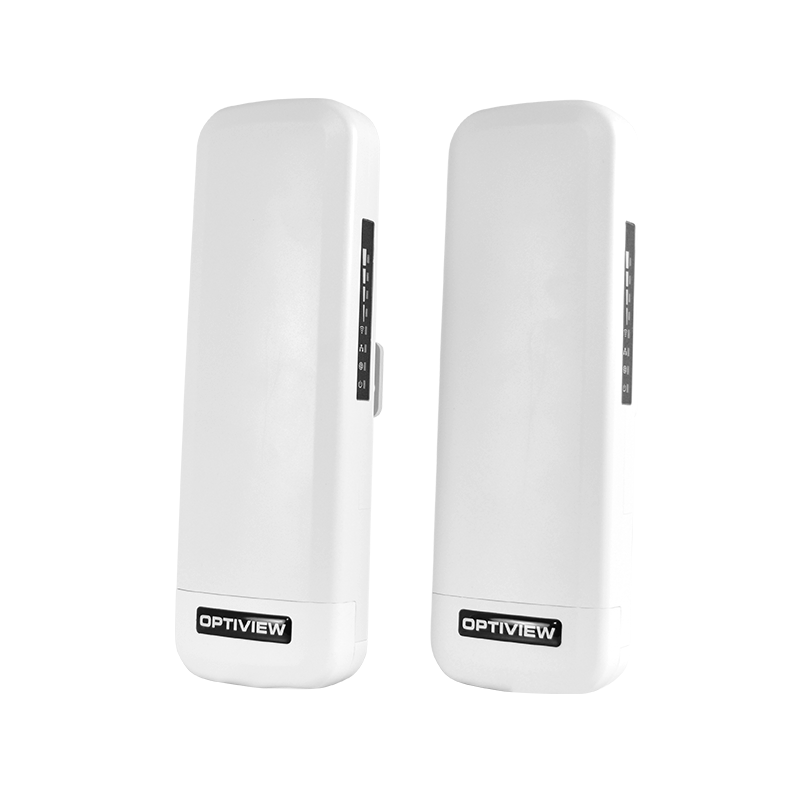

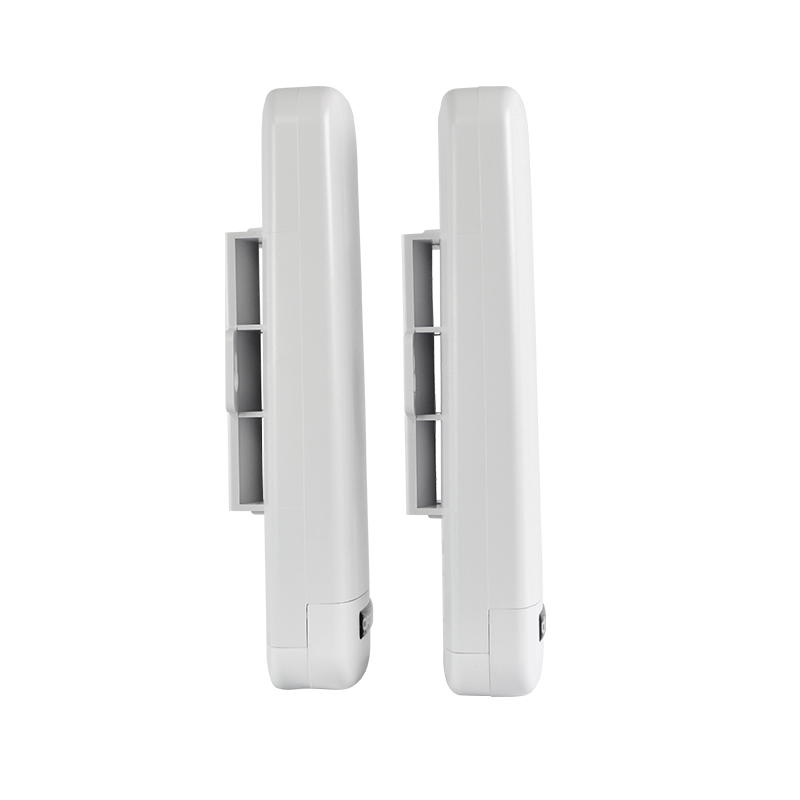

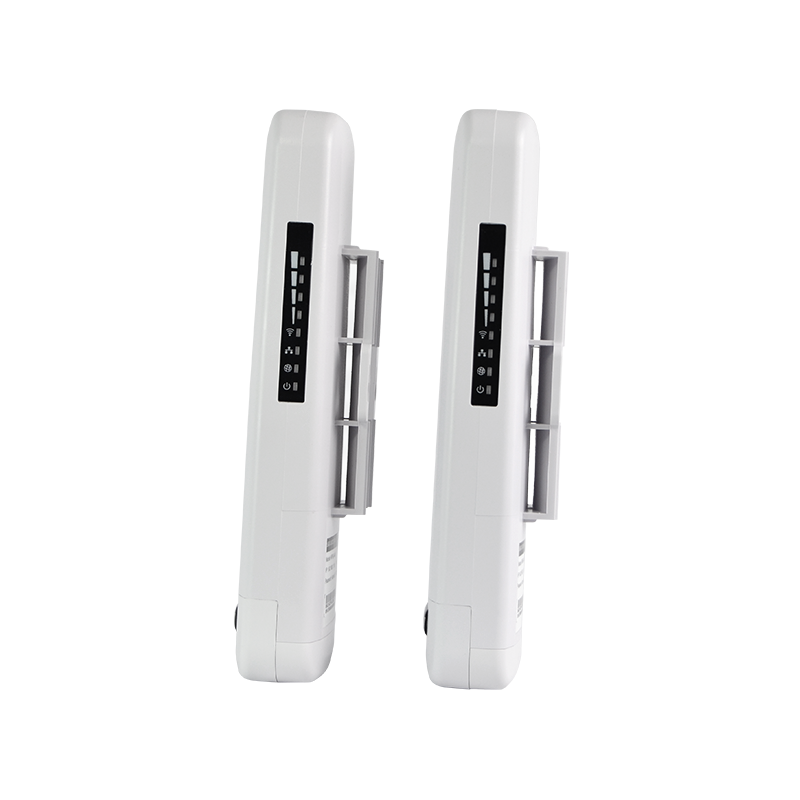

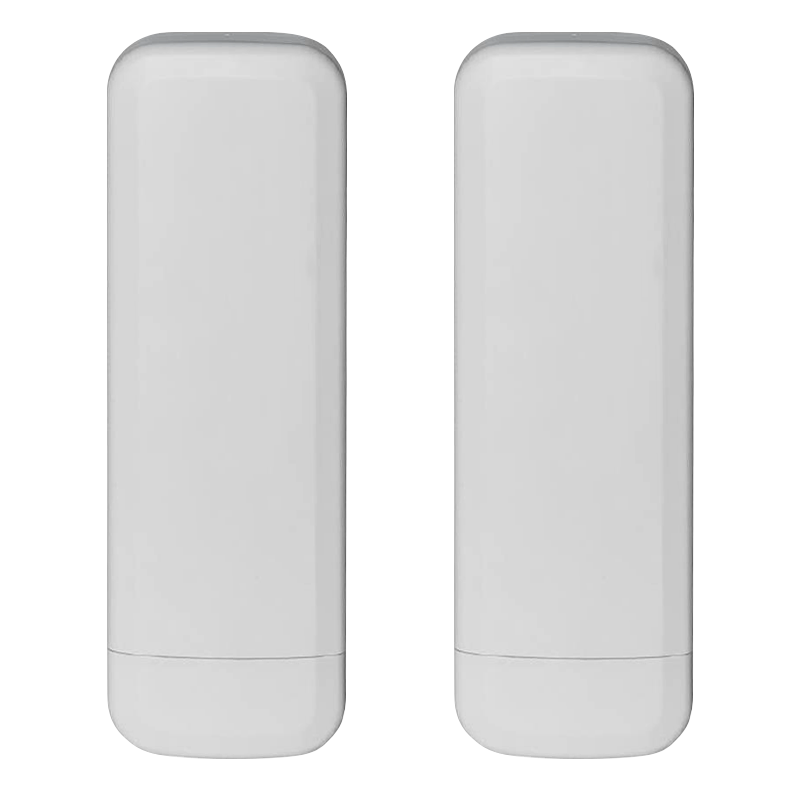

          5GHZ LONG RANGE PTP WIRELESS BRIDGE AP5G4



          • Wirelessly transmit data over a mile in distance
          • Access internet from a remote location
          • Designed for use outdoors
          • Easy to setup and use

          SPECIFICATIONS

          Chipset   Qualcomm QCA9563+QCA9886+QCA8334
          Standard   802.11ac/a/n, MU-MIMO Technology
          Memory   128MB DDR2 RAM
          Interface   1 x 10/100/1000Mbps RJ45 WAN Port, 1 x 48V PoE Input, 1 x 10/100/1000Mbps RJ45 LAN Port, 1 x Reset Button, 1 x DC Jack, 1 x AP / Repeater Operation mode switch
          Antenna   Built in 14dBi MIMO Panel Antenna
          Power Supply   802.3at 48V PoE or DC12V 1.5A
          RF Data | Frequency   5GHz: 802.11a/ac, 5GHz: 4920~5920MHz
          RF Data | Throughput   867Mbps
          RF Power   802.11ac 20MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 20MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 20MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain
          Receiving Sensitivity   802.11ac Rx Sensitivity 20MHz BW, MCS9 -62dBm, MCS7 -67 dBm, MCS0 -89 dBm, 802.11ac Rx Sensitivity 40MHz BW, MCS9 -61dBm, MCS7 -66 dBm, MCS0 -88 dBm, 802.11ac Rx Sensitivity 80MHz BW, MCS9 -60dBm, MCS7 -65 dBm, MCS0 -87 dBm
          EVM   802.11a: ≤-25dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB
          PPM   ±20ppm
          Package Contents   Pair of 867Mbps Outdoor PTP wireless access points / bridges, pole mounting bands, LAN patch cables
          Operating Temperature   -30~45 ℃
          Storage Temperature   -40~70 ℃ Humidity: 5%~95% non-condensing
