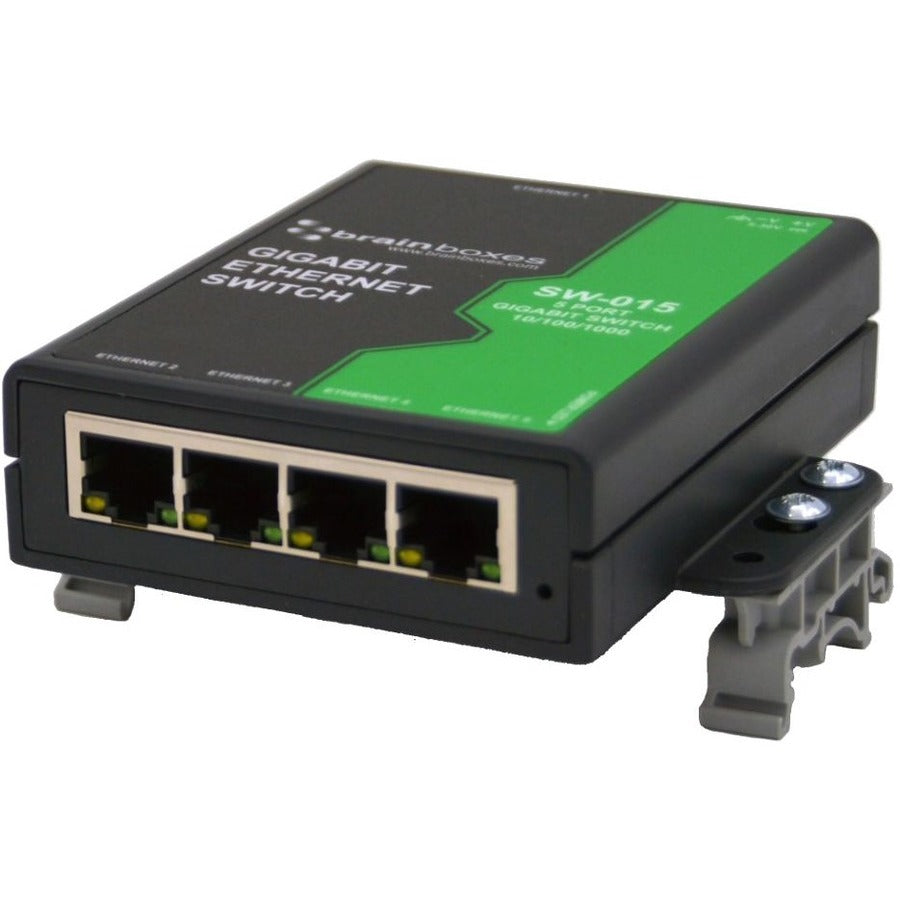

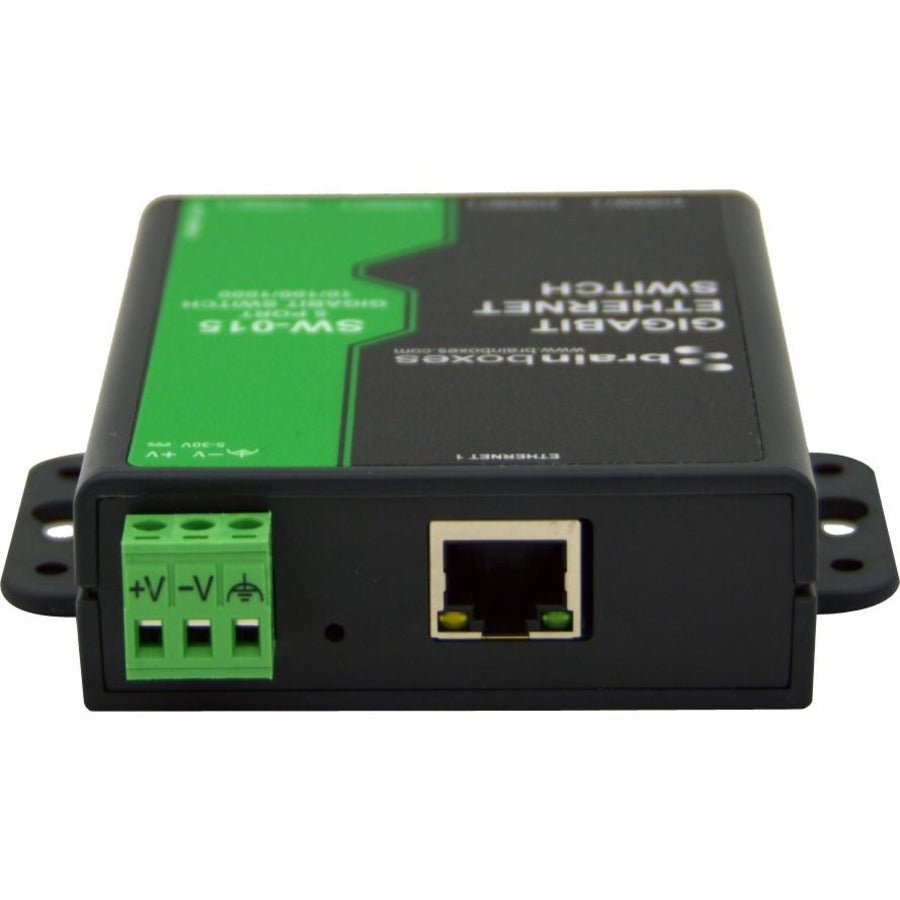

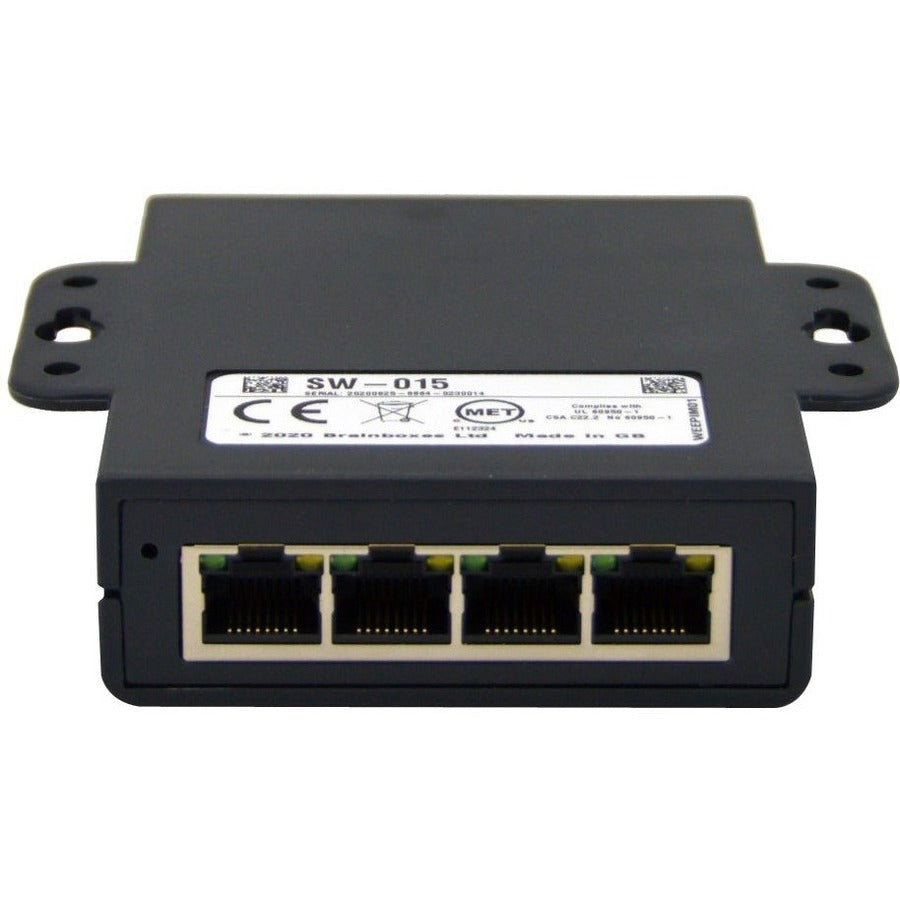

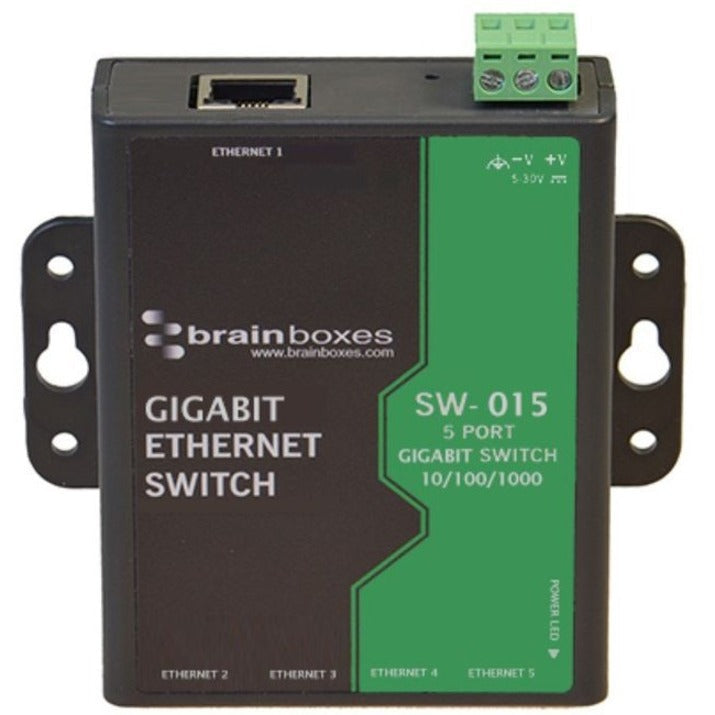

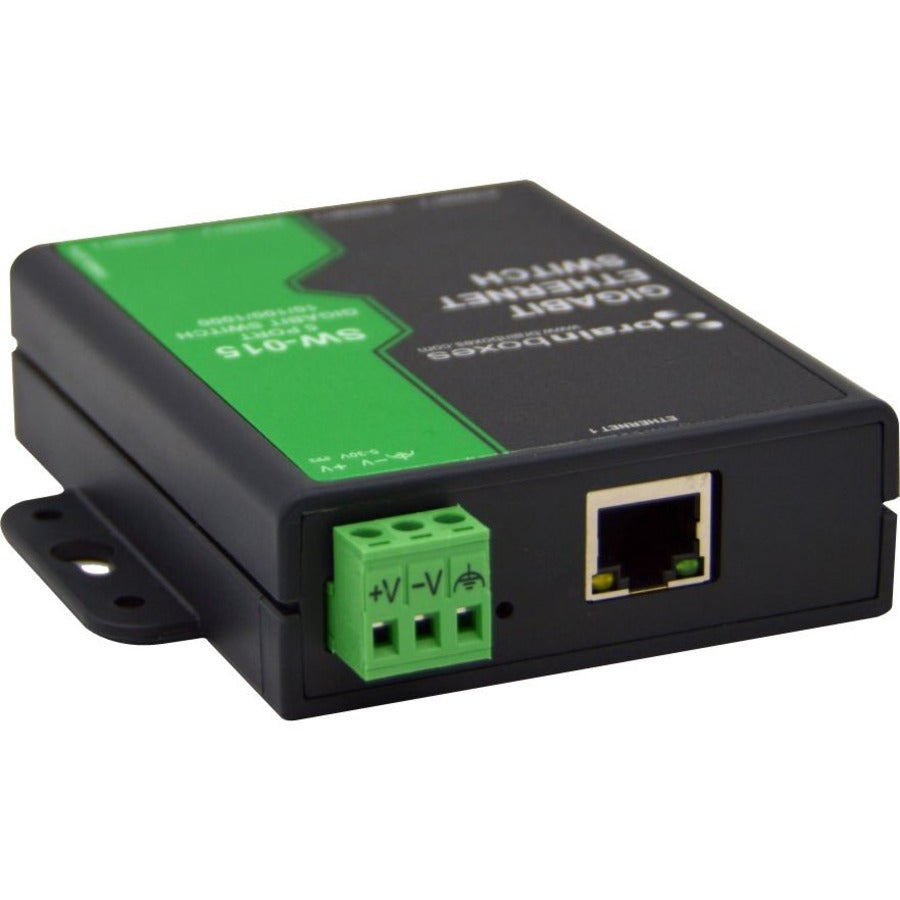

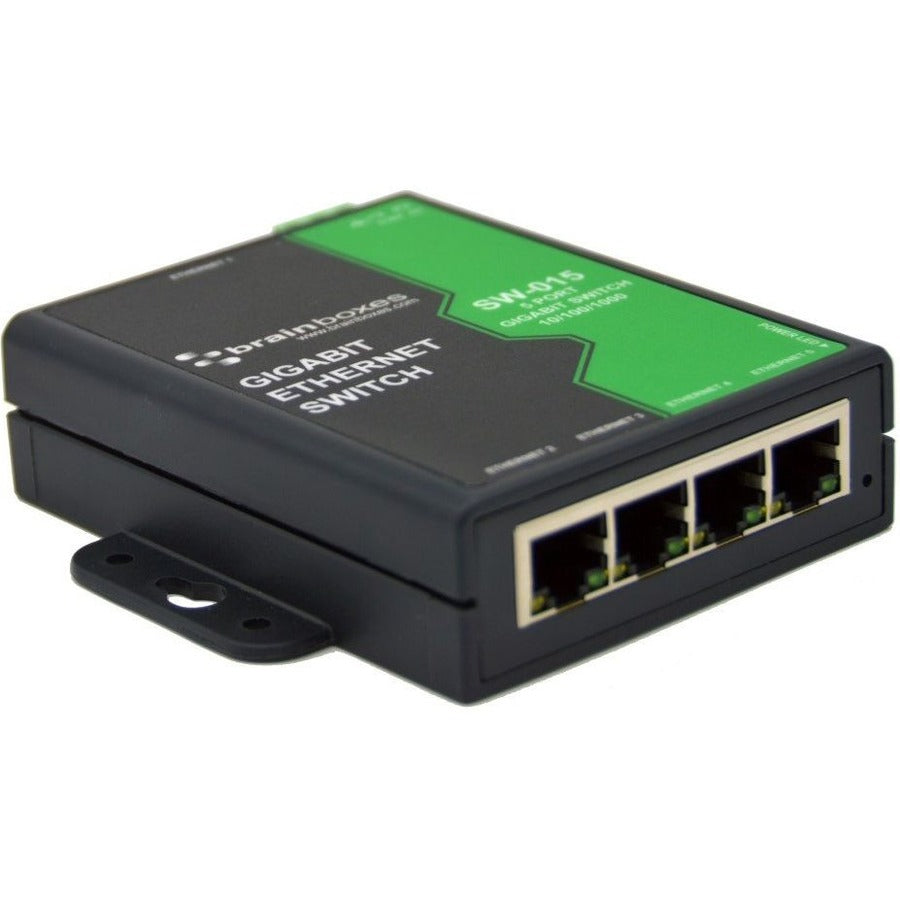

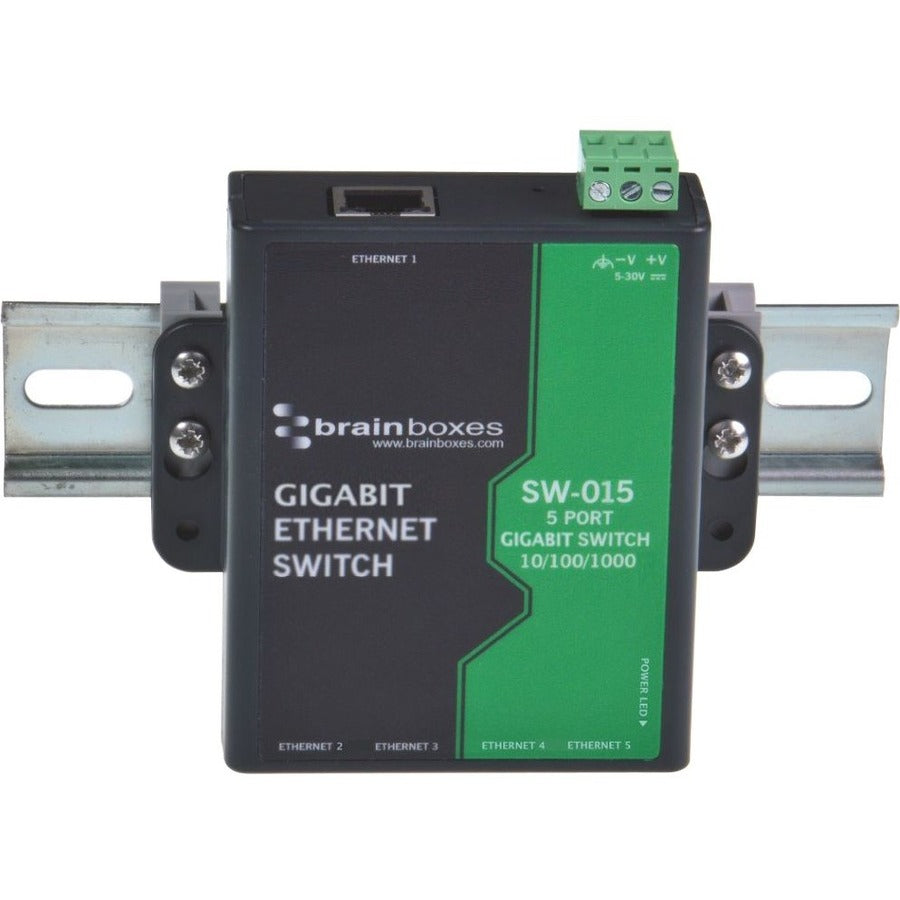

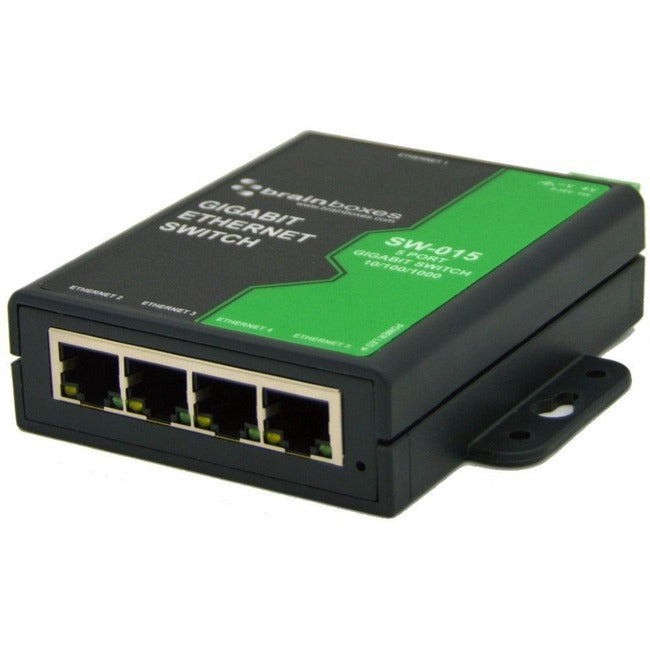

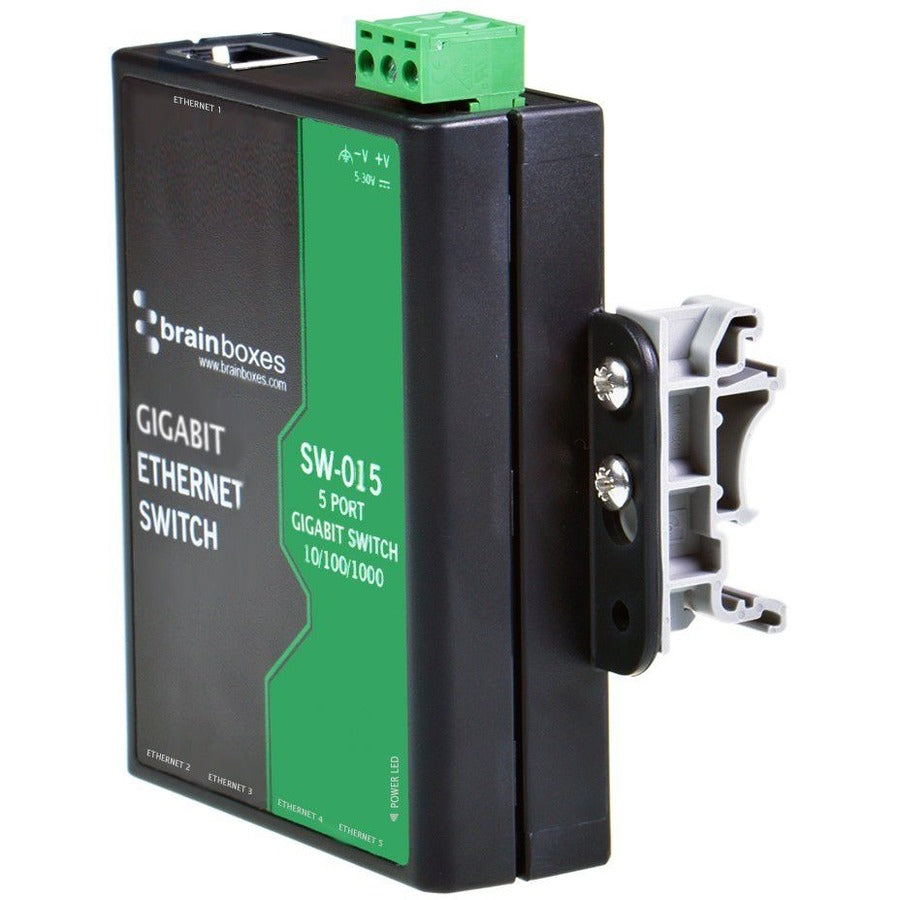

Brainboxes Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable SW-015

Description :

Brainboxes Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Compact 5 port Gigabit Ethernet unmanaged switch.

With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.

Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.

As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10C to +60C /-14F to +140F)

Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.

• 5 Gigabit Ethernet ports


• Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources


• Wide operating temperature range: -10C to +60C/-14F to +140F


• Bi-directional data flow at super-fast speed


• Small Footprint Case, only 23mm wide, 94mm deep

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Form Factor: Wall Mountable
Manufacturer: Brainboxes Limited
Product Model: SW-015
Product Name: Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Manufacturer Part Number: SW-015
Manufacturer Website Address: http://www.brainboxes.com

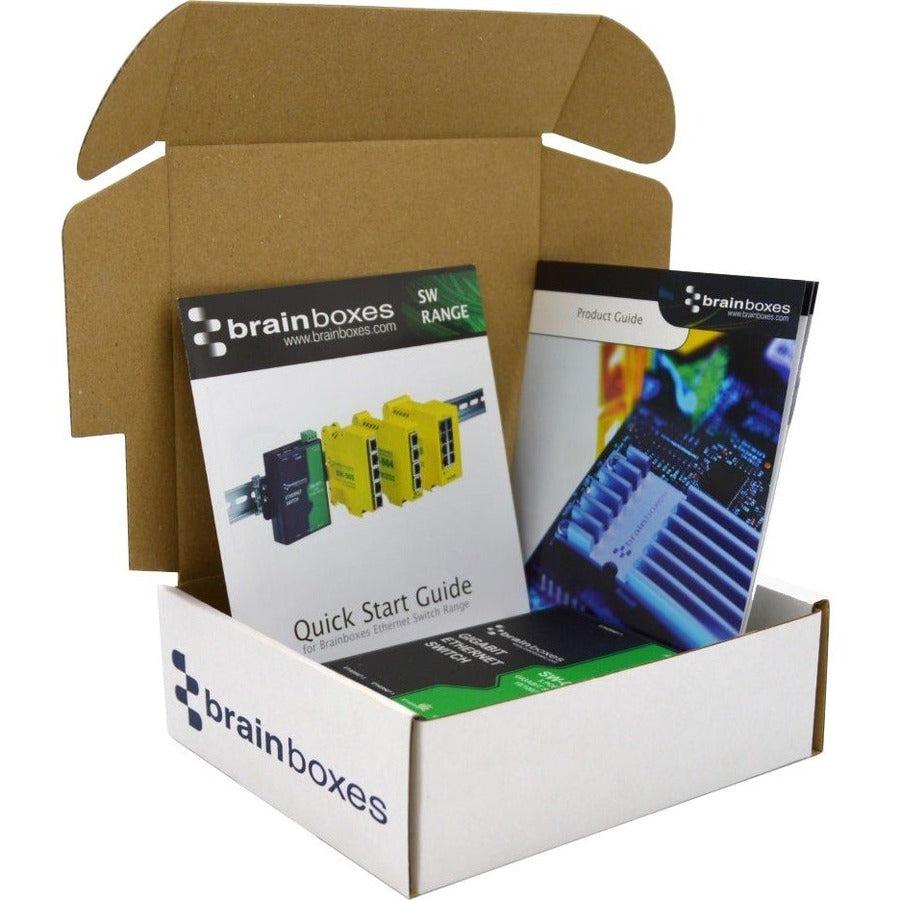

Package Contents:

• Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
• Quick Start Guide
