ATEN Technology Inc

4Port Usb3.0 4K Dp Mst Kvmp,Switch Support Up To 4096X2160 60Hz

4Port Usb3.0 4K Dp Mst Kvmp,Switch Support Up To 4096X2160 60Hz


Regular price $484.92
Regular price Sale price $484.92
Sale Sold out
Shipping calculated at checkout.
View full details
Reviews, Que. & Ans.

Description :

ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.

The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.

With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

More from the Manufacturer

  • One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals

  • Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source

  • Supports MST Mode, Splitter Mode, and Single Port Mode.

  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds

  • DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter

  • Firmware upgradeable

  • Hot pluggable - add or remove computers without powering down the switch

  • Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)

  • DisplayPort 1.2 compliant, HDCP compliant

  • Supports HD audio through DisplayPort

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Product Series: SOHO
Brand Name: ATEN
Form Factor: Desktop
Manufacturer: ATEN Technology Inc
Product Model: CS1924M
Product Name: 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)
Manufacturer Part Number: CS1924M
Manufacturer Website Address:
Packaged Quantity: 1

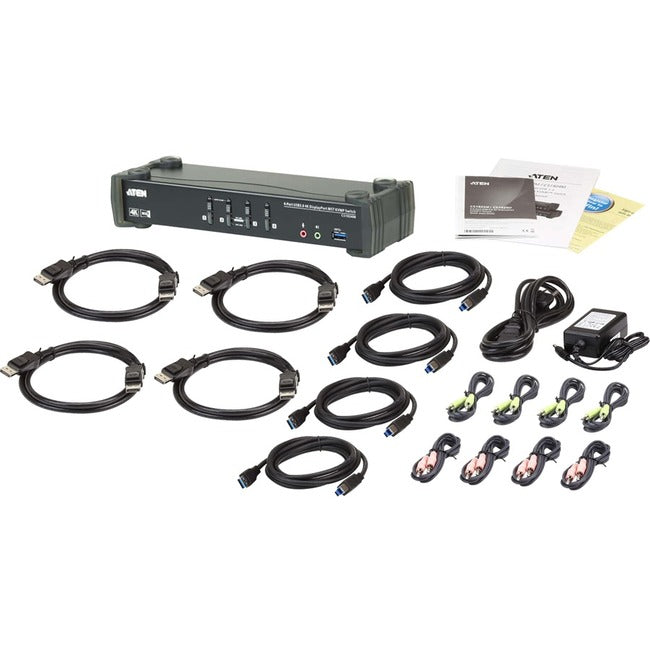

Package Contents:

  • 4-Port USB 3.0 4K DisplayPort MST KVMP Switch
  • 4 x DisplayPort 1.2 Cables (1.5m/5ft)
  • 4 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
  • 8 x Audio Cables (1.8m/6ft)
  • 1 x Power Adapter
  • 1 x User Instructions

Weight (Approximate): 2.03 lb
