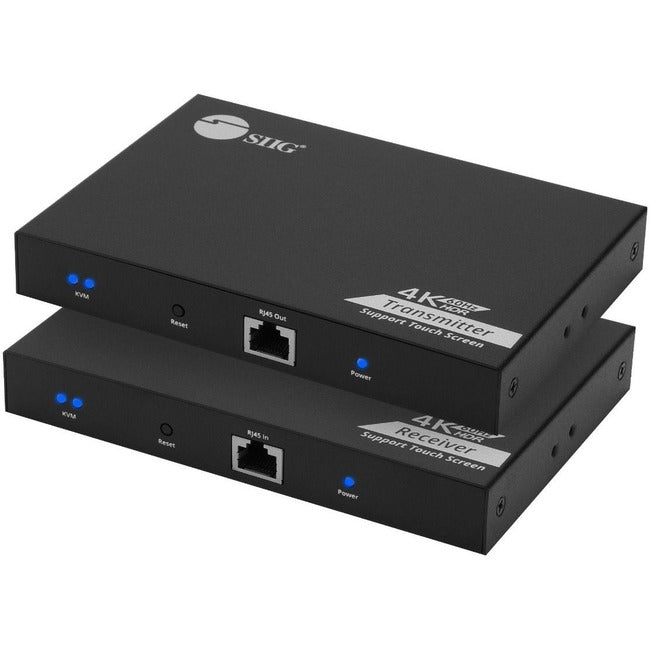

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support CE-H27811-S1

Description :

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support

Multiple Connectivity Ports
Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)

Applications

• Lecture hall
• Educational facilities
• Multimedia education
• Home theater
• Restaurant
• Shopping center
• Digital signage
• Meeting room
• Trade show
• Library
• Show room
• Church

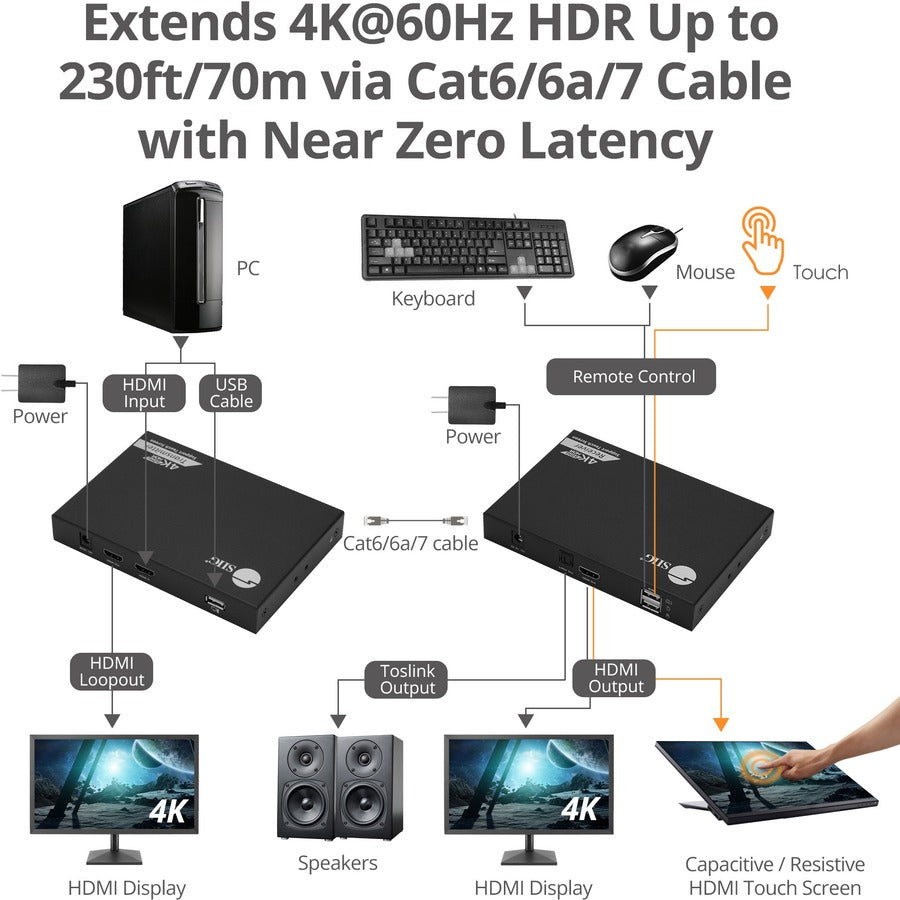

• Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency


• Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system


• Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1


• The transmitter's HDMI loop-out allows for local monitoring of the extended display


• The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device


• Lightning protection, surge protection, ESD protection


• Plug and play, no driver installation required

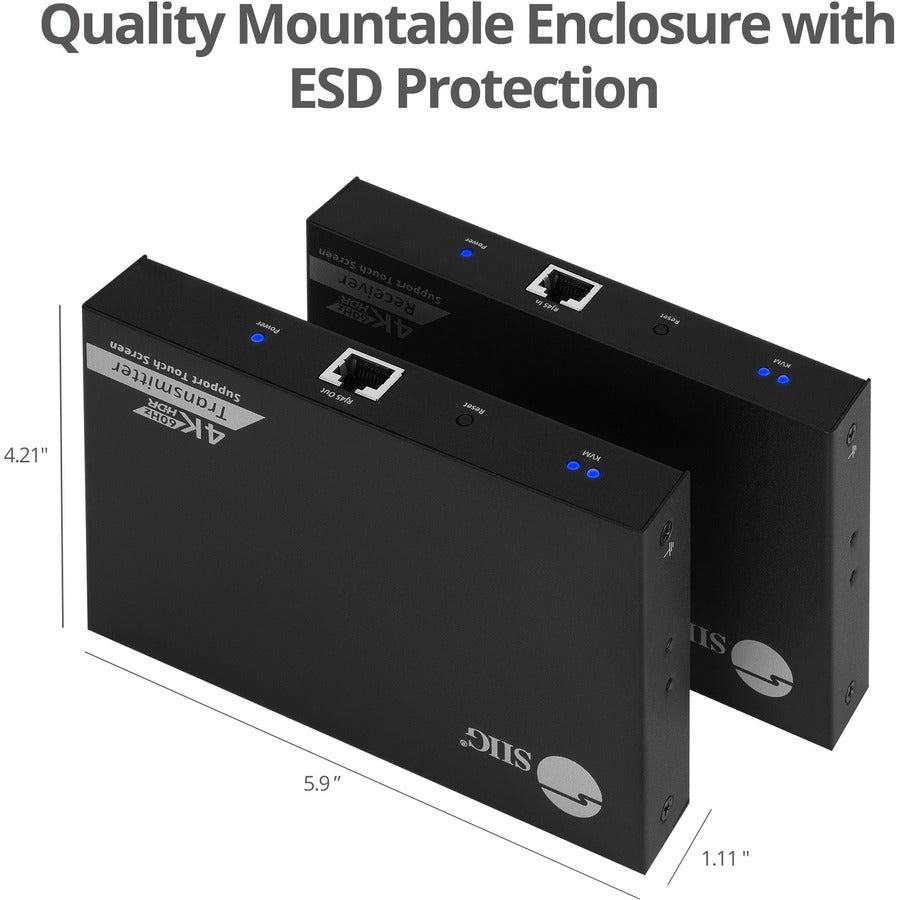

• High quality metal housing improve heat dissipation and ensure system stability during long hours of operation

Product Type: KVM Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.87"
Transmitter Width: 6.02"
Transmitter Depth: 4.15"
Receiver Height: 0.87"
Receiver Width: 6.02"
Receiver Depth: 4.15"
Transmitter Weight (Approximate): 12.32 oz
Receiver Weight (Approximate): 12.32 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support
Manufacturer Part Number: CE-H27811-S1
Manufacturer Website Address: http://www.siig.com

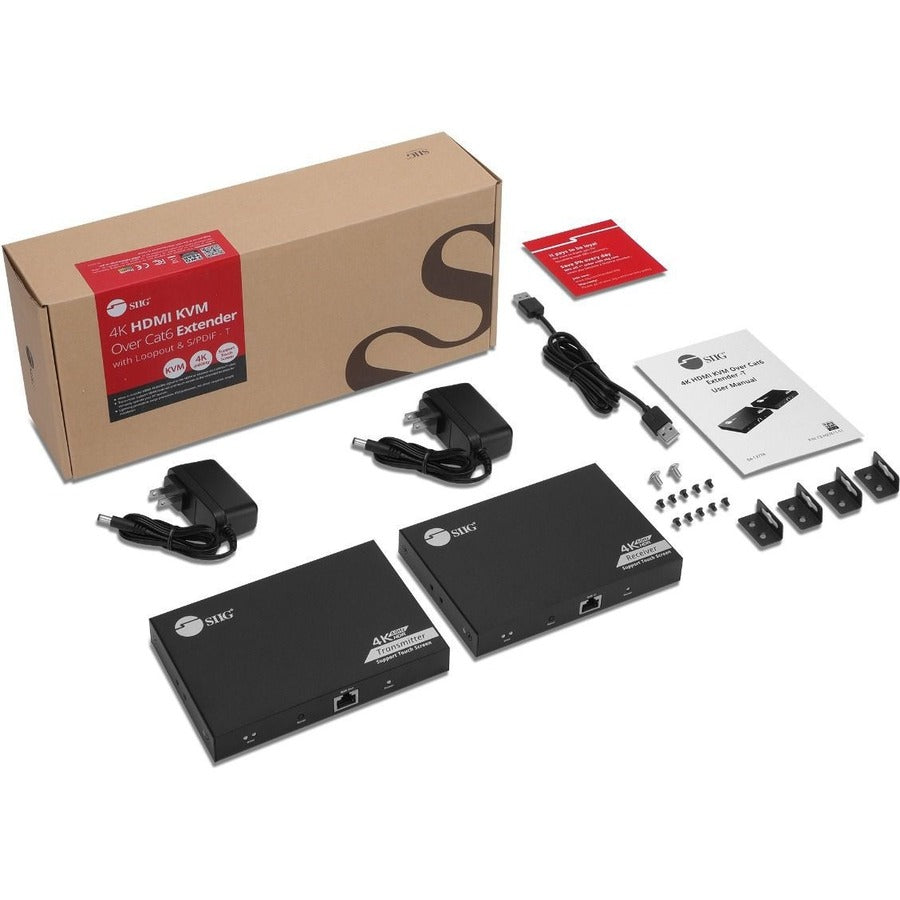

Package Contents:

• 1 x Transmitter
• 1 x Receiver
• 2 x Power Adapter
• USB 2.0 Type-A to Type-A cable
• Mounting ears & Screw kit
• User manual
