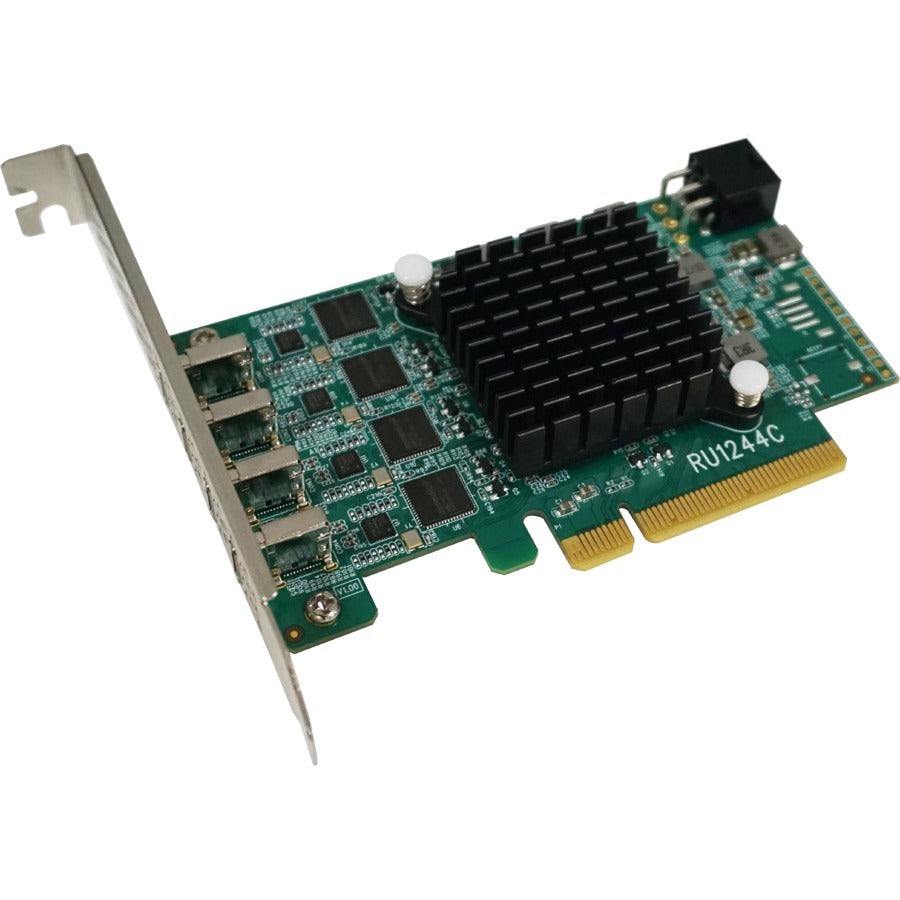

HighPoint RocketU RU1244C USB Adapter

Description :

HighPoint RocketU RU1244C USB Adapter

The RocketU 1244C is the industry's fastest USB Host Controller. Each of the four USB Type-C ports is fully independent, and powered by a dedicated 10Gb/s USB 3.2 controller chip, backed by a robust PCIe 3.0 x8 host interface. This unique host controller architecture ensures each hosted USB device can operate at peak performance without saturating the bus or taxing system resources.

• ? 4x Dedicated USB-Type C 3.2 10Gb/s Ports
• ? Dedicated PCIe 3.0 x8 Host Interface
• ? Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications
• ? 4 USB-Type C ports support any industry-standard USB device or peripheral
• ? 1000 MB/s of transfer bandwidth per USB port
• ? Driverless Installation: Native xHCI Support

Dedicated Per-Port Performance Architecture

4x 1000MB/s Transfer Bandwidth

Unlike most USB controllers in today's marketplace, the RocketU 1244C supports four independent USB Type-C ports, each of which is powered by a dedicated USB 3.2 10Gb/s controller. This unique Per-Port Performance architecture enables each RocketU 1244C to deliver up to 4000MB/s of transfer bandwidth.

Blazing Fast PCIe 3.0 x8 Host Interface

The blazing fast PCIe 3.0 x8 host interface works in tandem with our Per-Port Performance architecture to ensure each individual USB port can deliver 1000MB/s of transfer bandwidth at all times, even in cases where each port is occupied and under heavy load.

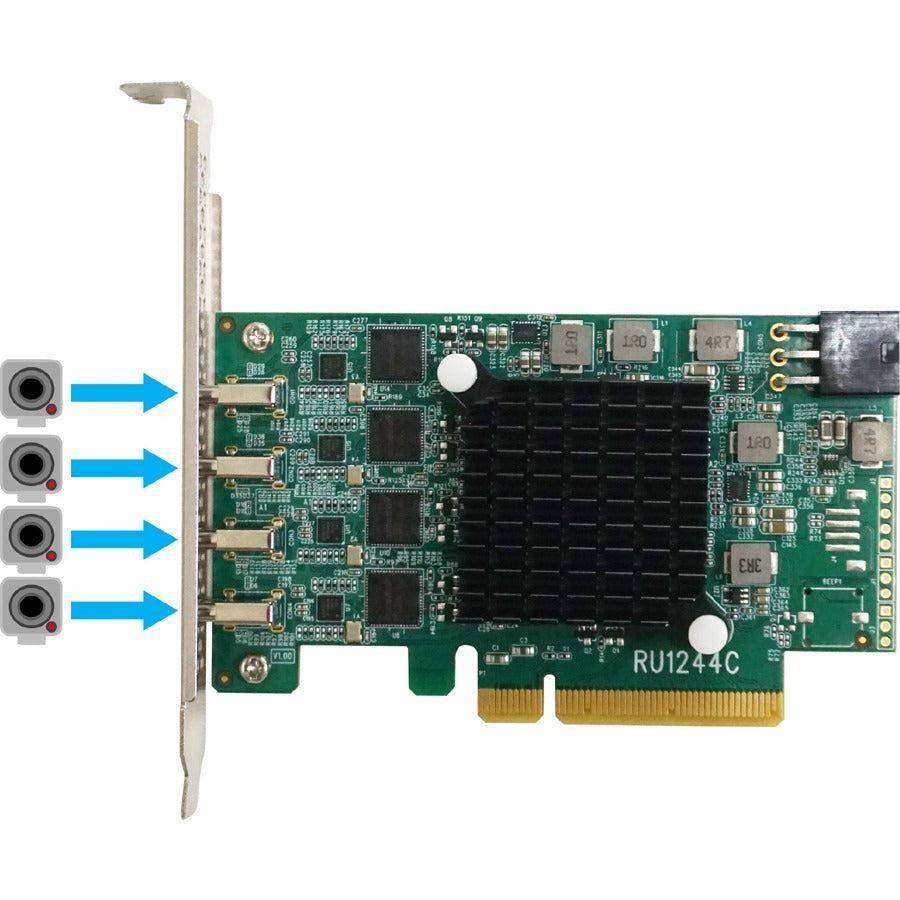

Dedicated USB Controllers Provide Independent Device Paths & Power Delivery

The RocketU 1244C's four dedicated USB 3.2 controllers enable each port to work independently and deliver up to 7.5W of power for device operation or charging purposes. The innovative PCB layout provides a dedicated USB connection pathway for each port; hosted USB devices can operate at peak performance, without the risk of interference by neighboring USB connections.

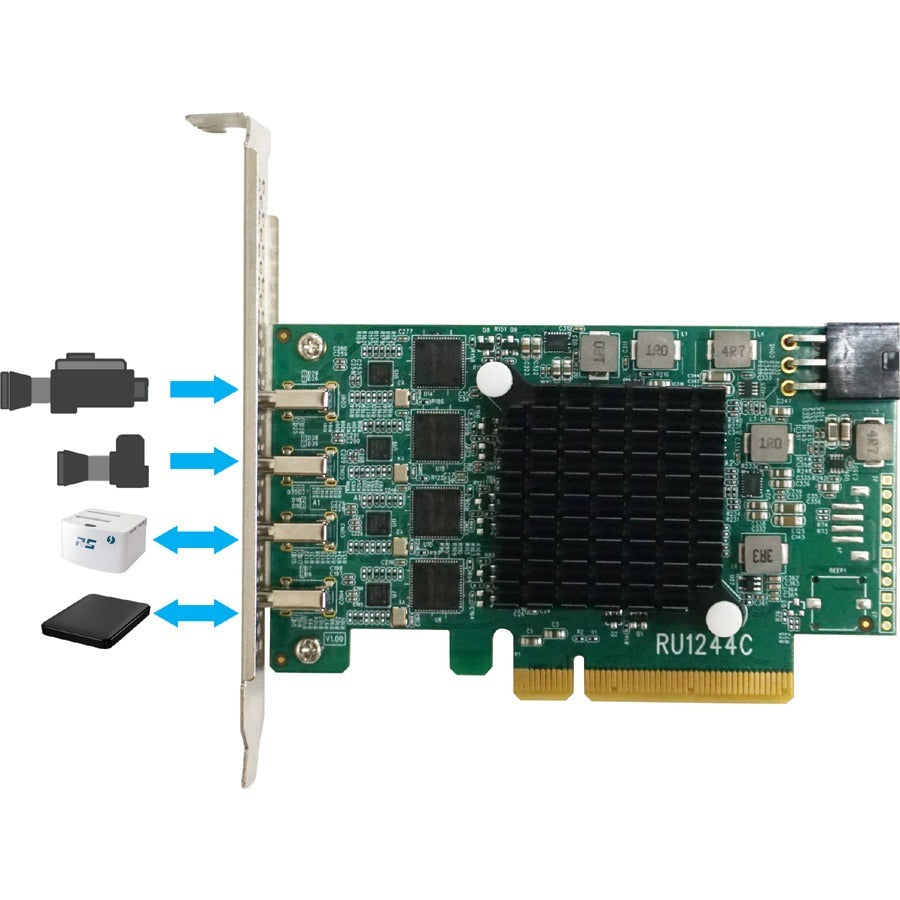

Ideal for High-Speed Data Acquisition & Capture Applications

The RocketU 1244C's performance-focused HBA architecture was designed for workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The four independent 1000MB/s USB ports and PCIe 3.0 x8 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.

• 4x Dedicated USB-Type C 3.2 10Gb/s Ports


• Dedicated PCIe 3.0 x8 Host Interface


• 1000 MB/s of transfer bandwidth per USB port


• Ideal for High-Speed Data Acquisition & Transfer Applications


• Driverless Installation: Native xHCI Support

Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: HighPoint
Form Factor: Plug-in Card
Manufacturer: HighPoint Technologies, Inc
Product Model: RU1244C
Product Name: RocketU RU1244C USB Adapter
Product Line: RocketU
Manufacturer Part Number: RU1244C
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: Linux

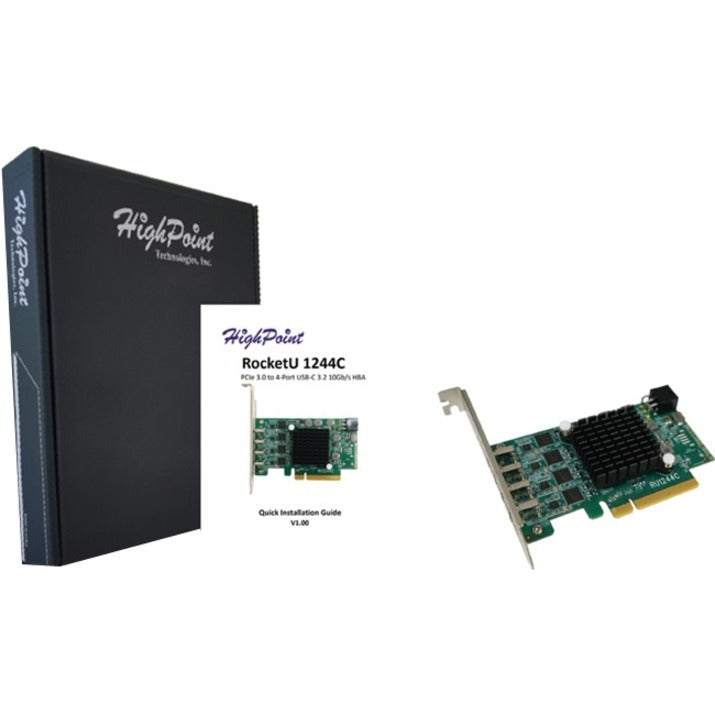

Package Contents:

• RocketU RU1244C USB Adapter
• 1 x Quick Installation Guide
• 1x Low Profile Bracket
