SIIG 3G-SDI to HDMI Converter with Scaler 1080p - TAA Compliant
Converts 3G/HD/SD SDI signal to HDMI - 1080p@60Hz, audio extraction, SDI loop-out
- Conversion: 3G/HD/SD SDI signal to HDMI with resolution up to 1080p. This is not a bi-directional converter, DOES NOT work for HDMI to SDI conversion
- 3G-SDI: 1080p @60/59.94/50Hz; HD-SDI: 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz; SD-SDI: NTSC @59.94Hz, PAL @50Hz
- SDI Cable Runs: 3G-SDI (300ft), HD-SDI (500ft), SD-SDI (1000ft). Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270Mbps

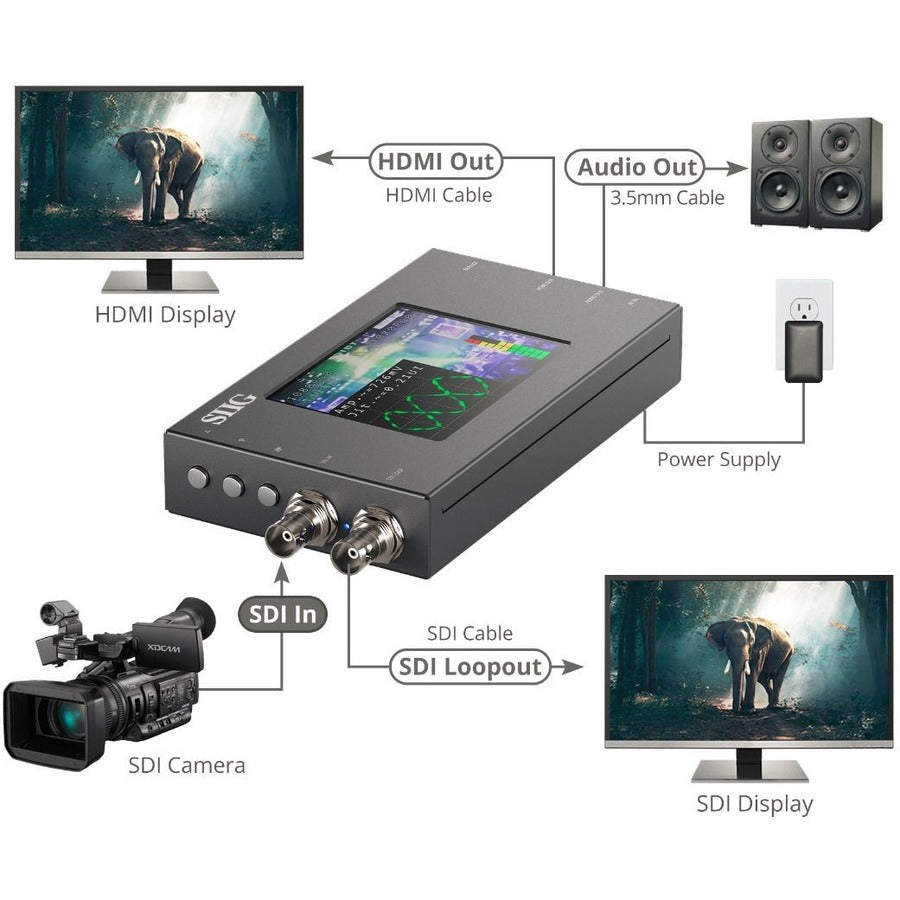

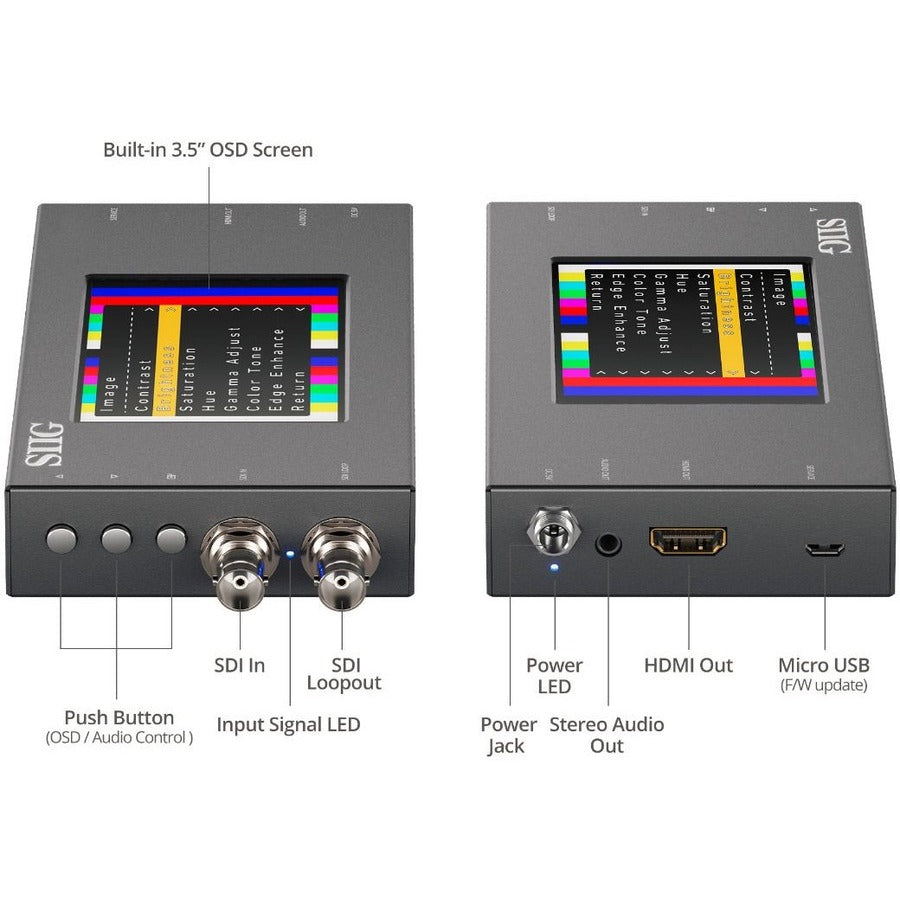

- Advanced Features: SDI loop-out for a 3G/HD/SD-SDI monitor/display connection, audio extraction to stereo audio output (2Ch), noise reduction and video enhancement, Video H/V mirror, output test pattern display screen, and active video area adjustment
- High Quality Components: Made in Taiwan, TAA, FCC, CE and RoHS compliant. Metal housing with ESD protection
- Converts video signals from one type to another
- Allows signal conversion from one form to another
Product Type: Signal Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 3G-SDI to HDMI Converter with Scaler and Monitor
Manufacturer Part Number: CE-SD0J11-S1
Manufacturer Website Address: http://www.siig.com

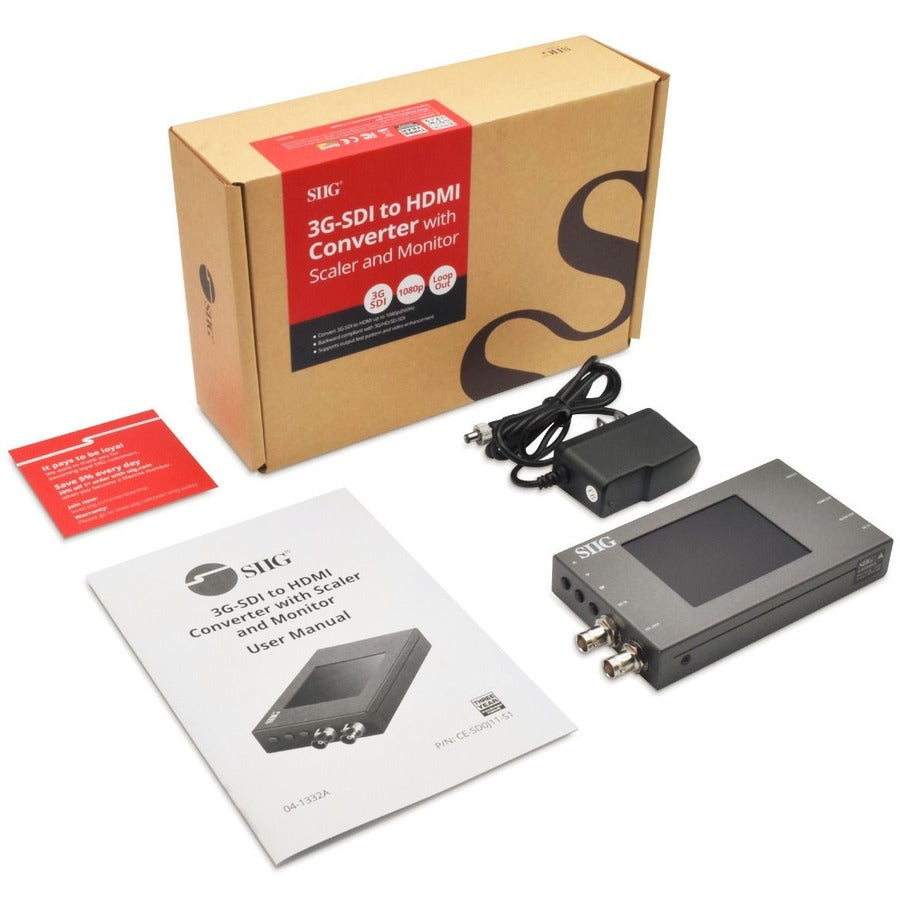

Package Contents:
- 3G-SDI to HDMI Converter with Scaler and Monitor
- Power Adapter 5VDC/2A
- Installation Guide
Limited Warranty: 3 Year
Weight (Approximate): 0.52 lb
