2X2 Mic/Line Preamp And Vca,

Description :

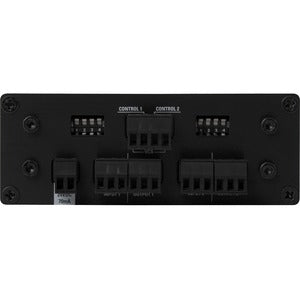

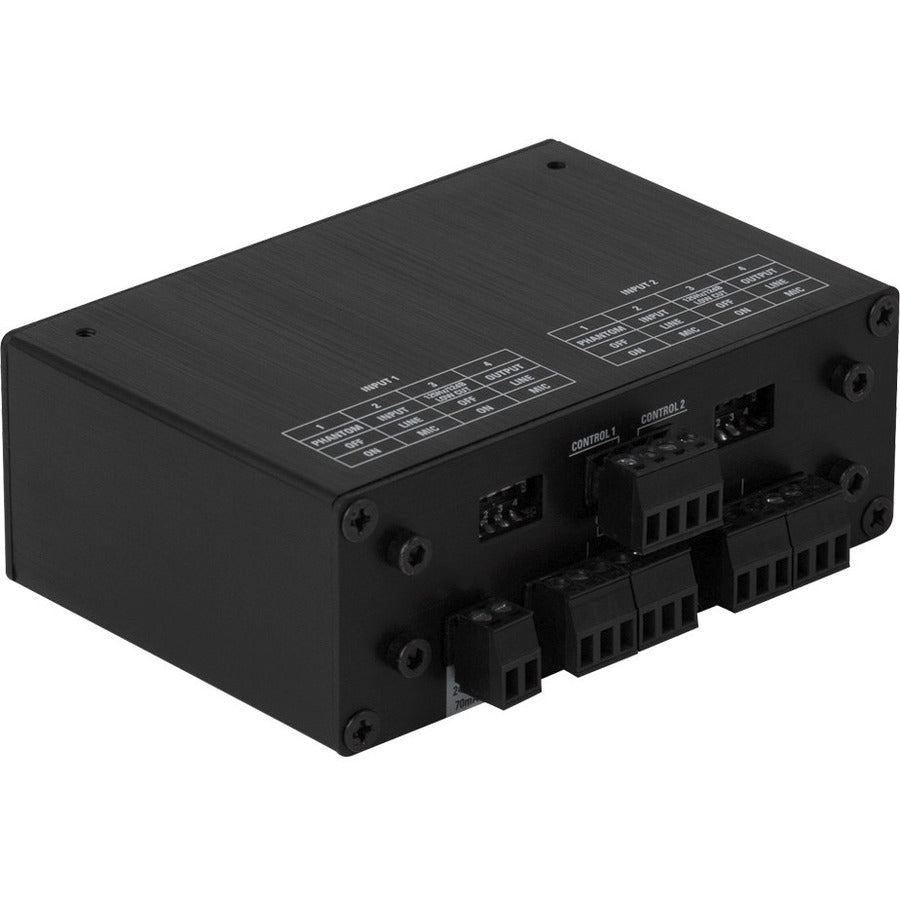

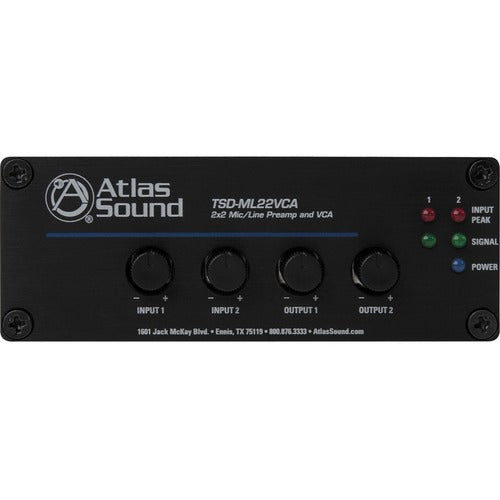

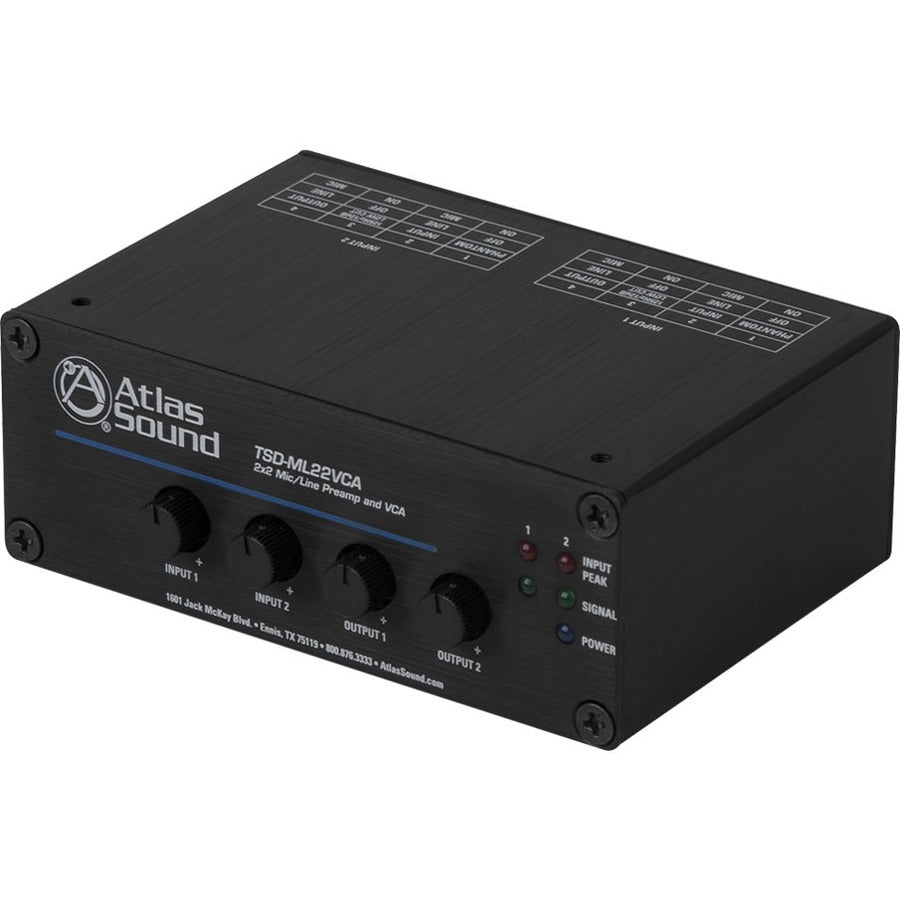

Atlas Sound TSD-ML22VCA Preamplifier - Black
The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.

The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.

• Brings the amazing sonic performance and the fidelity of high-quality sound


• Soothe yourself with low subs and soaring vocals at 20 kHz maximum frequency

Product Type: Preamplifier
Environmentally Friendly: Yes
Environmental Certification: TV
Product Color: Black
Brand Name: Atlas Sound
Manufacturer: Atlas Sound LP.
Product Model: TSD-ML22VCA
Product Name: TSD-ML22VCA 2 x 2 Mic/Line Preamp and VCA
Manufacturer Part Number: TSD-ML22VCA
Manufacturer Website Address: http://www.atlassound.com
Package Contents:

• TSD-ML22VCA 2 x 2 Mic/Line Preamp and VCA
• 2 x Mounting Brackets
• 2 x Cable Retainer
• Security Covers
