2U/Up/Amd Epyc 7002 / 8Xddr4,6X2.5 2Xu.2 Bay 2X10G Sfp+

Description :

Gigabyte G292-Z22 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
•
  Embedded security protection to help defend your CPU, applications, and data

GIGABYTE Management Console

GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

• RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
• Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
• Detailed FRU information from SMBIOS
• 10 to 30 seconds pre-event automatic recording function
• SAS / RAID controller monitoring function

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

•
  GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
•
  GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
•
  GSM Agent, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/...) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
•
  GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
•
  GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware's vCenter.

Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

• Node connection status (system is online/offline)
• Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
• Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
• Power consumption
• Disk/RAID usage information
• Memory usage rate
• CPU usage rate
• Network card / PCI information

The user can also perform various management functions, including:

• Node remote access
  • Power on / off / reset
  • Launch iKVM
  • Reboot BMC / BMC Account Configuration
• Network Configuration
  • IPv4/IPv6 setting
• Alert Management
  • SNMP trap setting
  • Platform events filters

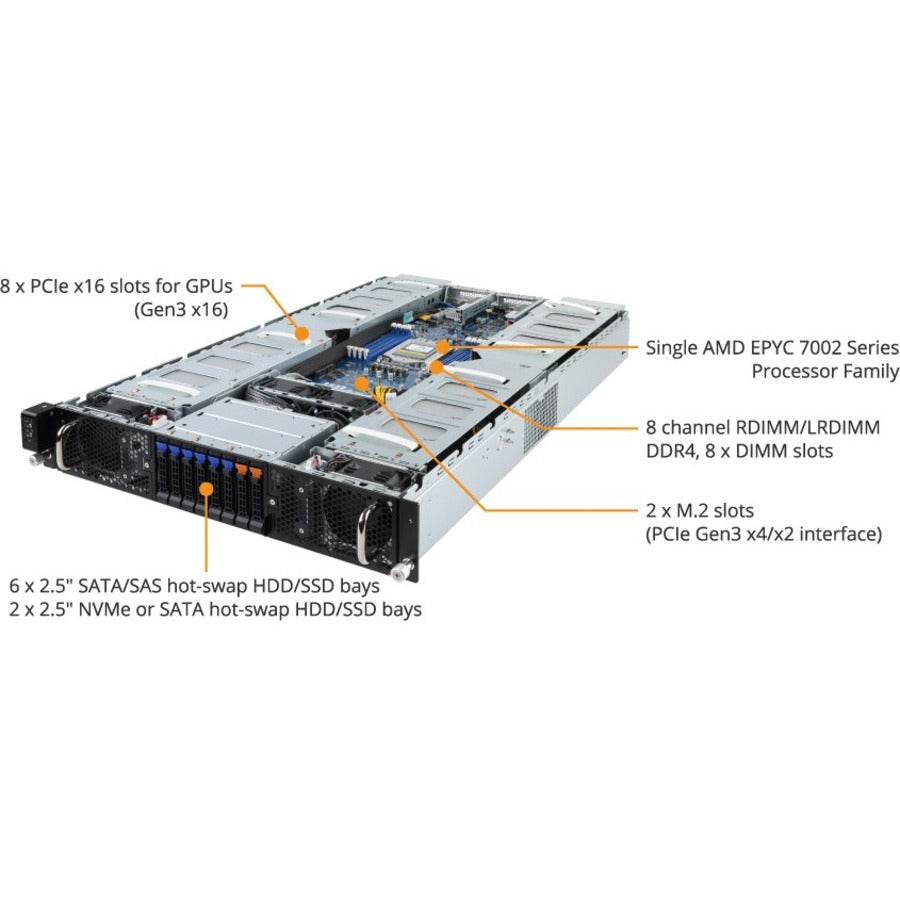

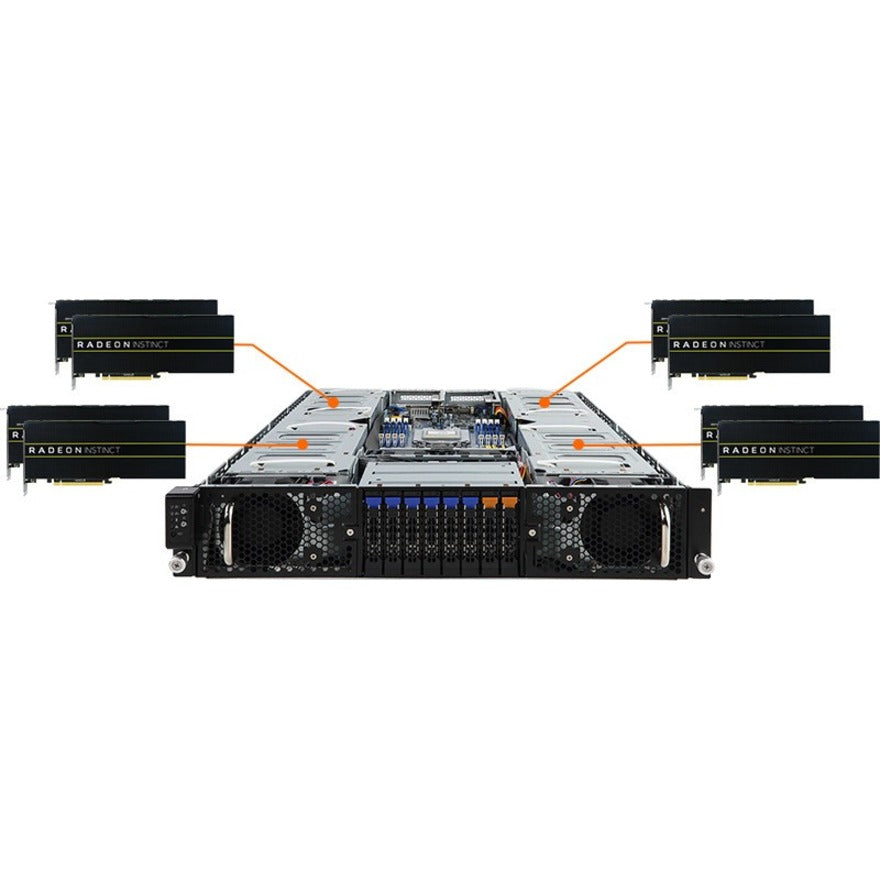

• Supports up to 8 x double slot GPU cards


• AMD EPYC™ 7002 series processor family


• 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs


• 2 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-4 Lx controller)


• 1 x Dedicated management port


• 6 x 2.5" SATA and 2 x 2.5 NVMe/SATA hot-swappable HDD/SSD bays


• 2 x M.2 with PCIe Gen3 x4/x2 interface


• 8 x PCIe Gen3 expansion slots for GPU cards


• 2 x PCIe Gen4 x16 low-profile half-length slots for add-on cards


• Aspeed® AST2500 remote management controller

Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: G292-Z22
Product Name: G292-Z22 (rev. 100) HPC Server - 2U UP 8 x Gen3 GPU Server
Manufacturer Part Number: G292-Z22
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:

• G292-Z22 (rev. 100) HPC Server - 2U UP 8 x Gen3 GPU Server
• 1 x CPU heatsink
• 1 x Rail kit
