27" X 22" X 13" Nema 3 Enclosure With Fan Al272213N3-Ft1

27" X 22" X 13" Nema 3 Enclosure With Fan Al272213N3-Ft1

SKU:AL272213N3-FT1

$1,856.25
$1,856.25
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

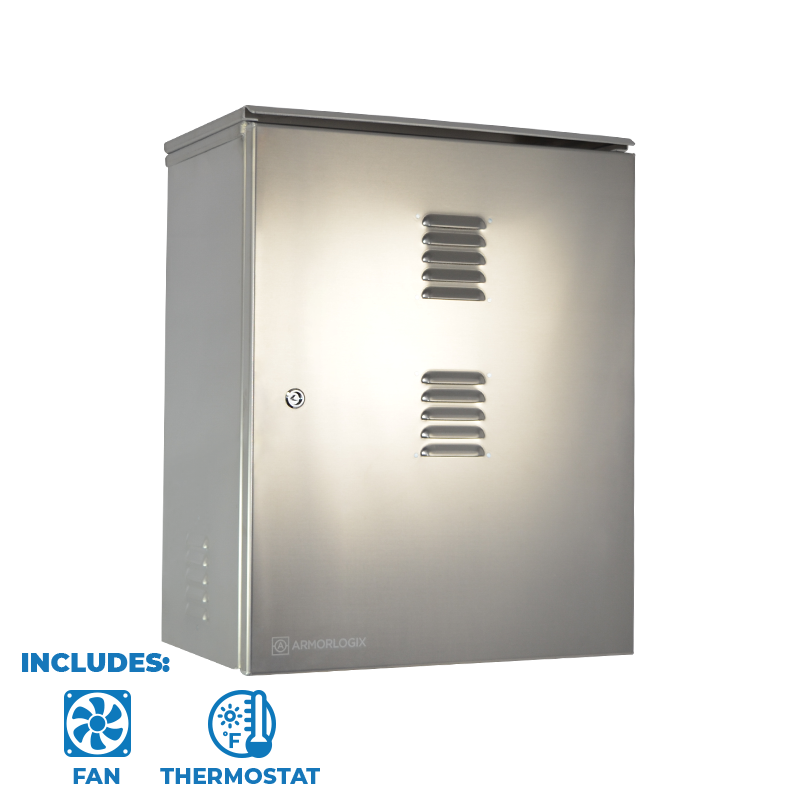

          27″ X 22″ X 13″ NEMA 3 ENCLOSURE WITH FAN AL272213N3-FT1



          • Constructed For Indoor & Outdoor Application
          • Durable 1/8” 5052 Aluminum Construction
          • Weathertight 1/4″ Rubber Door Seals
          • Screened Vents On Sides & Door
          • Adjustable / Removable Equipment Mounting Plate
          • Security Lock with Key
          • A pair of Wall / Pole Enclosure Mount Plates are included
          • Includes an installed temperature-controlled thermostatic fan

          OVERVIEW

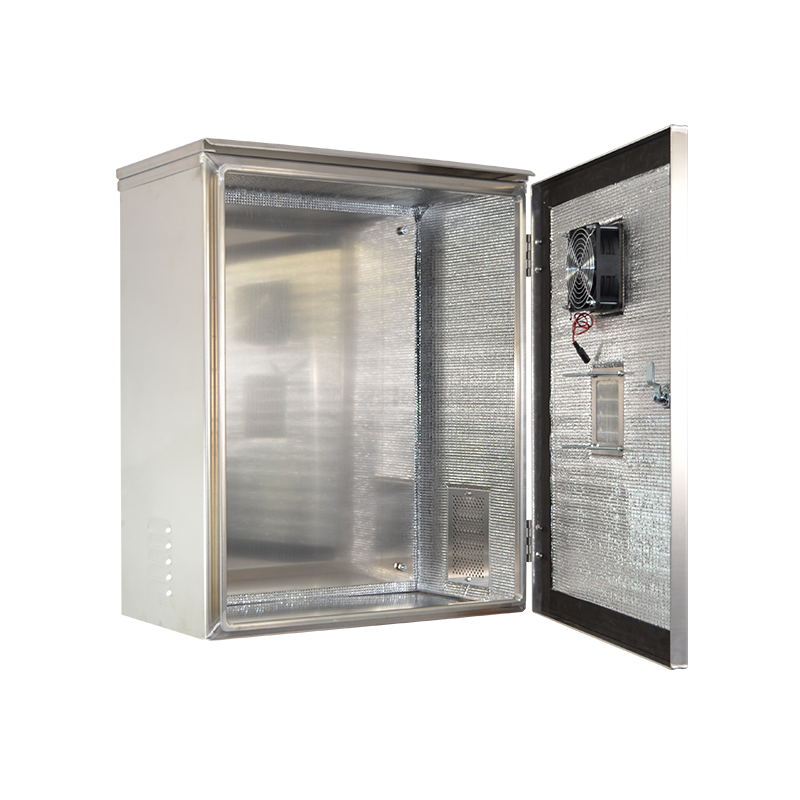

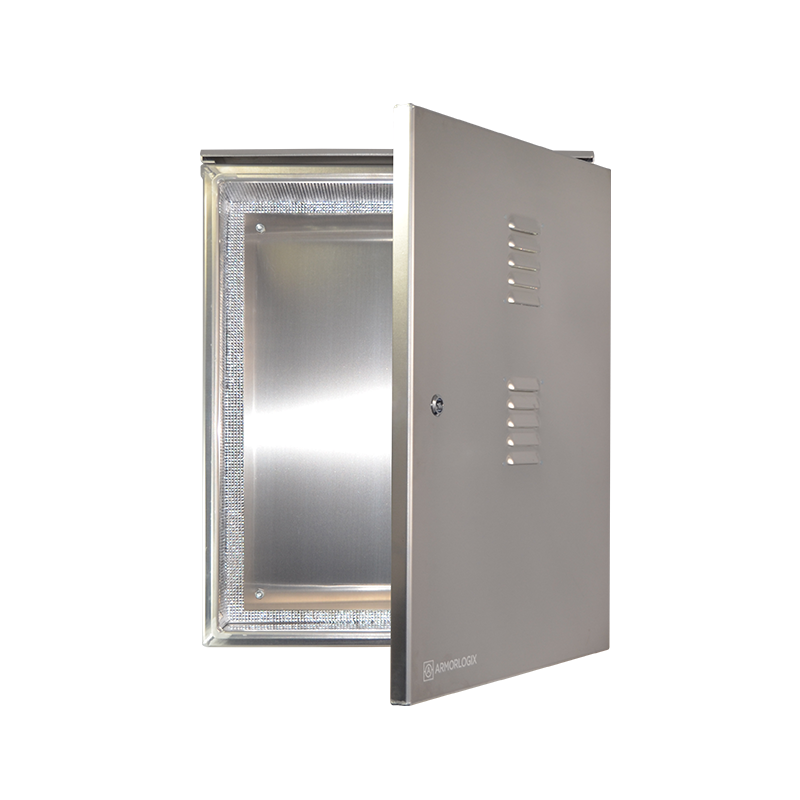

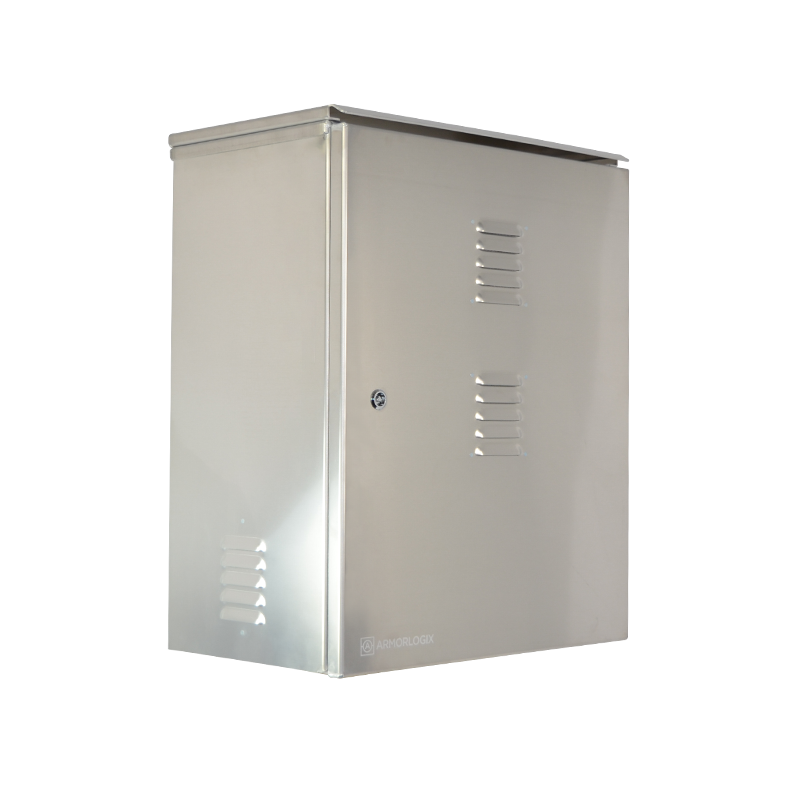

          27″ x 22″ x 13″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a single thermostat/fan combination for temperature control.

          Applications: The AL272213N3-FT1 is commonly found in data centers, guarding gates, housing controls, along river and ocean fronts, on docks, in boat storage facilities or marinas, commercial areas, and more.

          SPECIFICATIONS

          Material   1/8" 5052 Aluminum
          NEMA Rating   3
          Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
          Door Seals   1/4" Weather Tight Neoprene
          Equipment Mounting Plate   1 (19" × 25")
          Security Lock   Yes (2x keys included)
          Dimensions: External   22” W x 27.875” H x 14.125” D
          Dimensions: Internal Max   21.625” W x 26.625” H x 13.5” D
          Dimensions: Internal Min   21.625” W x 26.625” H x 10.125” D
          Weight   51 lbs.

          RESOURCES

          PDF Spec Sheet – Download
