20" X 22" X 22" Nema 3 Enclosure With Fan Al202222N3-Ft

20" X 22" X 22" Nema 3 Enclosure With Fan Al202222N3-Ft

SKU:AL202222N3-FT

$2,269.35
$2,269.35
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

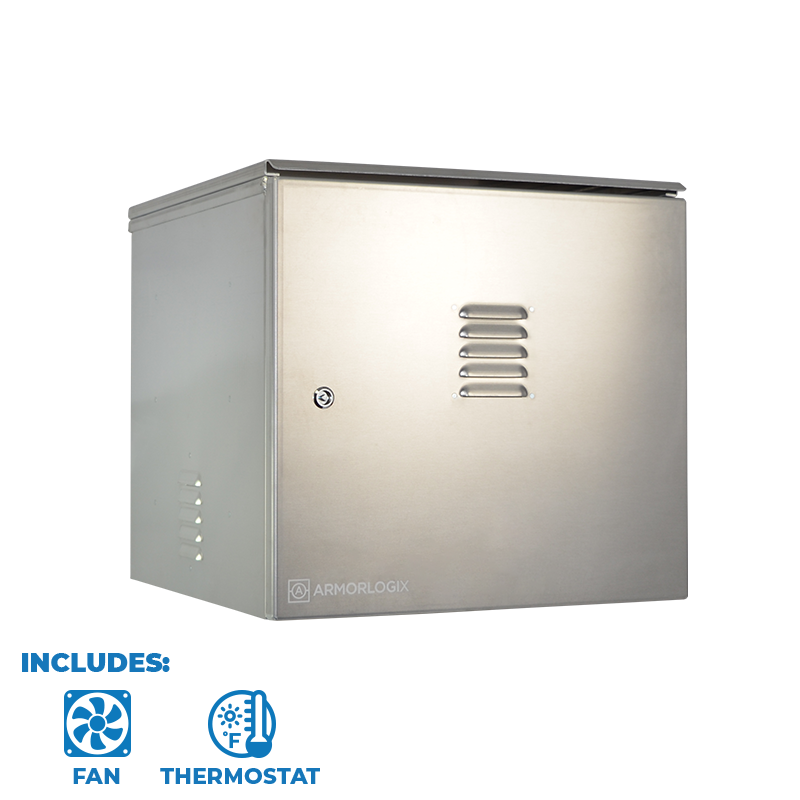

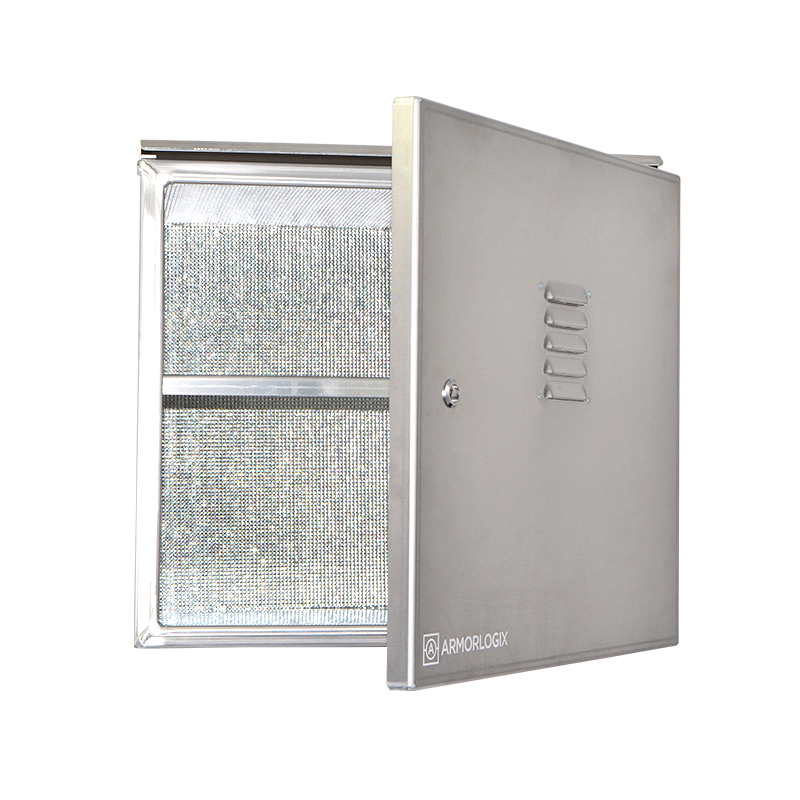

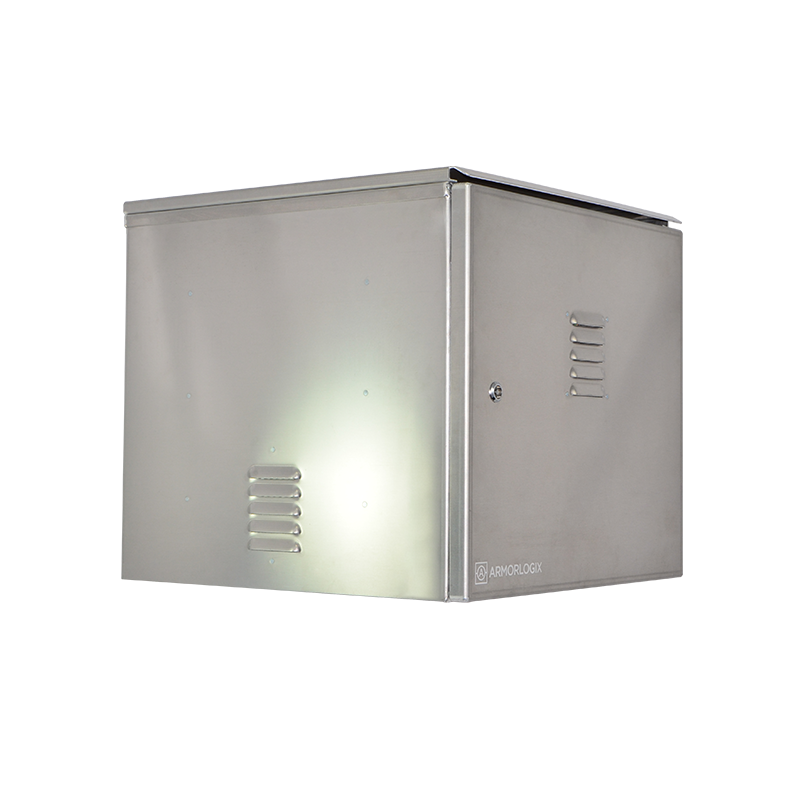

          20″ X 22″ X 22″ NEMA 3 ENCLOSURE WITH FAN AL202222N3-FT



          • Constructed For Indoor & Outdoor Application
          • Durable 1/8” 5052 Aluminum Construction
          • Weathertight 1/4″ Rubber Door Seals
          • Screened Vents On Sides & Door
          • Adjustable / Removable Equipment Mounting Shelf
          • Security Lock with Key
          • A pair of Wall / Pole Enclosure Mount Plates are included

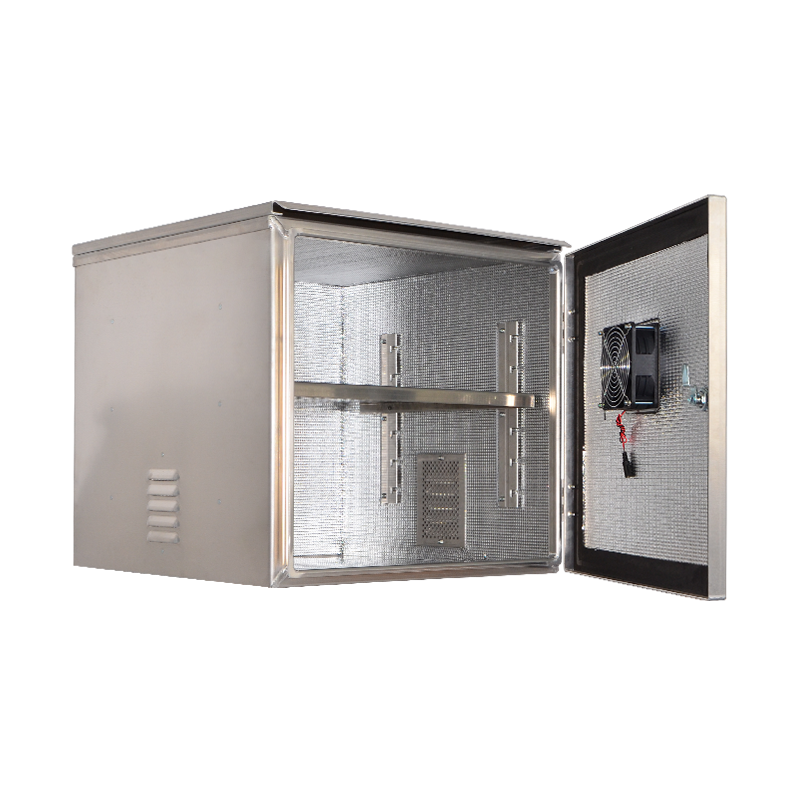

          • Includes an installed temperature-controlled thermostatic fan

          OVERVIEW

          20″ x 22″ x 22″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, insulation, triangular cam lock, adjustable heavy-duty equipment shelf, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

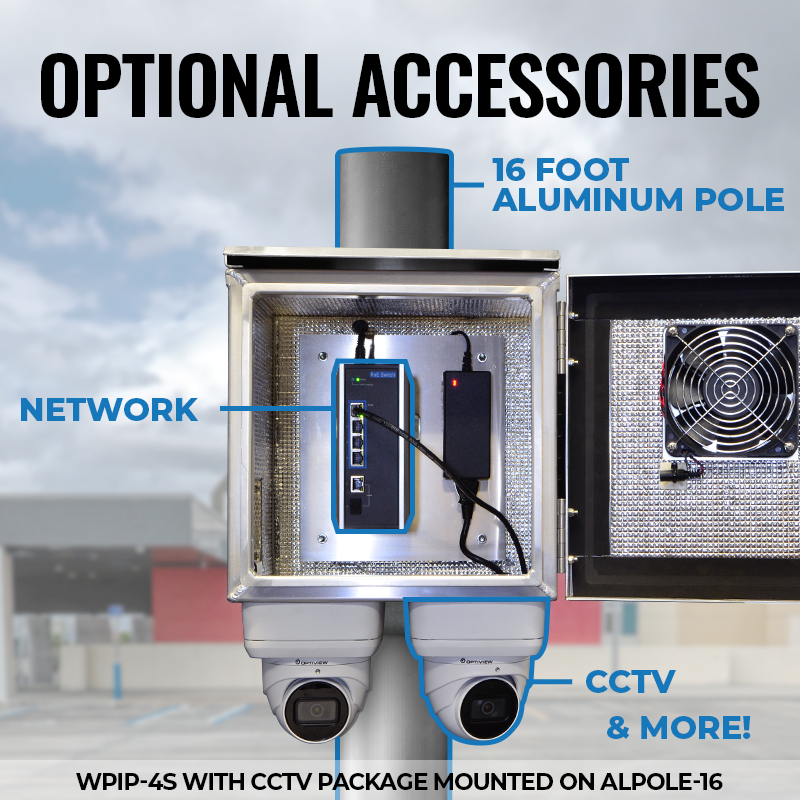

          Applications: The AL202222N3-FT is ideal for storing electrical equipment that needs to be securely stored on a flat surface, such as a laptop, large digital video recorder, 16+ port PoE switches, etc.

          SPECIFICATIONS

          Material   1/8" 5052 Aluminum
          NEMA Rating   3
          Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
          Door Seals   1/4" Weather Tight Neoprene
          Equipment Shelf   1x (20.625" x 17.5")
          Security Lock   Yes (2x keys included)
          Dimensions: External   22.25” W x 20.875” H x 23” D
          Dimensions: Internal Max   21.125” W x 19.625” H x 22.375” D
          Dimensions: Internal Min   21.125” W x 19.625” H x 20.75” D
          Weight   56 lbs.

          RESOURCES

          PDF Spec Sheet – Download
