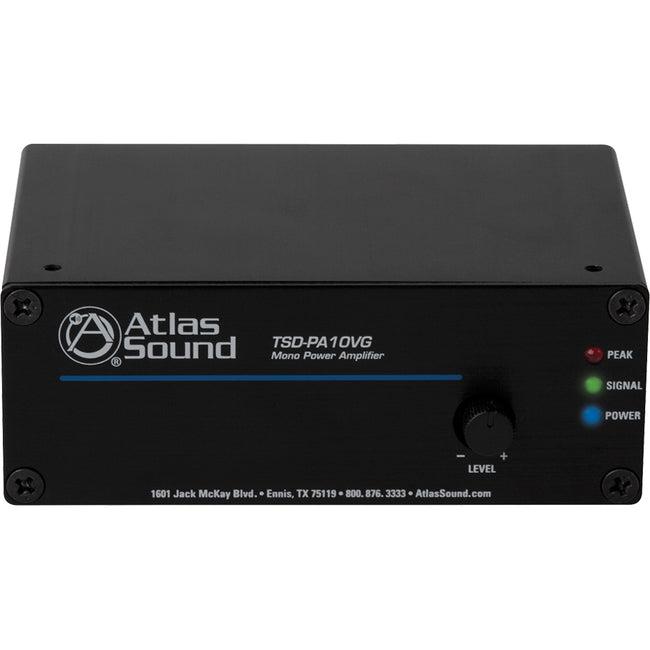

AtlasIED TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black

Description :

Atlas Sound TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black

The TSD-PA10VG is a cost effective mono amplifier for 4? and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).

• Increases the strength of a weak electrical signal without affecting other characteristics


• Listen to deep lows and extreme highs at 40 Hz - 20 kHz frequency


• Smartly manages power at 4 Ohm impedance to execute sound flow. So Indulge yourself in HQ audio output!


• Features 1 audio channel

Product Type: Amplifier
Environmentally Friendly: Yes
Environmental Certification: RoHS
Energy Star: Yes
Product Color: Black
Brand Name: Atlas Sound
Manufacturer: Atlas Sound LP.
Product Model: TSD-PA10VG
Product Name: TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
Manufacturer Part Number: TSD-PA10VG
Manufacturer Website Address: http://www.atlassound.com
Package Contents:

• TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier


• Velcro


• 2 x Brackets


• 2 x Cable Retainer
