          Description :

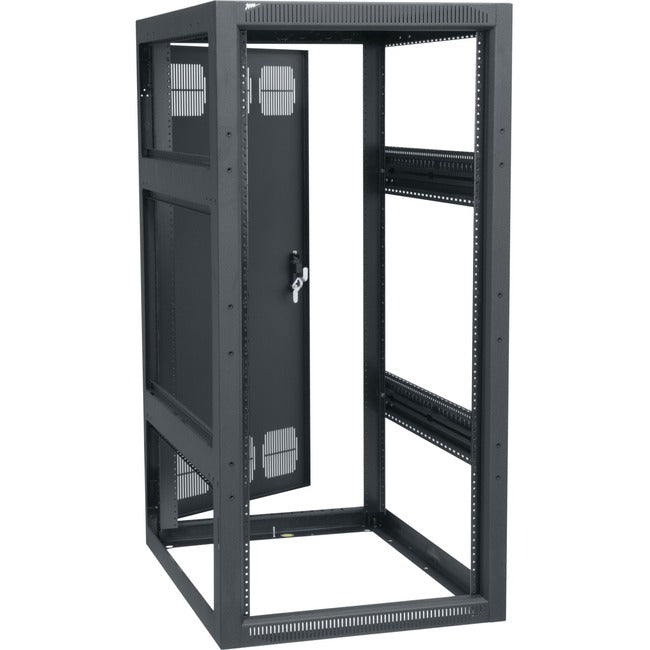

          Middle Atlantic BGR Series Enclosure
          BGR = Breakthrough Next-Generation Rack

          This is the "Next Generation" Rack you have been wanting! BGR series racks have higher weight capacities, provide more useable rackspace, and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available, and to enable the use of the latest options for installation flexibility.

          Structural Features

          • Breakthrough design provides more useable rack height - for example, the 45 space version overall height is shorter than 44 space alternative models

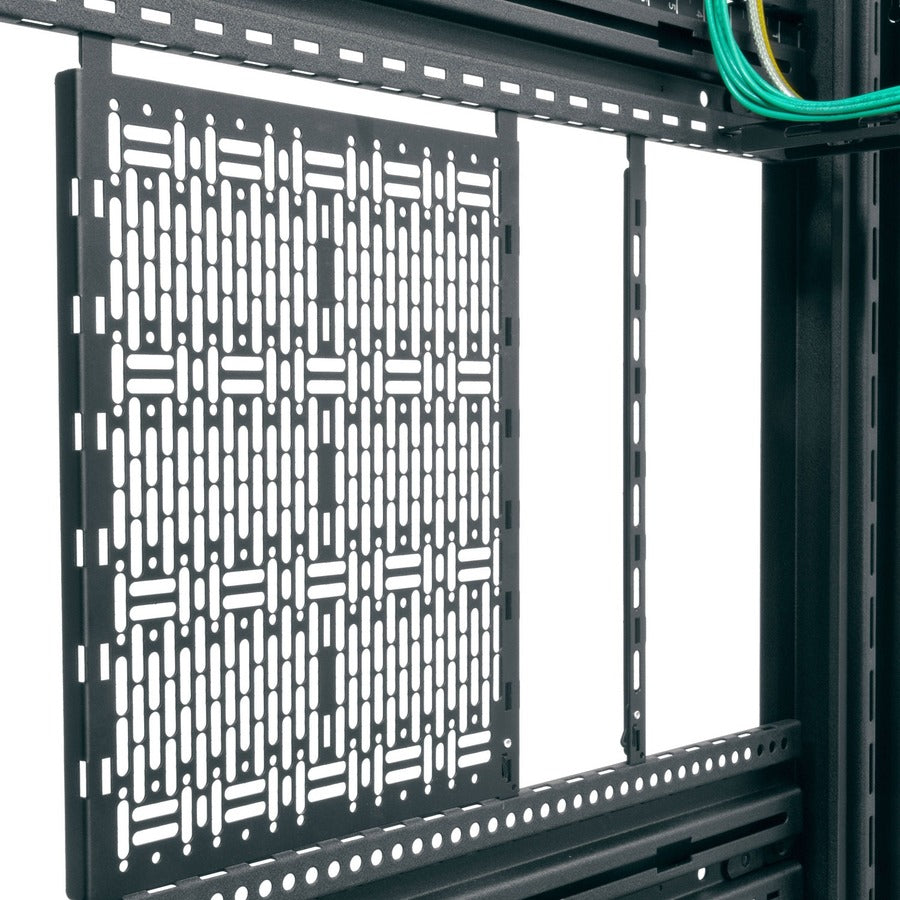

          • Accepts patent-pending LeverLock™ system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules

          • Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depths

          • Pre-threaded ganging holes allow ganging while fully loaded

          • Wide open bottom accepts multiple base options

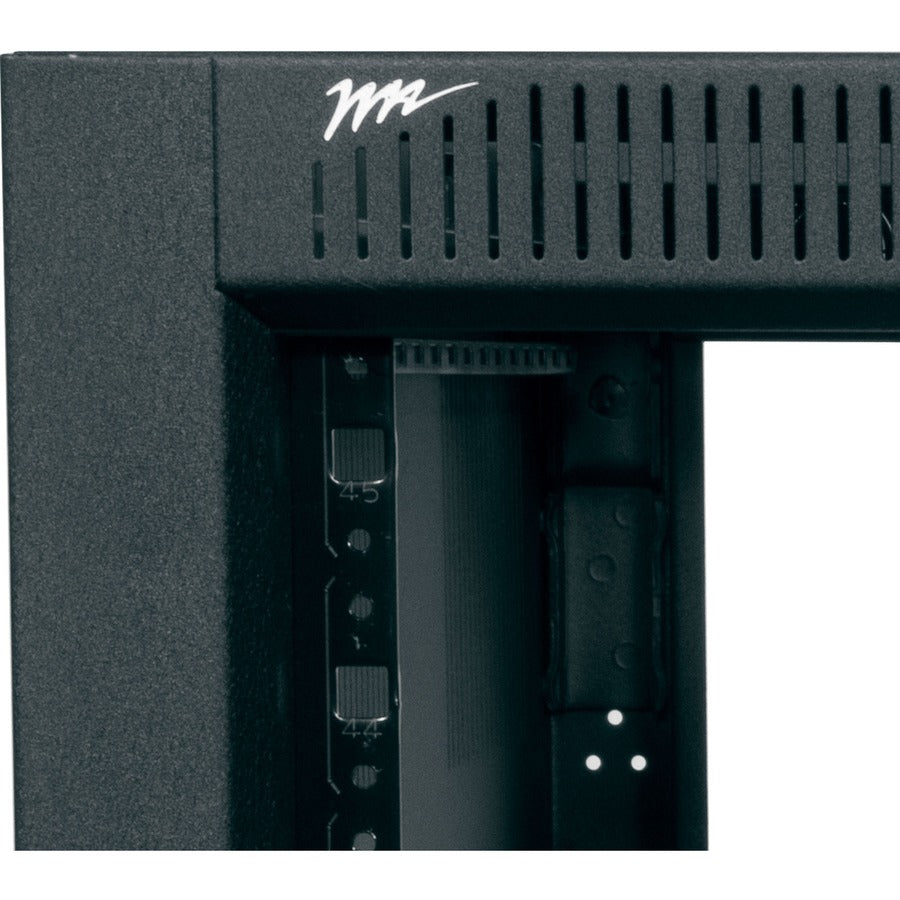

          • Standard front and rear adjustable wide, heavy-gauge, 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting

          • Labels included to indicate rail position front to back

          • Finished in a durable black textured powder coat

          Thermal Management

          • Top options include solid, vented, and thermostatically controlled DC fan tops for efficiency

          • Standard vented door accepts optional doors

          Cable Management

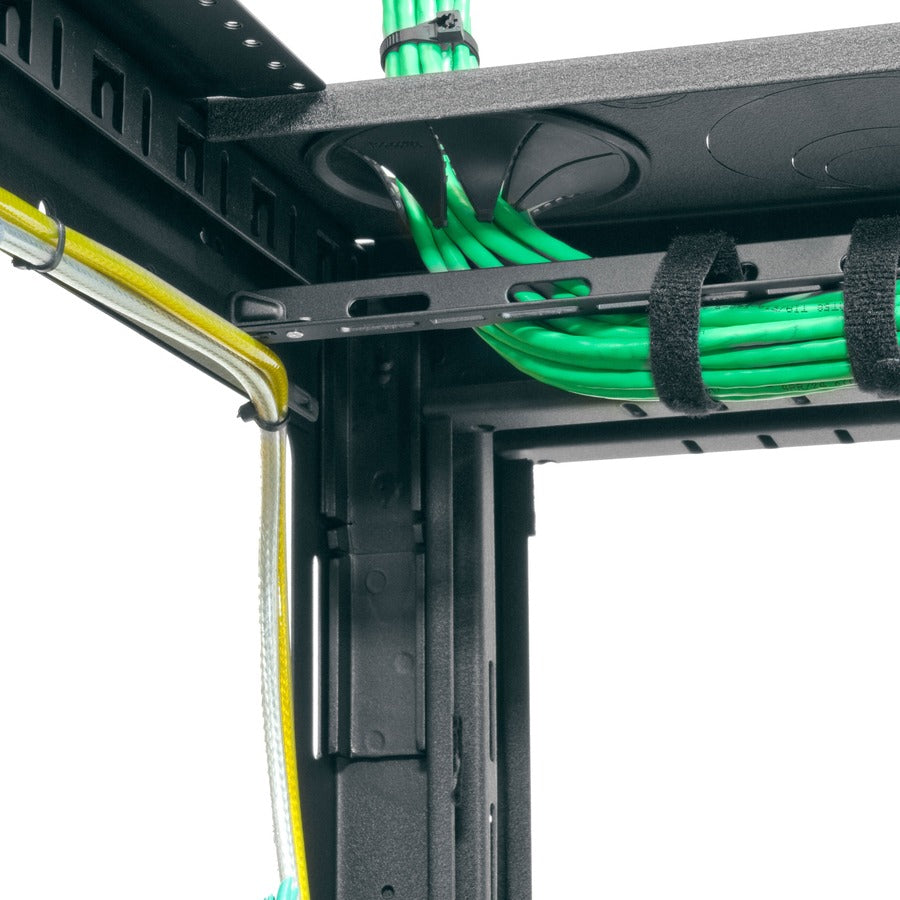

          • Accepts LeverLock™ system tool free cable management accessories

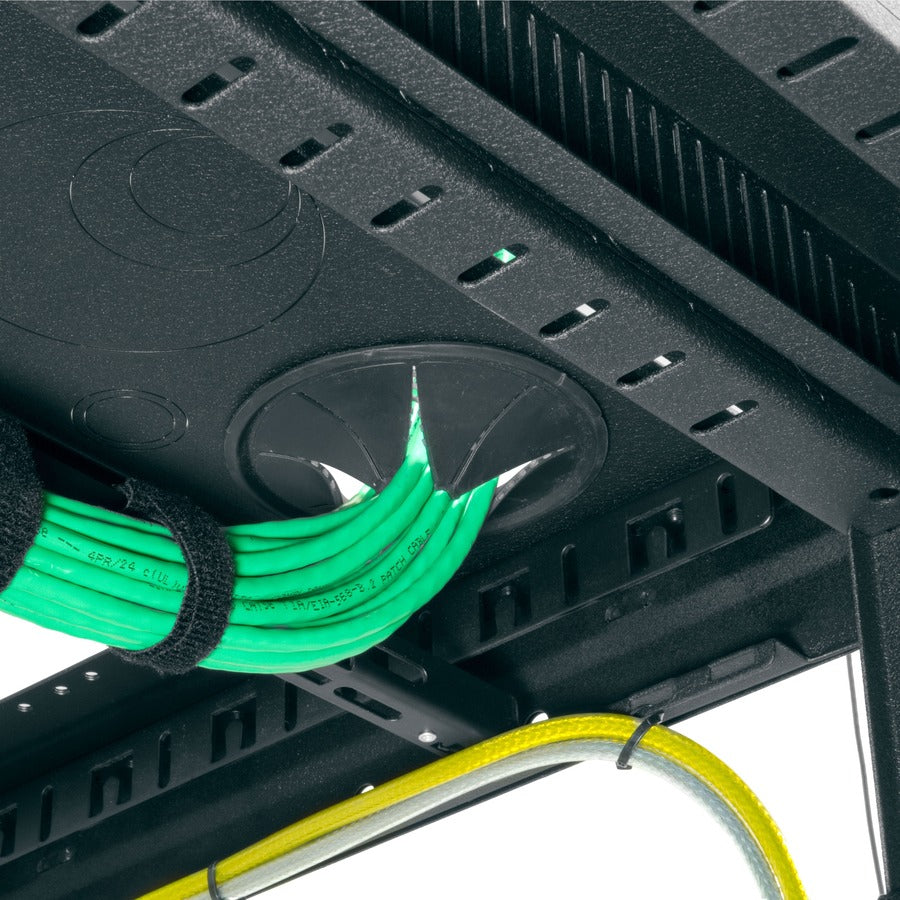

          • Cable entry choices include generous laser knockouts and choice of trade size openings and/or grommetted pass-throughs

          • The generous 21" wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides

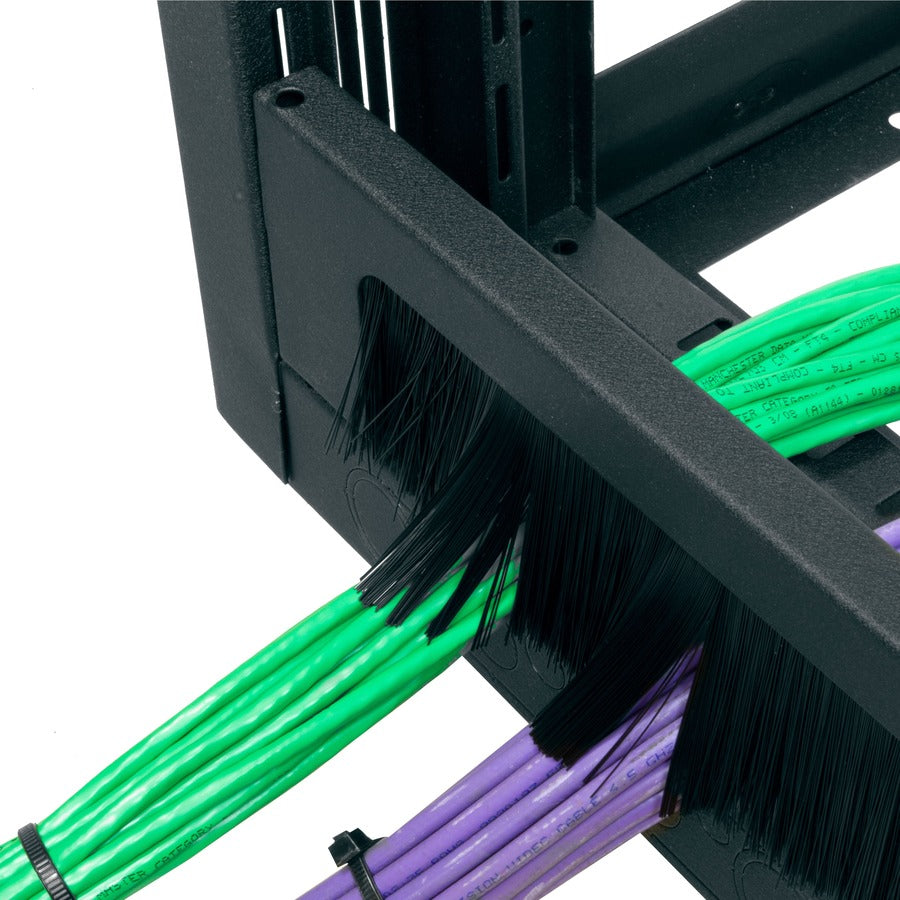

          • Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing

          Product Type: Rack Cabinet
          Environmentally Friendly: Yes
          Environmental Certification: GREENGUARD
          Static/Stationary Weight Capacity: 12000 lb
          Rack Depth: 24.38"
          Product Color: Black
          Product Material: Steel
          Product Series: BGR
          Rack Width: 19"
          Rack Height: 19U
          Brand Name: Middle Atlantic
          Form Factor: Floor Standing
          Manufacturer: Legrand Group
          Product Name: BGR Series Enclosure
          Manufacturer Part Number: BGR-1927
          Manufacturer Website Address:
          Limited Warranty: Lifetime
