19" X 19" X 12" Nema 3 Enclosure With Fan Al191912N3-Ft

19" X 19" X 12" Nema 3 Enclosure With Fan Al191912N3-Ft

SKU:AL191912N3-FT

$1,445.85
$1,445.85
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

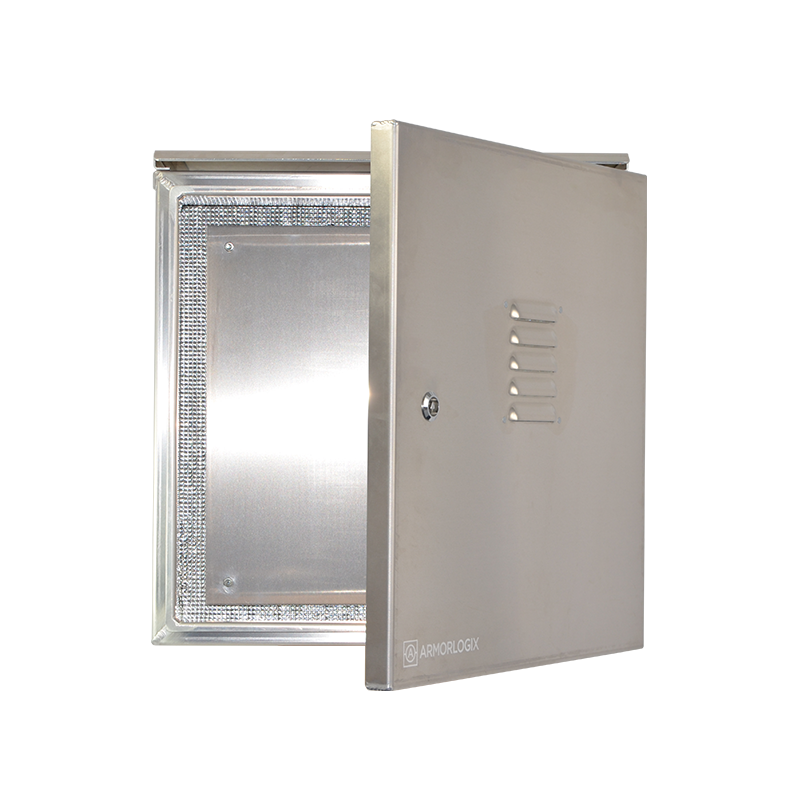

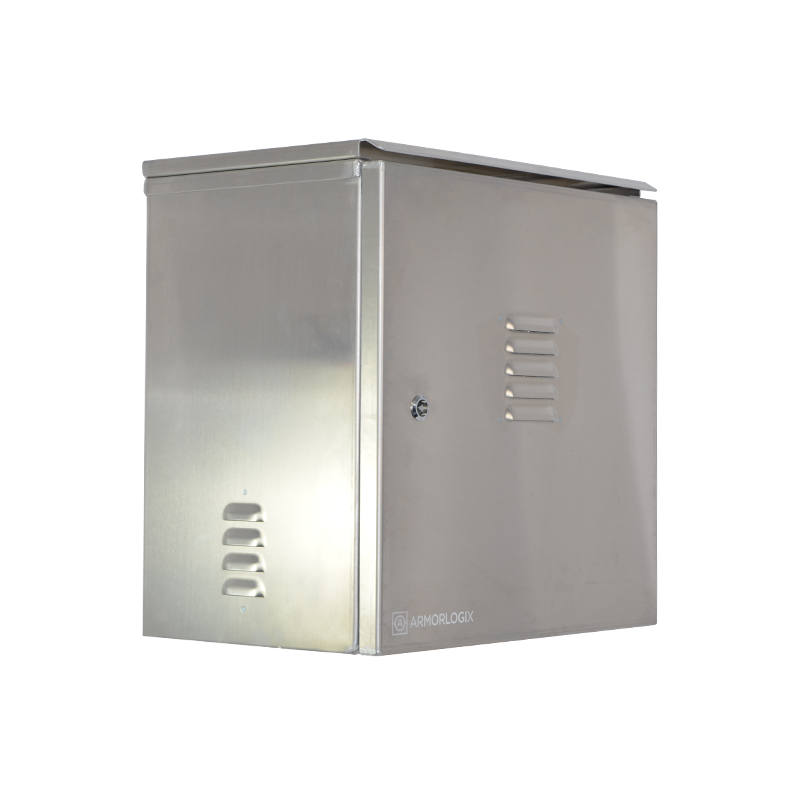

          19″ X 19″ X 12″ NEMA 3 ENCLOSURE WITH FAN AL191912N3-FT



          • Constructed For Indoor & Outdoor Application
          • Durable 1/8” 5052 Aluminum Construction
          • Weathertight 1/4″ Rubber Door Seals
          • Screened Vents On Sides & Door
          • Adjustable / Removable Equipment Mounting Plate
          • Security Lock with Key
          • A pair of Wall / Pole Enclosure Mount Plates are included

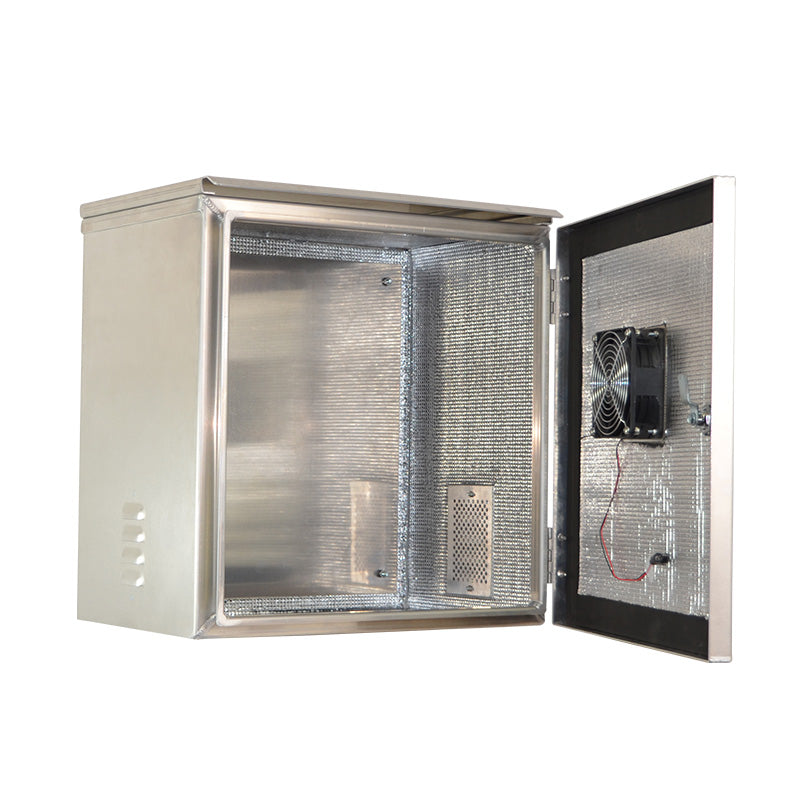

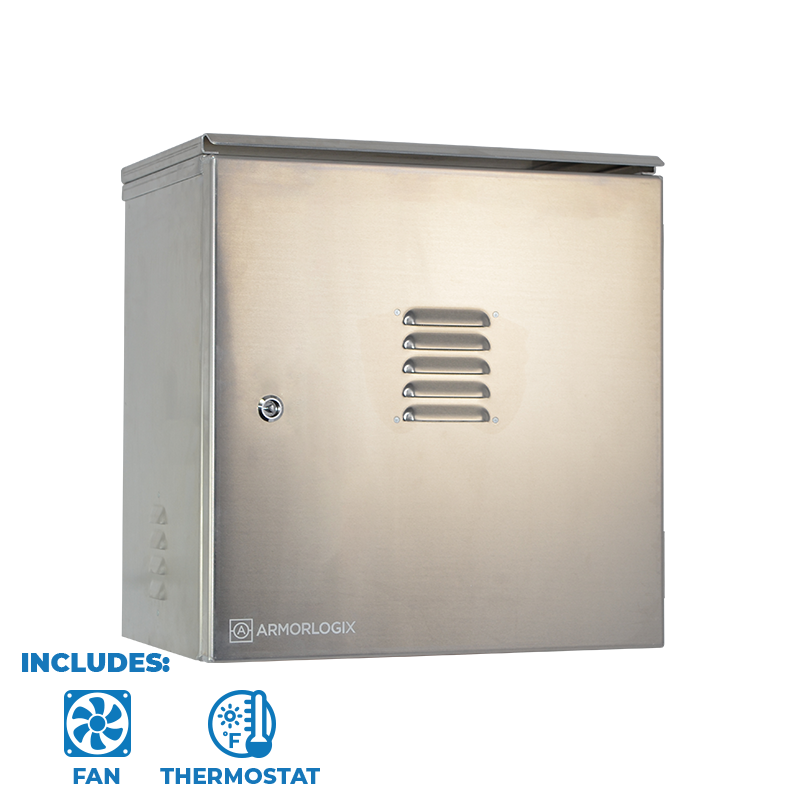

          • Includes installed thermostatic fan



          OVERVIEW

          19″ x 19″ x 12″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

          Applications: The AL191912N3-FT is commonly found in data centers, guarding gates, housing controls, along river and ocean fronts, on docks, in boat storage facilities or marinas, commercial areas, and more.

          SPECIFICATIONS

          Material   1/8" 5052 Aluminum
          NEMA Rating   3
          Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
          Door Seals   1/4" Weather Tight Neoprene
          Equipment Mounting Plate   1x (16" x 17")
          Security Lock   Yes (2x keys included)
          Dimensions: External   19” W x 19.84” H x 13.1” D
          Dimensions: Internal Max   18.625” W x 18.715” H x 12.625” D
          Dimensions: Internal Min   18.625” W x 18.715” H x 9.25” D
          Weight   32 lbs.

          RESOURCES

          PDF Spec Sheet – Download
