16Port Hdmi Kvm Switch,

Description :

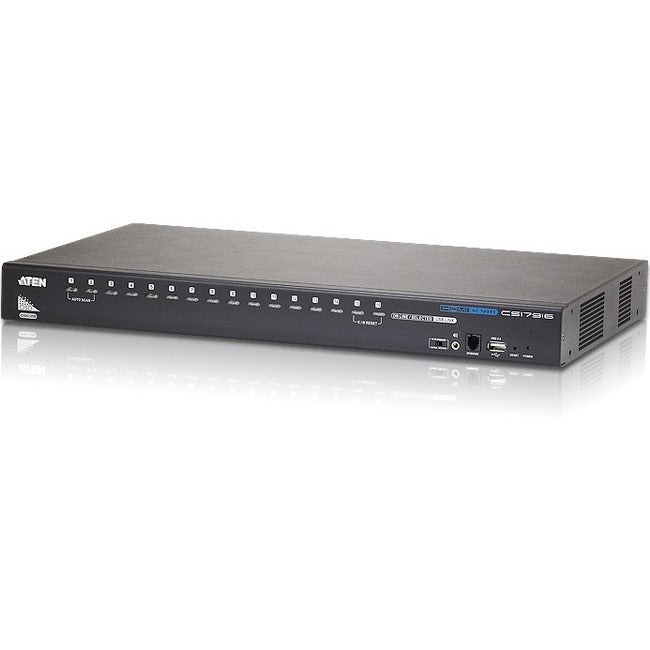

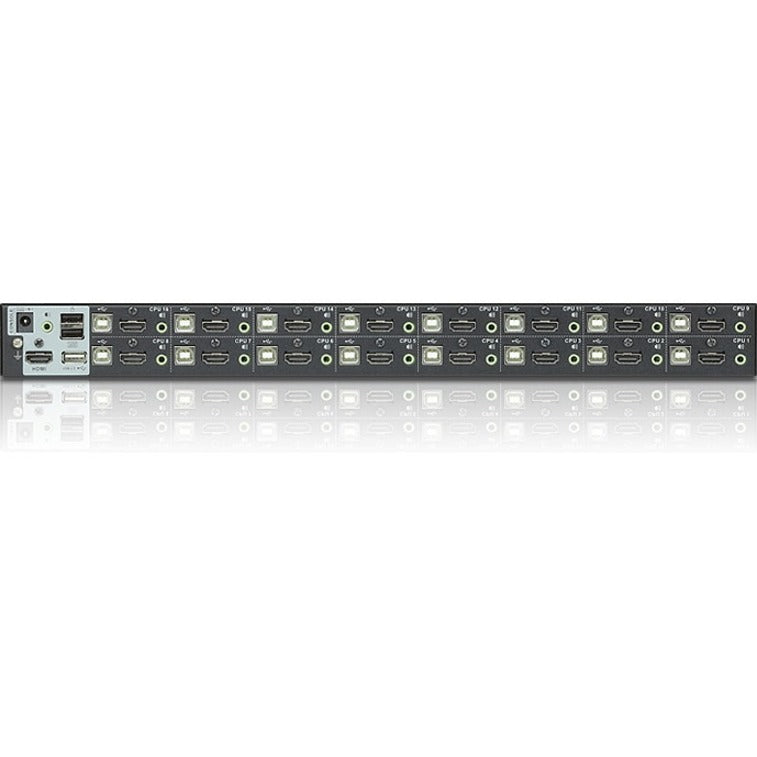

ATEN 16-Port USB HDMI KVM Switch-TAA Compliant

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.

The CS17916 can be cascaded up to two levels - to control up to 256 computers - all from a single console. In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS17916 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

More from the Manufacturer

• Firmware upgradable


• Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports


• Independent switching of KVM and USB focus


• OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information


• Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)


• 2-port USB 2.0 hub built in


• Cascadable to two levels-control up to 256 computers


• Multi-Display feature - stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)


• HDMI compatible


• One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: CS17916
Product Name: 16-Port USB HDMI KVM Switch
Manufacturer Part Number: CS17916
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:

• 16-Port USB HDMI KVM Switch


• Rack Mounting Kit


• 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH)


• 1 x Firmware Upgrade Cable


• 1 x Power Adapter


• 1 x Foot Pad Set (4 pcs)


• 1 x Quick Start Guide
