16" X 16" X 10" Nema 3 Enclosure Al161610N3
Roll over image to zoom in Click on image to zoom
16" X 16" X 10" Nema 3 Enclosure Al161610N316" X 16" X 10" Nema 3 Enclosure Al161610N316" X 16" X 10" Nema 3 Enclosure Al161610N316" X 16" X 10" Nema 3 Enclosure Al161610N316" X 16" X 10" Nema 3 Enclosure Al161610N3

16" X 16" X 10" Nema 3 Enclosure Al161610N3

ArmorLogixSKU: AL161610N3
Price:
$1,016.40
 More payment options

Description

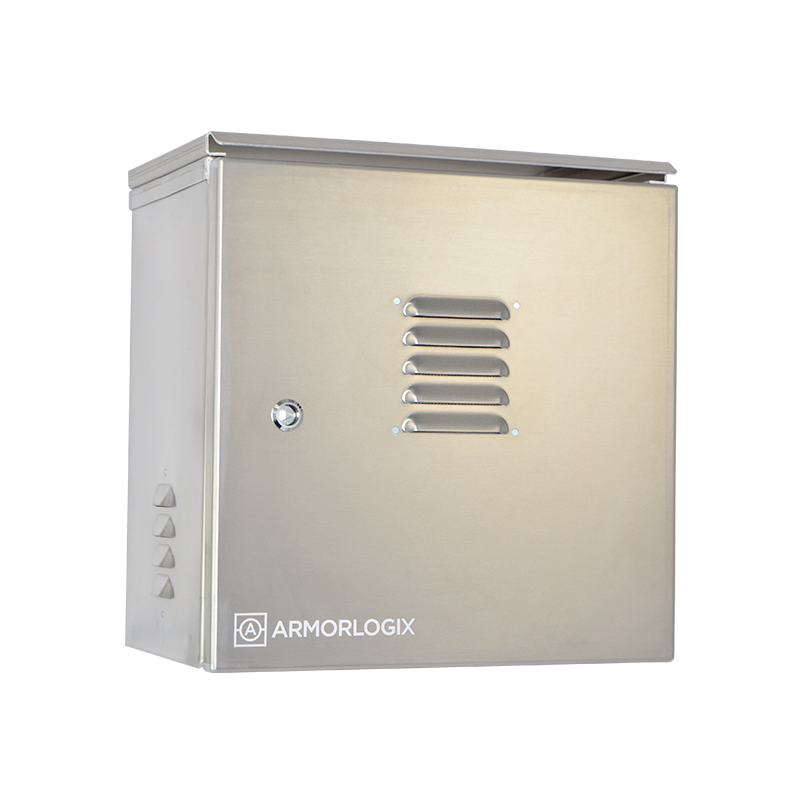

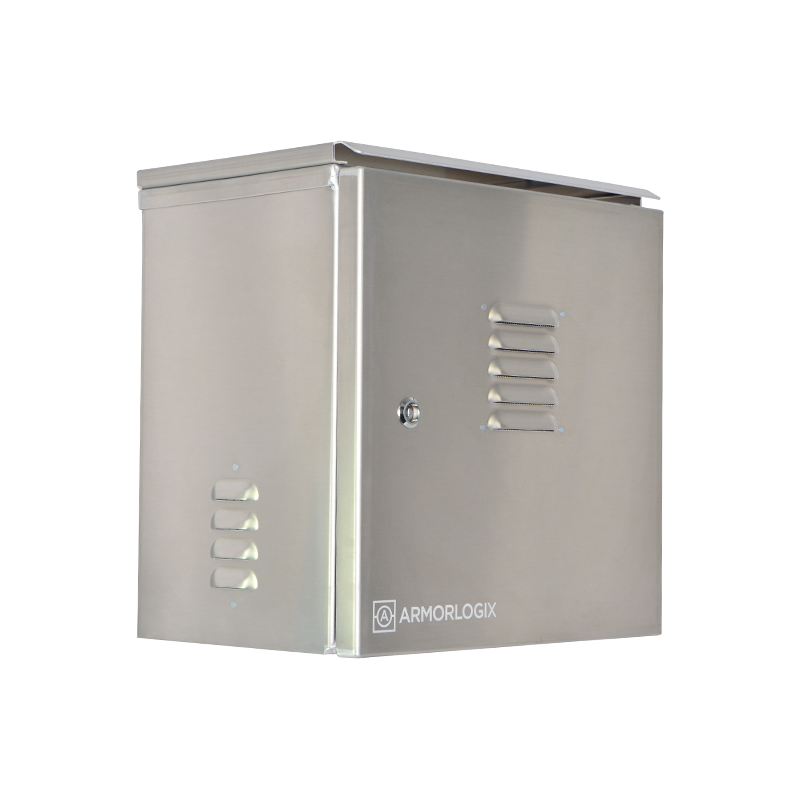

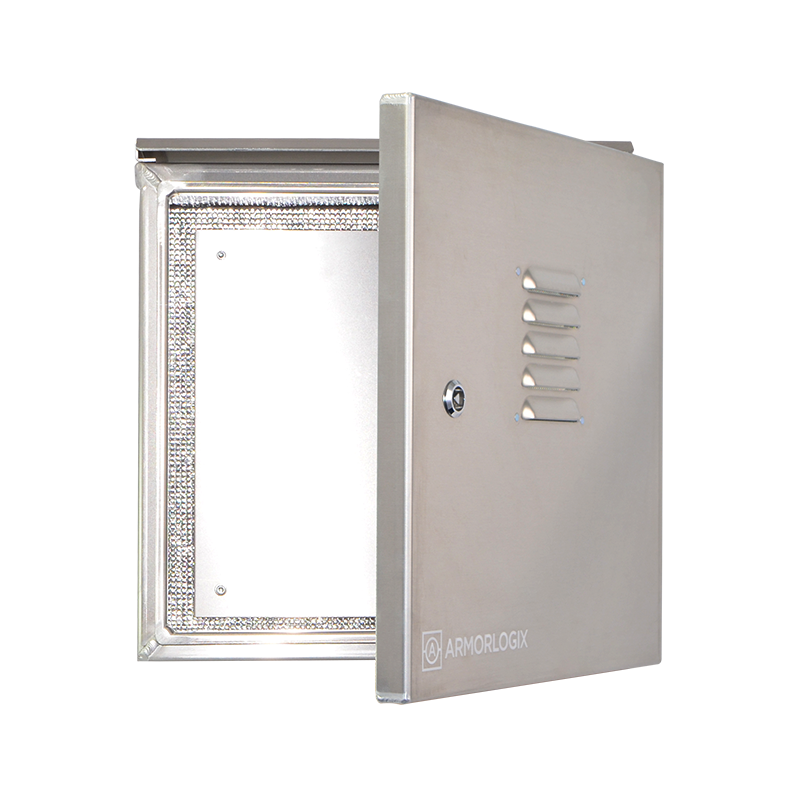

16″ X 16″ X 10″ NEMA 3 ENCLOSURE AL161610N3



  • Constructed For Indoor & Outdoor Application
  • Durable 1/8” 5052 Aluminum Construction
  • Weathertight 1/4″ Rubber Door Seals
  • Screened Vents On Sides & Door
  • Adjustable / Removable Equipment Mounting Plate
  • Security Lock with Key
  • A pair of Wall / Pole Enclosure Mount Plates are included

OVERVIEW

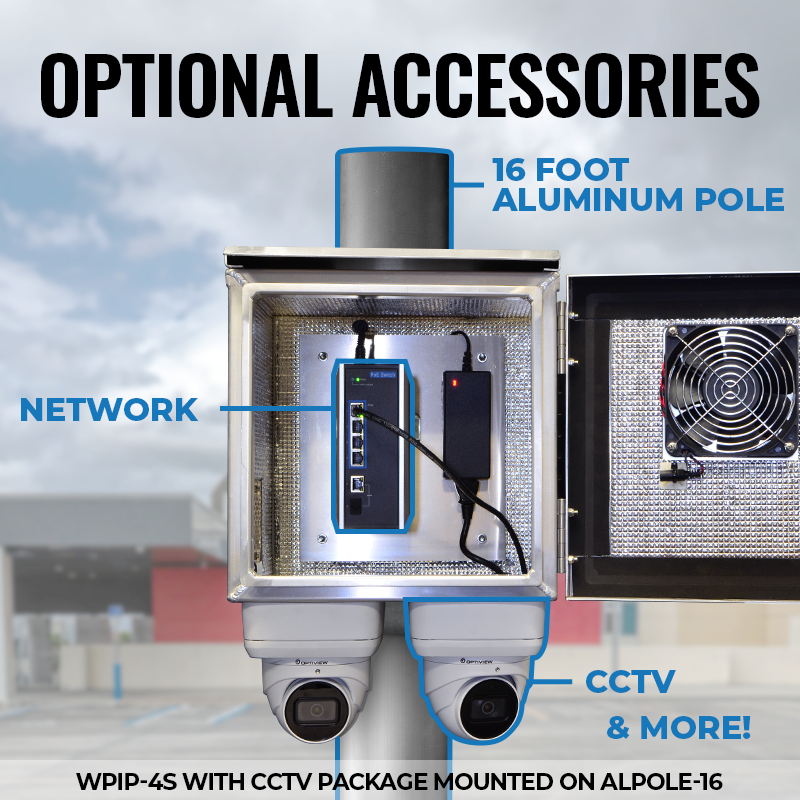

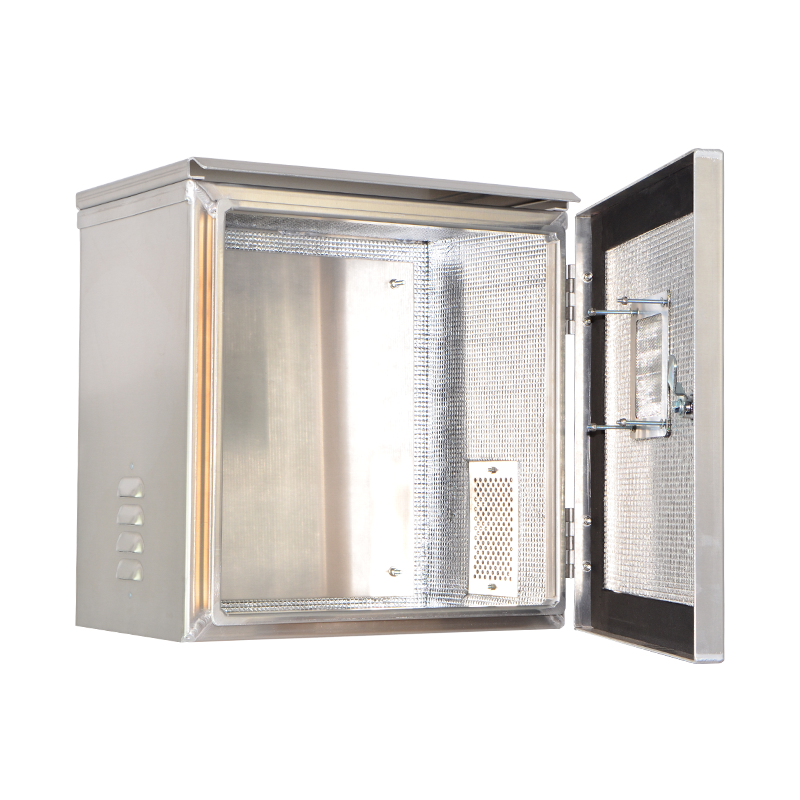

16″ x 16″ x 10″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. Temperature control available with an optional thermostatic fan, heater, or both depending on your needs.

Applications: The AL161610N3 enclosure is commonly installed at gate entries, in manufacturing facilities, data centers, airports, municipal areas, and more.

SPECIFICATIONS

Material   1/8" 5052 Aluminum
NEMA Rating   3
Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
Door Seals   1/4" Weather Tight Neoprene
Equipment Mounting Plate   1x (13" x 14")
Security Lock   Yes (2x keys included)
Dimensions: External   16” W x 16.875” H x 11.375” D
Dimensions: Internal Max   15.625” W x 15.625” H x 10.875” D
Dimensions: Internal Min   15.625” W x 15.625” H x 7.5” D
Weight   23 lbs.

RESOURCES

PDF Spec Sheet – Download
