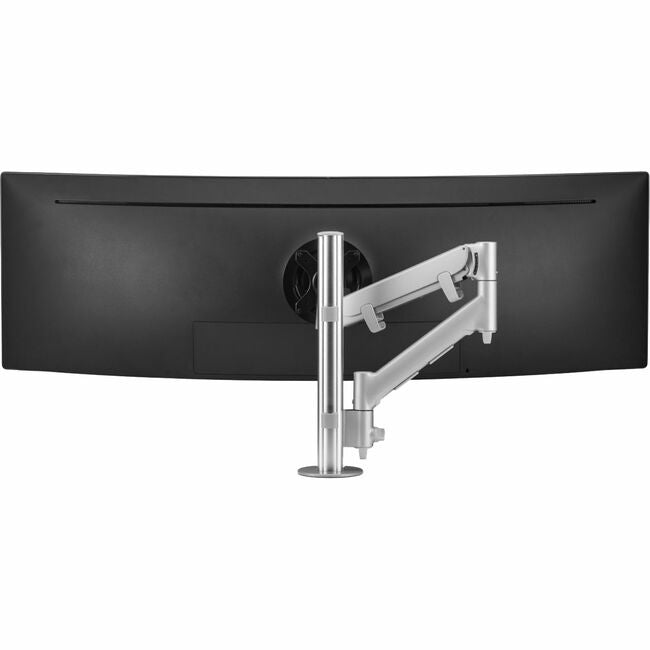

Atdec Modular Desk Mount for Monitor, Display Screen, Curved Screen Display, All-in-One Computer, Flat Panel Display - Silver
The AWMS-HX40 is a heavy duty monitor arm attached to a 15.7" post. Its spring-assisted design with three points of articulation enables effortless adjustment from a seated position even for heavy displays. It supports monitors from 13lbs to 35lb and will work well with any curved, large or all-in-one PC display.
This solution is part of the Atdec modular family and consists of the following individual components:
1 x AWM-LTH Heavy duty tilt head, 1 x AWM-AHX dynamic arm, 1 x AWM-LC channel clamp and 1 x AWM-P40G 15.7" post.
Choose your preferred desk fixing option (not included).
Ideal for: Curved monitors, heavy and large display, and all-in-one PCs. Spring-assisted arm provides the ultimate in ergonomic support and allows the display to be adjusted effortlessly from a seated position.
Upgrades: Additional arms can be added to create either dual or triple display configurations. The display mounting head can be replaced with the AWM-LR dual crossbar (sold separately).
Functionality specifications:
- Flat screen monitors: load from 13lbs to 35lb per monitor
- Curved screen monitors: load from 13lbs to 26.5lb per monitor
- 75 x 75 or 100 x 100 VESA
- Arm reach: 23.5"
- Landscape to portrait monitor rotation
- Glare control and optimal viewing angle adjustment via tilt and pan capabilities
- Focal distance control
Design considerations:
- Ergonomic spring-assisted movement for easy adjustment
- Small footprint
- Modular, adaptable and upgradeable design
- Available in Silver, Black or White finish
- Sleek, supple design
- Made of durable aluminum that can be easily recycled at the end of life
Installation:
- Simple assembly using modular parts
- Spring-tension visual gauge to assist with multiple desk installations
- 20-degree tool-free monitor tilt adjustment
- Built-in optional arm rotation stopper to prevent interference with walls or desk partitions
- Choice of desk mounting options
- Advanced cable management
- Sustains a maximum load capacity of 35 lb
- Suits displays with 75 x 75 mounting hole pattern
Product Type: Desk Mount
Vesa Mount Compatible: Yes
Vesa Mount Standard: 100 x 100
Product Color: Silver
Product Material: Aluminum
Brand Name: Atdec
Manufacturer: Atdec Pty Ltd
Product Name: Post Mounted Spring-assisted Monitor Arm
Product Line: Modular
Application/Usage: Desk
Manufacturer Part Number: AWMS-HX40-H-S
Manufacturer Website Address: http://www.atdec.com
Package Contents:
- 1 x AWM-AHX-S23.5" Dynamic Arm
- 1 x AWM-LTH-S Heavy duty tilt head. VESA 75 x 75, 100 x 100
- 1 x AWM-P40G-S15.7" post
- 1 x AWM-LC-S Mounting post channel clamp for AWM-AD and AWM-AHX arms
- 1 x AWM-FH-S Heavy duty F-clamp desk fixing
