Pure Sine Wave vs. Simulated Sine Wave: Understanding the Differences
In the world of Uninterruptible Power Supplies (UPS), the type of output waveform is a crucial feature that often comes into play - Pure Sine Wave and Simulated Sine Wave. These terms, while perhaps cryptic to the uninitiated, are vital in determining the suitability of a UPS for different types of electronic equipment. Let's break down these concepts to understand the differences and why they matter.
Pure Sine Wave: The Ideal Power Waveform
A Pure Sine Wave is the type of waveform that closely replicates the power generated by a utility company. It's a smooth, continuous wave that alternates symmetrically, making it the ideal waveform for all types of electrical devices.
Key Characteristics of Pure Sine Wave:
- Smooth and Consistent: The wave flows in a uniform, periodic oscillation, which is ideal for sensitive electronic equipment.
- Compatibility: Pure Sine Wave is compatible with nearly all types of electronic devices, including those with variable speed motors, medical equipment, and server computers.
- Reduced Noise and Heat: Electronics running on a Pure Sine Wave operate with less noise and generate less heat, thereby increasing efficiency and lifespan.
Best Use Cases:
Pure Sine Wave UPS systems are best used for sensitive electronics, medical equipment, high-end audio/video equipment, and devices with inductive loads like motors and compressors.
Simulated Sine Wave: An Economical Alternative

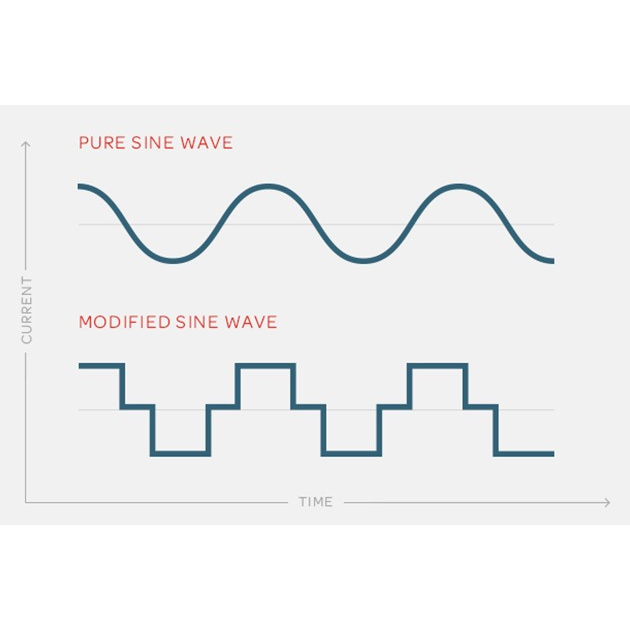

Simulated Sine Wave, also known as Modified Sine Wave, is a stepped approximation of a Pure Sine Wave. It's a more economical solution, creating a wave that somewhat resembles a sine wave but with sharp angles rather than smooth curves.
Key Characteristics of Simulated Sine Wave:
- Stepped Approximation: The wave is more blocky and less smooth, with a series of steps or flat plateaus that approximate the smooth curve of a sine wave.
- Compatibility Issues: Some sensitive electronic devices might not work efficiently or could potentially be damaged by a Simulated Sine Wave.
- Cost-Effective: These UPS systems are generally less expensive than their Pure Sine Wave counterparts.
Best Use Cases:
Simulated Sine Wave UPS systems are suitable for less sensitive electronics, such as desktop computers, basic office equipment, and other devices that don't require a high degree of waveform precision.
Why the Difference Matters
1. Device Compatibility: Not all devices are compatible with a Simulated Sine Wave. Sensitive or high-precision equipment generally requires a Pure Sine Wave for safe and efficient operation.
2. Operational Efficiency: Devices operating on a Pure Sine Wave run cooler and more efficiently, which can prolong their lifespan.
3. Protection of Equipment: Using the wrong type of waveform can lead to malfunctions, decreased performance, or even damage to electronic equipment.
Conclusion
When choosing a UPS, understanding the difference between Pure Sine Wave and Simulated Sine Wave is crucial. Pure Sine Wave UPS systems offer the highest compatibility and efficiency, especially for sensitive and high-end devices, but come at a higher cost. Simulated Sine Wave UPS, while more affordable, might not be suitable for all types of equipment. The choice depends on the specific needs and types of devices you are looking to protect. Always consider the compatibility and operational requirements of your equipment to ensure you select the right type of UPS system.
