Description

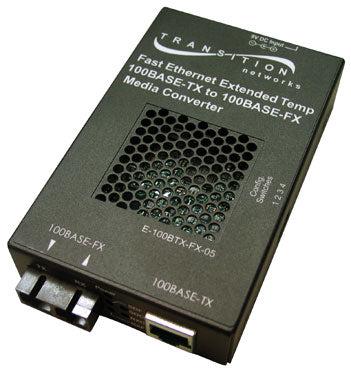

Fast Ethernet Media Converter, 100BASE-TX (RJ-45) [100 m/328 ft.], 100BASE-FX 1300nm multimode (SC) [2 km/1.2 mi.]
Transition Networks E-100BTX-FX-05(SCHT). Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100BASE-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Safety: UL, CSA, Certification: FCC A, CISPR/EN55022 A, EN55024, EN61000, CE. Package weight: 900 g
Transition Networks's 100BASE-TX to 100BASE-FX Extended Temperature Media Converters make cost-effective integration of twisted pair and fiber optics in industrial environments easier than ever before.
- Extended Temperature Capable This converter is designed to operate in environments where ambient temperatures can rise to as high as 65°C (149°F). - AutoCross™ Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration. - Auto-Negotiation (802.3u) Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link. - Link Pass Through Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal. - Far End Fault (FEF) A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link. - Pause (IEEE 802.3xy) Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. - The converter will also automatically re-establish link when connected to two 10/100 auto-negotiating switches if link is lost. With other manufacturers' converters the user must intervene to re-establish link.
