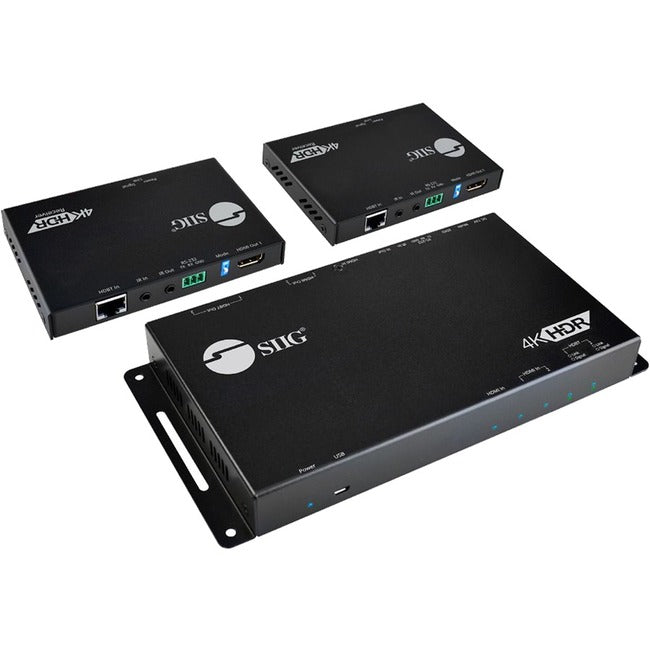

SIIG HDMI 2.0 4K HDR 1x2 Splitter HDBaseT Extender with Auto-scaling
Extends HDMI signals to two HDMI displays over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support
- Extends Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable
- Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit
- Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit

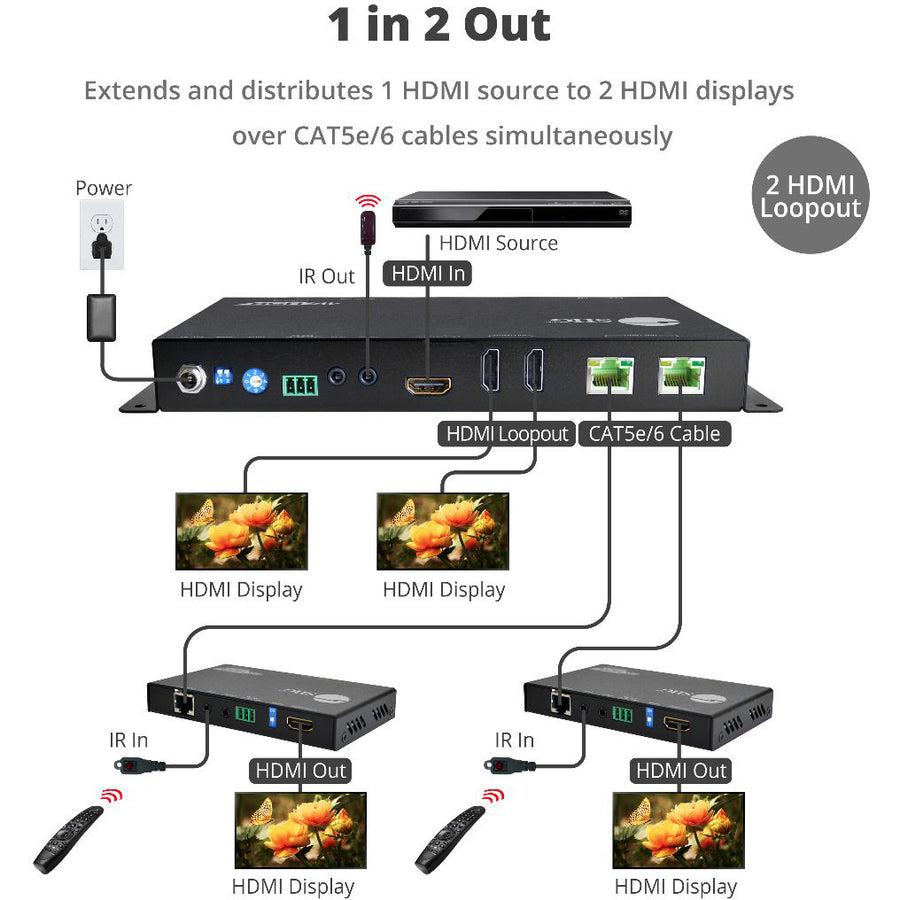

- Supports two HDMI loop-outs for additional local display connections

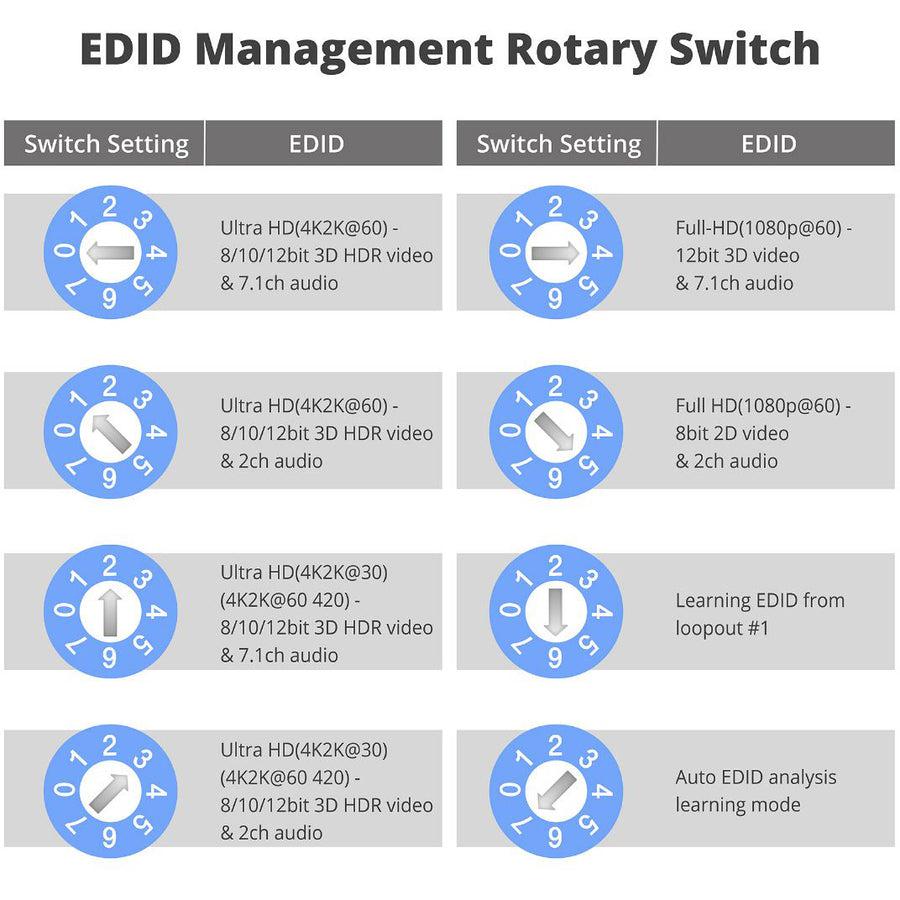

- Supports EDID management for increased device compatibility
- Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
- Supports bi-directional IR pass-through signal from 30KHz to 56KHz frequency
More from the Manufacturer
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 1.02"
Transmitter Width: 4.60"
Transmitter Depth: 9.29"
Receiver Height: 0.63"
Receiver Width: 2.83"
Receiver Depth: 4.65"
Transmitter Weight (Approximate): 1.85 lb
Receiver Weight (Approximate): 5.28 oz
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Desktop
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 4K HDR 1x2 Splitter HDBaseT Extender with Auto-scaling
Manufacturer Part Number: CE-H24M11-S1
Manufacturer Website Address: http://www.siig.com

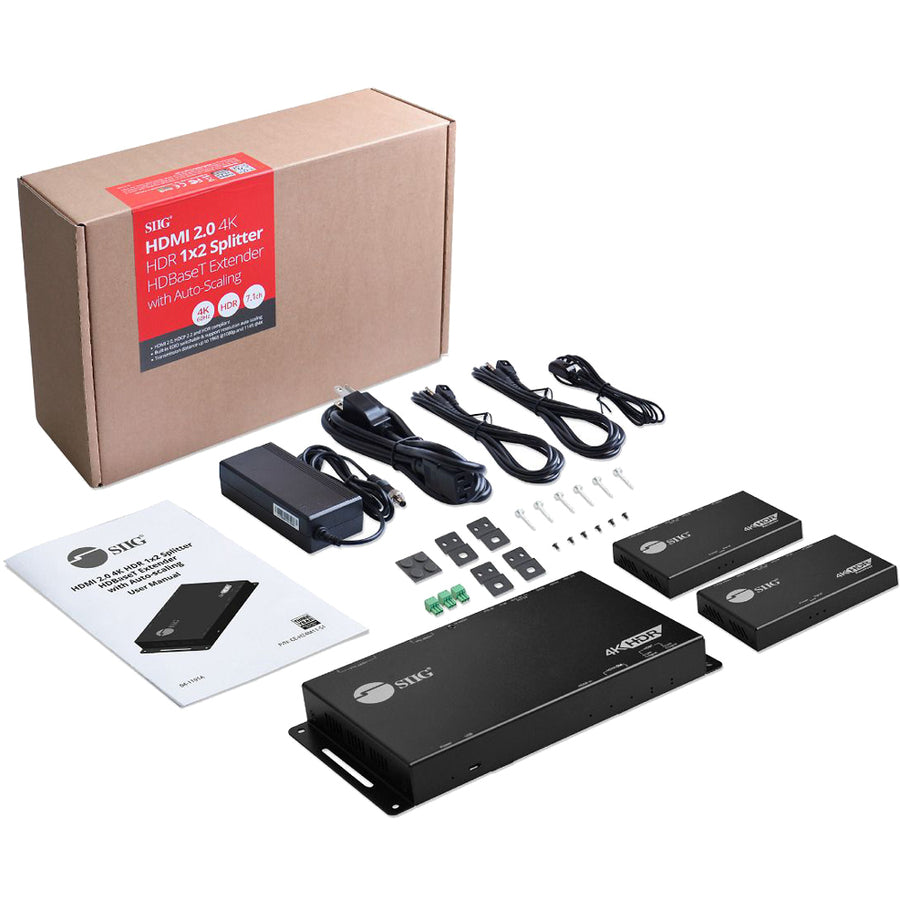

Package Contents:
- 1 x Transmitter
- 2 x Receivers
- Power Adapter DC 12V / 3.3A
- 1 x IR Blaster Cable
- 2 x IR Receiver Cable
- 3 x Terminal Block
- Mounting kit (Screw kit: 4x20 mm 6pcs, Mounting ears 4pcs, Screw kit: 3x4 mm 8pcs)
- 4 x Rubber pad
- User Manual
Limited Warranty: 3 Year
