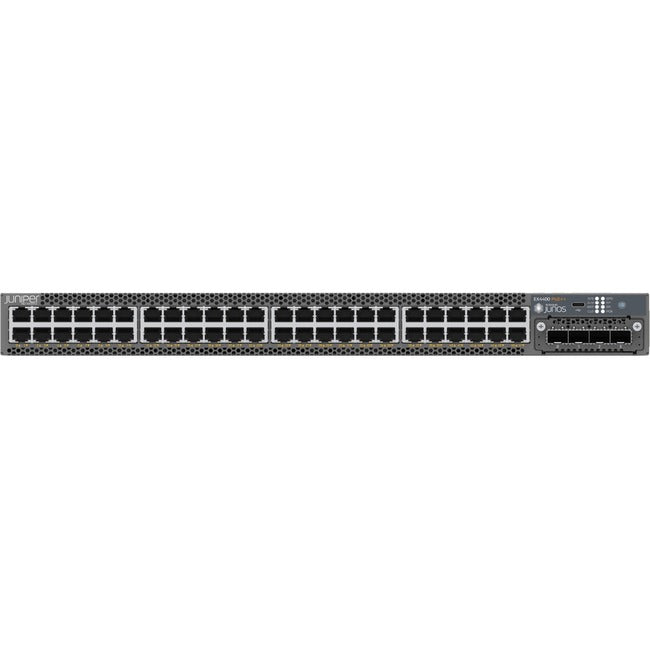

Juniper EX4400-48P Ethernet Switch
The EX4400 line of Ethernet access switches is designed for the AI era and optimized for the cloud. The platforms boost network performance and visibility, meeting the security demands of today as well as for networks of the next decade.
As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4400 is purpose-built for, and managed by, the cloud. The switch leverages Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, user experience-first approach to access layer switching.
Product Description
The Juniper Networks® EX4400 line of Ethernet switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise campus and data center networks. The EX4400 switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist™ Wired Assurance, the EX4400 can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4400 include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Media Access Control Security (MACsec) AES256
- Power over Ethernet (PoE)++ (90W per port)/PoE
- Standards-based microsegmentation using group-based policies (GBP)
- Flow-based telemetry to monitor traffic flows for anomaly detection
- 10-member Virtual Chassis support
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4400 supports a variety of applications, including campus, branch, and data center top-of-rack deployments. As requirements grow, Juniper's Virtual Chassis technology allows up to 10 EX4400 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
The EX4400 line includes:
- The EX4400-48F, which offers 12 x 10GbE and 36 x 1GbE fiber access ports
- The EX4400-24T, which offers 24 x 1GbE non-PoE access ports
- The EX4400-24P, which offers 24 x 1GbE PoE access ports, delivering up to 90 W per port and a power budget of 1800 W
- The EX4400-48T, which offers 48 x 1GbE non PoE-access ports
- The EX440-48P, which offers 48 x 1GbE PoE access ports, delivering up to 90 W per port and a power budget of 1400 W

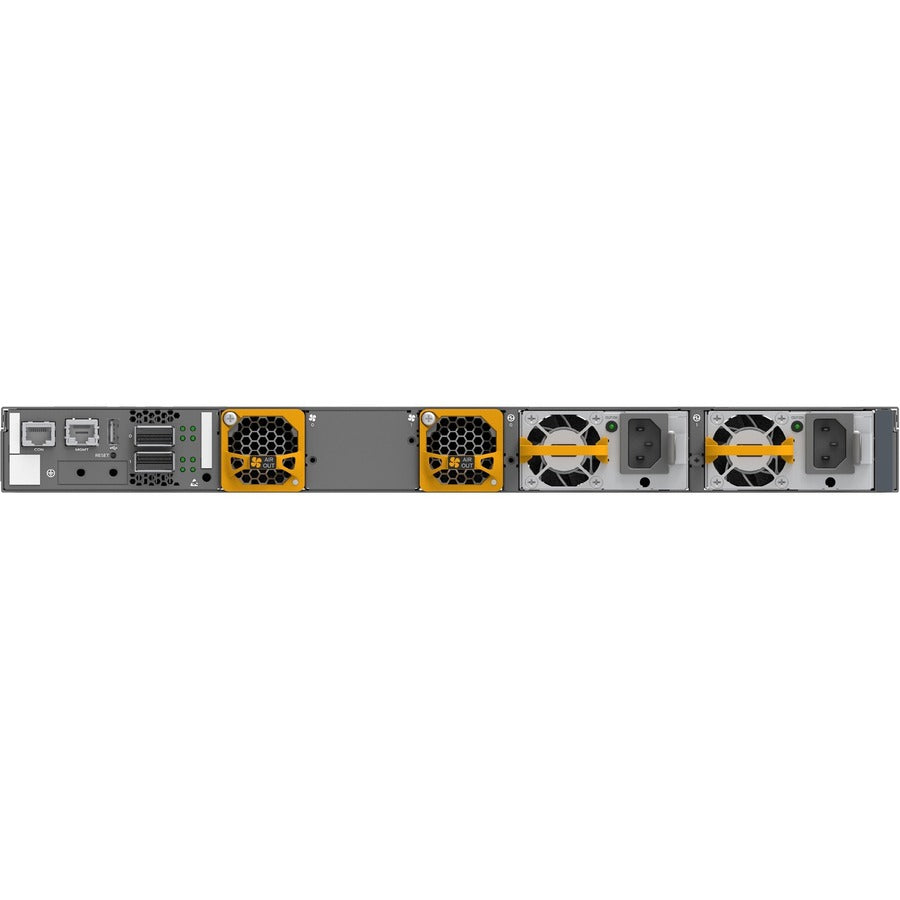

Each EX4400 model offers 4 x 10GbE SFP+/25GbE SFP28 uplinks and two fixed 100GbE Virtual Chassis stacking ports, which can be reconfigured as Ethernet ports as needed. The switches also include high availability (HA) features such as redundant, hot-swappable internal power supplies and field-replaceable fans to ensure maximum uptime. The PoE-enabled EX4400 switch models offer standardsbased 802.3af/at/bt (PoE/PoE+/PoE++), delivering up to 90 watts on all ports.
- Features 48 networking ports to establish large network
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Gigabit Ethernet port for ultra-fast network speeds
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Type: Ethernet Switch
Compatible Rack Unit: 1U
Taa Compliant: Yes
Product Series: EX4400
Brand Name: Juniper
Form Factor: Rack-mountable
Manufacturer: Juniper Networks, Inc
Product Model: EX4400-48P
Product Name: EX4400-48P Ethernet Switch
Manufacturer Part Number: EX4400-48P-TAA
Manufacturer Website Address: http://www.juniper.net
Weight (Approximate): 13.01 lb
